TL-WPA8630 KIT

New

AV1200 Gigabit Powerline ac Wi-Fi Kit

  • AC1200 Dual band Wi-Fi – delivers combined speeds of up to 1200Mbps, providing fast and seamless network for multiple devices
  • AV1200 Powerline Speed – Fully meet the demand for bandwidth-intensive activities with ultra-fast powerline transfer speed of up to 1200Mbps
  • Wi-Fi Clone – Automatically copies the network name (SSID) and password of your router with the touch of the Wi-Fi clone button
  • Wi-Fi Auto-Sync – Makes it easy to add additional extenders to your powerline network by uniformly syncing settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
  • Plug, Pair, and Play –Set up your powerline network and start enjoying fast, seamless wired/wireless connections in a matter of minutes

Extend Blazing Fast Wi-Fi
Anywhere in Your Home

  • AV1200 Gigabit Powerline ac Wi-Fi Extender

  • TL-WPA8630 KIT

  • TL-PA8010P

  • TL-WPA8630

Instant Wi-Fi in Any Room

The TL-WPA8630 KIT expands your home’s Wi-Fi coverage into areas where the wireless signal from the main router is weak or nonexistent. The range extender kit can build a unified network using your home’s existing powerlines and allow you to enjoy Wi-Fi coverage in any area with a power outlet.

Fast Dual Band Wi-Fi Speeds – Up to 1200Mbps

The TL-WPA8630 utilizes 802.11ac Wi-Fi to deliver dual band connections with combined speeds of up to 1200Mbps, including 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. The combination of impressive speed and convenient powerline networking allows you to provide fast, reliable connections throughout your entire home. This is perfect for 4K streaming and online gaming, on multiple devices at the same time.

    • 5GHz

    • 867Mbps

    • 2.4GHz

    • 300Mbps

Excellent Powerline Speed - Up to 1200Mbps

Advanced HomePlug AV2 technology means the extender supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

    • up to

    • 0Mbps

      • AV1

      • 500Mbps

    •

      • AV2

      • 1200Mbps

    •

  • Excellent Powerline Transfer Speed

2X2 MIMO with Beamforming
  • More Stable Connections

    2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability.

  • Expansive Coverage

    2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home, particularly for previously hard to reach outlets.

MIMO SISO

*The MIMO functionality that accompanies the HomePlug AV2 standard significantly improves data transfer rates, especially during peak use hours.

2X2 MIMO with Beamforming

More Stable Connections

2X2 MIMO established multiple simultaneous connections to get higher speeds and greater stability.

Expansive Coverage

2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home.

*The MIMO functionality within HomePlug AV2 significantly improves data transfer rates especially during peak periods.

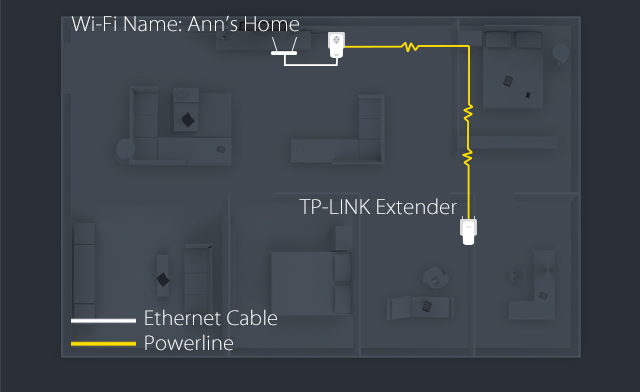

Plug, Pair, and Play

WiFi Name:Ann's Home



Pair






TP-LINK Extender



Pair


  •  Ethernet Cable
  •  Powerline


Ann's Home

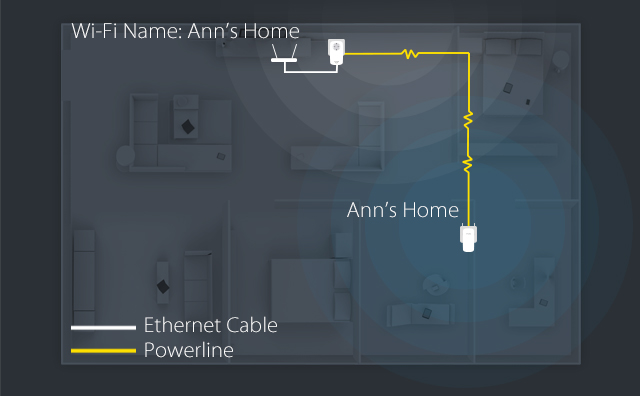

Wi-Fi Clone

Easily Expand Your Unified Network with the Wi-Fi Button

WiFi Name:Ann's Home



WPS button






TP-LINK Extender



WiFi Clone button


  •  Ethernet Cable
  •  Powerline



Ann's Home

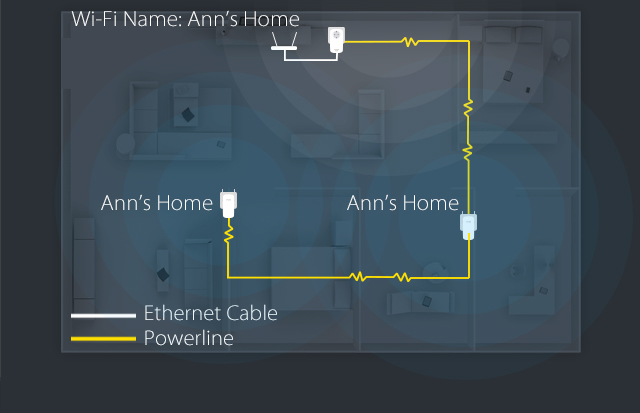

Build a Larger Powerline Network with Wi-Fi Auto-Sync

Adding additional Powerline extenders is as simple as the initial setup. It is as simple as Plug, Pair, and Play. Once this process is complete, you can manage the entire Powerline network from any extender and the changes will be implemented on all network devices instantaneously.

WiFi Name:Ann's Home







Pair



Ann's Home



Pair


  •  Ethernet Cable
  •  Powerline
  • Ease of Use 1
  • Wi-Fi Clone 2
  • Auto-Sync 3
More Gigabit Ethernet Ports, More Devices

Equipped with 3 gigabit Ethernet ports, TL-WPA8630 allows you to connect several bandwidth intensive devices such as game consoles, smart TVs or media receivers to the Internet at high speeds, just plug in network cables and enjoy fast and stable wired network anywhere at home.

Distracted by Blinking LEDs?

You can easily turn off the LED indicators by pressing the LED On/Off button or control them remotely using the tpPLC App on your mobile device or the tpPLC Utility on your computer.

Turn Off
  • The tpPLC Utility and tpPLC app make it easy to manage and secure your network. You can download the tpPLC app for iOS and Android devices.

    You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com

  •

*Powerline devices need to be connected to the same electrical circuit and must be deployed in sets of two or more. TP-LINK Powerline devices work with any HomePlug AV or HomePlug AV2 compatible Powerline devices from any brands.

HARDWARE FEATURES
Transmission Speeds Up to 1300 Mbps
Transmission Distance Up to 300 meters/1000 feet over existing electrical wiring
Standards and Protocols HomePlug AV2, IEEE 1901,
IEEE 802.3,IEEE 802.3u,
IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/ac 5GHz
Compatibility Compatible with all HomePlug AV & HomePlug AV2 standard
powerline adapters
Plug Type EU UK US FR AU CH
Interface 3 * Gigabit Ethernet Port
Button Pair, Reset, LED On/Off, Wi-Fi Clone
Power Consumption Maximum: 10.8 W (230V/50Hz)
Standby:5W (230V/50Hz)
LED Indicator Power, Powerline, Ethernet, 2.4G Wi-Fi, 5G Wi-Fi
Dimensions ( W x D x H ) TL-WPA8630:5.5 x 2.7 x 1.8 in. (140.6 x 68 x 45mm)
TL-PA8010P:5.2×2.8×1.7 in. (131×72×42 mm)
Range Up to 300 meters/1000 feet over existing electrical wiring
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 450 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
SOFTWARE FEATURES
Mesh Technology OneMesh™ Supported
Quality of Service ToS
Supports up to 4-level type QoS
Support up to 8-level VLAN priority field
Security 128-bit AES Encryption
Management TP-Link tpPLC App, or download new tpPLC Utility on PCs
Download>
Modulation Technology OFDM
IGMP IGMP v1/v2/v3
PHYSICAL
Dimensions (W×D×H) TL-WPA8630:5.5 x 2.7 x 1.8 in. (140.6 x 68 x 45mm)
TL-PA8010P:5.2×2.8×1.7 in. (131×72×42 mm)
Package Contents AV1200 Gigabit Powerline ac Wi-Fi Kit: TL-WPA8630 & TL-PA8010P
2-meter CAT.5e Ethernet Cable * 2
Quick Installation Guide
OTHERS
Certification CE, RoHS
Package Contents AV1200 Gigabit Powerline ac Wi-Fi Kit: TL-WPA8630 & TL-PA8010P
2-meter CAT.5e Ethernet Cable * 2
Quick Installation Guide
Box Dimensions (W X D X H) 9.1 x 7.5 x 3.9 in. (230x190x100 mm)
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux1
Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
1. Utility currently supports Windows 8/7/Vista/XP and Mac OS X (10.7 and later) operating system.
