TL-SG108S-M2
8-Port 2.5G Multi-Gigabit Desktop Switch
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a technician.

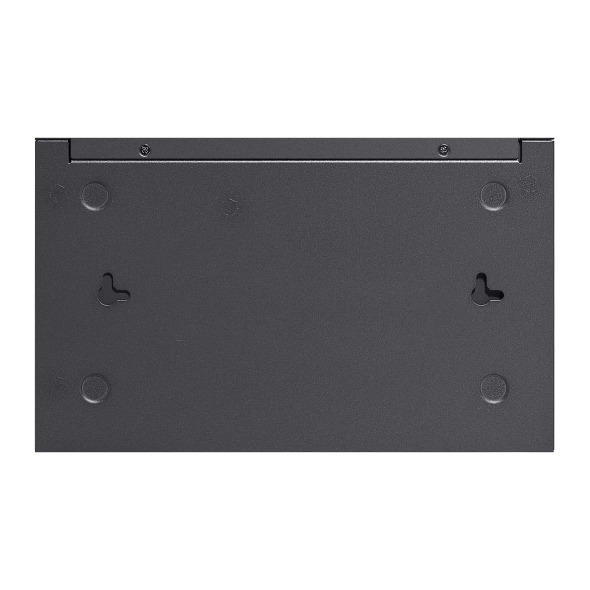

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
8-Port 2.5G Multi-Gigabit Desktop Switch
TL-SG108S-M2
-
Eight
2.5G Ports -
Hassle-Free
Cabling -
Silent
Operation -
Plug
and Play -
Multicast
Optimization -
QoS for Traffic
Prioritization -
Desktop/
Wall-Mounting -
Metal
Casing
2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
-
2.5 Gbps 2.5× Faster
-
1 Gbps
- CAT5e Cable
- CAT6 Cable
- CAT6a Cable
Unlock the peak performance of 2.5G Multi-Gig Bandwidth and Devices
-
2.5G
WiFi 6 AP -
2.5G Gaming
Computer -
2.5G
NAS/Server -
4K
Video -
Network Video
Recorder -
Printer
Fanless Design for Heat
Dissipation and Silent
Operation
Low Noise
Multiple Application Scenarios
-
LAN Party
-
Home Entertainment
-
Small and Home Offices
Plug and Play
-
1. Connect to Power
-
2. Connect the Devices
IP Phone
IP Camera
Access Point
Internet
Router
-
3. Enjoy
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Estándares y Protocolos | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Cantidad de ventiladores | Fanless |
| Fuente de alimentación externa | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED | • Power• Link/Act Indicators |
| Dimensiones (An x Pr x Al) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25.4 mm) |
| Consumo máximo de energía | 8.87 W |
| Disipación de calor máxima | 30.158 BTU/h |
| DESEMPEÑO | |
|---|---|
| Capacidad de conmutación | 40 Gbps |
| Tasa de reenvío de paquetes | 29.8 Mpps |
| Tabla de direcciones MAC | 4 K |
| Marco Jumbo | 12 KB |
| FUNCIONES DE SOFTWARE | |
|---|---|
| Características avanzadas | • 802.3X Flow Control• 802.1p/DSCP QoS• IGMP Snooping |
| Método de transmisión | Store and Forward |
| OTROS | |
|---|---|
| Certificación | CE, FCC ,RoHS |
| contenidos del paquete | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108S-M2• Power Adapter• Installation Guide• Rubber Feet |
| Ambiente | • Operating Temperature: 0–40 °C (32–104 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*Only Cat5e or better cables do not need to be replaced.
