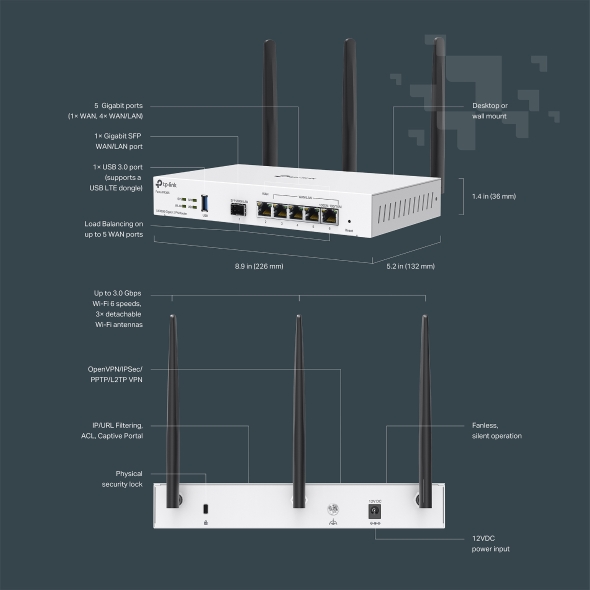

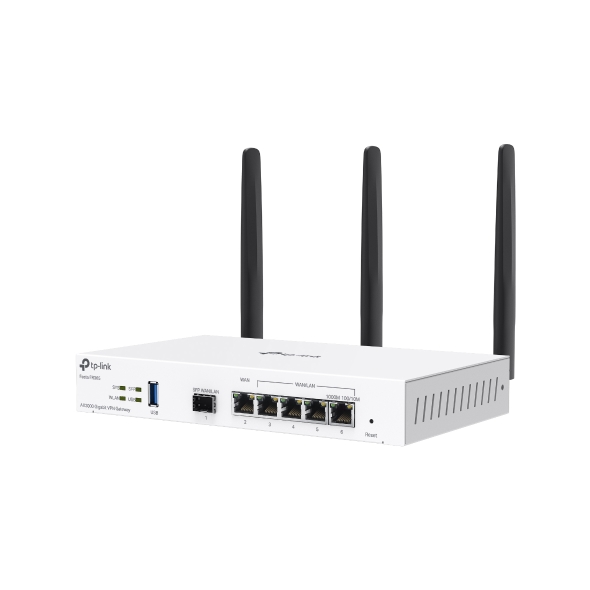

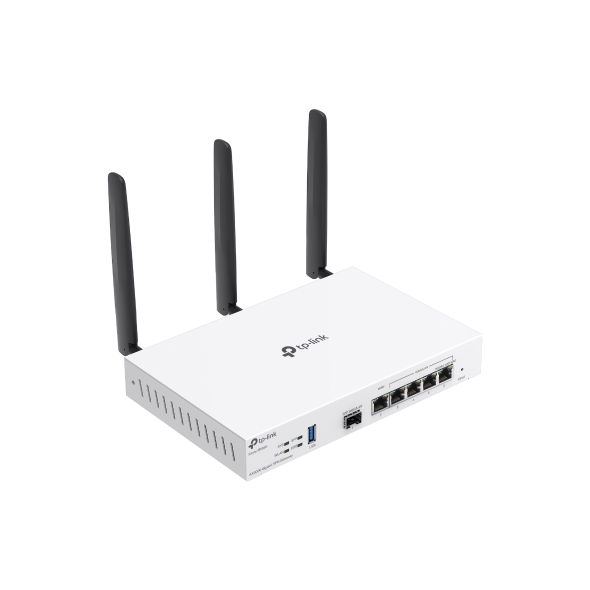

AX3000 Gigabit VPN WiFi Gateway
- Free Cloud Centralized Management: Accessible via the Festa app or the web†.
- Easy Setup and Use: No professional IT technician is required. Festa App, Self-Organizing Networking, and Zero-Touch Provisioning technology make it a breeze.
- Complete Festa Ecosystem: Business-class features with consumer-inspired simplicity. It's ideal for small businesses, home offices, cafes, retail, prosumers, advanced consumers, and large households.
- Up to 3.0 Gbps Mesh WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz△.
- 6× Gigabit Ports (Including 1 SFP): Provides high-speed Gigabit connectivity.
- 1× USB 3.0 WAN Port: Enables mobile broadband backup via a 4G/3G modem‡.
- Load Balancing on Up to 5 WAN Ports: Optimizes multi-line broadband utilization.
- High-Security VPN Options: Supports IPSec, PPTP, L2TP, and OpenVPN.
- Business-Level Quality: Features an elegant metal casing and a design suitable for desktop or wall mounting.
An Easy-to-Use
AX3000 Gigabit
VPN WiFi Gateway,
No IT Needed
-
Up to 3.0 Gbps WiFi
6 Speeds§ -
Festa Mesh & Seamless
Roaming -

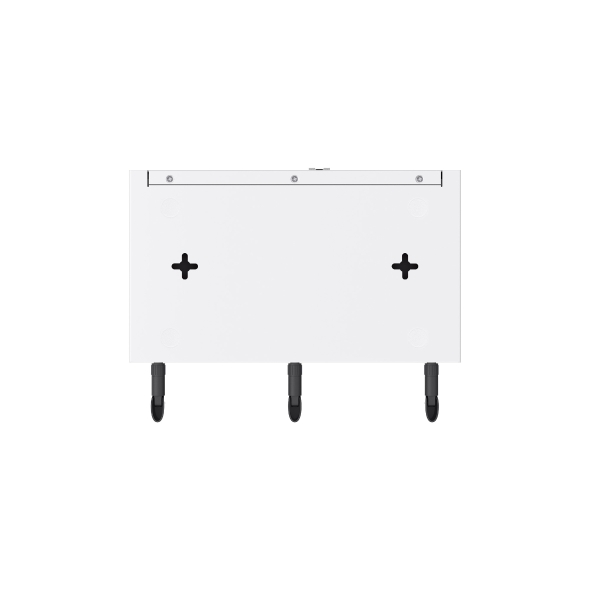

Desktop or Wall
Mount -
Load Balancing on
up to 5 WAN Ports -
Free Centralized
Management Via Cloud† -
Festa App for Easy Setup
and Management -
Zero-Touch
Provisioning (ZTP) -
OpenVPN/IPSec/PPTP/
L2TP VPN

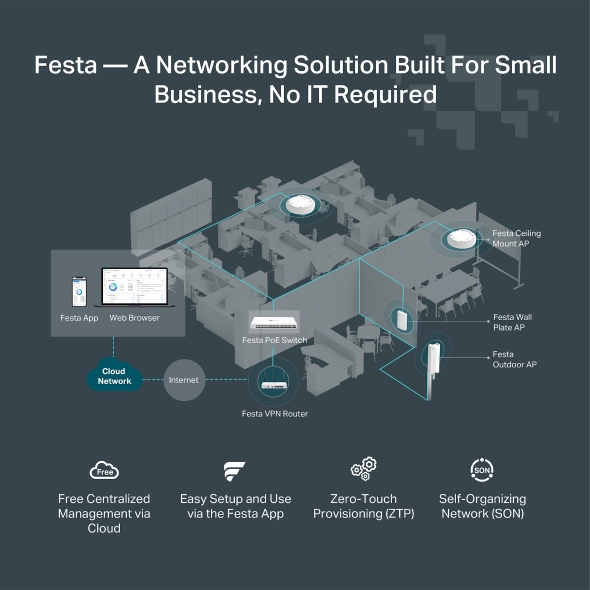

Festa 一 A Networking Solution Built For Small Business, No IT Required
Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.
Mount AP
Plate AP
Outdoor AP
Network
-
Free Centralized
Management via Cloud -
Festa App for Easy
Setup and Management -
Zero-Touch
Provisioning (ZTP) -
Self-Organizing
Network (SON)
-
Small Offices
-
Quick Service Restaurants
-
Boutique Hotels
-
Houses of Worship
-
Public Facilities
-
Large Homes
Up to 3.0 Gbps Business-Level WiFi 6 Empowers Small-Sized Business and Home Offices§
-
HE 160
Double the data at peak transmission times on a single stream△
-
OFDMA
Enables different devices to share one transmission stream, increasing efficiency△
-
1024 QAM
25% more data encoded at one time△
-
5 GHz 2402 Mbps
-
2.4 GHz 574 Mbps
Seamless Mesh WiFi — Extend WiFi without Extra Cabling and Switch
Besides, thanks to seamless roaming, enjoy uninterrupted streaming when moving between gateway and APs.
-
Access PointsAccess PointsAccess PointsWired ConnectionsSwitchGateway
Traditional Wired Networking
-
Festa
Access PointsFesta
Access PointsFesta
Access PointsWireless ConnectionsFesta VPN Gateway
Festa FR365Mesh Wireless Networking
Up to Five WAN Gigabit Ports & One USB WAN for Mobile Broadband
WAN/LAN Port
(1× WAN, 4× WAN/LAN)
a 4G/3G Modem as WAN Backup)
WAN port to raise the utilization rate of multi-line broadband.
High-Security and High-Performance VPN
OpenVPN/IPSec/PPTP/L2TP VPN effortlessly establishes secure VPN tunnels for safe internet browsing, communication between branches, or enabling remote work and study from home.
-
WiFi Voucher Authentication
Easy WiFi onboarding with stronger security and
protection than just using a shared password -
Easy to Block Unwanted Websites
Effortlessly set internet access rights and strategies
via IP/URL Filtering and Access Control List (ACL)
Festa App and Web for Easy Setup and Management
Convenient setup and on-the-go network management via the Festa app
- • Zero-Touch Provisioning
- • Unlimited Management Scale
- • Topology View
- • VLAN Settings
- • Portal Authentication
(Password & Voucher) - • Rate Limit
• Fast Roaming - • Network Tools
- • Mesh
- • Guest Network
Full onsite/remote management of your Festa network via a web interface
- • Unlimited Management Scale
- • Topology and Heat Map View
- • Portal Authentication (Password & Voucher & Form Auth)
- • Batch Configuration
- • Network Security
- • VPN
- • More
| SEGURIDAD | |
|---|---|
| Control de acceso | Source/Destination IP-Based Access Control |
| Filtración | • URL Filtering |
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | Up to 5 WAN Ports and 1 USB WAN Port• 1 Gigabit SFP WAN/LAN Port• 1 Gigabit RJ45 WAN Port• 4 Gigabit RJ45 WAN/LAN Ports• 1 USB 3.0 (supports USB LTE dongle and USB Storage) |
| Cantidad de ventiladores | Fanless |
| Botón | Reset Button |
| Fuente de alimentación | 12VDC / 2A Power Adapter |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensiones (An x Pr x Al) | 8.9 × 5.2 × 1.4 in (226 × 132 × 36 mm) (Antenna dimensions are not included) |
| Antena | • 2.4 GHz: 2× 3 dBi dual-band detachable antennas• 5 GHz: 3× 4.5 dBi dual-band detachable antennas |
| Recinto | Steel |
| Montaje | Desktop/Wall-mount |
| Consumo máximo de energía | • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
| DESEMPEÑO | |
|---|---|
| Sesión concurrente | 150,000 |
| New Sessions /Second | 5,100 |
| Rendimiento de VPN IPsec | • ESP-SHA1-AES256: 646.9Mbps• ESP-SHA256-AES256: 642.8Mbps• ESP-SHA384-AES256: 648.9Mbps• ESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps• Encrypted: 570.0 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps• Encrypted: 209.0 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| CARACTERÍSTICAS INALÁMBRICAS | |
|---|---|
| Estándares inalámbricos | Wi-Fi 6 (802.11ax), compatible with Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11n) |
| Tasa de señal | Wi-Fi 6• 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) |
| Funciones avanzadas | • Seamless Roaming• Mesh (with EAP that supports Mesh)• HE160 (160MHz Channel Width)△• OFDMA△• Beamforming• MU-MIMO△• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Red de invitados | √ |
| FUNCIONES BÁSICAS | |
|---|---|
| Tipo de conexión WAN | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| Clon de MAC | Modify WAN MAC Address |
| DHCP | • DHCP Server• DHCP Options Customization• Multi-IP Interfaces• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN, Bridge VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| TRANSMISIÓN | |
|---|---|
| Equilibrio de carga | • Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection |
| NAT | • NAT-DMZ• Port Forwarding |
| Enrutamiento | • Static Routing• Policy Routing |
| Control de Ancho de Banda | IP-based Bandwidth Control |
| VPN | |
|---|---|
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)*• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)*• 50 Tunnels• L2TP over IPSec |
| VPN abierta | • OpenVPN Server• OpenVPN Client (5)*• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| ADMINISTRACIÓN | |
|---|---|
| Gestión centralizada | √ （via Festa App or Web UI) |
| Soporte de aplicaciones | Festa App |
| Acceso a la nube | Free Cloud |
| Servicio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Mantenimiento | • Web Management Interface• SNMP v1/v2c/v3• Port Mirroring• Syslog Support |
| Aprovisionamiento sin intervención | √ |
| Funciones de gestión | • Self-Organizing Network (SON)• Auto Topology• Multi-site Management• Remote Maintenance• Batch Firmware Upgrading• Batch Configuration• Integrated Troubleshooting Tools• Monitor Network Status• Access Condition Logs and Alerts |
| OTROS | |
|---|---|
| Certificación | CE, FCC, RoHS |
| contenidos del paquete | • Festa FR365 (including 3 detachable Wi-Fi Antennas) • Power Adapter• Quick Installation Guide• Silicone Feet |
| Requisitos del sistema | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Ambiente | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
‡For the complete compatibility list of 4G/3G modem, go to https://www.tp-link.com/en/festa-fr365/compatibility/
△Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
*Festa FR365 can work as a VPN client and can connect with up to 10 VPN servers.
**Festa Mesh Technology requires the use of Festa access points that support mesh functionality.
