RE200 & RE220 User Guide

Chapter 7 Manage Your Extender

This chapter presents how to manage and maintain your extender.

It includes the following sections:

Set System Time

Control LEDs

Set Power Schedule

Upgrade the Firmware

Backup and Restore Configuration Settings

Change Login Password

Check System Log

1. Set System Time

The System Time of the extender will be used for time-based function such as the Power Schedule function. If you have enabled the Daylight Saving Time feature, the system time will be synchronized with the daylight saving time you configure.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

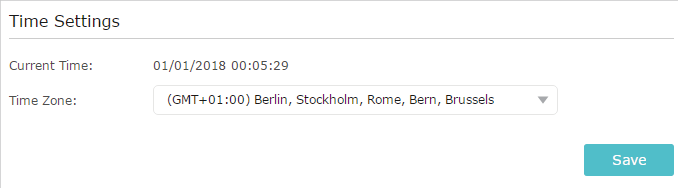

2.Go to Settings > System Tools > Time Settings.

To get system time:

1.Select your local Time Zone from the drop-down list.

2.Click Save.

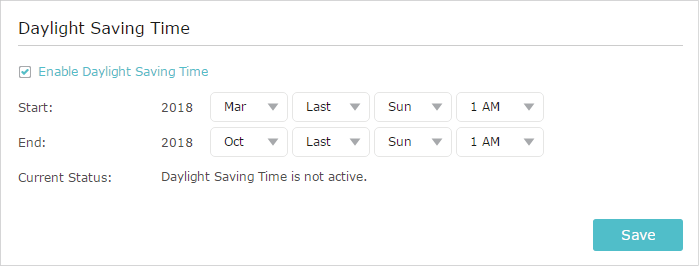

To set up Daylight Saving Time:

1.Select Enable Daylight Saving Time.

2.Select the Start and End date and time of the daylight saving time at your local time zone.

3.Click Save.

2. Control LEDs

The LEDs of the extender indicate its activities and status. You can turn off LEDs when you don’t need them.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

2.Go to Settings > System Tools > LED Control.

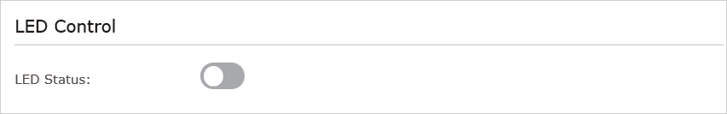

To turn off the LEDs:

Disable LED Status.

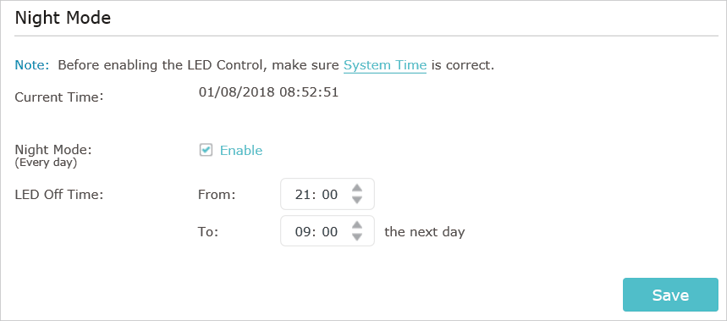

To specify a time period when LEDs are off:

1.Enable Night Mode.

2.Specify the LED off time period.

3.Click Save.

3. Set Power Schedule

The Power Schedule feature allows you to specify a time period during which the extender is off.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

2.Go to Settings > Advanced Settings > Power Schedule.

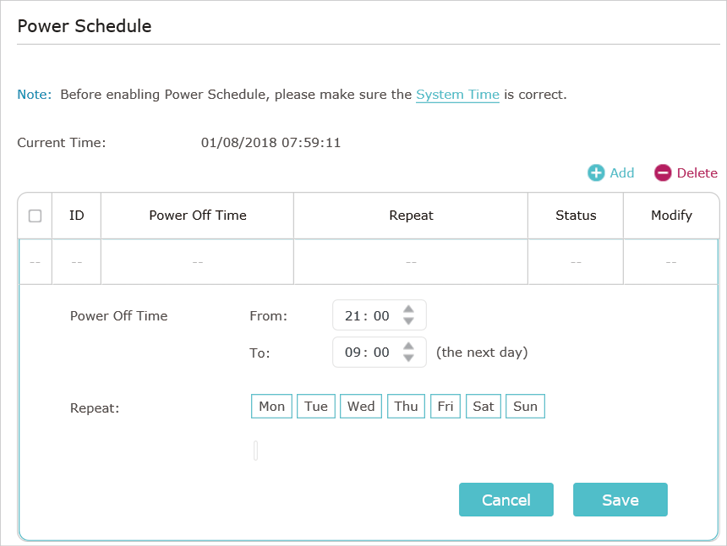

To specify a time period when the extender is off:

1.Click Add.

2.Specify the power off time period and repetitive days.

3.Click Save.

4. Upgrade the Firmware

TP-Link is committed to improving product features, giving you a better network experience. You can download the latest firmware file from Download Center at https://www.tp-link.com/support/ and upgrade the extender to the latest firmware version.

Note:

Make sure the latest firmware file is matched with the hardware version (as shown in the download section of the Support page).

Make sure that you have a stable connection between the extender and your computer. It is NOT recommended to upgrade the firmware wirelessly.

Backup your extender configuration.

Do NOT power off the extender during the firmware upgrade.

1.Download the latest firmware file for the extender from our website
https://www.tp-link.com.

2.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

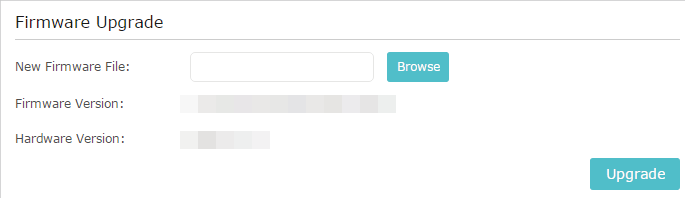

3.Go to Settings > System Tools > Firmware Upgrade.

4.Click Browse to locate the downloaded new firmware file, and then click Upgrade.

5.Wait a few minutes for the firmware upgrade to complete and the extender to reboot.

5. Backup and Restore Configuration Settings

The configuration settings are stored as a configuration file in the extender. You can backup the configuration file and restore the extender to the previous settings from the backup file when needed. Moreover, if necessary, you can erase the current settings and reset the extender to the default factory settings.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

2.Go to Settings > System Tools > Backup & Restore.

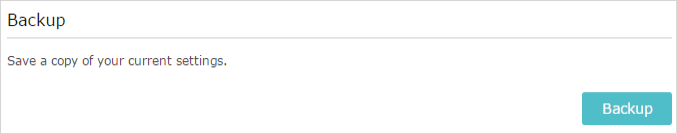

To backup configuration settings:

Click Backup to save a copy of the current settings to your local computer. A ‘.bin’ file of the current settings will be stored on your computer.

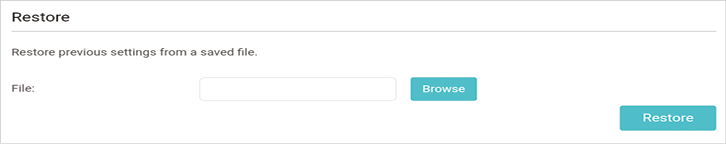

To restore previous settings from a saved file:

Click Browse to locate the backup configuration file stored on your computer, and click Restore.

Note: During the restore process, do not power off or reset the extender.

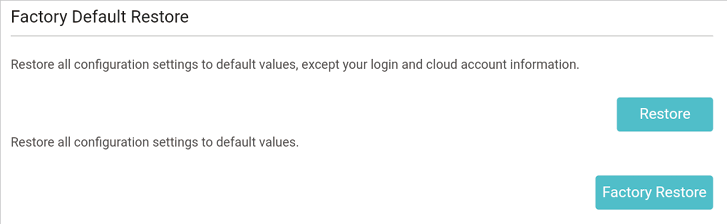

To restore configuration settings:

In Factory Default Restore, click Restore to restore all configuration settings to default values, except your login and cloud account information.

Note: During the restore process, do not power off or reset the extender.

To reset the extender to factory default settings:

Click Factory Restore to reset the extender.

Note:

1.During the reset process, do not power off or reset the extender.

2.We strongly recommend you backup the current configuration settings before resetting the extender.

6. Change Login Password

The account management feature allows you to change your login username and password of the web management webpage.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

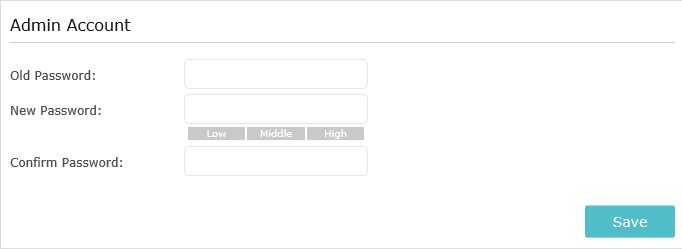

2.Go to Settings > System Tools > Admin Account.

3.Enter the old password. Then enter the new password twice (case-sensitive) and click Save. Then you can use the new password for future logins.

7. Check System Log

If the extender is not working properly, you can save the system log and send it to our technical support team.

1.Visit http://tplinkrepeater.net, and log in with the password you set for the extender.

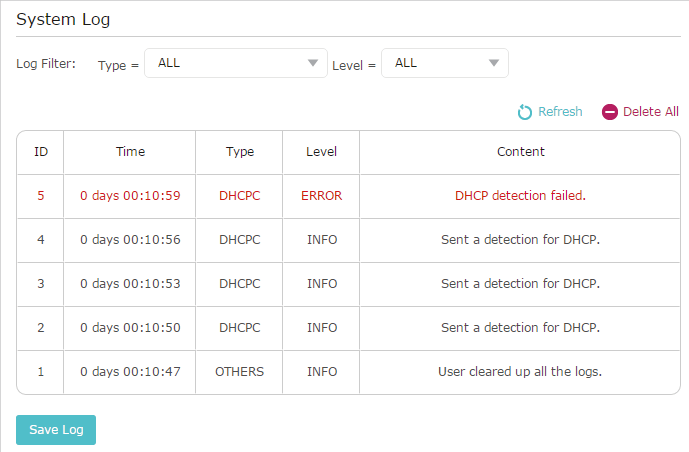

2.Go to Settings > System Tools > System Log.

To save the system log locally:

1.Choose the type and level of the system log as needed.

2.Click Save Log to save the system logs to a local disk.
