M7000 V1 & V2 User Guide

Chapter 5 Secure Your Network

This chapter explains how to secure your network in various ways. You can change the SSID, manage the blacklist and lock your SIM card to safeguard your network.

It includes the following sections:

Secure Wireless Network

Block Unwelcome Devices

Lock SIM Card

1. Secure Wireless Network

The SSID (wireless network name), wireless password of the Mobile Wi-Fi and security options are preset as default. The default SSID and password can be found inside the back cover of your Mobile Wi-Fi. You can customize the wireless settings as needed.

1.Open your tpMiFi app and log in with the password you set.

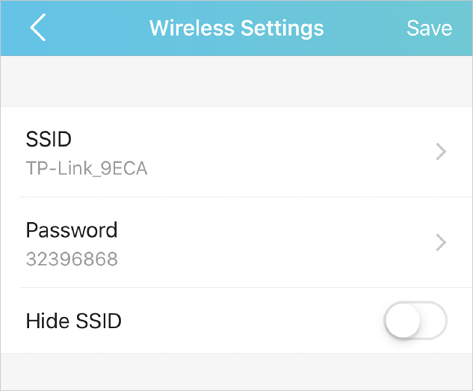

2.Go to Tools > Wireless Settings.

To change the SSID and wireless password:

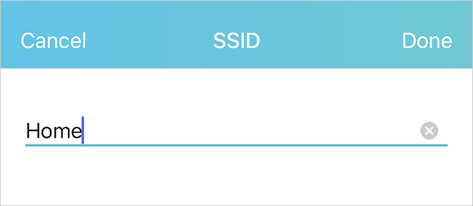

1.Tap SSID and enter a new one. Tap Done.

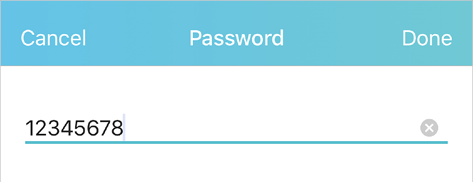

2.Tap Password and enter a new one. Tap Done.

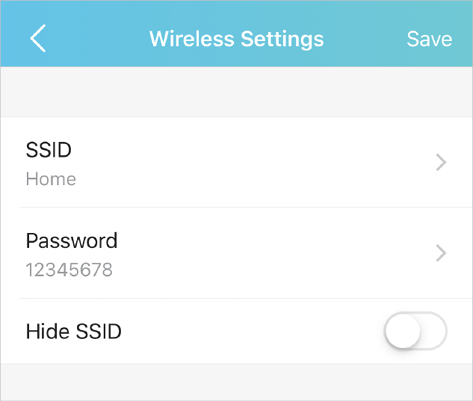

3.Tap Save to save the settings. You can see the new SSID and Password now.

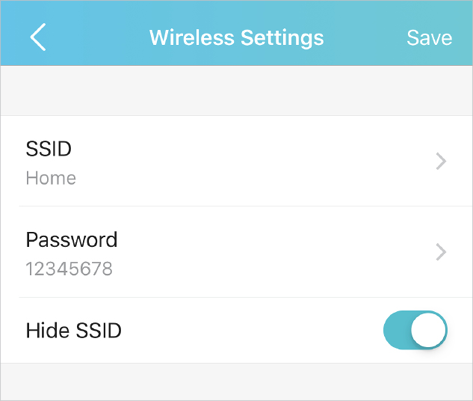

To hide the SSID:

1.Toggle on Hide SSID, so the SSID will not be displayed when you scan for wireless networks.

2.Tap Save.

Note:

If the SSID is hidden, it will not be displayed on your wireless device when you scan for local wireless networks. And you need to manually enter the SSID to join the network.

2. Block Unwelcome Devices

This feature allows you to restrict unwelcome devices to accessing the wireless network of your Mobile Wi-Fi.

1.Open your tpMiFi app and log in with the password you set.

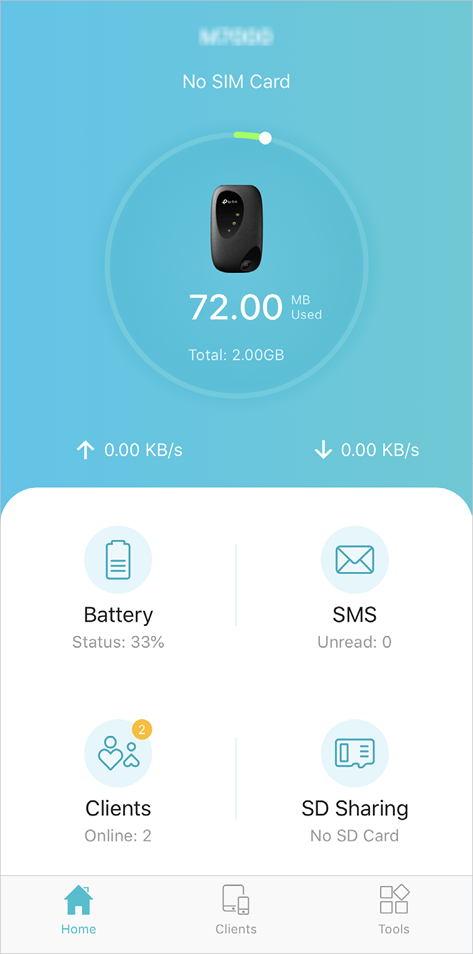

2.Go to Clients or tap Clients on the Home page.

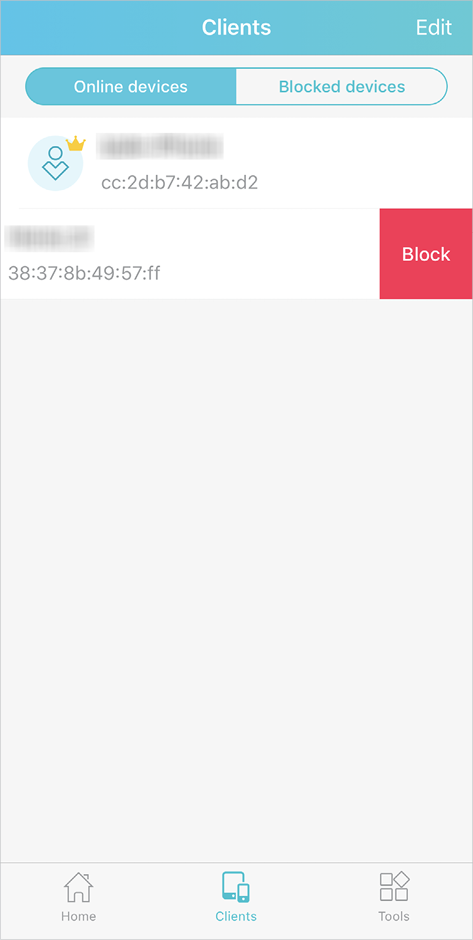

3.Select the device that you want to block from the Online Devices list, slide left and tap Block.

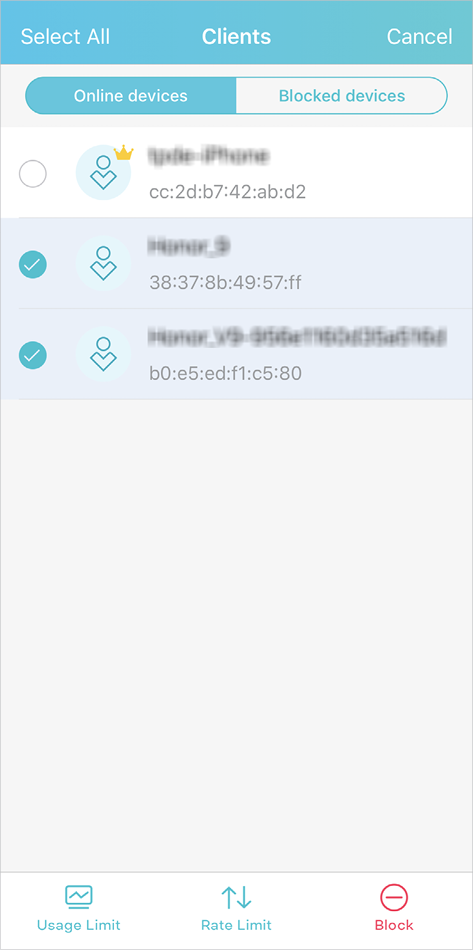

4.If you want to block many devices at a time, click Edit on the right corner and select the devices you want to block. Tap Block at the bottom.

5.You can check the blocked devices on the Blocked Devices list.

Note:

The current device cannot be blocked.

3. Lock SIM Card

This feature allows you to lock your SIM card with the PIN lock. Once the PIN lock is enabled, every time you start your Mobile Wi-Fi or another device (such as a smartphone or tablet) with this SIM card inserted, you need to enter the PIN code to access the internet.

If you don’t wish to enter the PIN code when using this SIM card on your Mobile Wi-Fi, you can enable the Auto-Unlock PIN function. You will still have to enter the PIN code after inserting the SIM card to another device (such as a smartphone or tablet), however.

To enable the PIN lock:

1.Open your tpMiFi app and log in with the password you set.

2.Go to Tools > Internet Settings > PIN Management and enable PIN.

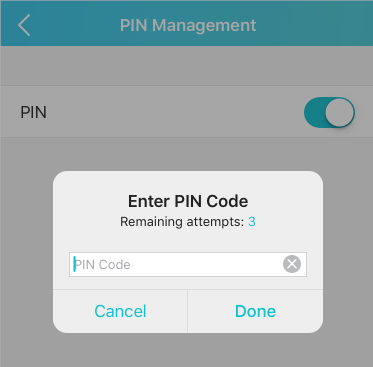

3.Enter the PIN code of your SIM card.

4.Tap Done.

5.Open your tpMiFi app and enter the PIN code to access the internet every time you start your Mobile Wi-Fi.

Note:

1.The PIN code of your SIM card is preset by your carrier and usually can be found on the package of the SIM card.

2.After 3 failed verification attempts the SIM will be locked, and you will need to enter the PUK code to unlock it. The PUK code can usually be found on the package of the SIM card, too.

To enable Auto-Unlock PIN:

1.Open your tpMiFi app and log in with the password you set.

2.Go to Tools > Internet Settings > PIN Management and enable PIN.

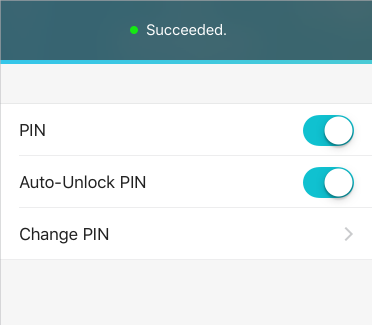

3.Enable Auto-Unlock PIN.

4.Once enabled, you can save the trouble of entering the PIN code on your Mobile Wi-Fi upon power-on.

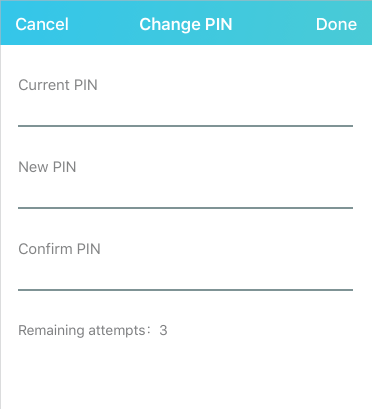

To reset PIN code:

1.Open your tpMiFi app and log in with the password you set.

2.Go to Tools > Internet Settings > PIN Management and enable PIN.

3.Tap Change PIN.

4.Enter the current PIN code and then enter a new PIN code twice.

5.Tap Done.

6.Use the new PIN code for future PIN verifications.
