Archer T4U V3 User Guide
This chapter introduces how to install your adapter’s driver and WPS Tool, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process.
This chapter includes the following sections:
1. Install Driver and WPS Tool
1. Insert the resource CD into your CD drive and run the Autorun.exe from the pop-up Autoplay window.
Note:
1.You can also download the driver from the product’s Support page at www.tp-link.com.
2.In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD manually.

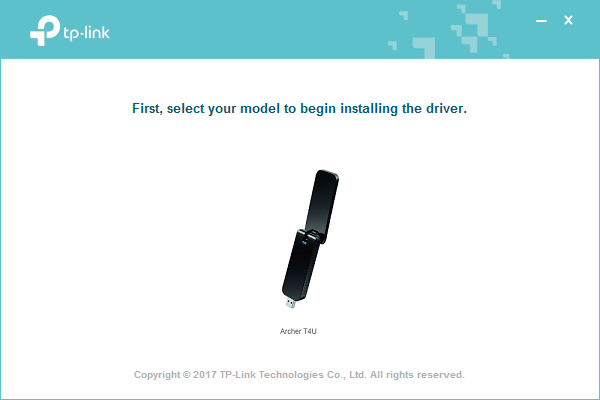

2. Select Archer T4U and follow the instructions to complete the installation.
Note:
If you can’t install the driver successfully, disable the antivirus software and firewall, then try again.

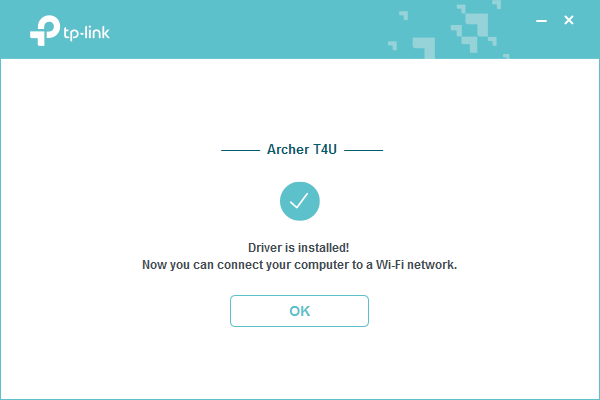

3. When the following screen appears, the driver has been installed successfully.

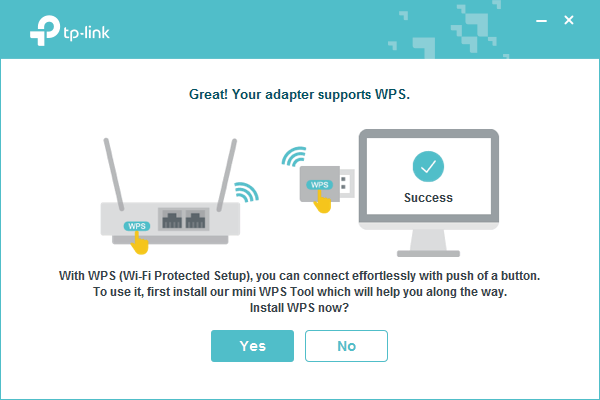

4. If you want to connect effortlessly with the push of a WPS button, click Yes and follow the instructions to install the mini WPS Tool.

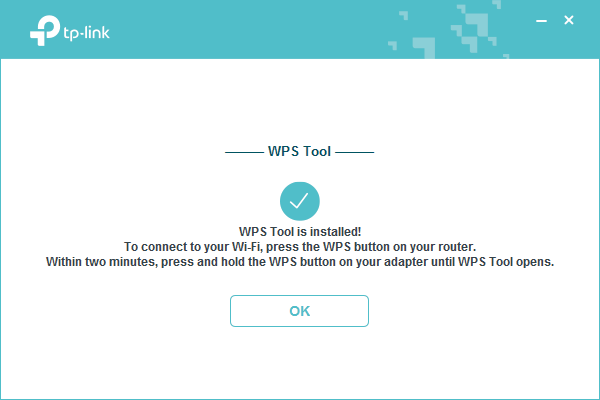

5. When the following screen appears, the WPS Tool has been installed successfully. You can enjoy connecting to your Wi-Fi with the push of the WPS button.
Option 1: Via Windows Built-in Wireless Utility
You can join a wireless network via Windows built-in wireless utility. Follow the instructions below to use your computer system’s built-in wireless utility:
1. Click
,
or
(Network icon) on the taskbar. Select the Wi-Fi network you want to join, and click Connect. Enter the network password when prompted.
2. When the network icon changes to
or
, it indicates a successful network connection.
Option 2: Via WPS Tool
If you have installed WPS Tool, follow the instructions below to connect effortlessly with the WPS button.

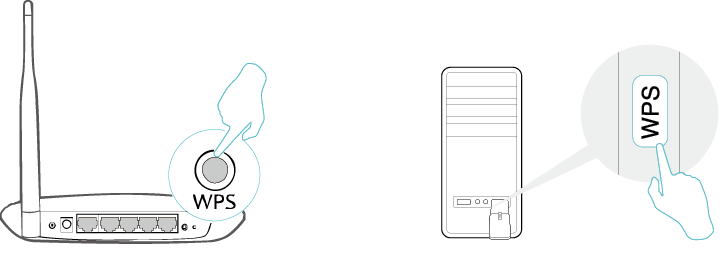

1. Press the WPS button on your router.

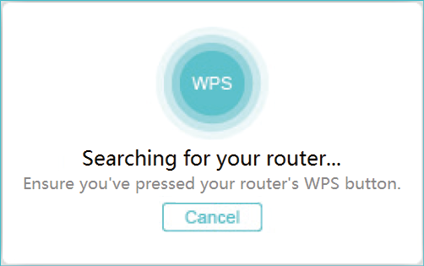

2. Within 2 minutes, press and hold the WPS button on the adapter until WPS Tool opens in the lower right corner of your computer.
3. When the “Success!” message appears, your computer is connected to Wi-Fi.
3. Uninstall Driver and WPS Tool
The software uninstallation steps vary a bit from different systems. Please follow the appropriate instructions for your Windows operating system: Windows 8/8.1/10, Windows 7.
Go to Start menu to find the TP-Link application. Click Uninstall TP-Link Archer T4U Driver, then follow the on-screen instructions to complete the uninstallation.
Go to Start > All Programs > TP-Link > Uninstall TP-Link Archer T4U Driver. Follow the on-screen instructions to complete the uninstallation.
