Archer C4000 User Guide

Chapter 1 Get to Know About Your Router

This chapter introduces what the router can do and shows its appearance.

It chapter contains the following sections:

Product Overview

Appearance

1. Product Overview

The TP-Link router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices.

Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.

2. Appearance

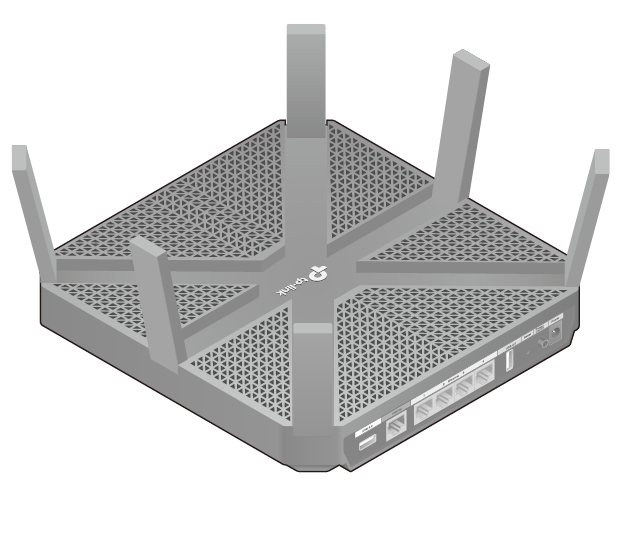

2.1. The Back Panel

The router’s ports (view from left to right) are located on the rear panel.

Item

Description

USB 3.0 Port

For connecting to a USB 3.0 device. It is also compatible

with USB 2.0 devices.

Internet Port

For connecting to a DSL/Cable modem, or an Ethernet jack.

Ethernet Ports (1/2/3/4)

For connecting your PC or other wired devices to the router.

USB 2.0 Port

For connecting to a USB 2.0 device.

Reset Button

Press this button for more than 5 seconds to reset the router to its factory default settings.

Power On/Off Button

Press this button for 1 second to power on or off the router.

Power Port

For connecting the router to power socket via the provided power adapter.

Antennas

Used for wireless operation and data transmit. Upright them for the best Wi-Fi performance.

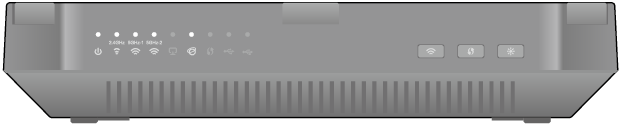

2.2. The Front Panel

The router’s LEDs and buttons (view from left to right) are located on the front panel. You can check the router’s working status by following the LED Explanation table.

LED Explanation

Name

Status

Indication

(Power)

On

The system has started up successfully.

Flashing

The system is starting up or the firmware is being upgraded. Do not disconnect or power off your router.

Off

Power is off.

(2.4GHz Wireless)

On

The 2.4GHz wireless band is enabled.

Off

The 2.4GHz wireless band is disabled.

(5GHz-1 Wireless)

On

The 5GHz-1 wireless band is enabled.

Off

The 5GHz-1 wireless band is disabled.

(5GHz-2 Wireless)

On

The 5GHz-2 wireless band is enabled.

Off

The 5GHz-2 wireless band is disabled.

(Ethernet)

On

At least one powered-on device is connected to the router’s Ethernet port.

Off

No powered-on device is connected to the router’s Ethernet port.

(Internet)

Blue On

The internet is available.

Orange On

The router’s Internet port is connected, but the internet is not available.

Off

The router’s Internet port is unplugged.

(WPS)

On/Off

This light remains on for 5 minutes when a WPS connection is established, then turns off.

Flashing

WPS connection is in progress. This may take up to 2 minutes.

(USB)

On

The inserted USB device is ready to use.

Flashing

A USB device is being identified.

Off

No device is plugged into the USB port.

Button Explanation

Item

Description

(Wi-Fi Button)

Press and hold the Wi-Fi button for about 1 second to turn on or off the wireless function of your router.

(WPS Button)

Press this WPS button for 1 second to enable the WPS function.

(LED Button)

Press the LED button for about 1 second to turn on or off the LEDs of your router.
