VIGI SP20090
Coming SoonVIGI Intelligent Solar Power Supply System

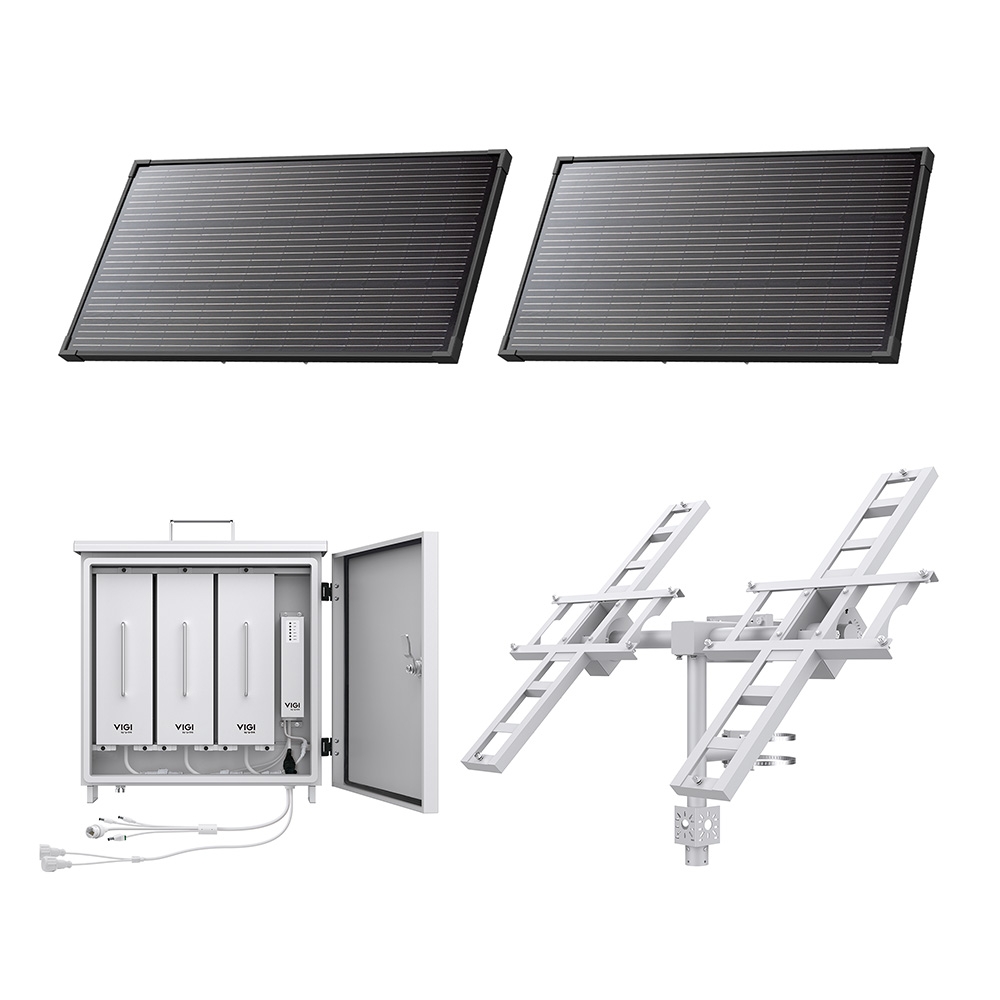

- 2× 100W Photovoltaic Panels and 1024.92Wh Replaceable Lithium Battery
- 3× 12V/2A DC Voltage Output Ports

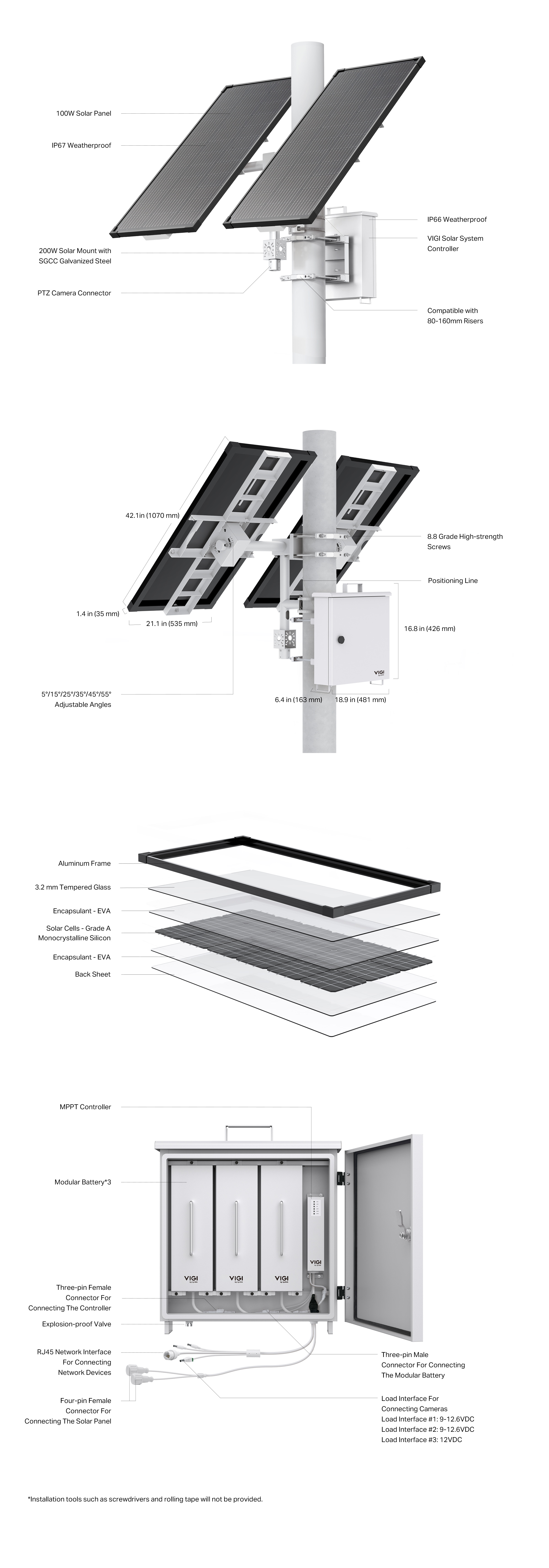

- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Independent Protection Circuit
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
| Solar Panel (Photovoltaic Panel) | |
|---|---|
| Power | 200 W (100 W per panel) |
| Voltage | 20 V |
| Dimensions (L x W x H) | 42.1 × 21.1 × 1.4 in (1070 × 535 × 35 mm) |
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah (Max),31.2Ah (Per Lithium Battery) |
| Voltage | 10.95 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles** |
| Dimension | 9.4 × 2.9 × 2.8 in (240 × 74 × 72 mm) (Per Lithium Battery) |
| Charging Condition | • 0°C to 45°C (32 °F to 113 °F)• -30°C to 45°C (-22 °F to 113 °F) (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C to 60°C (-4 °F to 140 °F)• -30°C to 60°C (-22 °F to 140 °F) (With intelligent auxiliary heating) |

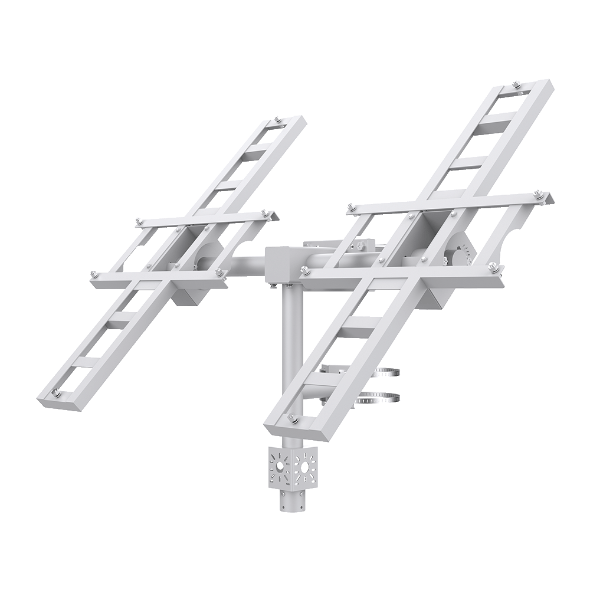

| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× Three-pin Female Connector For Connecting The Controller• 1× Three-pin Male Connector For Connecting The Modular Battery• 2× Four-pin Female Connectors For Connecting The Solar Panel• 1× 10/100 Mbps RJ45• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator)• Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Three-way Load |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Intelligent Auxiliary Heating Control | -30°C to 5°C (-22 °F to 41 °F) |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CE, FCC, RoHS, IP66 Weatherproof• IP67 Weatherproof (Solar Panel) |
| Environment | • Operating Temperature: -30°C to 60°C (-22 °F to 140 °F)(With intelligent auxiliary heating)• Operating Humidity: 10%~90%RH, Non-condensing |
**A cycle represents one full charge and discharge. Based on 30Ah capacity and an average camera consumption of 2.44W, 500 cycles approximate a 10-year lifespan.
