VIGI 200W Solar Mount
Coming SoonVIGI 200W Solar Mount
- SGCC Galvanized Steel
- Highly Stable and Compatible Special Pole Clamp*
- The Integrated Bracket is CO2 Welded
- 8.8 Grade High-strength Screws**
- Anti-loosing Spring Pads
- Reinofrced Angle-adjustable Bracket

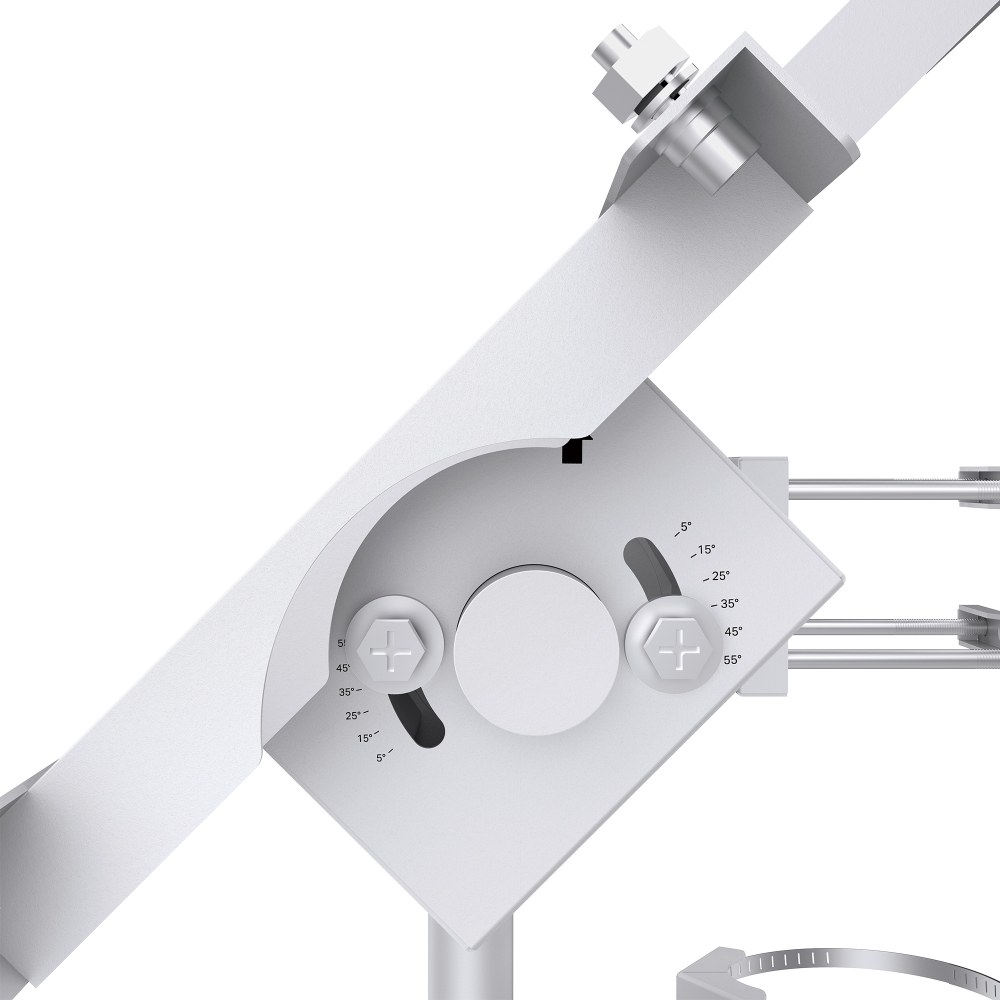

| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°~55° |
| HARDWARE | |
|---|---|
| Product Dimensions (W x D x H) | 50.4 × 26.9 × 40.5 in (1281 × 684.39 × 1027.52 mm) (After Installation) |
| OTHERS | |
|---|---|

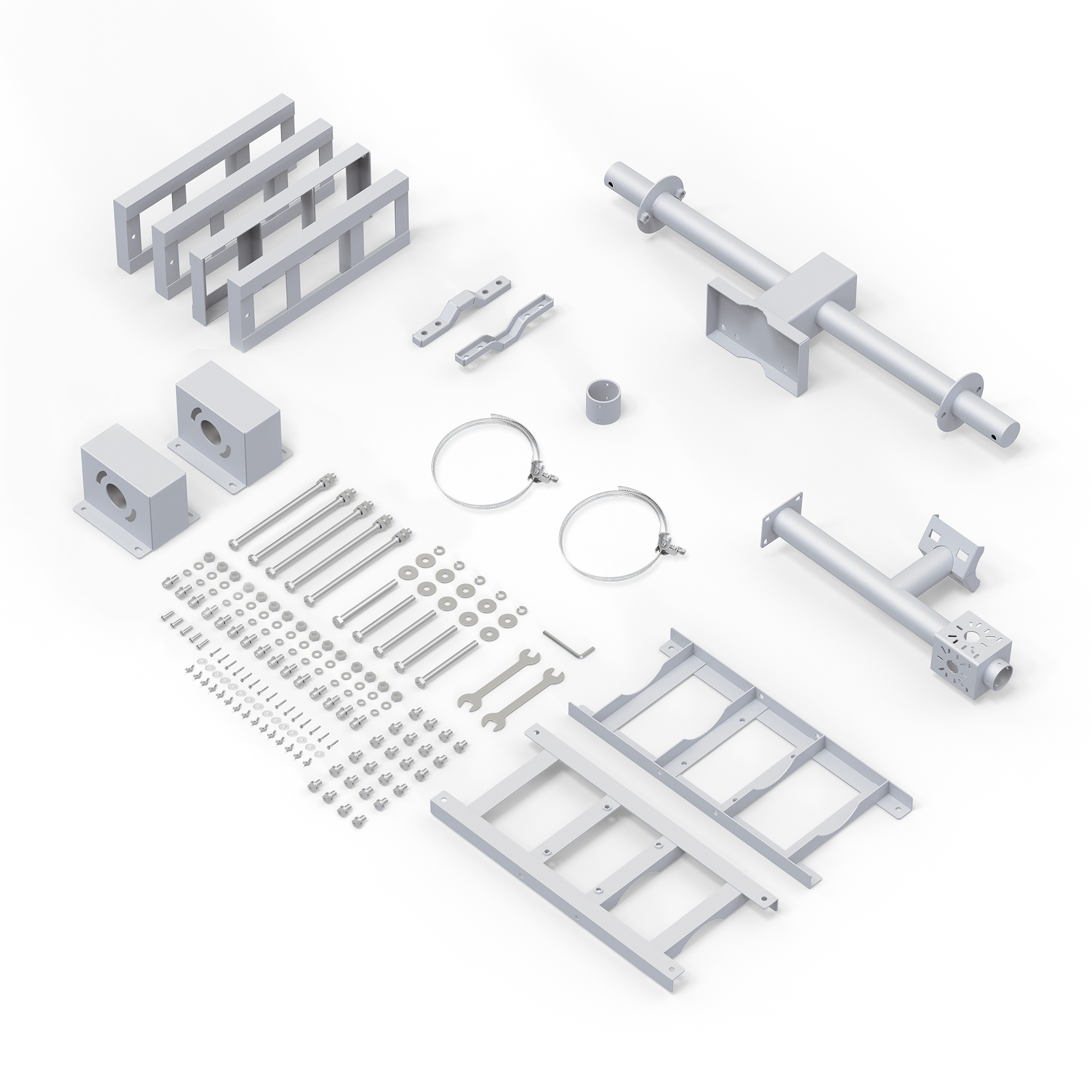

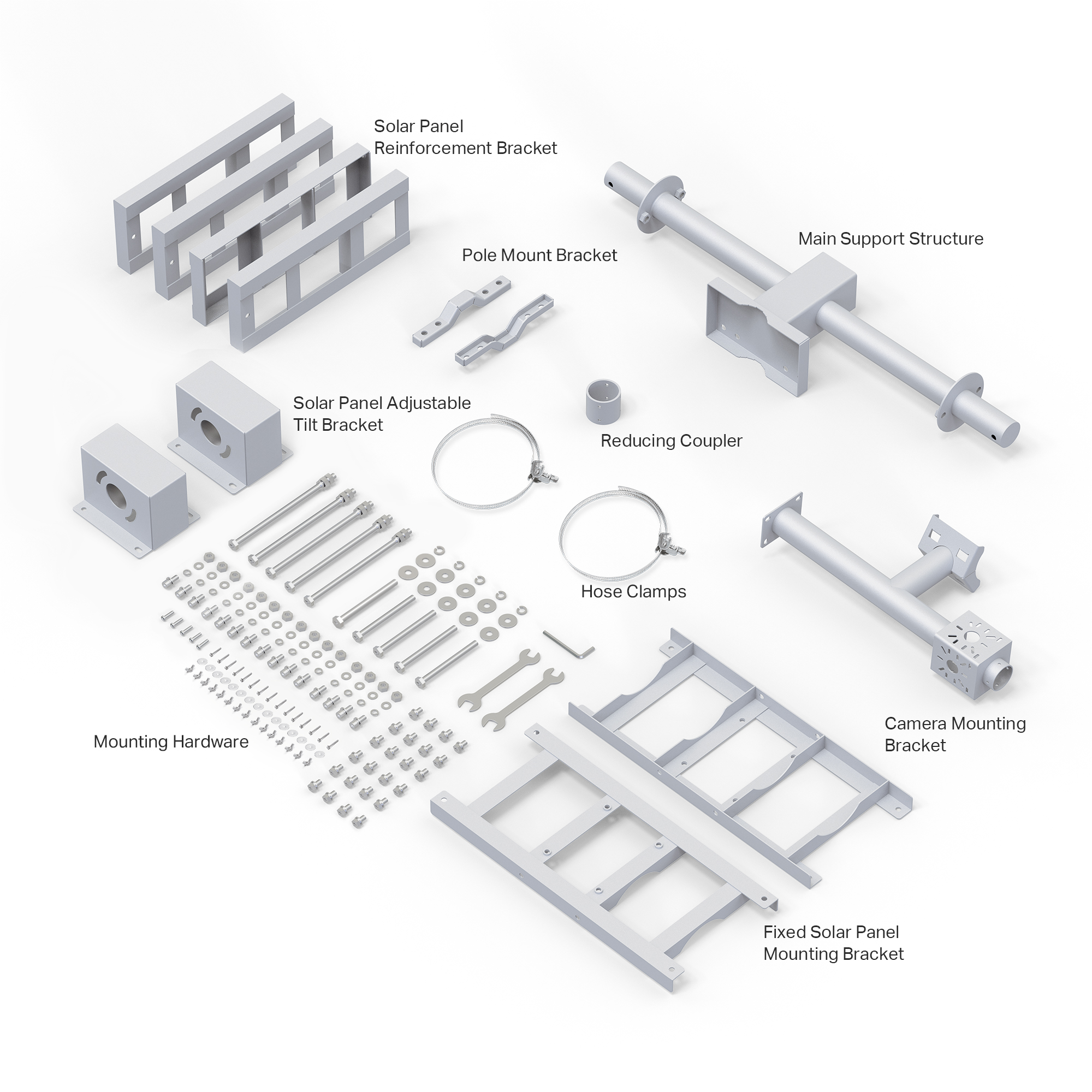

| Package Content | • VIGI 200W Solar Mount• Quick Start Guide• Mounting Accessories |
| Box Dimensions (W X D X H) | 38.4 × 24.60 × 7.7 in (975 × 625 × 195 mm) |
| Weight | • Product Weight: 20.4 kg • Package Weight: 24.4 kg |
| Environment | • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)• Operating Humidity: 5%~90%RH, Non-condensing |
*For poles with diameters of 80-100mm, use hole 1. For poles with diameters of 100-160mm, use hole 2.
**Screws conform to ISO 898-1 standard.
