VIGI 5-inch 4MP 25X Full-Color Network Speed Dome

360° Wide-Area Coverage
25X Optical Zoom & 16X Digital Optical Zoom
Intelligent Auto Tracking
Up to 240°/Sec Pan Speed
Red & Blue Flashing Lights and Sirens
People & Vehicle Attributes Analytics^‡
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP66 Weatherproof / IK08 Vandal-Proof / 6kV Lightning Protecting
Digital Defog / Bulit-in Lens Heater
H.265+ Compression Technology
Includes bracket

VMB-350

VIGI Network Camera Pole Mounting Bracket

VJB-240

VIGI Network Camera Junction Box

VJB-305

VIGI Network Camera Junction Box

CAMERA
Beeldsensor	1/2.9” Progressive Scan CMOS
Shutter Speed	1/3 to 1/30000 s
Slow Shutter	Yes
Minimale Lichtsterkte	0.005 Lux; 0 Lux with IR/White Light
Dag/Nacht Mechanisme	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto

LENS
Type	Motorized Varifocal Lens
Focal Length	5.2-130 mm (25X Optical Zoom)
Aperture	Max. F1.6
FOV	• Horizontal FOV: 2.30°-57.06° • Vertical FOV: 1.31°-32.74° • Diagonal FOV: 2.63°-65.01
DORI Distance	Wide • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m) Tele • D: 8530 ft (2600 m) • O: 3553 ft (1083 m) • R: 1706 ft (520 m) • I: 853 ft (260 m)

PTZ
Pan/tilt Bereik	Pan: 0° to 360°, Tilt: -20° to 90° (Auto Flip)
Pan/tilt Snelheid	Pan Speed: • Configurable from 0° to 160°/s • Preset Speed: 240°/s Tilt Speed: • Configurable from 0° to 120°/s • Preset Speed: 200°/s
Proportional Pan	Yes
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Pattern Scan	32 Pattern Scans
Park Action	Preset, Patrol Scan, Pattern Scan, Home
Power Up Actions	Yes
3D Positioning	Yes
PTZ Status Display	Yes
Preset Freezing	Yes
Scheduled Task	Preset, Patrol Scan, Pattern Scan
PTZ Protocol	Pelco-D, Pelco-P, Self-adaptive

ILLUMINATOR
Illuminator Type	• 2× IR LED • 2× Integrated Infrared-White LED
Illuminator Distance	• IR LED: 100 m (328 ft)^† • White LED: 50 m (164 ft)^†
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2688x1520
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 840x480, 704x576, 640x480, 640x360, 352x288, 320x240
Third Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720, 848x480, 704x576
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 • Third-stream: H.265/H.264/MJPEG
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	High Profile Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 4096 Kbps to 16384 Kbps • Sub-Stream: 128 Kbps to 2048 Kbps • Third Stream: 768 Kbps to 16384 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • IR Light Intensity • HLC Adjustable • Low Illuminator
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
Defog	Digital Defog
Image Stabilization	EIS
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	8 Regions
OSD Setting	Yes

AUDIO
Audio Communicatie	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compressie	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

Netwerk
Protocol	TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile G/S/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams & 3 Third-streams
Client	VIGI App, Web UI, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Beveiliging	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication

Alarm en Event Management
Smart Event	• Intrusion Detection • Line Crossing Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Human Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Upload Capture • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm • Smart Tracking
Smart Tracking	Intelligent Auto Tracking • Human-Triggered • Vehicle-Triggered • Event-Triggered

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^‡

INTERFACES
Netwerk Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	2 Alarm In, 1 Alarm Out Red and Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
RS-485 Port	Yes
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out

Algemeen
Operating Temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Storage Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

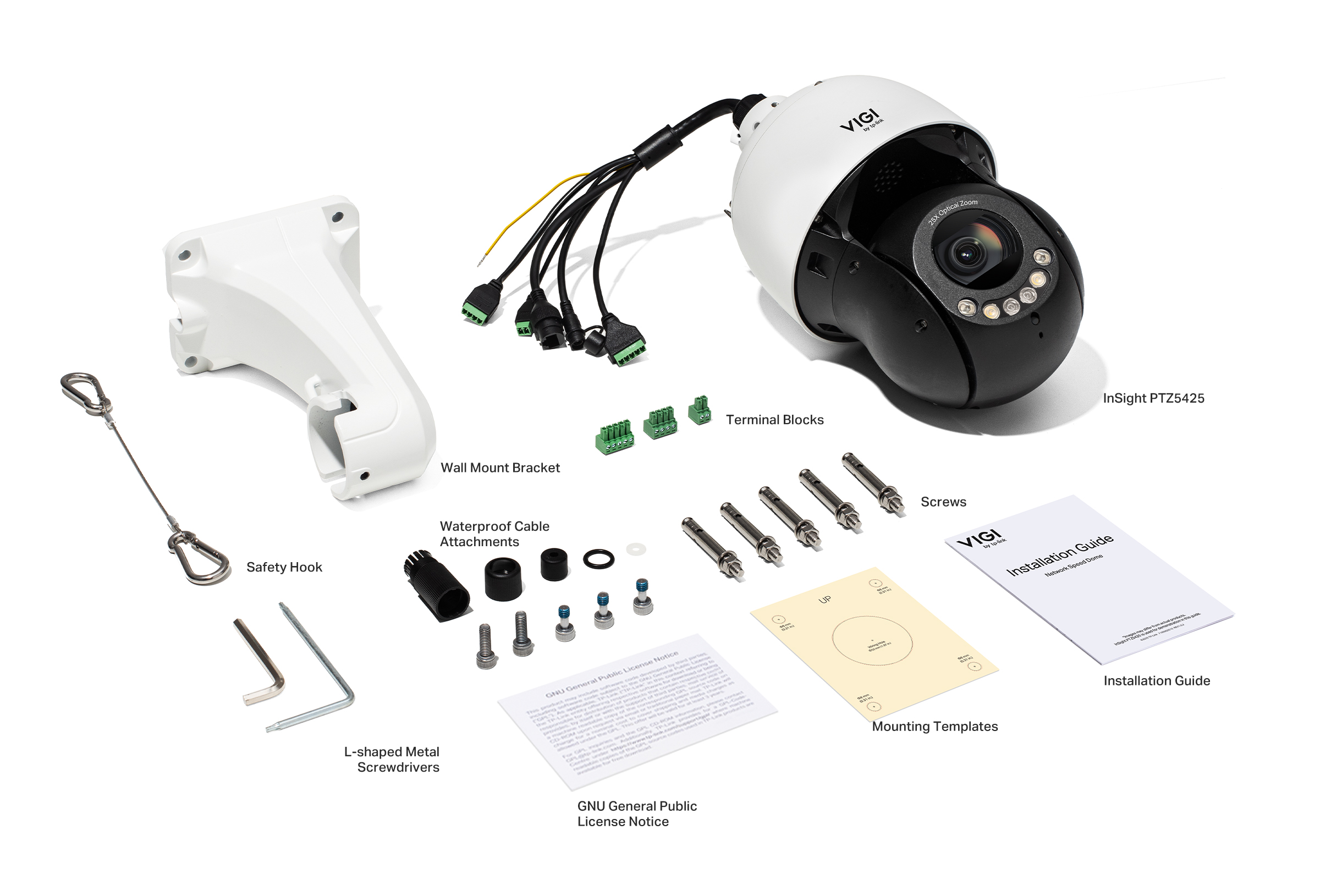

Verpakkingsinhoud	• VIGI Network Camera • Installation Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	2.8 kg
Power Supply	DC • 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3at, Class 4, Max. 24.7 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 9.2W
Protection	• IP66 Weatherproof • IK08 Vandal-Proof • 6 kV Lightning Protection
Product Dimensions (L x W x H)	Φ6.3 × 10.6 in (Φ160 × 270 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF

For additional version information, please go to the support page.

^‡This feature must be used with VIGI specified software.

*The Micro SD card and pole mounting kits are not included in the package.

^†Calculations are based on laboratory testing.Actual data is not guaranteed and will vary as a result of client limitations and environmental factors
