Omada Fusion 2.5G Gateway
- License‑Free Cloud Management for Easy and Secure Remote Access
- Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
- Enterprise‑Grade Performance: Quad-Core CPU, 5× 2.5G Ports, Up to 4‑WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput*
- Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
- Secure Remote Network Access in One Click Away with Omada LightLink VPN
- Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
- Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**
Watch Fusion 2.5G Product Video > -
Unified Networking &
Video Management -
Simplified Setup with
Bluetooth -
License‑Free Cloud
Management -
High-Performance
Quad-Core CPU -
5× 2.5G Ethernet
Ports (1× WAN, 4×
LAN/WAN) 5× 2.5G Ethernet Ports
(1× WAN, 4× LAN/WAN) -
SSD Video Storage
up to 2 TB* -
IPS/IDS Throughput
at 2.3 Gbps† -
Fast Troubleshooting
via Touchscreen -
One‑Click Secure
Remote Access -
Desktop, Wall Mount, &
Rack Mount**
Unified Control for Networking & Surveillance in One Platform Unified Control for
Networking & Surveillance
in One Platform
Combining a gateway, controller, and video management system in a single device, Omada Fusion Pro 2.5G delivers a unified
networking and surveillance solution. Centrally manage APs, switches, cameras, and an NVR through one intuitive interface.
Instantly detect, diagnose, and resolve issues without switching between systems. Combining a gateway, controller, and video
management system in a single device, Omada Fusion
Pro 2.5G delivers a unified networking and surveillance
solution. Centrally manage APs, switches, cameras,
and an NVR through one intuitive interface. Instantly
detect, diagnose, and resolve issues without
switching between systems.
Fusion Pro 2.5G A Unified Management Platform
Networking
Surveillance
Access
Points
Switches
NVR*
Cameras
*Supports connecting one NVR to expand camera capacity for larger surveillance deployments.
License‑Free Cloud Management, Lower Ongoing Costs
Enjoy premium networking and AI-powered security features, including DPI, IDS/IPS, AI Search*, and more, all included with no additional subscription fees.
* AI features are only available with VIGI Insight cameras.
-
Built-in Controller &
Video Management,
No Device License -
Remote Cloud Control
via Web/App -
Centralized,
Secure Access to Disparate Sites
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion Pro 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other devices at once, saving time and simplifying IT deployment.
Enterprise‑Grade Performance for Fast and Reliable Operations
Quick Troubleshooting via Touchscreen,
Reducing On-Site Visits
With an innovative 2.51-inch touchscreen, enjoy quick troubleshooting—all at your fingertips. Reduce on‑site visits and save time with direct, on‑device monitoring.
Secure Remote Network Access, One Click Away
With Omada LightLink VPN, you can securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.
Advanced Networking Capabilities for Secure and Intelligent Management
Simple Multi-Site Connectivity with Full-Mwsh SD-WAN
Connect up to 20 sites with direct inter‑site links—simpler to deploy, smoother for multi‑site networking.
Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.
App‑Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.
One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.

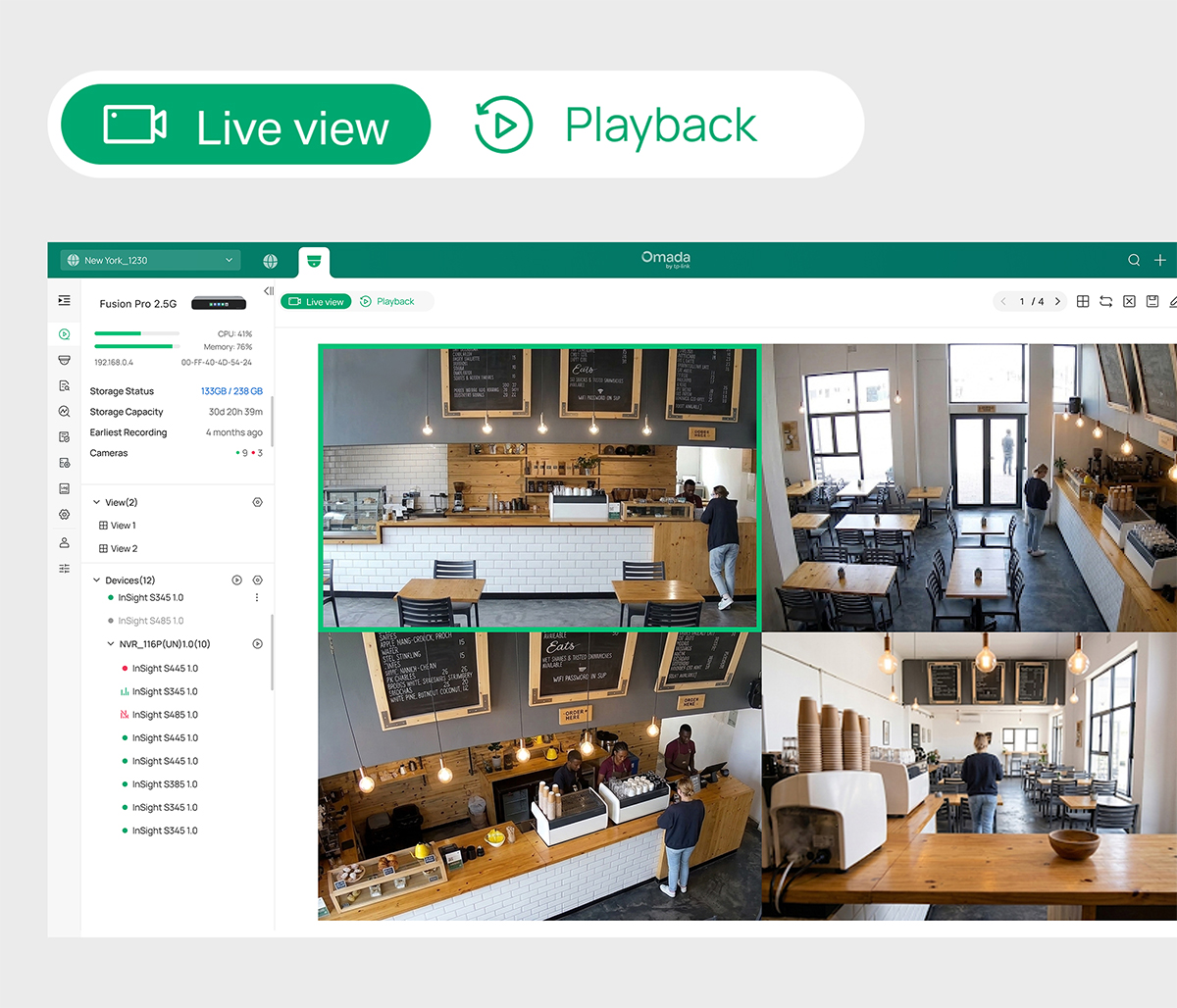

Professional Features for High-Efficiency Video Monitoring
Simplify monitoring and accelerate response with integrated surveillance tools.
Search and locate persons or vehicles of interest in seconds—speeding investigations and simplifying workflows.‡
Create, organize, and track cases from a single workspace.
Supports a broader range of ONVIF and RTSP cameras with extensive feature coverage.
Archive recordings to Google Drive, OneDrive, Dropbox, or on-premises NAS for flexible long-term retention.
Uninterrupted Surveillance with Easier Maintenance

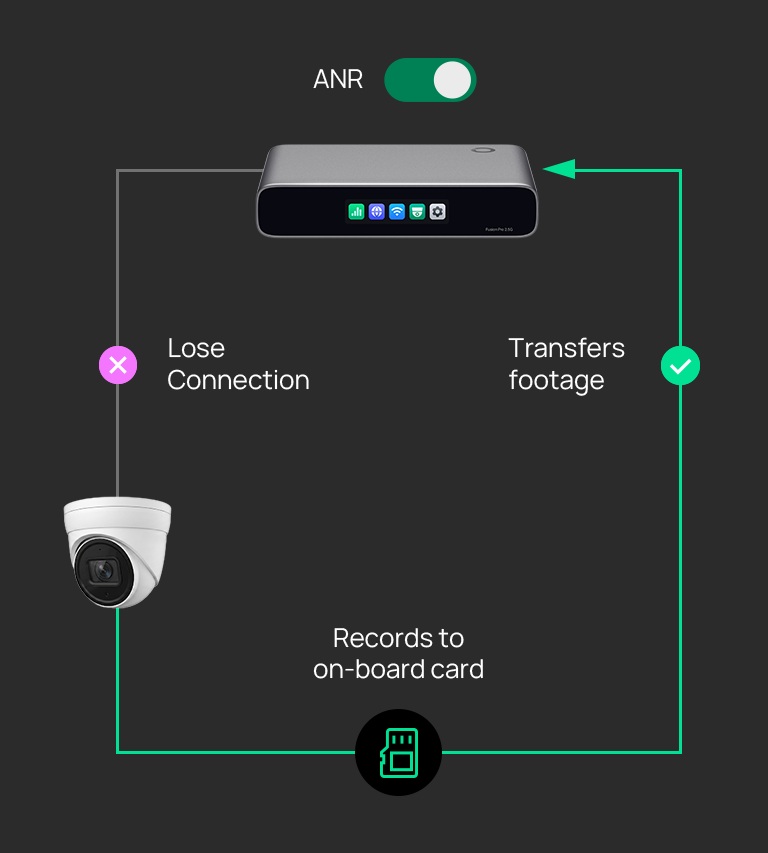

ANR Lose Connection Transfers footage Records to on-board card

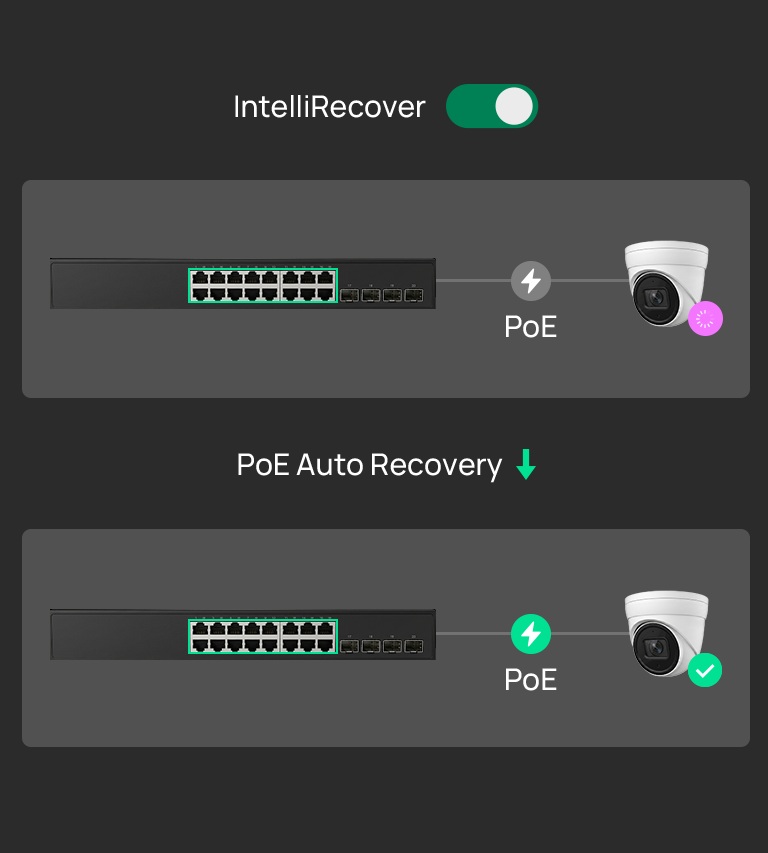

IntelliRecover PoE PoE PoE Auto Recovery
Fusion Pro 2.5G IPC Switch AP△These features require implementation with compatible cameras and PoE switches.

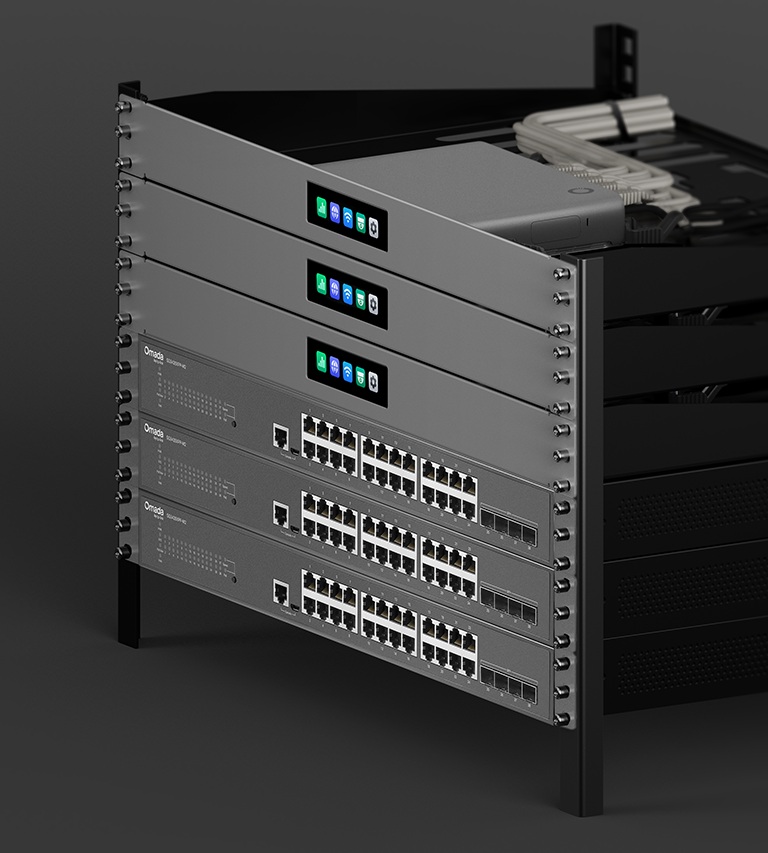

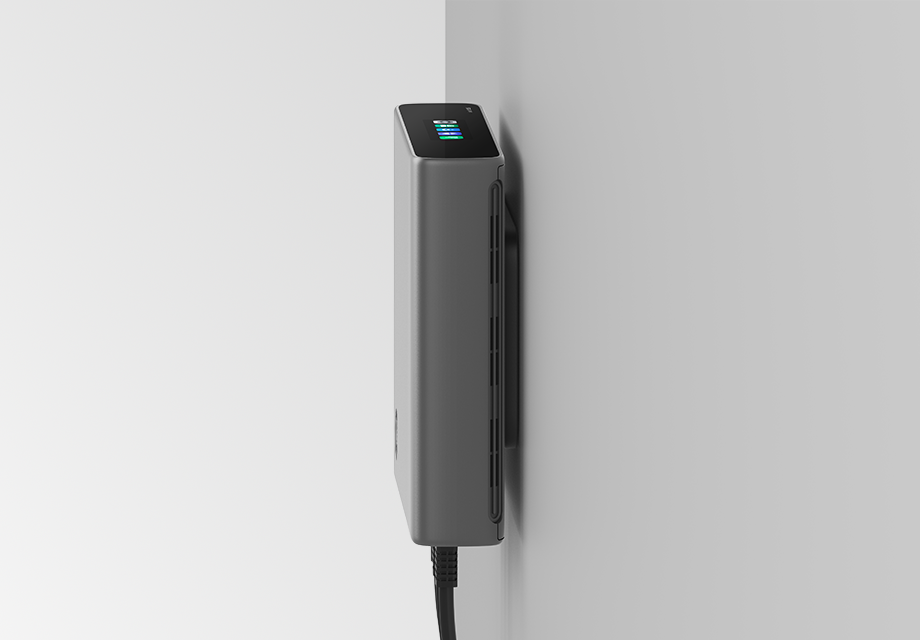

Flexible Mounting for Diverse Business Environments

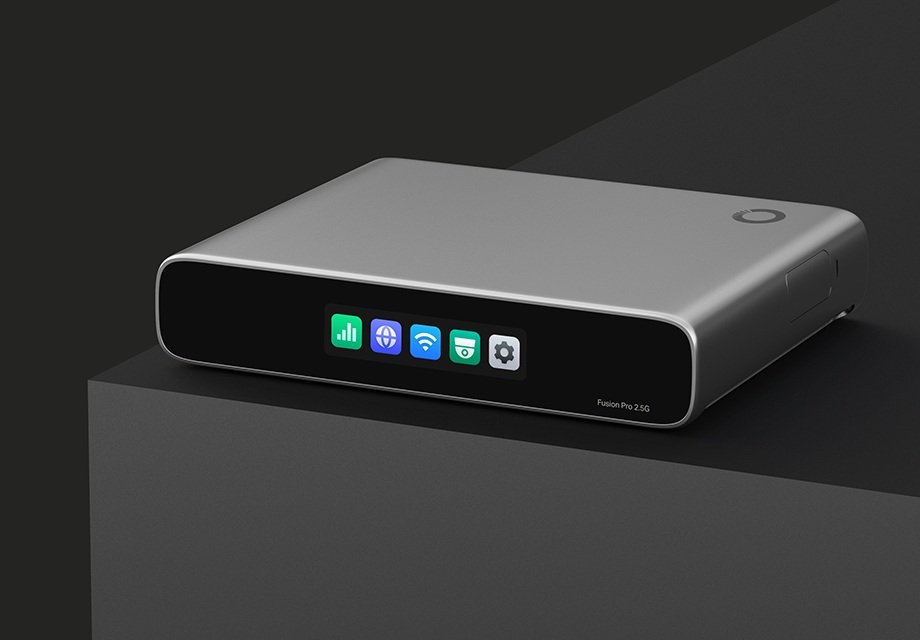

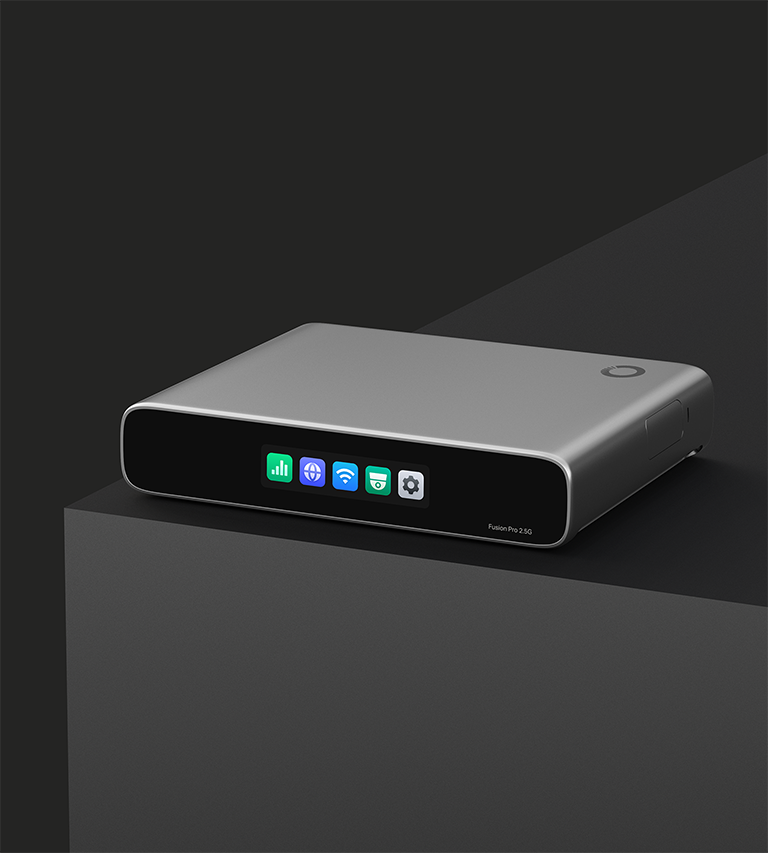

Desktop
No Additional Installation Needed
Designed for Forward-Thinking Businesses
| Overview | |
|---|---|
| Built-In Omada Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices§ |
| Client Capacity | Recommended for up to 300 connected clients§ |
| Interface | • 1× 2.5G RJ45 WAN port• 4× 2.5G RJ45 LAN/WAN ports• Up to 4 simultaneous WAN ports |
| IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| Management | Cloud, local, and Omada App management |

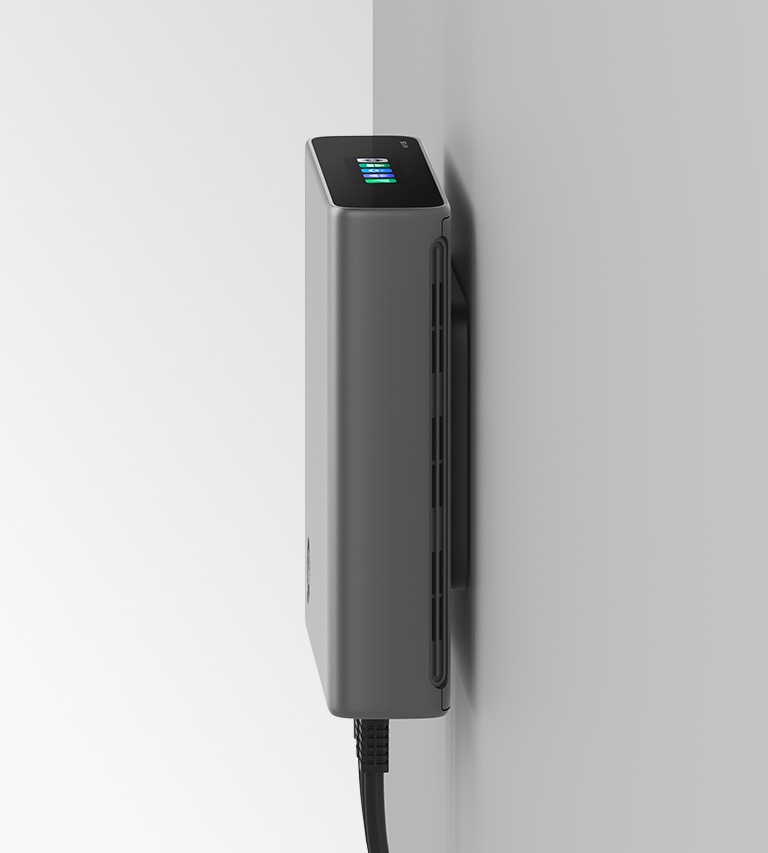

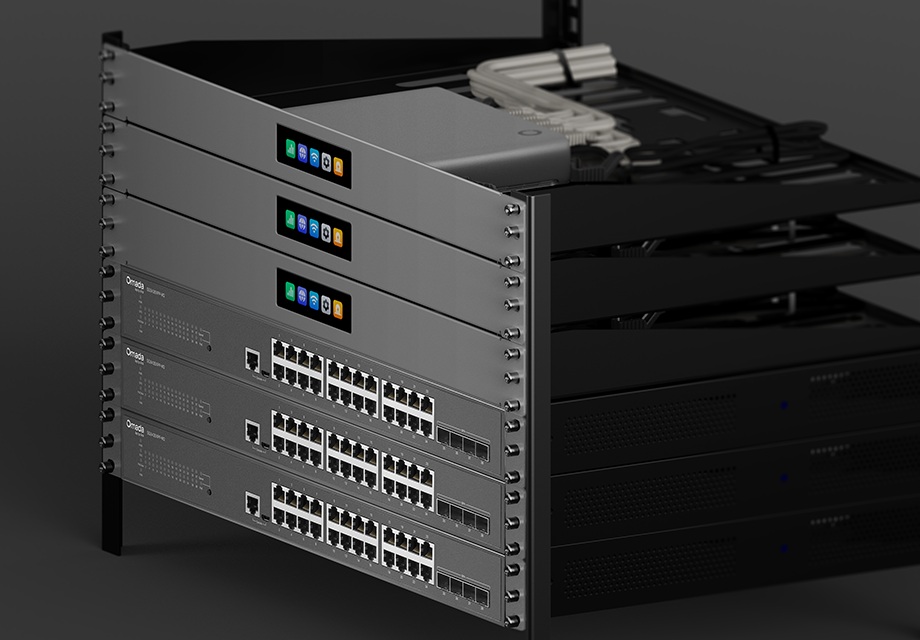

| Mounting | • Desktop• Wall-mount (magnetic-mount plate sold separately)• Rack-mount (rackmount kit sold separately) |
| Dimensions | 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm) |
| Built-in Omada Controller§ | |
|---|---|
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | Via the Omada Cloud Management Platform |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |

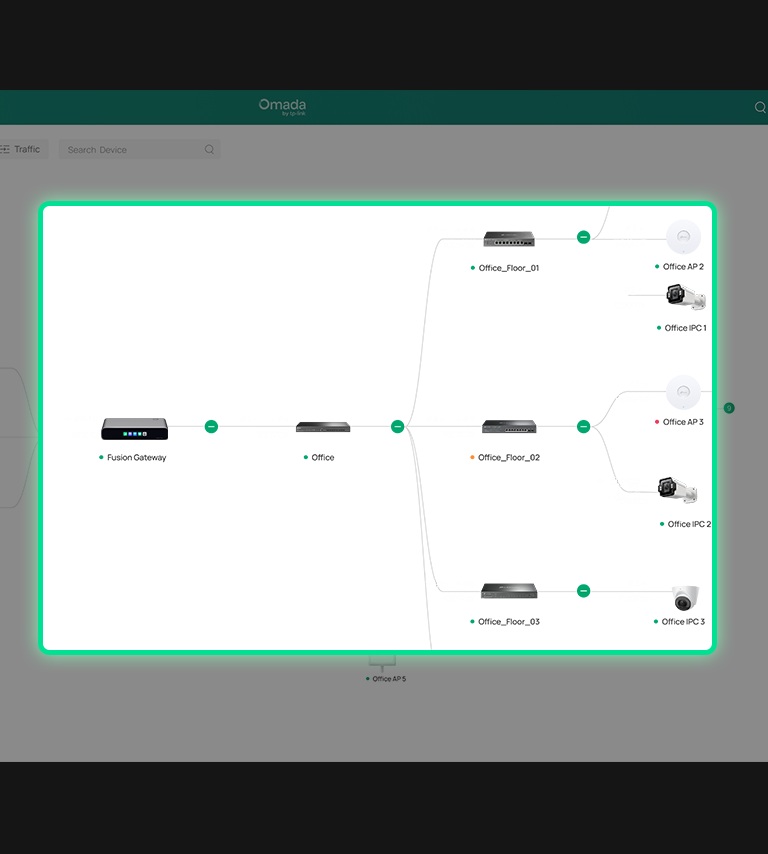

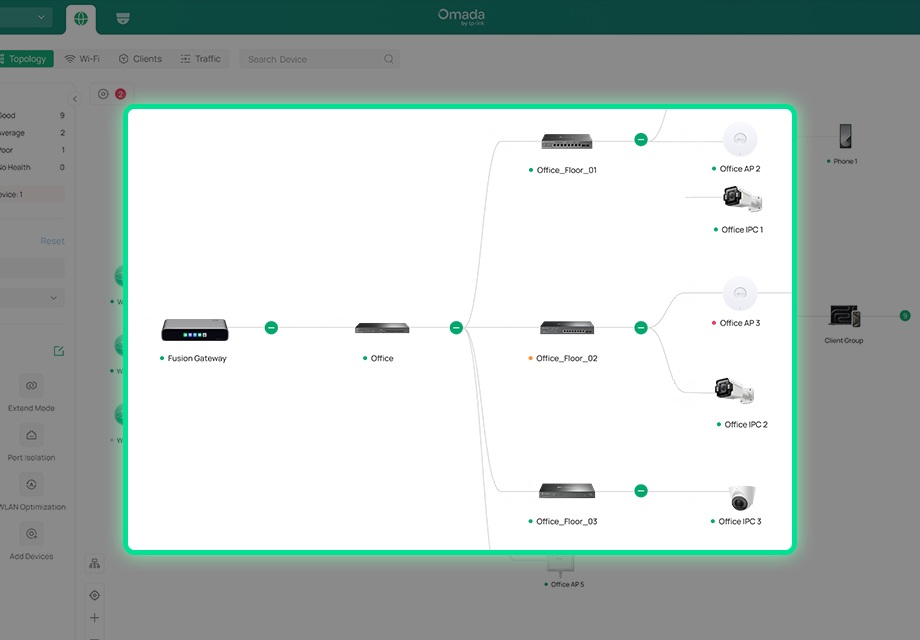

| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |

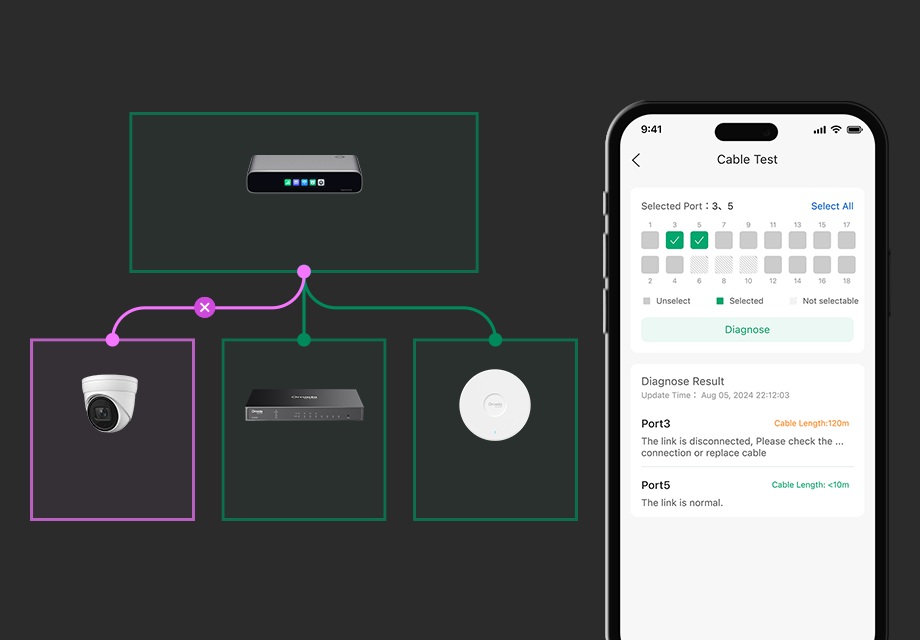

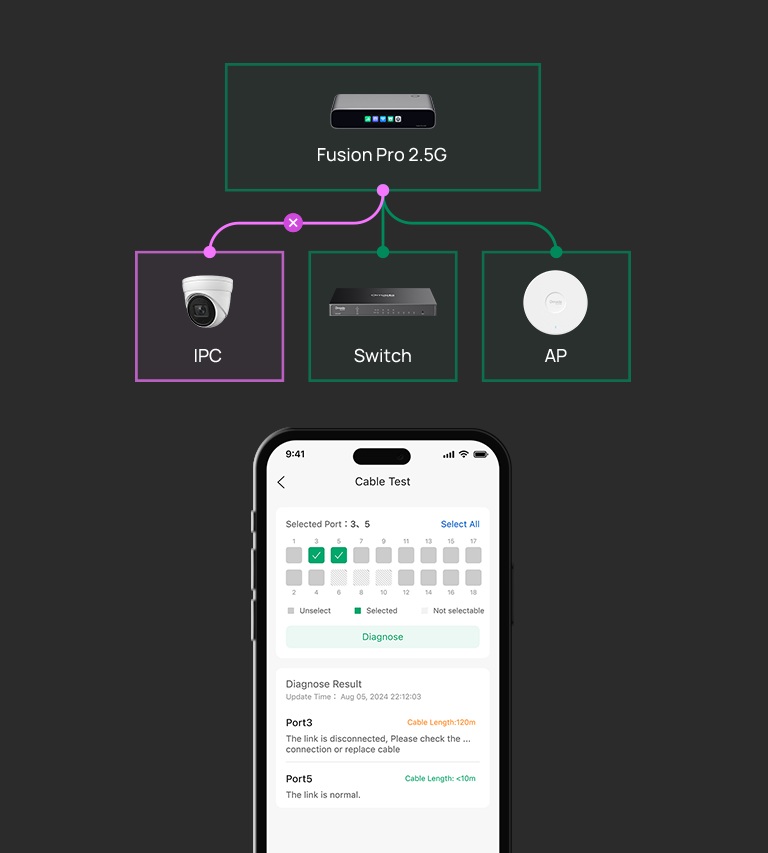

| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
| SECURITY | |
|---|---|
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack Defense | √ |
| ARP Inspection | √ |
| VPN & SD-WAN | |
|---|---|
| Omada LightLink VPN | √ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | • Omada LightLink VPN: 527 Mbps• IPsec VPN: 1,023 Mbps• WireGuard VPN: 605 Mbps• OpenVPN: 223 Mbps• L2TP VPN: 892 Mbps• PPTP VPN: 193 Mbps• SSL VPN: 250 Mbps |
| Networking | |
|---|---|
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
|---|---|
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 8.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 1.12 lb (510 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)• Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)• Operating Humidity: 10% to 90% RH, non-condensing• Storage Humidity: 5% to 90% RH, non-condensing |
*Actual throughput may vary depending on traffic conditions, enabled features, and network environment.
**Magnetic‑mount plate and rack‑mount kit are sold separately.
§Controller and management features may vary depending on connected Omada devices, software versions, and deployment modes. The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions.
† Performance data is based on IPsec VPN.
