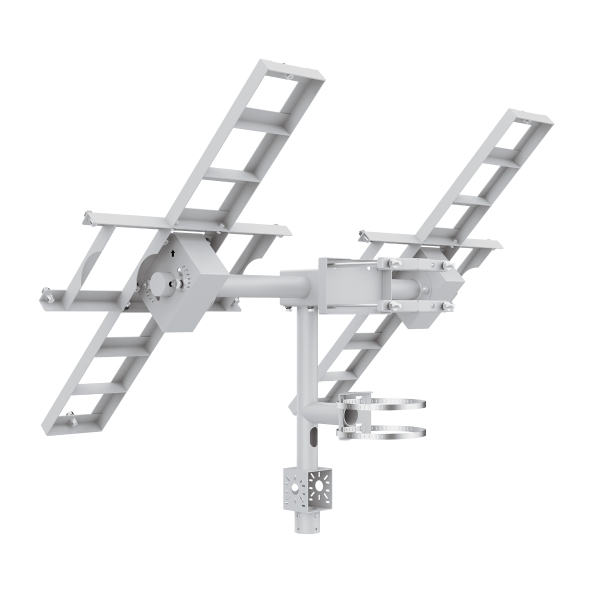

VIGI 180W Solar Mount
NewVIGI 180W Solar Mount
- SGCC Galvanized Steel
- Highly Stable and Compatible Special Pole Clamp*
- The Integrated Bracket is CO2 Welded
- 8.8 Grade High-strength Screws**
- Anti-loosing Spring Pads

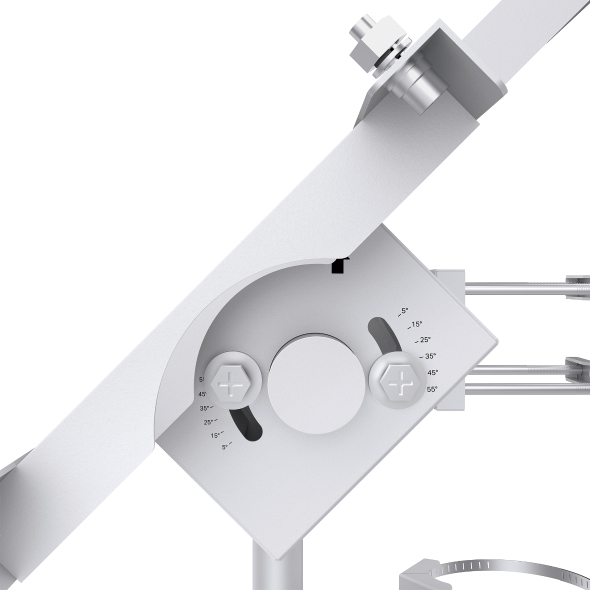

- Reinofrced Angle-adjustable Bracket
| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°~55° |
| HARDWARE | |
|---|---|
| Product Dimensions (W x D x H) | 35.4 × 22.8 × 8.2 in (900 × 580 × 208 mm) |
| OTHERS | |
|---|---|
| Package Content | • VIGI 180W Solar Mount • Quick Start Guide • Mounting Accessories |
| Box Dimensions (W X D X H) | 38.4×24.60×7.7 in (975×625×195 mm) |
| Weight | • Product Weight: 20 kg • Package Weight: 24 kg |
| Environment | • Operating Temperature: -30°C-60°C • Operating Humidity: 5%~90%RH, Non-condensing |
*For poles with diameters of 80-100mm, use hole 1. For poles with diameters of 100-160mm, use hole 2.
**Screws conform to ISO 898-1 standard.
