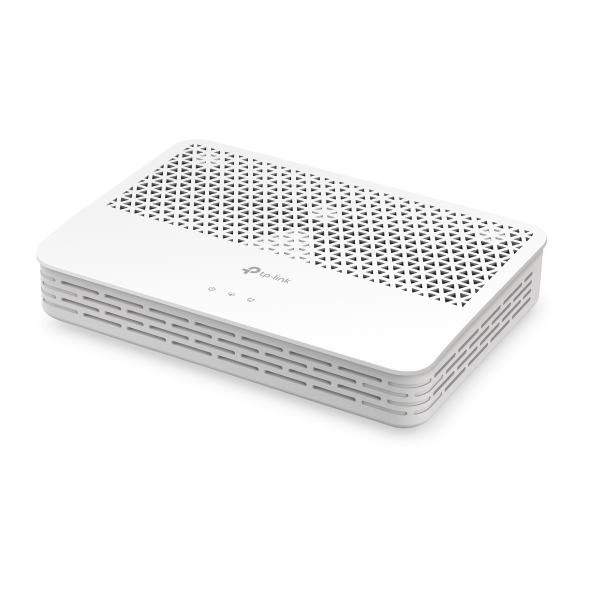

XGZ030

1-Port XGS-PON Terminal

  • Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
  • 10G Wired Connections: 1× 10GE LAN port enables ultra-fast network sharing and connections.
  • Ease of Use: Quick and hassle-free installation with intelligent power-saving.
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

HARDWARE FEATURES

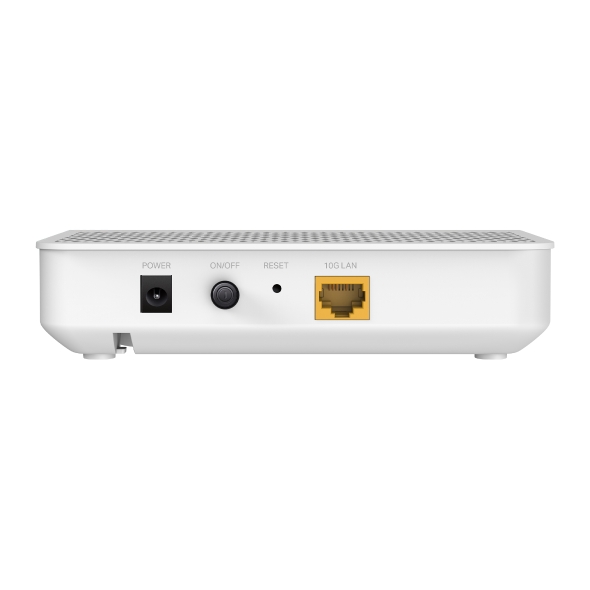

Interface 1 XGS-PON Port
1 10G RJ45 Port
Button 1 Power On/Off Button
1 Reset Button
External Power Supply 12V/1A
IEEE Standards IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
IEEE 802.3, 802.3.u, 802.3ab, 802.3x
Data Rates Downstream Speeds: 10 Gbps*
Upstream Speeds: 10 Gbps*
Wavelength Upstream: 1270 nm
Downstream: 1577 nm
Dimensions ( W x D x H ) 4.72 × 4.72 × 1.1 in (120 × 120 × 27.85 mm)
Distance 0–20 Km Max
GPON Standards ITU-T G.9907.1, ITU-T G.988
Optical Module Class E1
Receiver Super-TIA
Transmitter DFB laser
SOFTWARE FEATURES
Advanced Features Upstream and Downstream FEC,
Dynamic Bandwidth Allocation (DBA) support NSR/SR,
Up to 32 T-CONTs and 256 GEM ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
802.3az EEE energy conservation
Schedule Reboot,
LED Schedule
VLAN 802.1Q tag VLAN, Q in Q VLAN
VLAN transparent mode/VLAN translation
mode/VLAN trunk mode
Authentication based on SN and password
Security AES encryption
Packet filter based on VLAN
Management Local management: WebGUI, Telnet
Remote management: OMCI
IGMP IGMP v1/v2/v3
OTHERS
Package Contents XGS-PON Terminal
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
