How to create a VLAN using Omada App

Configuration Guide
更新10-01-2025 18:08:53 PM Number of views for this article35

Contents

Objective

Requirements

Introduction

Configuration

Verification

Conclusion

Objective

This article will show you how to create a VLAN using Omada App step by step.

Requirements

  • Omada Controller
  • Omada App V5
  • Omada Gateway & switch & AP

Introduction

VLAN configuration is a frequently used function in Omada Controller. Now with the management on the Omada App, you can simply complete the VLAN setup in a few steps.

Show topology of this instruction.

Configuration

Step 1.

Launch the Omada Controller in which you want to set up a VLAN.

You can connect to the EAP’s SSID and scan the Controller in the local network, or switch to the Controller mode to check the Controller via cloud remotely.

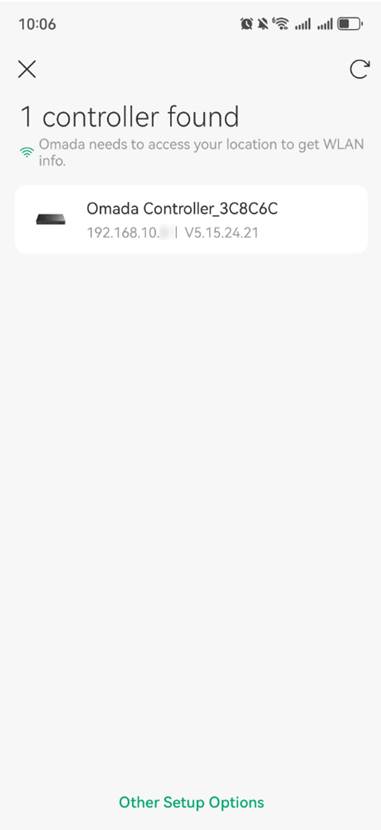

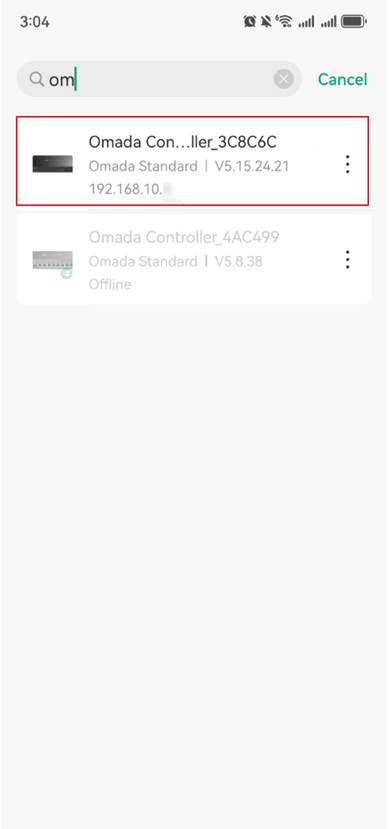

Discover the Controller in local network.

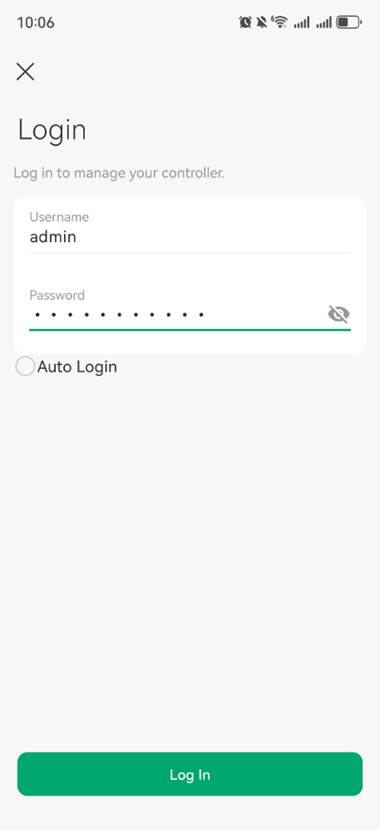

Login the Controller in local network with local account credentials.

Check Controller in Controller mode via cloud.

Step 2.

Launch the site in which you want to configure a VLAN.

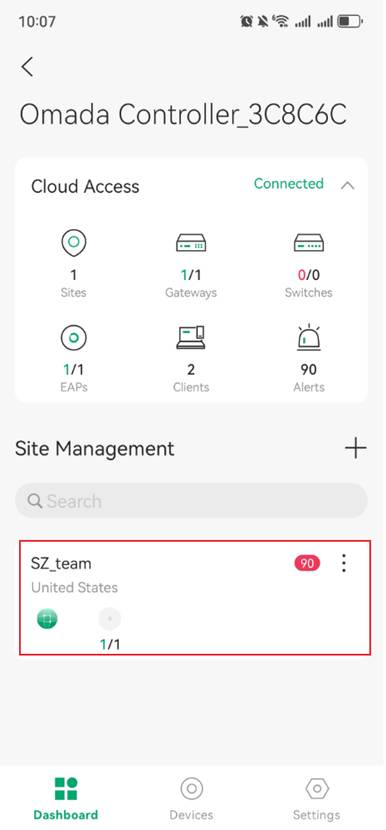

Select the site you want to configure.

Step 3.

Go to Settings > LAN Settings > VLAN and click “+” on the upper right corner to create a new VLAN and put the necessary information as expected.

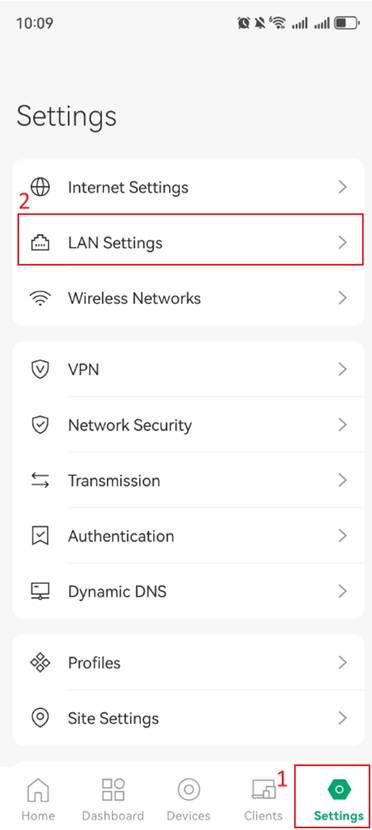

Go to LAN Settings in specific site.

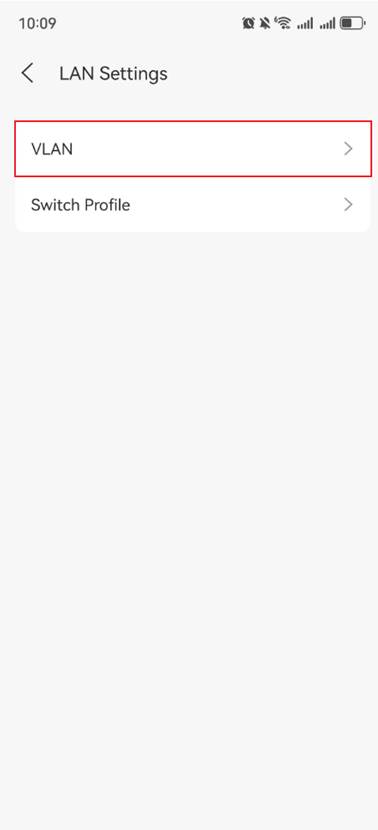

Open VLAN settings.

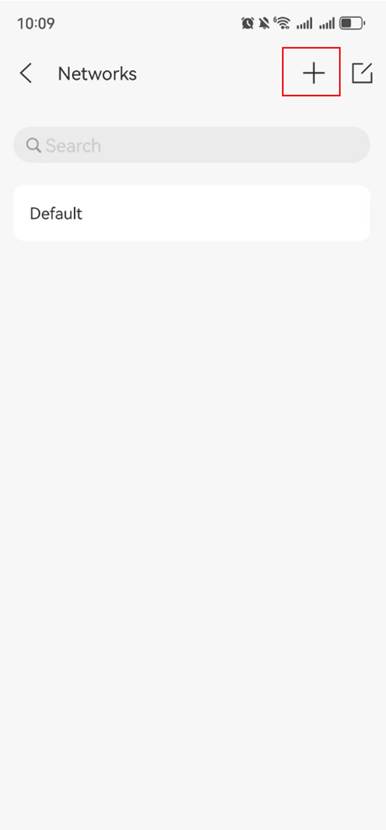

Click the “+” button to create a new VLAN network.

Next, you can configure the Name, Purpose, LAN interface and VLAN for this network.

Note: For purpose configuration, when the interface is selected, a Layer 3 interface will be generated for the VLAN, and you will need to select all the ports included in the VLAN.

When VLAN is selected, a Layer 2 interface will be generated for the VLAN, and all LAN ports of the gateway will be added to the VLAN, and you do not need to manually select the ports included in the VLAN. Note that it is not common for the gateway to use a pure Layer 2 VLAN.

Here, we use Interface as an example.

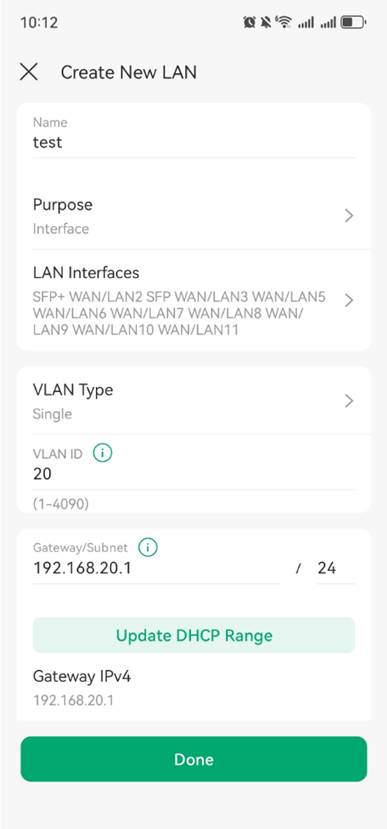

Create a new VLAN and update DHCP range.

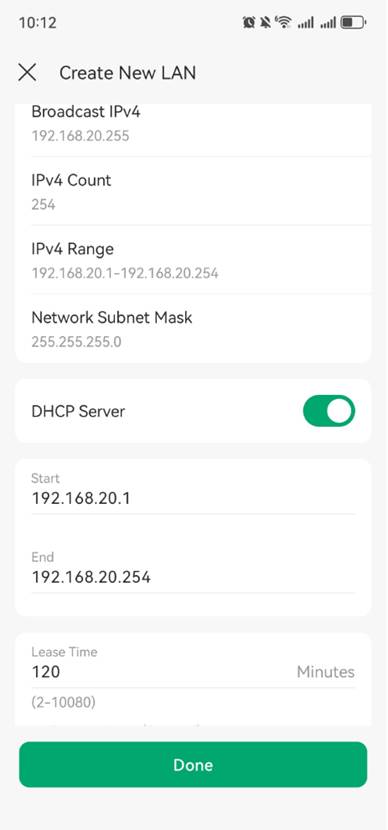

DHCP range of new VLAN and other default settings.

Step 4.

Go back to the networks page, you will see the VLAN network you just created.

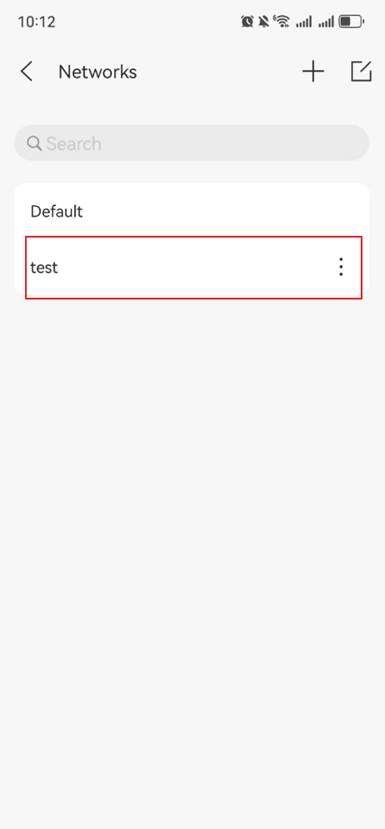

Verify the network you just created.

Go back to Devices > Switch > Port list to make sure the uplink port to ensure both the uplink port connecting to the router and the downlink port connecting to the EAP on the switch are configured with the “All” profile.

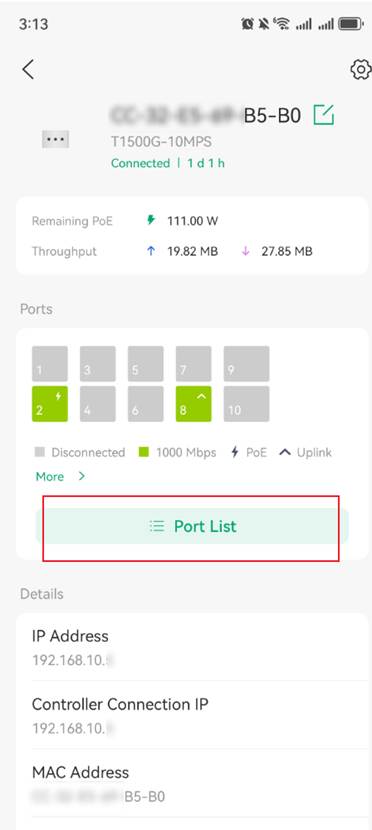

Show the location of the switch port list.

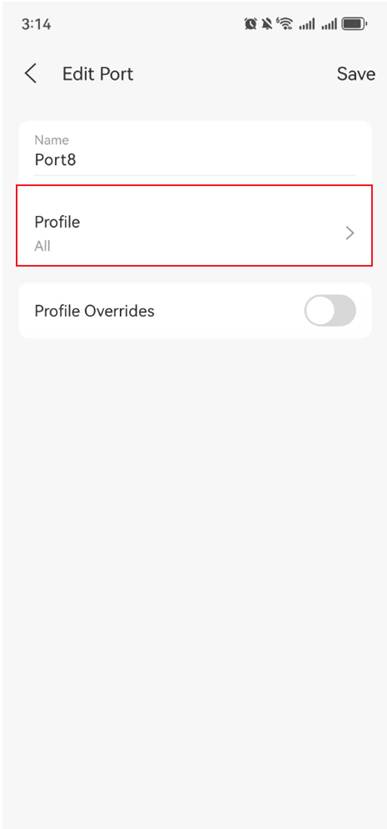

Check the switch port profile connected to EAP.

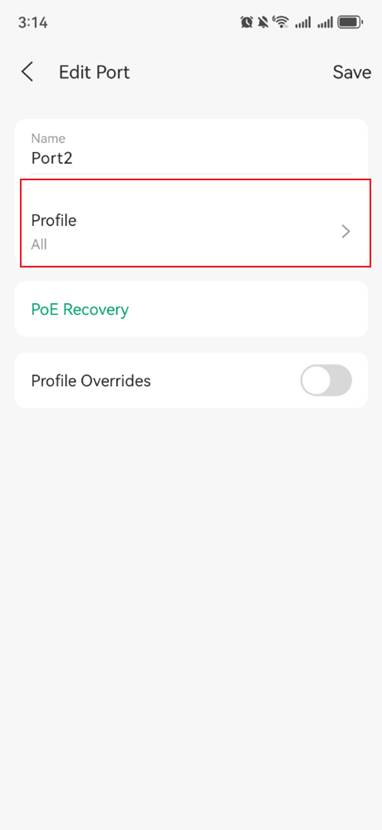

Check the switch port profile connected to router.

Step 5.

Go to Settings > Wireless Networks > WLAN to set the VLAN ID for the SSID you want to configuration.

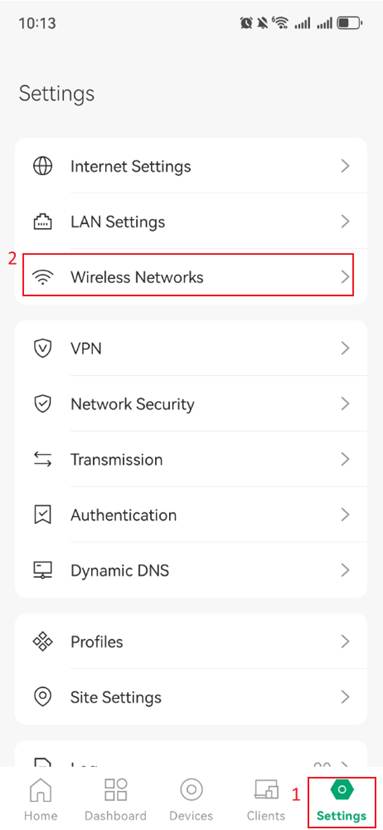

Open the Wireless Settings page.

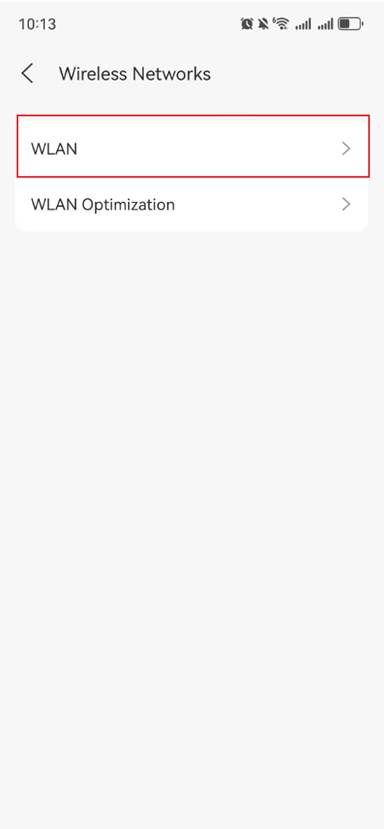

Go to the WLAN page.

You can choose to modify an existing wireless network directly, or click the “+” button to create a new network. When configuring VLANs for your wireless network, you can choose between “By VLAN ID” or “By Network.”

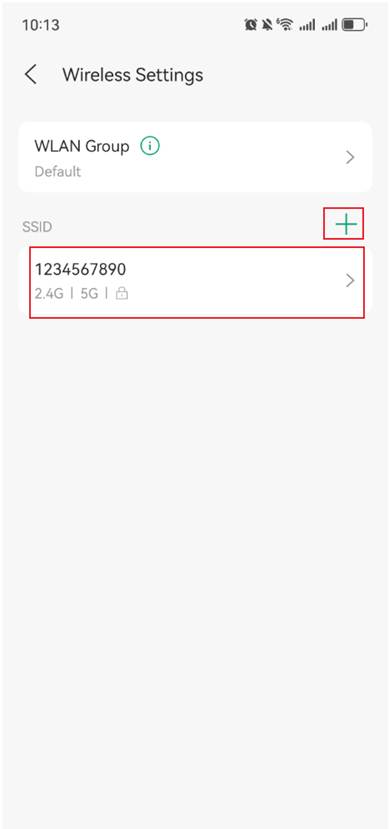

Display existing SSIDs and the location of the “+” button for adding new SSIDs.

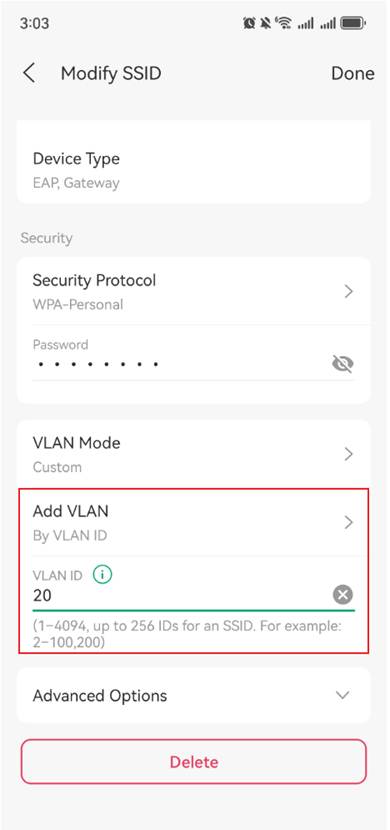

Set SSID VLAN by VLAN ID.

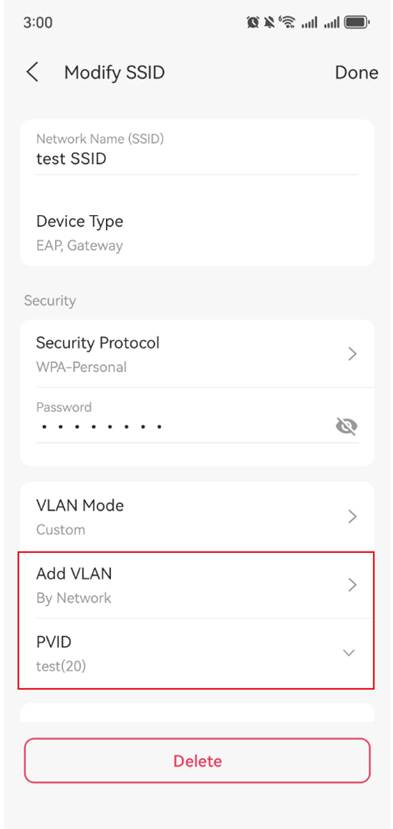

Set SSID VLAN by Network.

Verification

Try to connect to the SSID configured with VLAN on your mobile device and verify the IP address. Upon verification, the address is confirmed to be within the same subnet as the new VLAN.

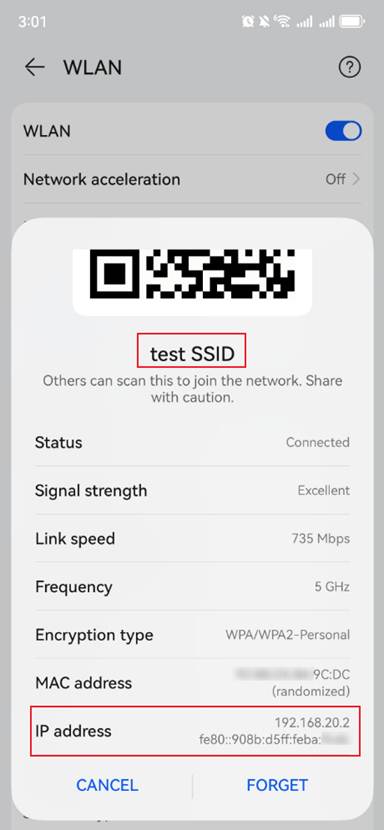

Check IP address on test mobile phone.

Conclusion

With the above steps, you can complete the VLAN setup using Omada App.

Get to know more details of each function and configuration please go to Download Center to download the manual of your product.
