2. LAN-to-LAN VPN Configuration
3. Client-to-LAN VPN Configuration
|
This guide applies to: TL-ER6120 v2, TL-ER6020 v2, TL-R600VPN v4 For TL-ER6120 v1, TL-ER6020 v1, TL-R600VPN v3 or below, refer to Configuration Guide for VPN_TL-ER6120 v1&TL-ER6020 v1&TL-R600VPN v3. |
1.1Overview
VPN (Virtual Private Network) provides a means for secure communication between remote computers across a public WAN (Wide Area Network), such as the internet. Virtual indicates the VPN connection is based on the logical end-to-end connection instead of the physical end-to-end connection. Private indicates users can establish the VPN connection according to their requirements and only specific users are allowed to use the VPN connection.
The core of VPN is to realize tunnel communication, which fulfills the task of data encapsulation, data transmission and data decompression via the tunneling protocol. Common tunneling protocols are Layer 2 tunneling protocol and Layer 3 tunneling protocol.
Depending on your network topology, there are two basic application scenarios: LAN-to-LAN VPN and Client-to-LAN VPN.
LAN-to-LAN VPN

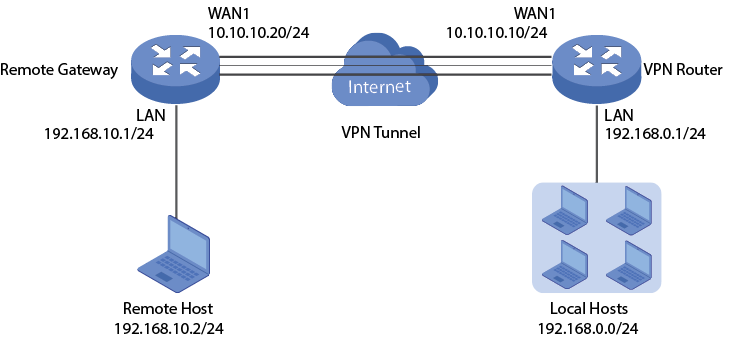

In this scenario, different private networks are connected together via the internet. For example, the private networks of the branch office and head office in a company are located at different places. LAN-to-LAN VPN can satisfy the demand that hosts in these private networks need to communicate with each other. The following figure shows the typical network topology in this scenario.

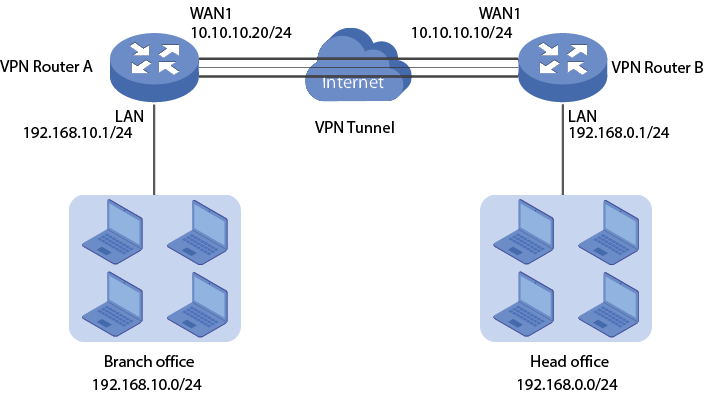

Figure 1-1 LAN-to-LAN VPN
Client-to-LAN VPN

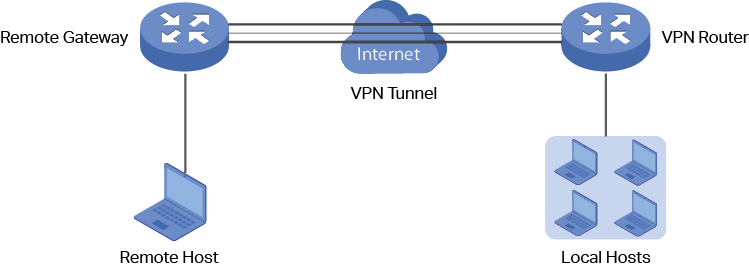

In this scenario, the remote host is provided with secure access to the local hosts. For example, an employee on business can access the private network of his company securely. Client-to-LAN VPN can satisfy this demand. The following figure shows the typical network topology in this scenario.
Figure 1-2 Client-to-LAN VPN
1.2Supported Features
TP-Link SafeStream VPN Routers support Layer 2 tunneling protocol (PPTP, L2TP) and Layer 3 tunneling protocol (IPsec).
Note: TL-R600VPN V3 or below doesn’t support L2TP. |
IPsec
IPsec (IP Security) can provide security services such as data confidentiality, data integrity and data origin authentication at the IP layer. IPsec uses IKEv1 (Internet Key Exchange version 1) to handle negotiation of protocols and algorithms based on the user-specified policy, and generate the encryption and authentication keys to be used by IPsec. IKEv1 negotiation includes two phases, that is IKEv1 Phase-1 and IKEv1 Phase-2. The basic concepts of IPsec are as follows:
Proposal
Proposal is the security suite configured manually to be applied in IPsec IKEv1 negotiation. Specifically speaking, it refers to hash algorithm, symmetric encryption algorithm, asymmetric encryption algorithm applied in IKEv1 Phase-1, and security protocol, hash algorithm, symmetric encryption algorithm applied in IKEv1 Phase-2.
Negotiation Mode
The negotiation mode configured for IKEv1 Phase-1 negotiation determines the role that the VPN router plays in the negotiation process. You can specify the negotiation mode as responder mode or initiator mode.
Responder Mode: In responder mode, the VPN router responds to the requests for IKEv1 negotiation and acts as the VPN server or the responder.
Initiator Mode: In initiator mode, the VPN router sends requests for IKEv1 negotiation and acts as the VPN client or the initiator.
Exchange Mode
The exchange mode determines the way VPN routers negotiate in IKEv1 Phase-1. You can specify the exchange mode as main mode or aggressive mode.
Main Mode: In main mode, the identification information for authentication is encrypted, thus enhancing security.
Aggressive Mode: In aggressive mode, less packets are exchanged, thus improving speed.
Authentication ID Type
The authentication ID type determines the type of authentication identifiers applied in IKEv1 Phase-1. It includes the local ID type and the remote ID type. The local ID indicates the authentication identifier sent to the other end, and the remote ID indicates that expected from the other end. You can specify the authentication ID type as IP address or name.
IP Address: The router uses the IP address for authentication.
Name: The router uses the FQDN (Fully Qualified Domain Name) for authentication.
Encapsulation Mode
The encapsulation mode determines how packets transfered in the VPN tunnel are encapsulated. You can select tunnel mode or transport mode as the encapsulation mode. For most users, it is recommended to use the tunnel mode.
PFS
PFS (Perfect Forward Secrecy) determines whether the key generated in IKEv1 Phase-2 is relevant with that in IKEv1 Phase-1. You can specify PFS as none, dh1, dh2, or dh5. None indicates that no PFS is configured, and the key generated in IKEv1 Phase-2 is relevant with that in IKEv1 Phase-1, whereas dh1, dh2, or dh5 means different key exchange groups, which make the key generated in IKEv1 Phase-2 irrelevant with that in IKEv1 Phase-1.
L2TP
L2TP (Layer 2 Tunneling Protocol) provides a way for a dial-up user to make a virtual PPP (Point-to-Point Protocol) connection to a VPN server. Because of the lack of confidentiality inherent in the L2TP protocol, it is often implemented along with IPsec. The basic concepts of L2TP are as follows:
IPsec Encryption
IPsec encryption determines whether the traffic of the tunnel is encrypted with IPsec. You can select encrypted or unencrypted as the IPsec encryption. If encrypted is selected, a pre-shared key needs to be entered, and then the L2TP traffic will be encrypted with a default IPsec configuration. If unencrypted is selected, the VPN tunnel traffic will not be encrypted.
Authentication
L2TP uses an account name and password for authentication on the VPN server. Only legal clients can set up a tunnel with the server, thus enhancing network security.
PPTP
PPTP (Point-to-Point Tunneling Protocol) is a network protocol that enables the secure transfer of data from a remote client to a private enterprise server by creating a VPN across TCP/IP-based data networks. PPTP supports on-demand, multi-protocol, virtual private networking over public networks, such as the internet. The basic concepts of PPTP are as follows:
MPPE Encryption
MPPE (Microsoft Point-to-Point Encryption) scheme is a means of representing PPP packets in an encrypted form defined in RFC 3078. You can select encrypted or unencrypted as MPPE encryption. If encrypted is selected, the VPN tunnel traffic will be encrypted with RSA RC4 algorithm to ensure data confidentiality. If unencrypted is selected, the VPN tunnel traffic will not be encrypted.
Authenticaiton
PPTP uses an account name and password for authentication on the VPN server. Only legal clients can set up a tunnel with the server, thus enhancing network security.
1.3Configuration Guidelines
VPN does not involve the creation of a new physical connection. Instead, it is an additional feature built on the basis of the current network connection. Hence, the first step when creating a VPN tunnel is to acquire basic information about the network, such as the network topology. The necessary information is as follows.
The IP addresses of both ends of the VPN tunnel
The network topology of both ends of the VPN tunnel
Generally, if both ends are private networks, establish a LAN-to-LAN VPN tunnel. If one end is a remote client and the other end is a private network, establish a Client-to-LAN VPN tunnel.
Whether any NAT devices exist between the ends of the tunnel
NAT devices may affect the establishment of VPN tunnel, so specific configuration needs to be implemented in that case, and IP addresses of NAT devices are also necessary. Please contact your ISP for that information.
Whether you wish the remote client access the internet via the VPN proxy gateway
To satisfy this demand, you can establish an L2TP/PPTP Client-to-LAN VPN tunnel with specific configuration.
2.1Network Topology
LAN-to-LAN VPN is deployed when different private networks are connected together via the internet. For example, the branch office and head office of a company are located at different places, and need to communicate with each other privately over the internet. The following figure shows the typical network topology.

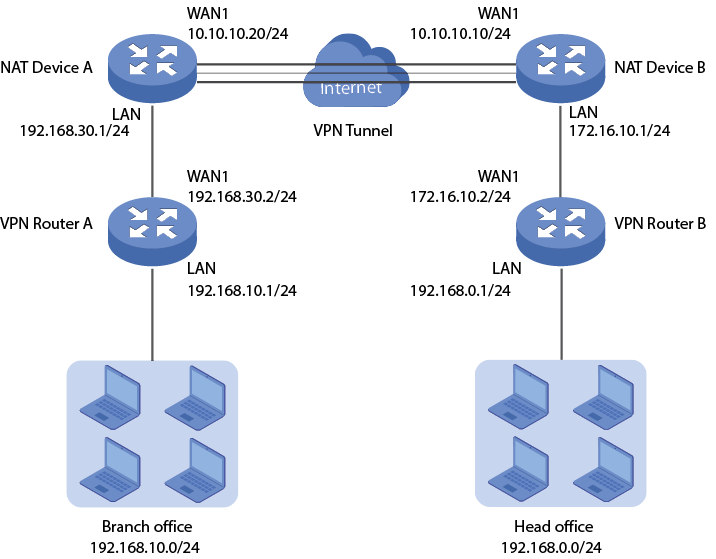

In actual network environments, NAT devices may exist in front of the VPN routers. The following figure shows the network topology in this scenario.
Figure 2-2 LAN-to-LAN VPN with NAT
LAN-to-LAN VPN can be established via three methods, including IPsec LAN-to-LAN VPN, PPTP LAN-to-LAN VPN, and L2TP LAN-to-LAN VPN. The topology shown in Figure 2-1 is used as an example, with TL-ER6120 used as the VPN router for demonstration purposes. Configuration instructions for the three methods are given below.
2.2IPsec LAN-to-LAN VPN Configuration
To configure the IPsec LAN-to-LAN VPN, follow these steps:
1)Configure the IPsec policy for the responder.
2)Configure the IPsec policy for the initiator.
3)(Optional) Implement configuration for NAT devices.
4)Verify the connectivity of the IPsec VPN tunnel.
2.2.1Configuring the IPsec Policy for the Responder
Select any one of the VPN routers as the responder. Here we select VPN Router B as the responder. Follow these steps to configure IPsec policy for the responder.
1)Choose the menu VPN > IPSec > IPSec Policy and click Add to load the following page. Configure the basic parameters for the IPsec policy.

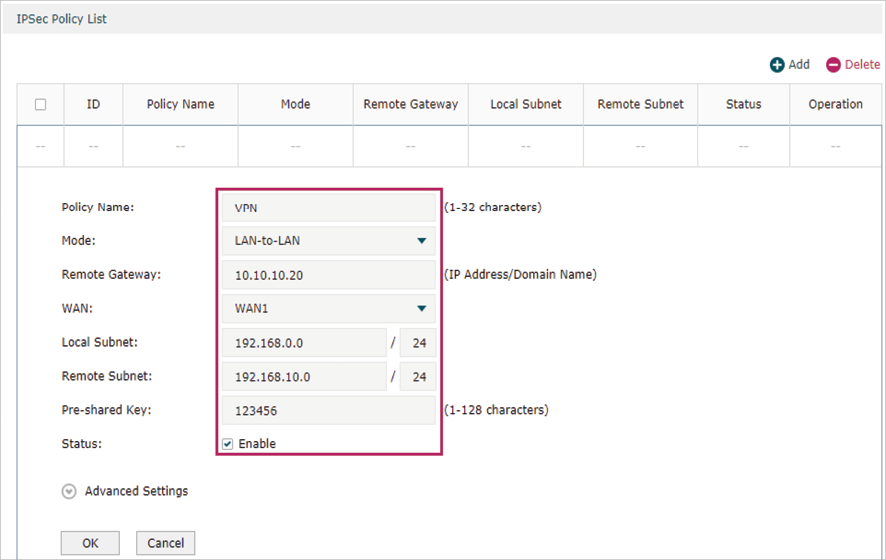

Figure 2-3 Configuring the IPsec policy
Policy Name |
Specify the name of IPsec Policy. Here we enter VPN. |
Mode |
Specify the mode as LAN-to-LAN. |
Remote Gateway |
Specify the remote gateway as 10.10.10.20. This should be the IP address of the other end of the VPN tunnel. |
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Local Subnet |
Specify the local subnet as 192.168.0.0/24. This should be the subnet address of the local network. |
Remote Subnet |
Specify the remote subnet as 192.168.10.0/24. This should be the subnet address of the remote network. |
Pre-shared key |
Specify the pre-shared key as you like. Here we enter 123456. |
Status |
Enable the IPsec policy list entry. |

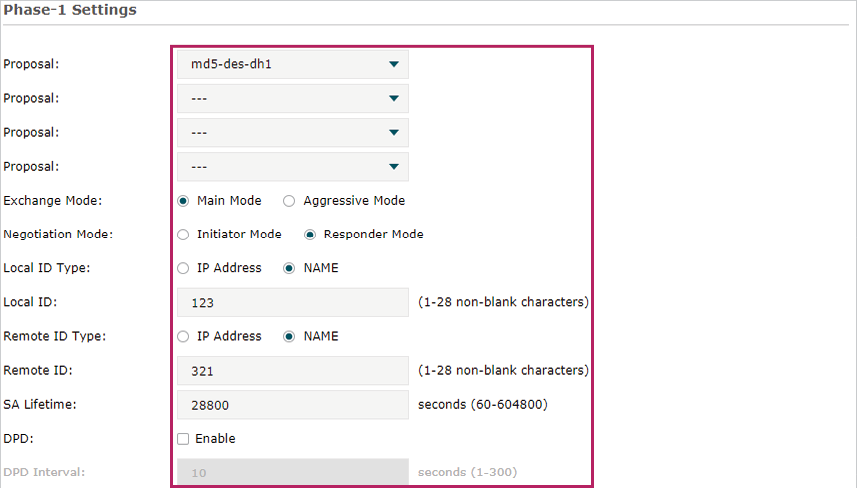

2)Click Advanced Settings to load the following page. In the Phase-1 Settings section, configure the IKE phase-1 parameters for the IPsec policy.
Figure 2-4 Configuring the IKE phase-1 parameters
Proposal |
Select the proposal from the drop-down list. Here we select md5-des-dh1. |
Exchange Mode |
Specify the exchange mode according to your needs. Here we specify the exchange mode as Main Mode. |
Negotiation Mode |
Specify the negotiation mode as Responder Mode. |
Local ID Type/ Remote ID Type |
Specify the local ID type and remote ID type as you like. Here we specify the local ID type and remote ID type as NAME. |
Local ID/ Remote ID |
Specify the local ID and remote ID as you like. Here we specify the local ID as 123 and remote ID as 321. |
SA Lifetime |
Specify the SA lifetime as your like. Here we keep the default setting. |
DPD |
Enable or disable DPD (Dead Peer Detection) according to your needs. Here we disable DPD. |
3)In the Phase-2 Settings section, configure the IKE phase-2 parameters for the IPsec policy. Click OK.

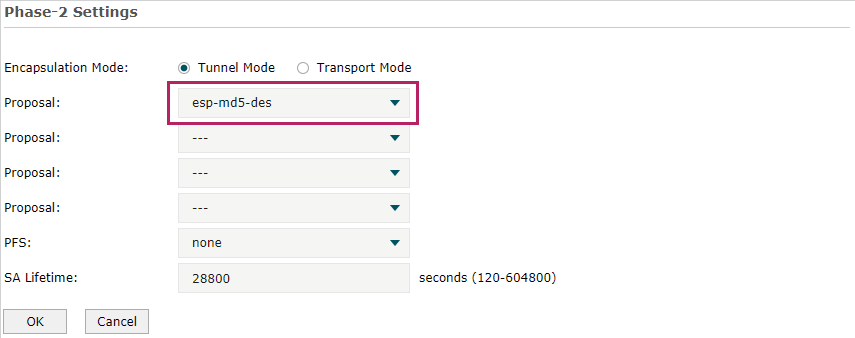

Figure 2-5 Configuring the IKE phase-2 parameters
Encapsulation Mode |
Specify the encapsulation mode as Tunnel Mode. |
Proposal |
Select the proposal from the drop-down list. Here we select esp-md5-des. |
PFS |
Select the PFS from the drop-down list according to your needs. Here we select none. |
SA Lifetime |
Specify the SA lifetime according to your needs. Here we keep the default setting. |
2.2.2Configuring IPsec Policy for the Initiator
Select the other VPN Router as the Initiator of IPsec negotiation. Here we select VPN Router A as the Initiator. Follow these steps to configure IPsec Policy for the initiator.
1)Choose the menu VPN > IPSec > IPSec Policy and click Add to load the following page. Configure the basic parameters for the IPsec policy.

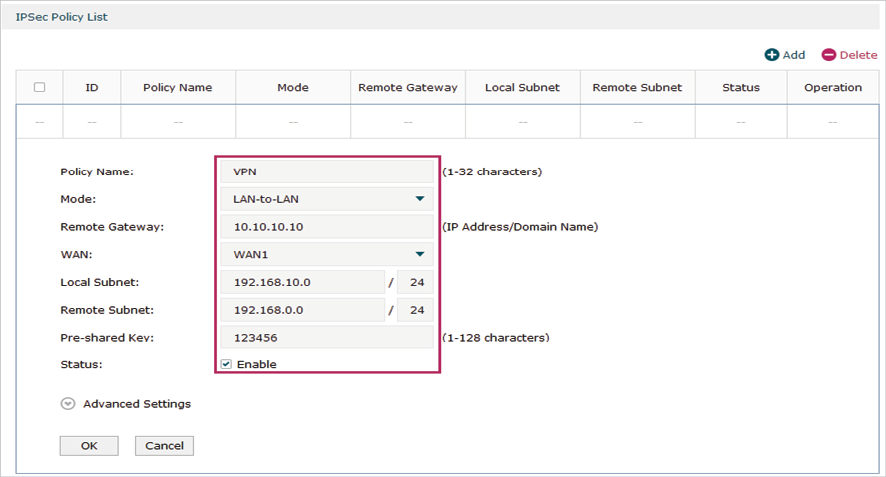

Figure 2-6 Configuring the IPsec policy
Policy Name |
Specify the name of IPsec policy. Here we enter VPN. |
Mode |
Specify the mode as LAN-to-LAN. |
Remote Gateway |
Specify the remote gateway as 10.10.10.10. This should be the IP address of the other end of the VPN tunnel. |
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Local Subnet |
Specify the local subnet as 192.168.10.0/24. This should be the subnet address of the local network. |
Remote Subnet |
Specify the remote subnet as 192.168.0.0/24. This should be the subnet address of the remote network. |
Pre-shared key |
Specify a pre-shared key as 123456. This should be kept the same as that of the responder configuration. |
Status |
Enable the IPsec policy list entry. |

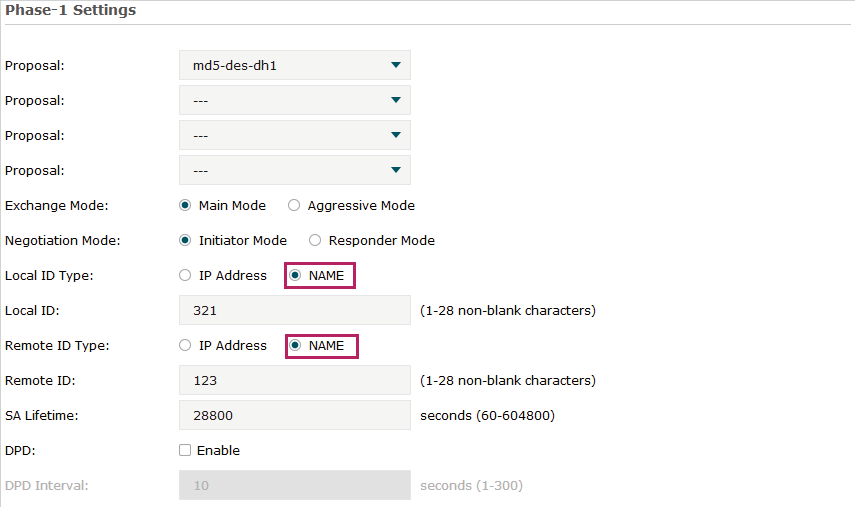

2)Click Advanced Settings to load the following page. In the Phase-1 Settings section, configure the IKE phase-1 parameters for the IPsec policy.

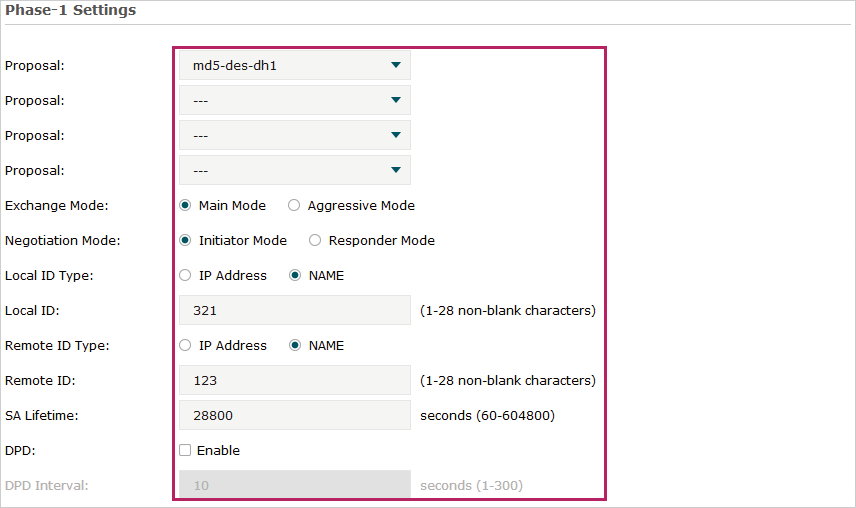

Figure 2-7 Configuring the IKE phase-1 parameters
Proposal |
Select md5-des-dh1 as the proposal. This should be kept the same as that of the responder configuration. |
Exchange Mode |
Specify the exchange mode as Main Mode. This should be kept the same as that of the responder configuration. |
Negotiation Mode |
Specify the negotiation mode as Initiator Mode. |
Local ID Type/ Remote ID Type |
Specify the local ID type and remote ID type as NAME. The local ID type and remote ID type should be kept the same as that of the responder configuration. |
Local ID/ Remote ID |
Specify the Local ID as 321 and Remote ID as 123. The local ID and remote ID should be reversed in comparison to the responder. |
SA Lifetime |
Specify the SA lifetime as your like. Here we keep the default setting. |
DPD |
Enable or disable DPD (Dead Peer Detection) according to your needs. Here we disable DPD. |
3)In the Phase-2 Settings section, configure the IKE phase-2 parameters for the IPsec policy. Click OK.

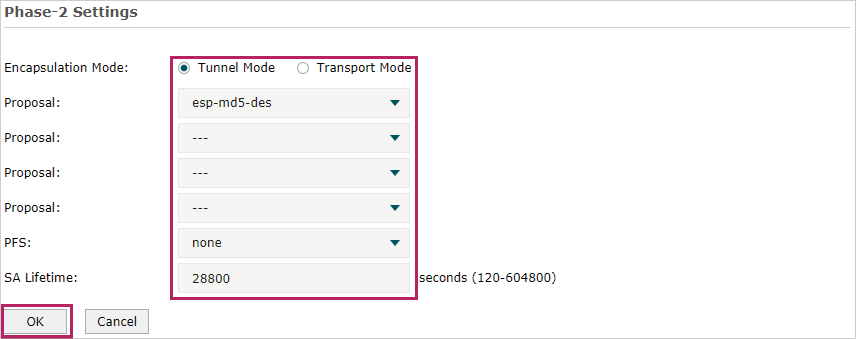

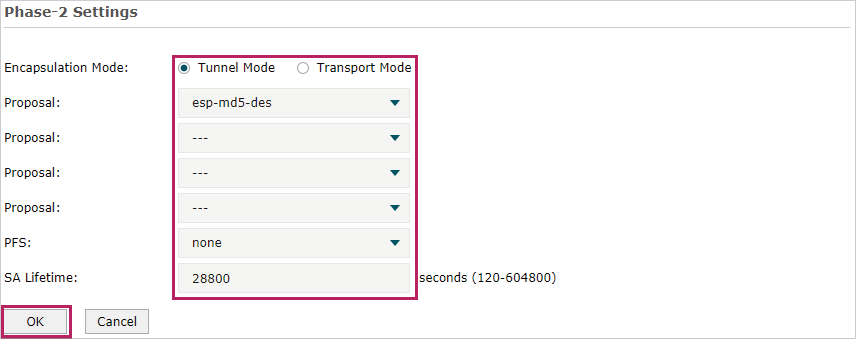

Figure 2-8 Configuring the IKE phase-2 parameters
Encapsulation Mode |
Specify the encapsulation mode as Tunnel Mode. |
Proposal |
Select esp-md5-des as the proposal. This should be kept the same as that of the responder configuration. |
PFS |
Select none as the PFS. This should be kept the same as that of the responder configuration. |
SA Lifetime |
Specify the SA Lifetime according to your needs. Here we keep the default setting. |
2.2.3(Optional) Implementing configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 2-2. In this scenario, please verify the configuration on both VPN routers, configure virtual servers on NAT Device B, and configure IPsec ALG on both NAT devices. The configuration steps are as follows:
1)For both VPN routers, choose the menu VPN > IPSec > IPSec Policy, select the IPsec policy list entry which is previously created, and click to load the following page. Please make sure that in the Phase-1 Settings section, the local ID type and remote ID type are both specified as NAME, and in the Phase-2 Settings section, the proposal is not specified as ah-md5 or ah-sha1. Otherwise, the VPN tunnel may fail to be established.
Figure 2-9 Verifying the phase-1 configuration
Figure 2-10 Verifying the phase-2 configuration
2)For NAT Device B, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page. Configure the parameters for the virtual server. Click OK.

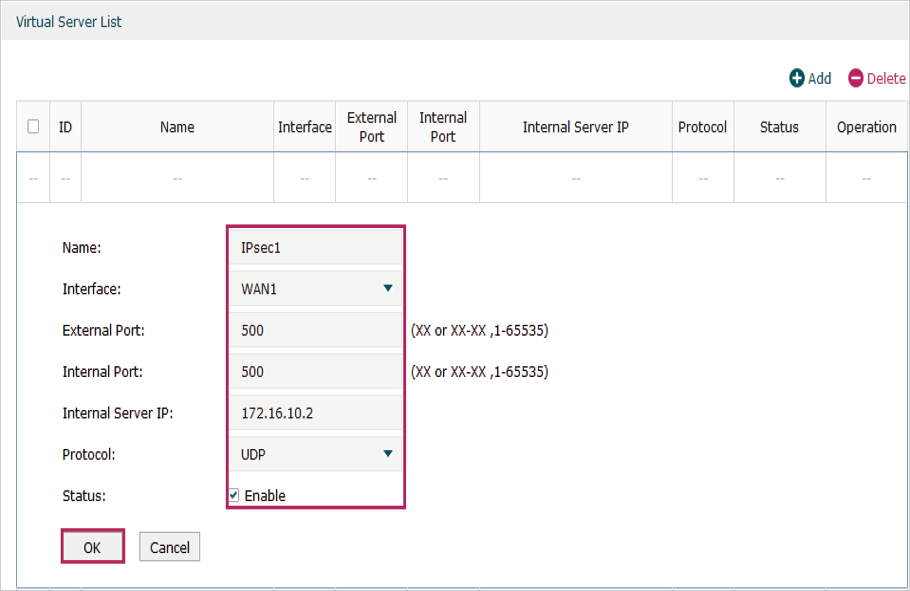

Figure 2-11 Configuring virtual server for IPsec
Name |
Specify a name for the virtual server list entry. Here we enter IPsec1. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the external port and the internal port as 500. |
Internal Server IP |
Specify the internal server IP as 172.16.10.2. This should be the WAN IP address of the responder. |
Protocol |
Specify the protocol as UDP. |
Status |
Enable the virtual server list entry. |

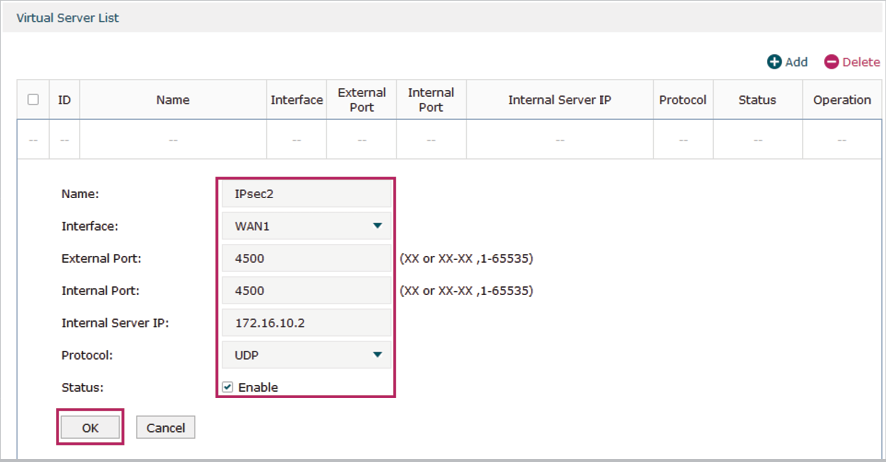

Similarly, add another virtual server list entry, with the name IPsec2, and set the external and internal port as 4500.
Figure 2-12 Configuring virtual server for IPsec
3)For NAT Device A and NAT Device B, choose the menu Transmission > NAT > ALG to load the following page. Enable the IPsec ALG, and click Save.

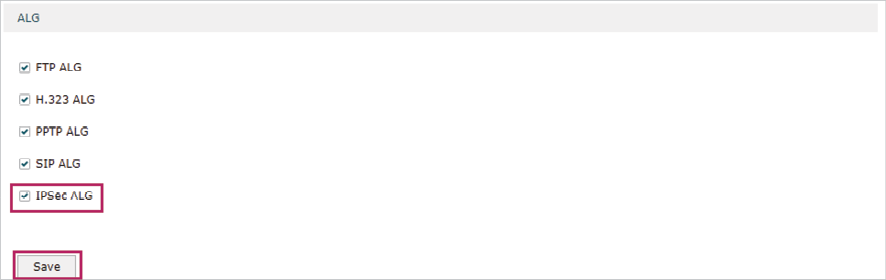

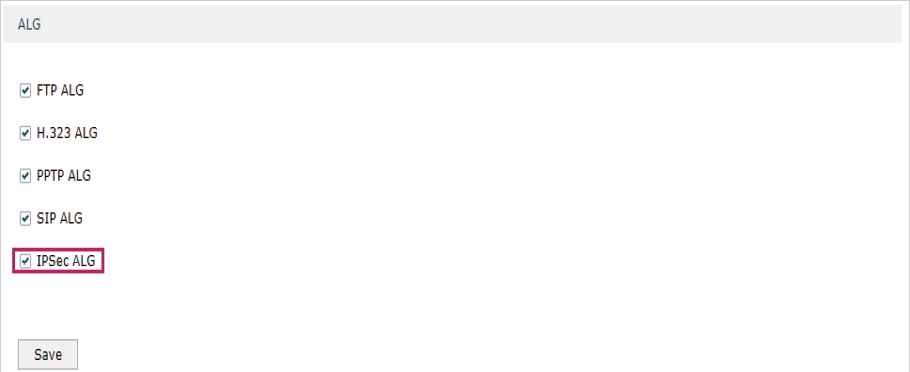

Figure 2-13 Configuring IPsec ALG
2.2.4Verifying the Connectivity of the IPsec VPN Tunnel
Choose the menu VPN > IPSec > IPSec SA to load the following page.

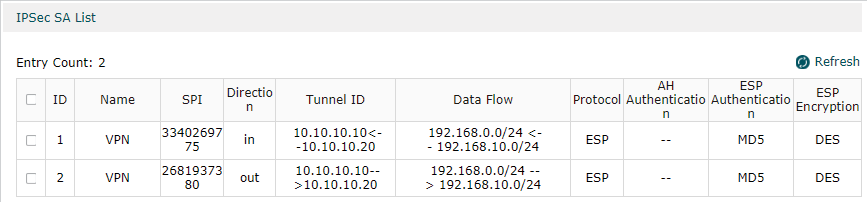

Figure 2-14 IPSec SA list

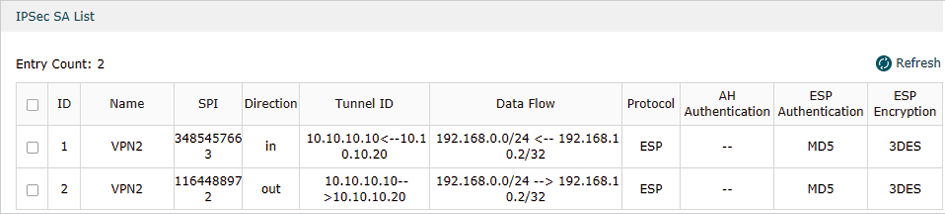

The IPsec SA list shows the information about the established IPsec VPN tunnel. Here, you can verify the connectivity of the IPsec VPN tunnel.
2.3L2TP LAN-to-LAN VPN Configuration
To complete the L2TP LAN-to-LAN VPN, follow these steps:
1)Configure L2TP VPN server.
2)Configure L2TP VPN client.
3)(Optional) Implement configuration for NAT devices.
4)Verify the connectivity of the L2TP VPN tunnel.
2.3.1Configuring L2TP VPN Server
Select any one of the VPN routers as the VPN server. Here we select VPN Router B as the VPN server. Follow these steps to configure the L2TP VPN server.
1)Choose the menu Preferences > VPN IP Pool > VPN IP Pool and click Add to load the following page. Configure the parameters for the VPN IP pool. Click OK.

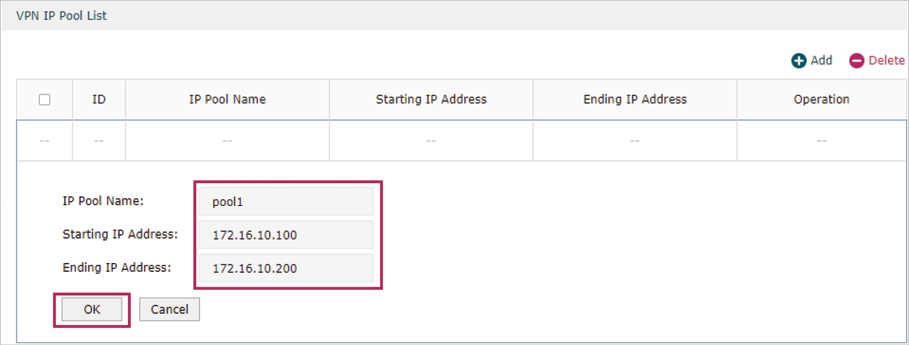

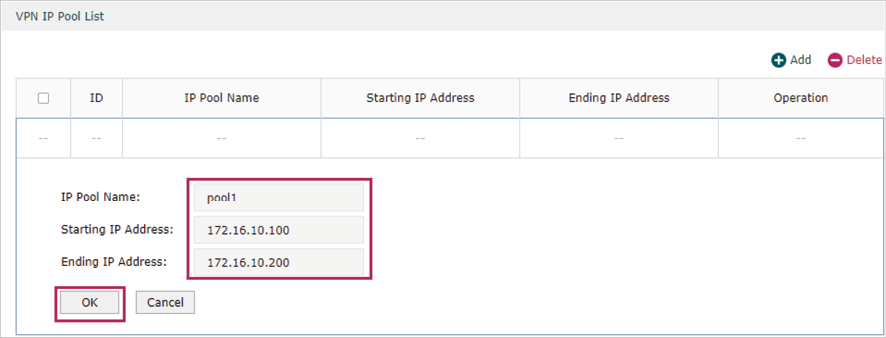

Figure 2-15 Configuring VPN IP Pool list
IP Pool Name |
Specify the IP pool name as you like. Here we enter pool1. |
Starting IP Address/Ending IP Address |
Specify the starting IP address and ending IP address for the VPN IP pool. The VPN server will assign an IP address to the remote client when the tunnel is established. You can specify any reasonable IP address that will not cause conflict. Here we specify the starting IP address as 172.16.10.100 and the ending IP address as 172.16.10.200. |

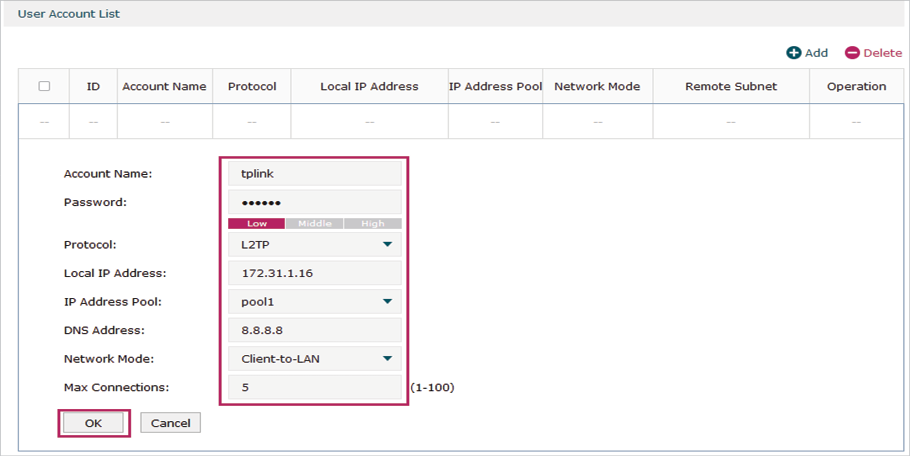

2)Choose the menu VPN > Users > Users and click Add to load the following page. Configure the parameters for the user account. Click OK.
Figure 2-16 Configuring L2TP users
Account Name |
Specify the account name as you like. Here we enter tplink. |
Password |
Specify the password as you like. Here we enter 123456. |
Protocol |
Specify the protocol as L2TP. |
Local IP Address |
This is the virtual IP address which the remote client will set up a point-to-point connection with. You can specify any reasonable IP address that will not cause conflict. Here we specify the Local IP address as 172.31.1.16. |
IP Address Pool |
Select pool1 as the IP address pool from the drop-down list. This is the VPN IP pool we have just configured. |
DNS Address |
Specify the DNS address according to your network environment. This is the DNS address to be assigned to the remote client. Here we enter 8.8.8.8. |
Network Mode |
Specify the network mode as LAN-to-LAN. |
Remote Subnet |
Specify the remote subnet as 192.168.10.0/24. This should be the subnet address of the remote network. |

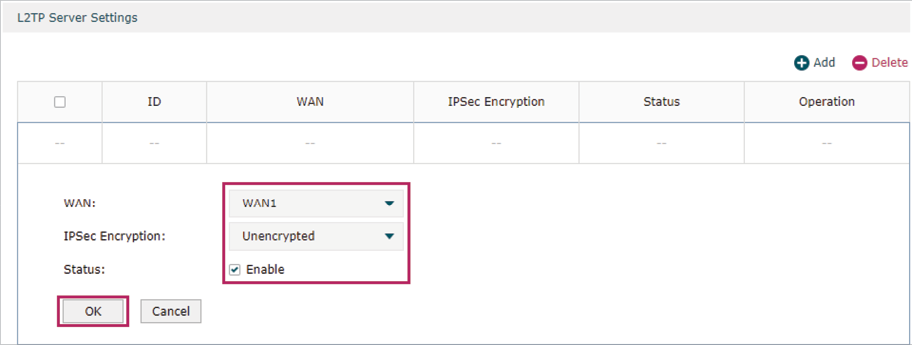

3)Choose the menu VPN > L2TP > L2TP Server and click Add to load the following page. Configure the parameters for the L2TP server. Click OK.

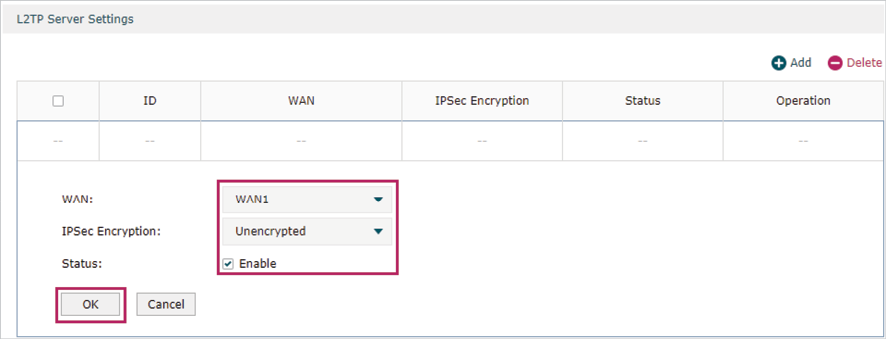

Figure 2-17 Configuring L2TP server
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
IPsec Encryption |
Specify the IPsec encryption according to your needs. Here we specify the IPsec encryption as Unencrypted. |
Status |
Enable the L2TP server. |
2.3.2Configuring L2TP VPN Client
Here we select the VPN Router A as the L2TP VPN client. For VPN Router A, choose the menu VPN > L2TP > L2TP Client and click Add to load the following page. Configure the parameters for the L2TP client. Click OK.

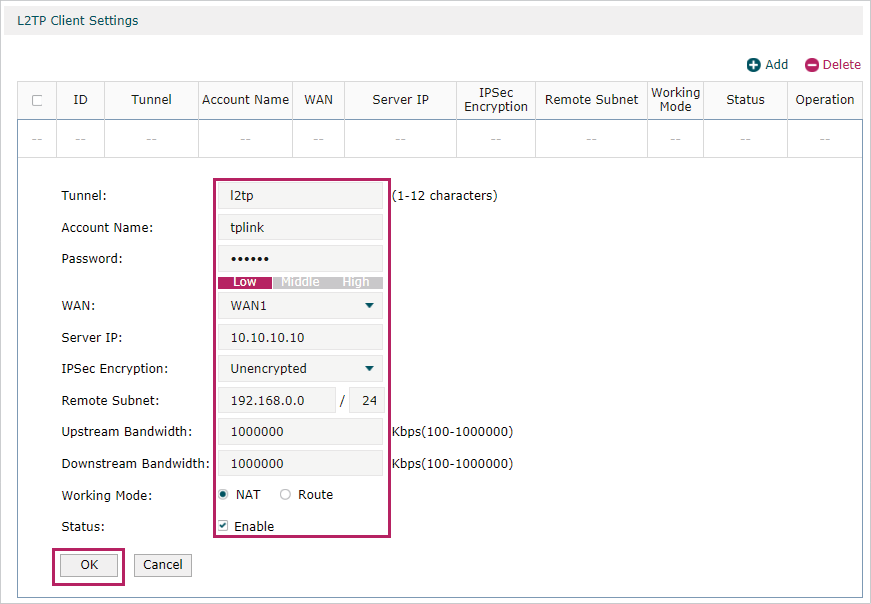

Figure 2-18 Configuring L2TP client
Tunnel |
Specify the tunnel name as you like. Here we enter l2tp. |
Account Name |
Specify the account name as tplink. This should be kept the same as that of the L2TP server configuration. |
Password |
Specify the password as 123456. This should be kept the same as that of the L2TP server configuration. |
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Server IP |
Specify the server IP as 10.10.10.10. |
IPSec Encryption |
Specify IPSec encryption as Unencrypted. This should be kept the same as that of the L2TP server configuration. |
Remote Subnet |
Specify the remote subnet as 192.168.0.0/24. This should be the subnet address of the remote network. |
Upstream Bandwidth/ Downstream Bandwidth |
Specify upstream and downstream limited rate in Kbps for L2TP tunnel. Here we keep the default configuration. |
Working Mode |
Specify the working mode as NAT or Route according to your needs. Here we specify the working mode as NAT. NAT: NAT mode allows the router to translate source IP address of L2TP packets to its WAN IP when forwarding L2TP packets. Route: Route mode allows the router to forward L2TP packets via routing protocol. |
Status |
Enable the L2TP client. |
2.3.3(Optional) Implementing Configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 2-2. In this scenario, please verify the configuration on both VPN routers, and configure virtual servers on NAT Device B. The configuration steps are as follows:
1)For VPN Router A, choose the menu VPN > L2TP > L2TP Client, select the L2TP client list entry which is previously created, and click to load the following page. Please make sure that the IPsec encryption is specified as Unencrypted. Otherwise, the VPN tunnel may fail to be established.
Figure 2-19 Verifying the L2TP client configuration
2)For VPN Router B, choose the menu VPN > L2TP > L2TP Server, select the L2TP server list entry which is previously created, and click to load the following page. Please make sure that the IPsec encryption is specified as Unencrypted. Otherwise, the VPN tunnel may fail to be established.
Figure 2-20 Verifying the L2TP server configuration
3)For NAT Device B, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page. Configure the parameters for the virtual server. Click OK.

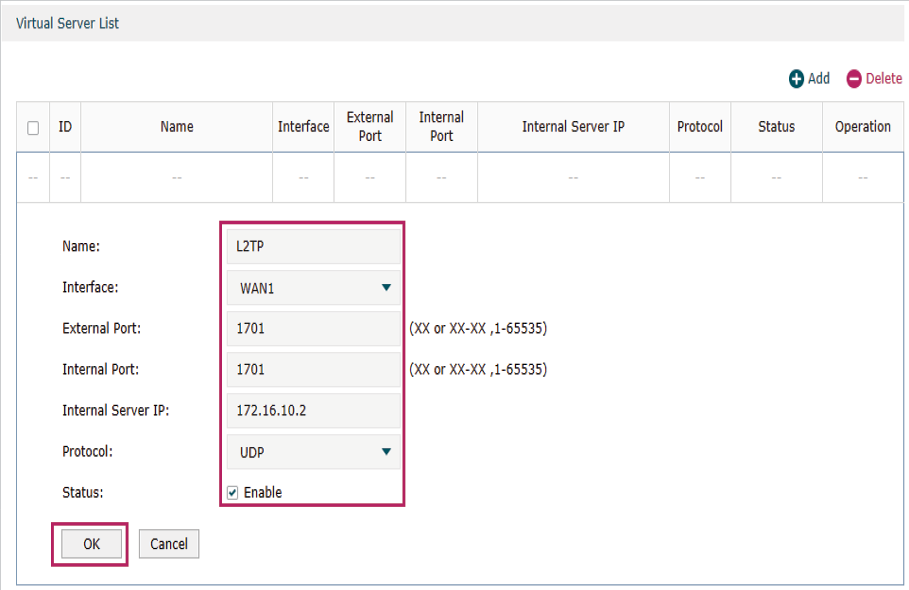

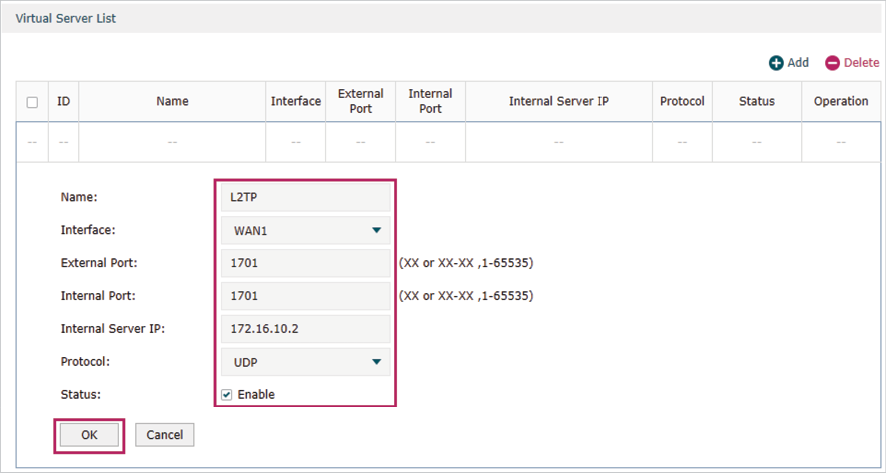

Figure 2-21 Configuring virtual server for L2TP
Name |
Specify the name for the virtual server list entry. Here we enter L2TP. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the external port and internal port as 1701. |
Internal Server IP |
Specify the internal server IP as 172.16.10.2. This should be the WAN IP address of the VPN server. |
Protocol |
Specify the protocol as UDP. |
Status |
Enable the virtual server list entry. |
2.3.4Verifying the Connectivity of the L2TP VPN Tunnel
Choose the menu VPN > L2TP > Tunnel List to load the following page.

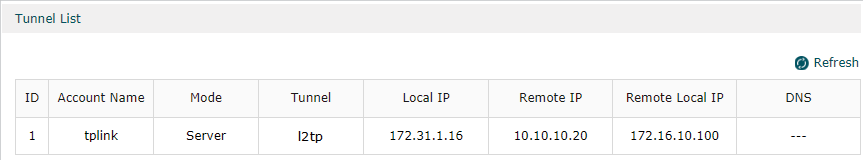

Figure 2-22 L2TP tunnel list
The tunnel list shows the information about the established VPN tunnel. Here, you can verify the connectivity of the L2TP VPN tunnel.
2.4PPTP LAN-to-LAN VPN Configuration
To configure the PPTP LAN-to-LAN VPN, follow these steps:
1)Configure PPTP VPN server.
2)Configure PPTP VPN client.
3)(Optional) Implement configuration for NAT devices.
4)Verify the connectivity of the PPTP VPN tunnel.
2.4.1Configuring PPTP VPN Server
1)Choose the menu Preferences > VPN IP Pool > VPN IP Pool and click Add to load the following page. Configure the parameters for the VPN IP pool. Click OK.
Figure 2-23 Configuring VPN IP pool list
IP Pool Name |
Specify the IP pool name as you like. Here we enter pool1. |
Starting IP Address/Ending IP Address |
Specify the starting IP address and ending IP address for the VPN IP pool. The VPN server will assign an IP address to the remote client when the tunnel is established. You can specify any reasonable IP address that will not cause conflict. Here we specify the starting IP address as 172.16.10.100 and the ending IP address as 172.16.10.200. |
2)Choose the menu VPN > Users > Users and click Add to load the following page. Configure the parameters for the PPTP user account. Click OK.

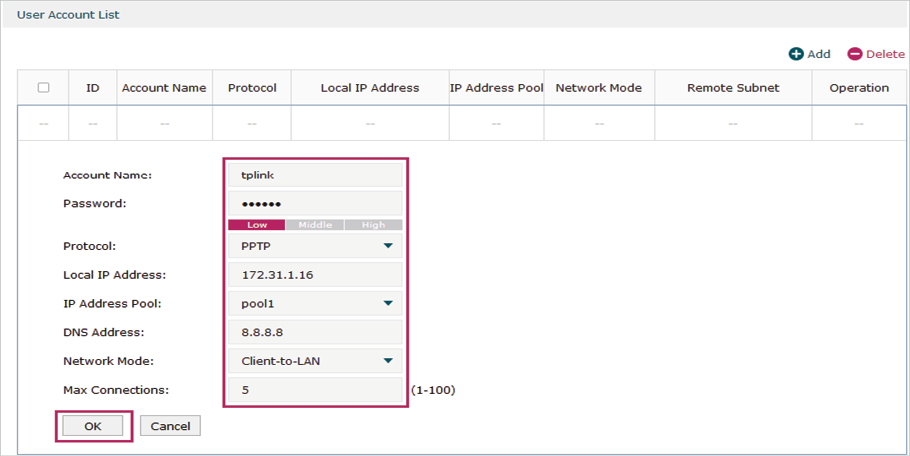

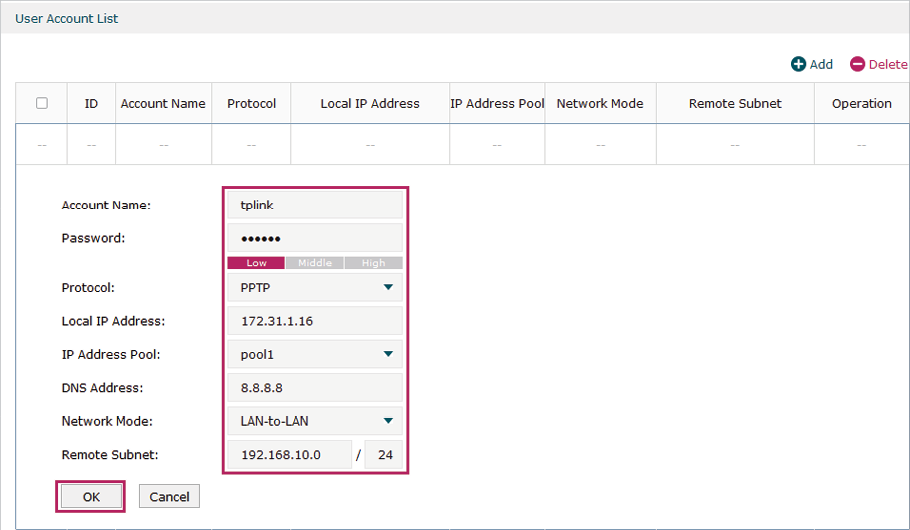

Figure 2-24 Configuring PPTP users
Account Name |
Specify the account name as you like. Here we enter tplink. |
Password |
Specify the password as you like. Here we enter 123456. |
Protocol |
Specify the protocol as PPTP. |
Local IP Address |
This is the virtual IP address the remote client will set up a point-to-point connection with. You can specify any reasonable IP Address that will not cause conflict. Here we specify the local IP address as 172.31.1.16. |
IP Address Pool |
Select pool1 as the IP address pool from the drop-down list. This is the VPN IP pool we have just configured. |
DNS Address |
Specify the DNS address according to your network environment. This is the DNS address to be assigned to the remote client. Here we enter 8.8.8.8. |
Network Mode |
Specify the network mode as LAN-to-LAN. |
Remote Subnet |
Specify the remote subnet as 192.168.10.0/24. This should be the subnet address of the remote network. |
3)Choose the menu VPN > PPTP > PPTP Server and click Add to load the following page. Configure the parameters for the PPTP server. Click OK.

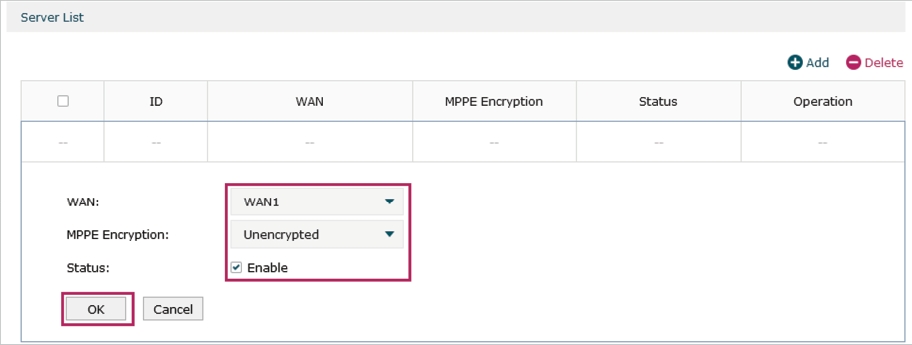

Figure 2-25 Configuring PPTP server
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
MPPE Encryption |
Specify the MPPE encryption according to your needs. Here we specify the MPPE encryption as Unencrypted. |
Status |
Enable the PPTP server. |
2.4.2Configuring PPTP VPN Client
Here we select the VPN Router A as PPTP VPN client. For VPN Router A, choose the menu VPN >PPTP> PPTP Client and click Add to load the following page. Configure the parameters for PPTP client. Click OK.

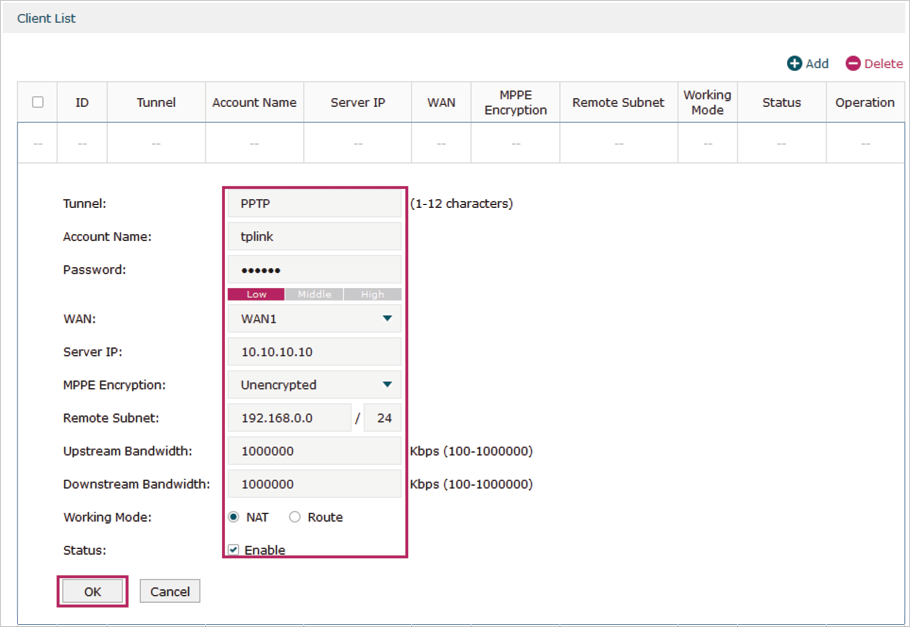

Figure 2-26 Configuring PPTP client
Tunnel |
Specify the tunnel name as you like. Here we enter PPTP. |
Account Name |
Specify the account name as tplink. This should be kept the same as that of the PPTP server configuration. |
Password |
Specify the password as 123456. This should be kept the same as that of the PPTP server configuration. |
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Server IP |
Specify the server IP as 10.10.10.10. |
MPPE Encryption |
Specify MPPE encryption as Unencrypted. This should be kept the same as that of the PPTP server configuration. |
Remote Subnet |
Specify the remote subnet as 192.168.0.0/24. This should be the subnet address of the remote network. |
Upstream Bandwidth/ Downstream Bandwidth |
Specify upstream and downstream limited rate in Kbps for PPTP tunnel. Here we keep the default configuration. |
Working Mode |
Specify the working mode as NAT or Route according to your needs. Here we specify the working mode as NAT. NAT: NAT mode allows the router to translate source IP address of PPTP packets to its WAN IP when forwarding PPTP packets. Route: Route mode allows the router to forward PPTP packets via routing protocol. |
Status |
Enable the PPTP client. |
2.4.3(Optional) Implementing Configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 2-2. In this scenario, please configure virtual servers on NAT Device B, and configure PPTP ALG on both NAT devices. The configuration steps are as follows:
1)For NAT Device B, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page. Configure the parameters for virtual server. Click OK.

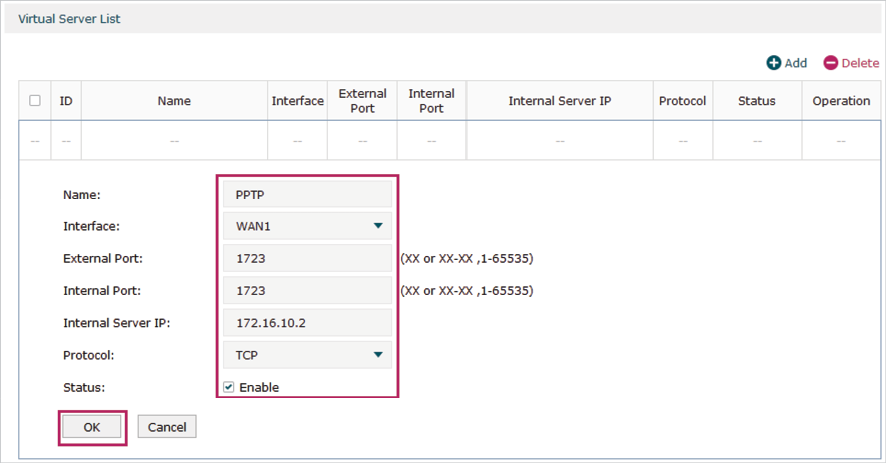

Figure 2-27 Configuring virtual server for PPTP
Name |
Specify the name for the virtual server list entry. Here we enter PPTP. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the External Port and Internal Port as 1723. |
Internal Server IP |
Specify the Internal Server IP as 172.16.10.2. This should be the WAN IP address of the VPN server. |
Protocol |
Specify the protocol as TCP. |
Status |
Enable the virtual server list entry. |
2)For NAT Device A and NAT Device B, choose the menu Transmission > NAT > ALG to load the following page. Enable the PPTP ALG, and click Save.

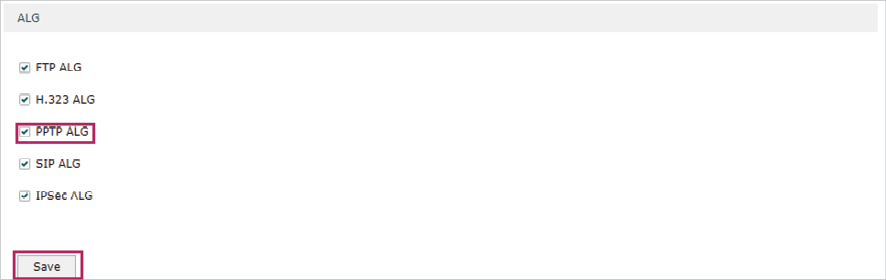

Figure 2-28 Configuring PPTP ALG
2.4.4Verifying the Connectivity of the PPTP VPN Tunnel
Choose the menu VPN > PPTP > Tunnel List to load the following page.

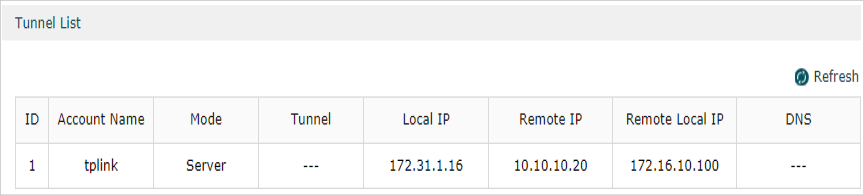

Figure 2-29 PPTP tunnel list
The tunnel list shows the information about the established VPN tunnel. Here, you can verify the connectivity of the PPTP VPN Tunnel.
3Client-to-LAN VPN Configuration
3.1Network Topology
Client-to-LAN VPN is deployed when a remote host is provided with secure access to the local hosts. For example, an employee on business needs to access the private network of his company securely via the internet. The following figure shows the typical network topology.
In actual network environments, NAT devices may exist in front of the VPN router. The following figure shows the network topology in this scenario.

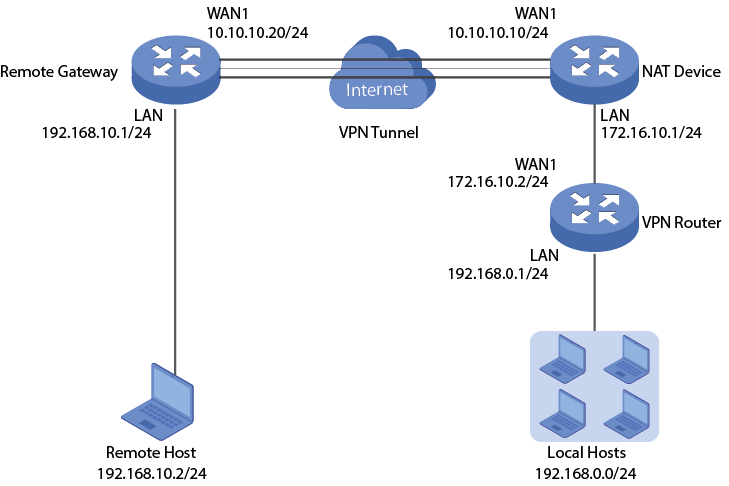

Figure 3-2 Client-to-LAN VPN with NAT
Client-to-LAN VPN can be established via three methods, including IPsec Client-to-LAN VPN, PPTP Client-to-LAN VPN, and L2TP Client-to-LAN VPN. To establish an IPsec Client-to-LAN VPN, it is recommended to use a 3rd-party IPsec VPN client software, such as TheGreenBow VPN client software, whereas to establish a PPTP or L2TP Client-to-LAN VPN, you can use the built-in client software of the operating system. The topology shown in Figure 3-1 is used as an example, with TL-ER6120 used as the VPN router for demonstration purposes. Configuration instructions for the three methods are given below.
3.2IPsec Client-to-LAN VPN Configuration
To complete the IPsec Client-to-LAN VPN, follow these steps:
3)Configure IPsec VPN server.
4)(Optional) Implement configuration for NAT devices.
5)Configure the IPsec VPN client software.
6)Verify the connectivity of the IPsec VPN tunnel.
3.2.1Configuring IPsec VPN Server.
1)Choose the menu VPN > IPSec >IPSec Policy and click Add to load the following page on the VPN router. Configure the basic parameters for the IPsec policy.

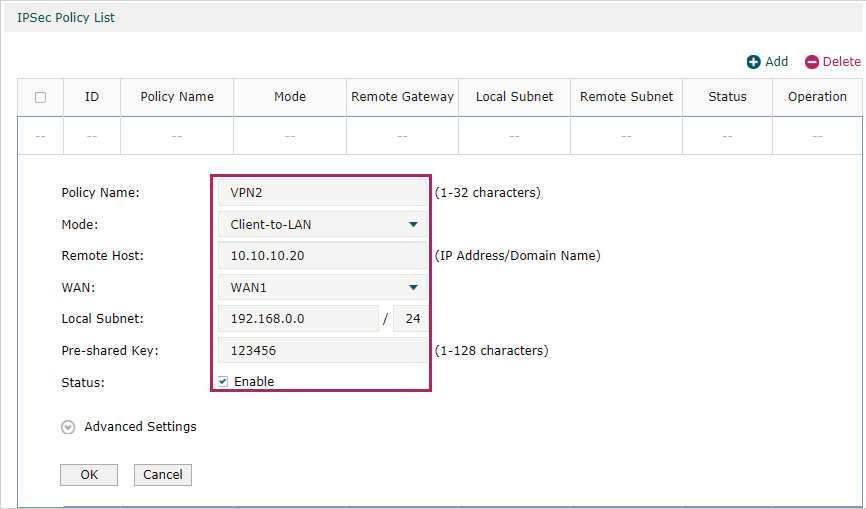

Figure 3-3 Configuring the IPsec policy
Policy Name |
Specify the name of IPsec policy. Here we enter VPN2. |
Mode |
Specify the mode as Client-to-LAN. |
Remote Host |
Specify the remote host as 10.10.10.20. This should be the IP address of the other end of the VPN tunnel. |
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Local Subnet |
Specify the local subnet as 192.168.0.0/24. This should be the subnet address of the local network. |
Pre-shared key |
Specify the pre-shared key as you like. Here we enter 123456. |
Status |
Enable the IPsec policy list entry. |
2)Click Advanced Settings to load the following page. In the Phase-1 Settings section, configure the IKE phase-1 parameters for the IPsec policy.

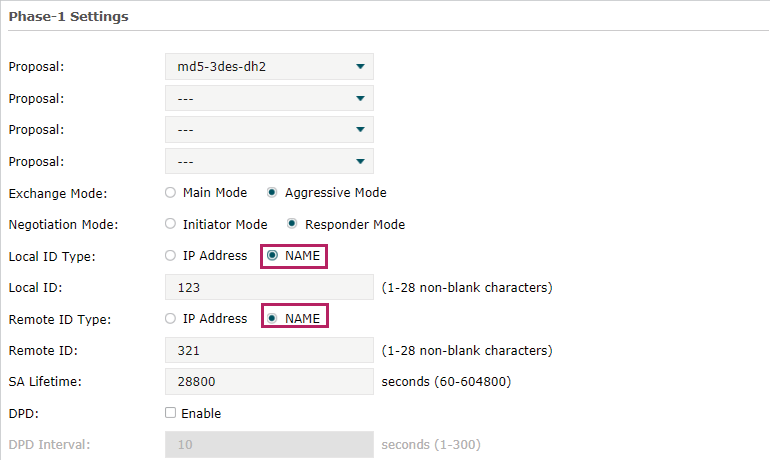

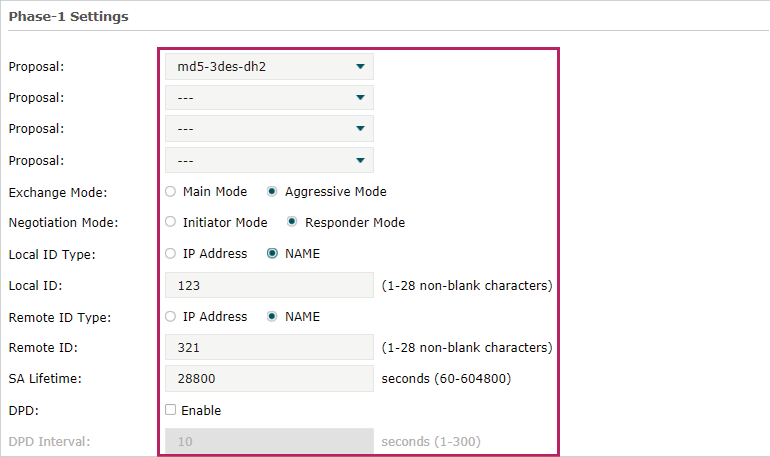

Figure 3-4 Configuring the IKE phase-1 parameters
Proposal |
Select the proposal from the drop-down list. Here we select md5-3des-dh2. |
Exchange Mode |
Specify the exchange mode according to your needs. Here we Specify the exchange mode as Aggressive Mode. |
Negotiation Mode |
Specify the negotiation mode as Responder Mode. |
Local ID Type/ Remote ID Type |
Specify the local ID type and remote ID type as you like. Here we specify the local ID type and remote ID type as NAME. |
Local ID/ Remote ID |
Specify the local ID and remote ID as you like. Here we specify the local ID as 123 and remote ID as 321. |
SA Lifetime |
Specify the SA lifetime as your like. Here we keep the default setting. |
DPD |
Enable or disable DPD (Dead Peer Detection) according to your needs. Here we disable DPD. |
3)In the Phase-2 Settings section, configure the IKE phase-2 parameters for the IPsec policy. Click OK.

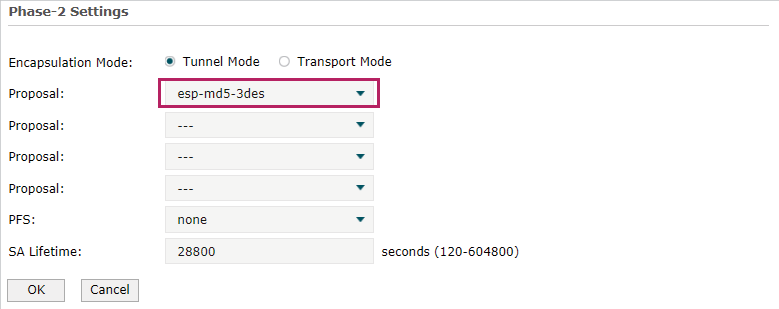

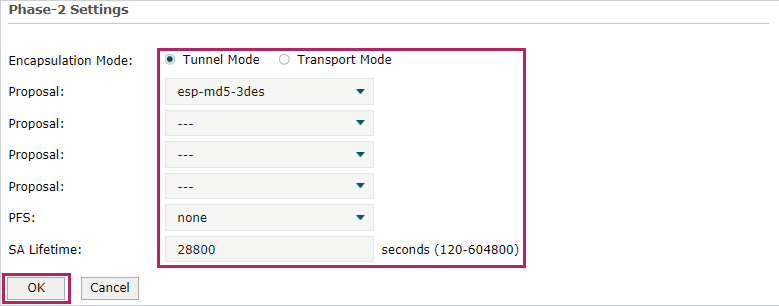

Figure 3-5 Configuring the IKE phase-2 parameters
Encapsulation Mode |
Specify the encapsulation mode as Tunnel Mode. |
Proposal |
Select the proposal from the drop-down list. Here we select esp-md5-3des. |
PFS |
Select the PFS from the drop-down list according to your needs. Here we select none. |
SA Lifetime |
Specify the SA lifetime as your like. Here we keep the default setting. |
3.2.2(Optional) Implementing Configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 3-2. In this scenario, please verify the configuration on the VPN router, configure virtual servers on the NAT device, and configure IPsec ALG on both the remote gateway and the NAT device. The configuration steps are as follows:
1)For the VPN router, choose the menu VPN > IPSec > IPSec Policy, select the IPsec policy list entry which is previously created, and click to load the following page. Please make sure that in the Phase-1 Settings section, the local ID type and remote ID type are both specified as NAME, and in the Phase-2 Settings section, the proposal is not specified as ah-md5 or ah-sha1. Otherwise, the VPN tunnel may fail to be established.
Figure 3-6 Verifying the phase-1 configuration
Figure 3-7 Verifying the phase-2 configuration
2)For the NAT device, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page. Configure the parameters for the virtual server. Click OK.
Figure 3-8 Configuring virtual server for IPsec
Name |
Specify the name for the virtual server list entry. Here we enter IPsec1. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the external port and internal port as 500. |
Internal Server IP |
Specify the internal server IP as 172.16.10.2. This should be the WAN IP address of the VPN server. |
Protocol |
Specify the protocol as UDP. |
Status |
Enable the virtual server list entry. |
Similarly, add another virtual server list entry with the name IPsec2, and set the external and internal port as 4500.
Figure 3-9 Configuring virtual server for IPsec
3)For the remote gateway and the NAT device, choose the menu Transmission > NAT > ALG to load the following page. Enable IPsec ALG, and click Save.
Figure 3-10 Configuring IPsec ALG
3.2.3Configuring the IPsec VPN Client Software
There are many 3rd-party IPsec VPN client softwares. With any one of them launched on the remote host, you can set up an IPsec Client-to-LAN VPN tunnel with the VPN router successfully. Here we take TheGreenBow VPN client software for example. Follow these steps to configure TheGreenBow VPN client software.
1)Go to the website https://www.tp-link.com/en/download/TL-ER6120_V1.html to download TheGreenBow VPN client software. Then install and launch the client software.
2)Click the client icon in the toolbar on the bottom of your desktop to load the following page.
Figure 3-11 Configuring TheGreenBow IPSec VPN client

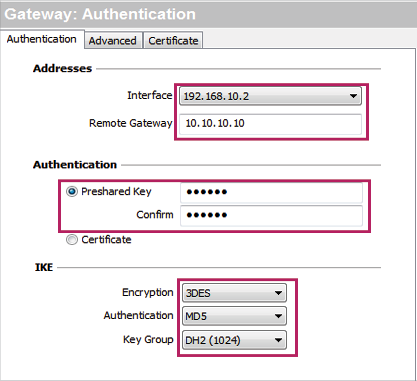

3)Right click VPN Configuration, click New Phase 1 and then choose the menu Gateway > Authentication to load the following page. Configure the parameters for the IPsec policy.
Figure 3-12 Configuring TheGreenBow IPSec VPN client
Interface |
Select 192.168.10.2 as the Interface from the drop-down list. This should be the IP address of the remote host. |
Remote Gateway |
Specify the remote gateway as 10.10.10.10. This should be the IP address of the other end of the VPN tunnel. |
Preshared Key |
Specify the preshared key as 123456. This should be the same as the VPN server configuration. Then confirm the preshared key by inputting it again in Confirm. |
Encryption/ Authentication/ Key Group |
Specify encryption as 3DES, authentication as MD5, Key Group as DH2 (1024). This should be kept the same as the VPN server configuration. |

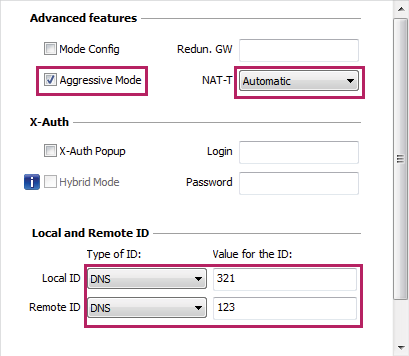

4)Choose the menu Gateway > Advanced to load the following page. Configure the parameters for the IPsec policy.
Figure 3-13 Configuring TheGreenBow IPSec VPN client
Aggressive Mode |
Check aggressive mode. This should be kept the same as the VPN server configuration. |
NAT-T |
Select Automatic as NAT-T from the drop-down list. |
Local ID/ Remote ID |
Specify type of local ID and remote ID as DNS. Specify the local ID as 321 and the remote ID as 123. This should be reversed in comparison to the VPN server configuration. |
5)Right click Gateway and click New Phase 2. Choose the menu Tunnel > IPSec to load the following page. Configure the parameters for the IPsec policy.

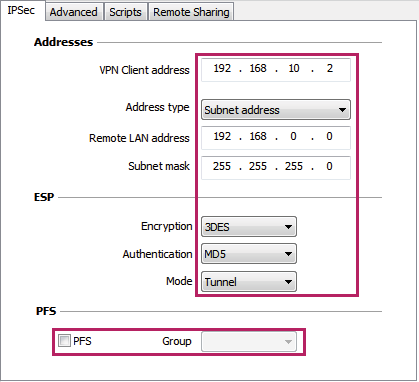

Figure 3-14 Configuring TheGreenBow IPSec VPN client
VPN Client Address |
Specify the VPN client address as 192.168.10.2 . This should be the IP address of the remote host. |
Address Type |
Select subnet address as the address type from the drop-down list. |
Remote LAN Address/ Subnet Mask |
Specify the remote LAN address as 192.168.0.0 and subnet mask as 255.255.255.0. This should be the IP address and subnet mask of the local hosts. |
Encryption/ Authentication/ Mode |
Specify encryption as 3DES, authentication as MD5, mode as Tunnel. This should be kept the same as the VPN server configuration. |
PFS |
Uncheck the PFS. This should be kept the same as the VPN server configuration. |
6)Click Save. Right click Tunnel and then click Open tunnel on the following page to establish the IPsec VPN tunnel.

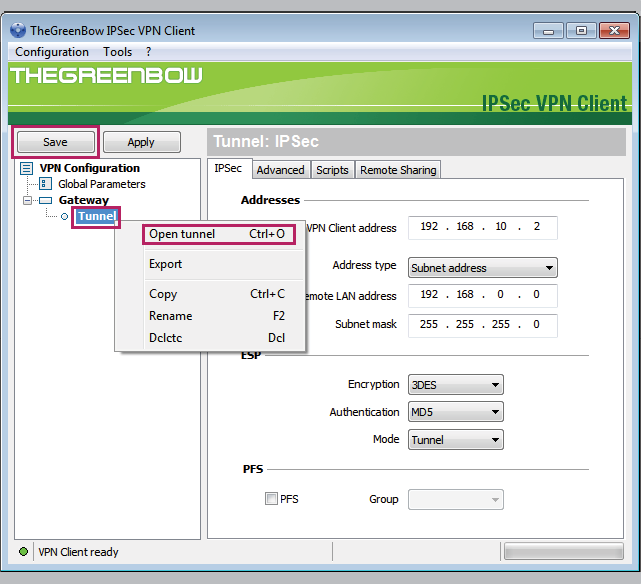

Figure 3-15 Configuring TheGreenBow IPSec VPN client
3.2.4Verifying the Connectivity of the IPsec VPN Tunnel
Choose the menu VPN > IPsec > IPsec SA to load the following page.
Figure 3-16 IPSec SA list
The IPsec SA list shows the information about the established IPsec VPN tunnel. Here, you can verify the connectivity of the IPsec VPN tunnel.
3.3L2TP Client-to-LAN VPN Configuration
To configure the L2TP Client-to-LAN VPN, follow these steps:
1)Configure L2TP VPN server.
2)(Optional) Implement configuration for NAT devices.
3)Configure the L2TP VPN client software.
4)Verify the connectivity of the L2TP VPN tunnel.
5)(Optional) Configure access to the internet via proxy gateway.
3.3.1Configuring L2TP VPN Server
1)Choose the menu Preferences > VPN IP Pool > VPN IP Pool and click Add to load the following page on the VPN router. Configure the parameters for the VPN IP pool. Click OK.
Figure 3-17 Configuring VPN IP pool list
IP Pool Name |
Specify the IP pool name as you like. Here we enter pool1. |
Starting IP Address/Ending IP Address |
Specify the starting IP address and ending IP address for the VPN IP pool. The VPN server will assign IP address to the remote host when the tunnel is established. You can specify any reasonable IP address that will not cause conflict. Here we specify the starting IP address as 172.16.10.100 and the ending IP address as 172.16.10.200. |
2)Choose the menu VPN > Users > Users and click Add to load the following page. Configure the parameters for the L2TP user account. Click OK.
Figure 3-18 Configuring L2TP users
Account Name |
Specify the account name as you like. Here we enter tplink. |
Password |
Specify the password as you like. Here we enter 123456. |
Protocol |
Specify the Protocol as L2TP. |
Local IP Address |
This is the virtual IP address which the remote host will set up a point-to-point connection with. You can specify any reasonable IP address that will not cause conflict. Here we specify the Local IP Address as 172.31.1.16. |
IP Address Pool |
Select pool1 as the IP address pool from the drop-down list. This is the VPN IP pool we have just configured. |
DNS Address |
Specify the DNS address according to your network environment. This is the DNS address to be assigned to the remote host. Here we enter 8.8.8.8. |
Network Mode |
Specify the network mode as Client-to-LAN. |
Max Connections |
Specify the max connections according to your needs. Here we specify max connections as 5. |
3)Choose the menu VPN > L2TP > L2TP Server and click Add to load the following page. Configure the parameters for the L2TP server. Click OK.
Figure 3-19 Configuring L2TP server
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
IPsec Encryption |
Specify the IPsec encryption according to your needs. Here we specify the IPsec encryption as Unencrypted. |
Status |
Enable the L2TP server. |
3.3.2(Optional) Implementing Configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 3-2. In this scenario, please verify the configuration on the VPN router, and configure virtual servers on the NAT device. The configuration steps are as follows:
1)For the VPN router, choose the menu VPN > L2TP > L2TP Server, select the L2TP server list entry which is previously created, and click to load the following page. Please make sure that the IPsec encryption is specified as Unencrypted. Otherwise, the VPN tunnel may fail to be established.

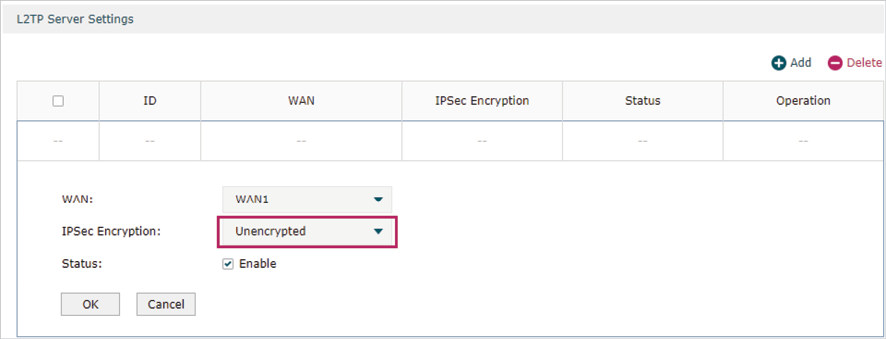

Figure 3-20 Verifying the L2TP server configuration
2)For the NAT device, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page . Configure the parameters for the virtual server. Click OK.
Figure 3-21 Configuring virtual server for L2TP
Name |
Specify the name for the virtual server list entry. Here we enter L2TP. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the external port and internal port as 1701. |
Internal Server IP |
Specify the internal server IP as 172.16.10.2. This should be the WAN IP address of the VPN server. |
Protocol |
Specify the protocol as UDP. |
Status |
Enable the virtual server list entry. |
3.3.3Configuring the L2TP VPN Client Software
Here we use the built-in VPN client software in Windows7 Operating System on the remote host. To configure the VPN client software, follow these steps.
1)In Windows Control Panel, choose the menu Network and Internet > Network and Sharing Center. Click Set up a new connection or network to load the following page.
Figure 3-22 Configuring the L2TP VPN client

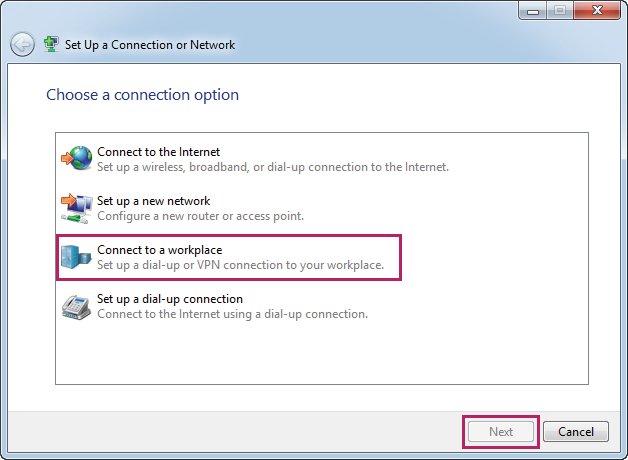

2)Click Connect to a workplace and click Next to load the following page.
Figure 3-23 Configuring the L2TP VPN client

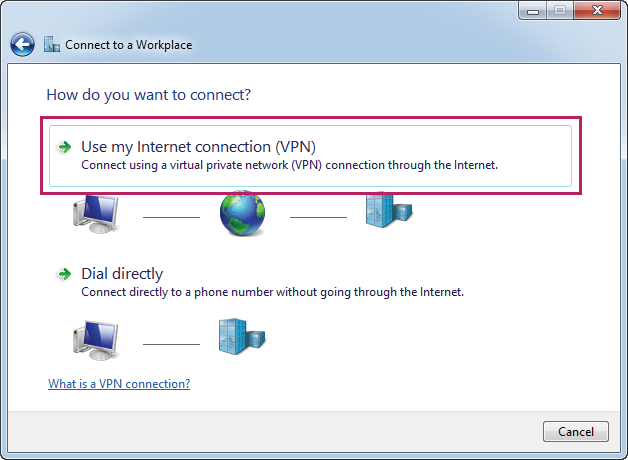

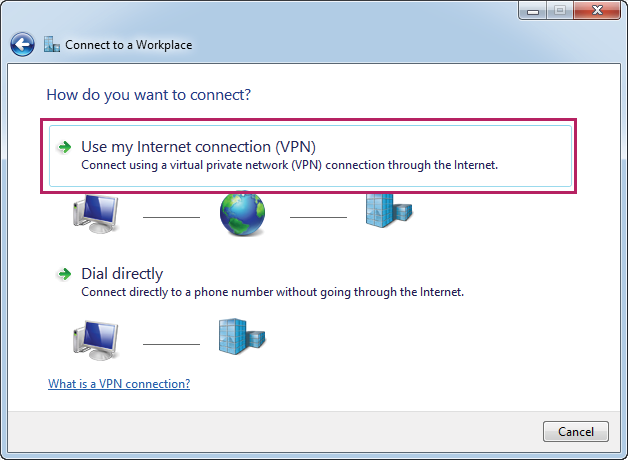

3)Click Use my Internet connection (VPN) to load the following page.

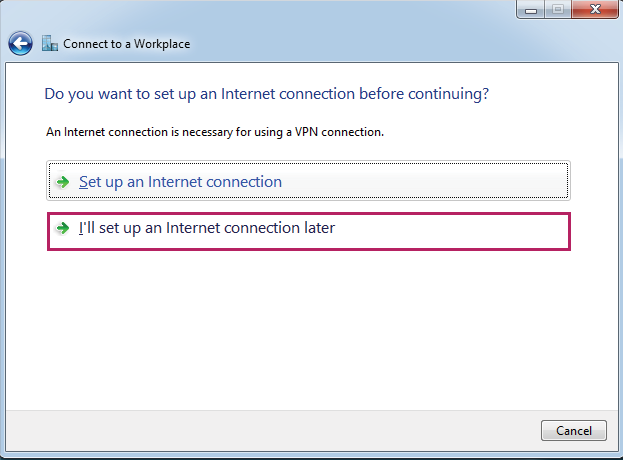

Figure 3-24 Configuring the L2TP VPN client
4)Click I’ll set up an Internet connection later to load the following page. Specify the internet address as 10.10.10.10. Check Don’t connect now, just set it up so I can connect later.
Figure 3-25 Configuring the L2TP VPN client

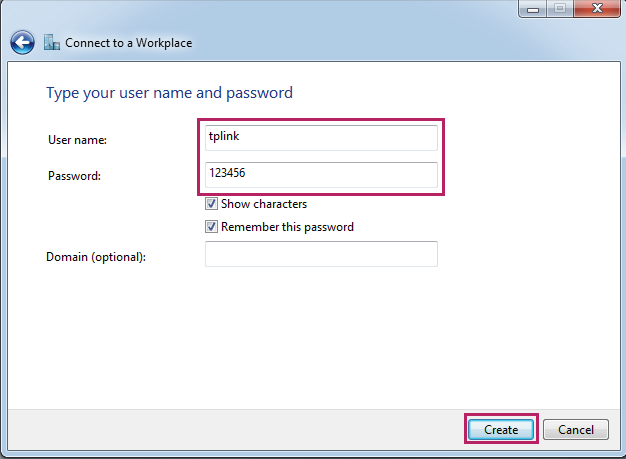

5)Click Next to load the following page. Specify the User name as tplink and Password as 123456. This should be the same as the VPN server configuration. Click Create.
Figure 3-26 Configuring the L2TP VPN client
6)In Windows Control Panel, choose the menu Network and Internet > Network and Sharing Center. Click Change adapter settings. Right click VPN Connection and click Properties to load the following page. Specify the host name or IP address of destination as 10.10.10.10.

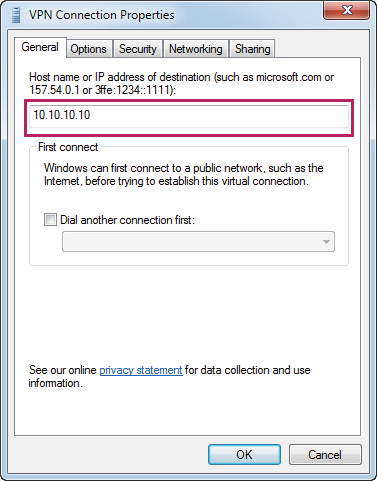

Figure 3-27 Configuring the L2TP VPN client

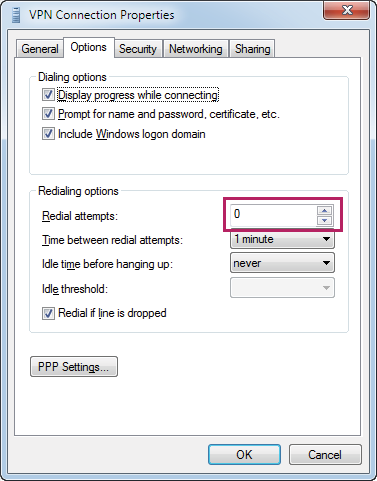

7)Choose the menu Options to load the following page. Specify Redial attempts as 0.
Figure 3-28 Configuring the L2TP VPN client

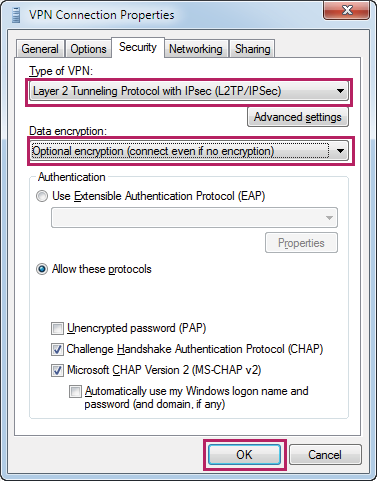

8)Choose the menu Security to load the following page. Select Layer 2 Tunneling Protocol with IPsec (L2TP/IPSec) as the type of VPN from the drop-down list. Select Optional encryption (connect even if no encryption) as data encryption from the drop down list. Click OK.
Figure 3-29 Configuring the L2TP VPN client

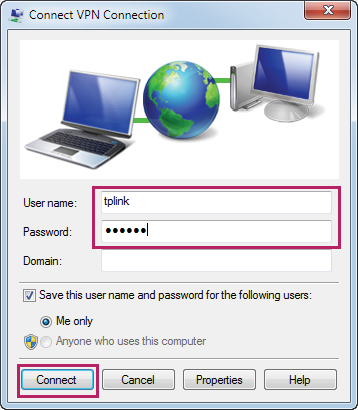

9)Right click VPN Connection and click Connect to load the following page. Specify the User name as tplink, and the Password as 123456. This should be the same as the VPN server configuration. Click Connect to establish the VPN tunnel.
Figure 3-30 Configuring the L2TP VPN client
3.3.4Verifying the Connectivity of the L2TP VPN Tunnel
Choose the menu VPN > L2TP > Tunnel List to load the following page.
Figure 3-31 L2TP tunnel list
The tunnel list shows the information about the established VPN tunnel. Here, you can verify the connectivity of the L2TP VPN tunnel.
3.3.5(Optional) Configuring Access to the Internet via Proxy Gateway.
In this scenario, the remote host accesses the internet via the VPN router, and the VPN router acts as a proxy gateway. To meet this demand, please configure Multi-Nets NAT on the VPN router, and configure Use default gateway on remote network on the remote host.
1)For the VPN Router, choose the menu Tansmission > NAT > Multi-Nets NAT and click Add to load the following page. Configure the parameters for Multi-Nets NAT. Click OK.

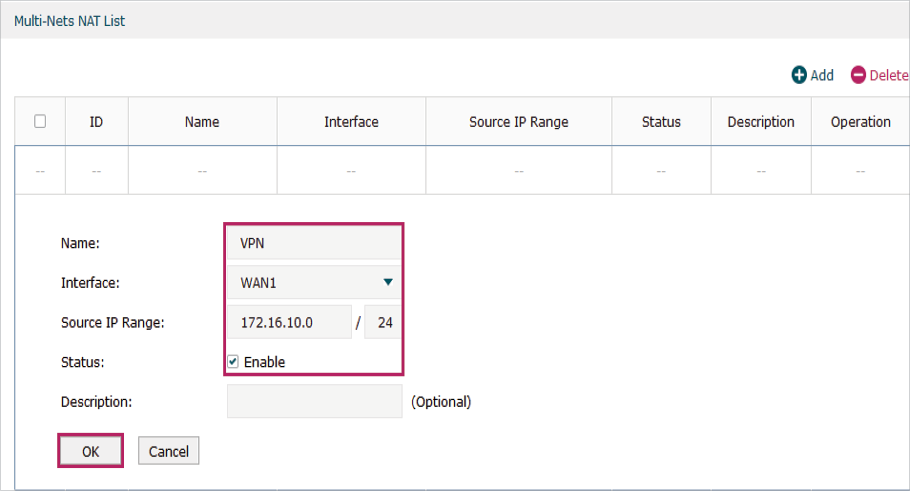

Figure 3-32 Configuring Multi-Nets NAT
Name |
Specify the name for the Multi-Nets NAT list entry. Here we enter VPN. |
Interface |
Specify the interface as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Source IP Range |
Specify the source IP range as 172.16.10.0/24. This should include the VPN IP pool configured for the VPN router. |
Status |
Enable the Multi-Nets NAT list entry. |
2)For the remote host, choose the menu Network and Internet > Network and Sharing Center in Windows Control Panel. Click Change adapter settings. Right click VPN Connection and click Properties. Choose the menu Networking to load the following page.
Figure 3-33 Configuring the L2TP VPN client connection properties

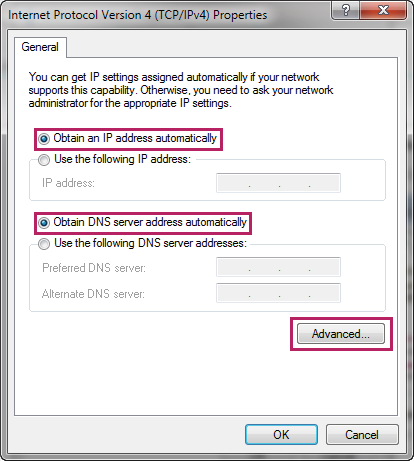

3)Double click Internet Protocol Version 4 (TCP/IPv4) to load the following page. Select Obtain an IP address automatically and select Obtain DNS server address automatically.
Figure 3-34 Configuring the L2TP VPN client connection properties

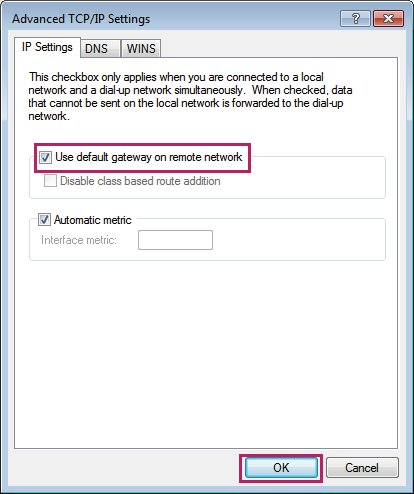

4)Click Advanced to load the following page. Please check Use default gateway on remote network. Click OK.
Figure 3-35 Configuring the L2TP VPN client connection properties
3.4PPTP Client-to-LAN VPN Configuration
To complete the PPTP Client-to-LAN VPN, follow these steps:
1)Configure PPTP VPN server.
2)(Optional) Implement configuration for NAT devices.
3)Configure the PPTP VPN client software.
4)Verify the connectivity of the PPTP VPN tunnel.
5)(Optional) Configure access to the internet via proxy gateway.
3.4.1Configuring PPTP VPN Server
1)For the VPN router, choose the menu Preferences > VPN IP Pool > VPN IP Pool and click Add to load the following page. Configure the parameters for the VPN IP pool. Click OK.
Figure 3-36 Configuring VPN IP pool list
IP Pool Name |
Specify the IP pool name as you like. Here we enter pool1. |
Starting IP Address/Ending IP Address |
Specify the starting IP address and ending IP address for the VPN IP pool. The VPN server will assign IP address to the remote host when the tunnel is established. You can specify any reasonable IP address that will not cause conflict. Here we specify the starting IP address as 172.16.10.100 and the ending IP address as 172.16.10.200. |
2)Choose the menu VPN > Users > Users and click Add to load the following page. Configure the parameters for the PPTP user account. Click OK.
Figure 3-37 Configuring PPTP users
Account Name |
Specify the account name as you like. Here we enter tplink. |
Password |
Specify the password as you like. Here we enter 123456. |
Protocol |
Specify the protocol as PPTP. |
Local IP Address |
This is the virtual IP address which the remote host will set up a point-to-point connection with. You can specify any reasonable IP address that will not cause conflict. Here we specify the local IP address as 172.31.1.16. |
IP Address Pool |
Select pool1 as the IP address pool from the drop-down list. This is the VPN IP pool we have just configured. |
DNS Address |
Specify the DNS address according to your network environment. This is the DNS address to be assigned to the remote host. Here we enter 8.8.8.8. |
Network Mode |
Specify the network mode as Client-to-LAN. |
Max Connections |
Specify the max connections according to your needs. Here we specify max connections as 5. |
3)Choose the menu VPN > PPTP > PPTP Server and click Add to load the following page. Configure the parameters for the PPTP server. Click OK.

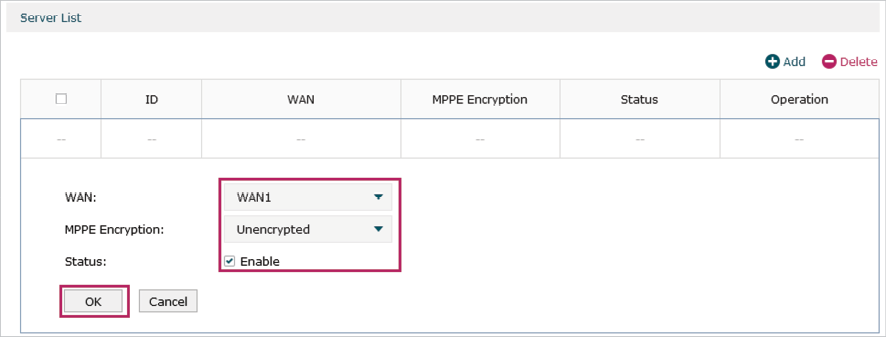

Figure 3-38 Configuring PPTP server
WAN |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
MPPE Encryption |
Specify the MPPE encryption according to your needs. Here we specify the MPPE encryption as Unencrypted. |
Status |
Enable the PPTP server. |
3.4.2(Optional) Implementing Configuration for NAT Devices
If there are NAT devices on the network, the suitable network topology is shown in Figure 3-2. In this scenario, please configure virtual servers on the NAT device, and configure PPTP ALG on both the NAT device and the remote gateway. The configuration steps are as follows.
1)For the NAT device, choose the menu Transmission > NAT > Virtual Servers and click Add to load the following page. Configure the parameters for the virtual server. Click OK.

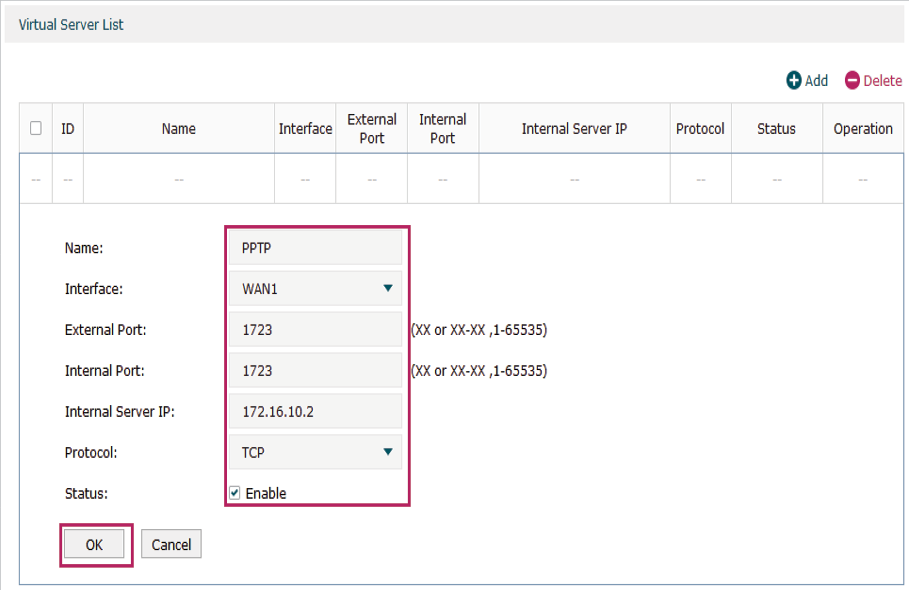

Figure 3-39 Configuring virtual server for PPTP
Name |
Specify the name for the virtual server list entry. Here we enter PPTP. |
Interface |
Specify WAN as WAN1. This should be the WAN port which the VPN tunnel is established on. |
External Port/ Internal Port |
Specify the external port and internal port as 1723. |
Internal Server IP |
Specify the internal server IP as 172.16.10.2. This should be the WAN IP address of the VPN server. |
Protocol |
Specify the protocol as TCP. |
Status |
Enable the virtual server list entry. |
2)For the remote gateway and the NAT device, choose the menu Transmission > NAT > ALG to load the following page. Enable PPTP ALG, and click Save.

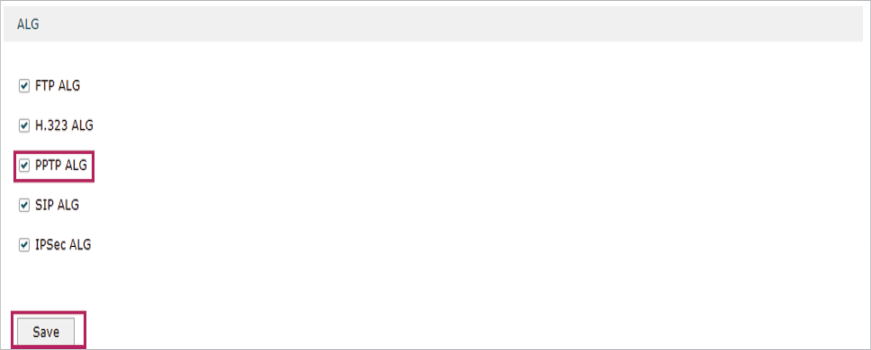

Figure 3-40 Configuring PPTP ALG
3.4.3Configuring the PPTP VPN Client Software
Here we use the built-in VPN client software in Windows7 Operating System on the remote host. To configure the VPN client software, follow these steps.
1)In Windows Control Panel, choose the menu Network and Internet > Network and Sharing Center. Click Set up a new connection or network to load the following page.
Figure 3-41 Configuring the PPTP VPN client
2)Click Connect to a workplace and click Next to load the following page.
Figure 3-42 Configuring the PPTP VPN client
3)Click Use my Internet connection (VPN) to load the following page.
Figure 3-43 Configuring the PPTP VPN client

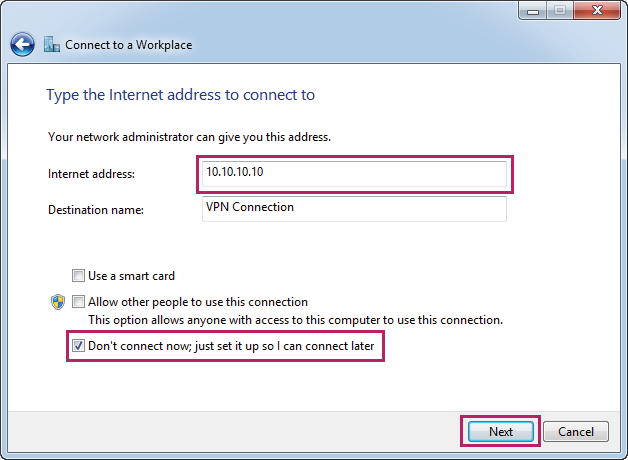

4)Click I’ll set up an Internet connection later to load the following page. Specify the internet address as 10.10.10.10. Check Don’t connect now, just set it up so I can connect later.

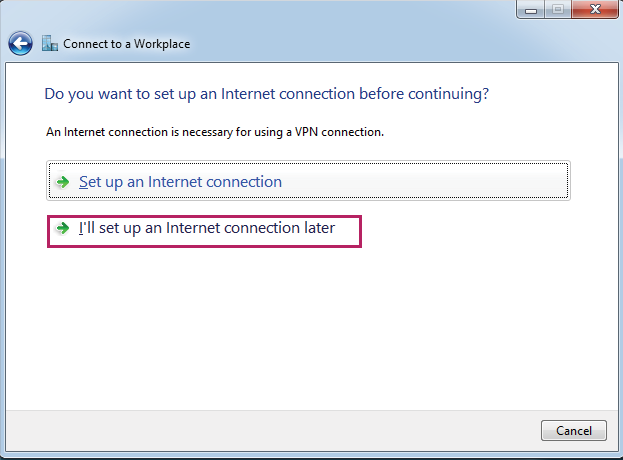

Figure 3-44 Configuring the PPTP VPN client

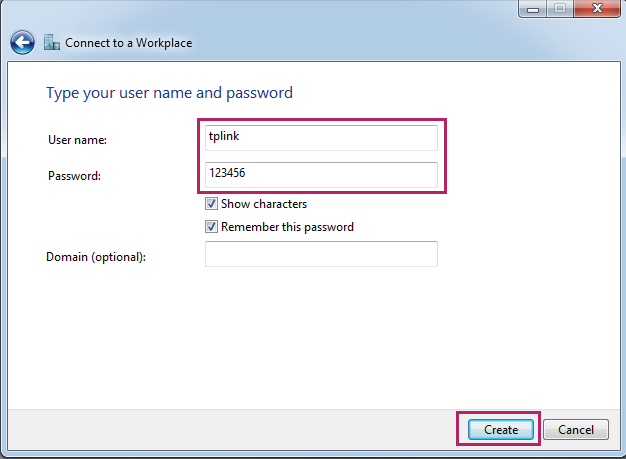

5)Click Next to load the following page. Specify the user name as tplink and password as 123456. This should be the same as VPN server configuration. Then click Create.
Figure 3-45 Configuring the PPTP VPN client
6)In Windows Control Panel, choose the menu Network and Internet > Network and Sharing Center. Click Change adapter settings. Right click VPN Connection and click Properties to load the following page. Specify the host name or IP address of destination as 10.10.10.10.
Figure 3-46 Configuring the PPTP VPN client
7)Choose the menu Options to load the following page. Specify redial attempts as 0.
Figure 3-47 Configuring the PPTP VPN client

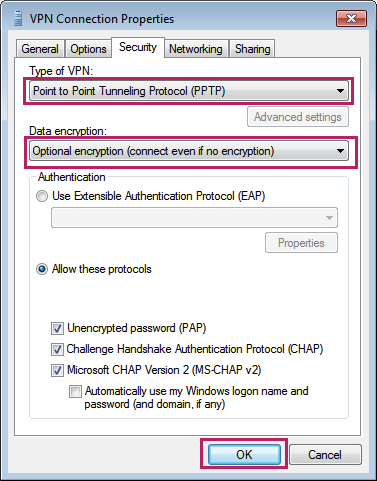

8)Choose the menu Security to load the following page. Select Point to Point Tunnel Protocol (PPTP) as the type of VPN from the drop-down list. Select Optional encryption (connect even if no encryption) as data encryption from the drop down list. Click OK.
Figure 3-48 Configuring the PPTP VPN client

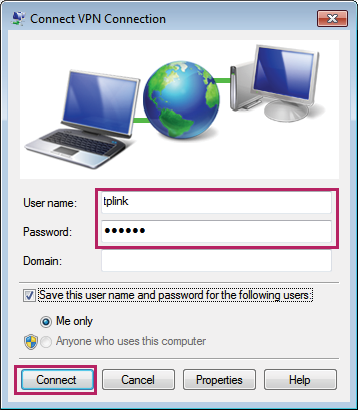

9)Right click VPN Connection and click Connect to load the following page. Specify the user name as tplink, and the password as 123456. This should be the same as the VPN server configuration. Click Connect to establish the VPN tunnel.
Figure 3-49 Configuring the PPTP VPN client
3.4.4Verifying the Connectivity of the PPTP VPN Tunnel
Choose the menu VPN > PPTP > Tunnel List to load the following page.
Figure 3-50 PPTP tunnel list
The tunnel list shows the information about the established VPN Tunnel. Here, you can verify the connectivity of the PPTP VPN tunnel.
3.4.5(Optional) Configuring Access to the Internet via Proxy Gateway.
In this scenario, the remote host access the internet via the VPN router, and the VPN router acts as a proxy gateway. To meet this demand, please configure Multi-Nets NAT on the VPN router, and configure Use default gateway on remote network on the remote host.
1)For the VPN router, choose the menu Tansmission > NAT> Multi-Nets NAT and click Add to load the following page . Configure the parameters for the Multi-Nets NAT. Click OK.

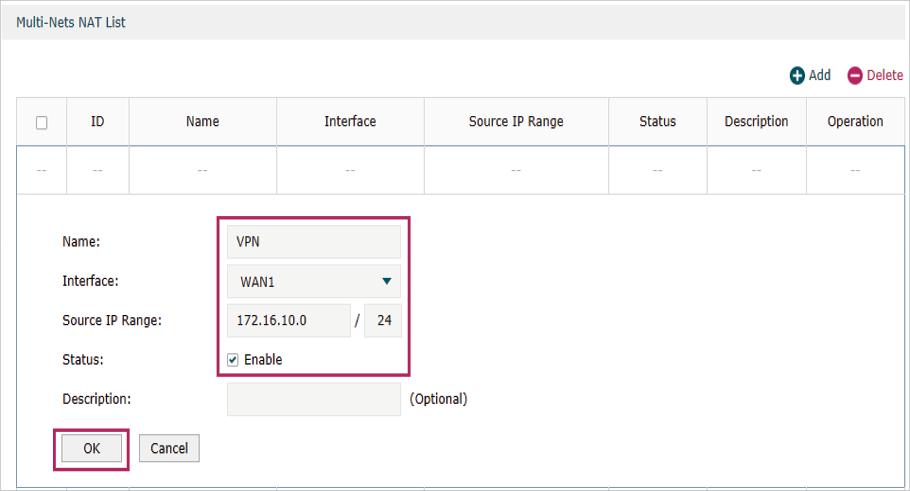

Figure 3-51 Configuring Multi-Nets NAT
Name |
Specify the name for the Multi-Nets NAT list entry. Here we enter VPN. |
Interface |
Specify the interface as WAN1. This should be the WAN port which the VPN tunnel is established on. |
Source IP Range |
Specify source IP range as 172.16.10.0/24. This should include the VPN IP pool configured for the VPN router. |
Status |
Enable the Multi-Nets NAT list entry. |

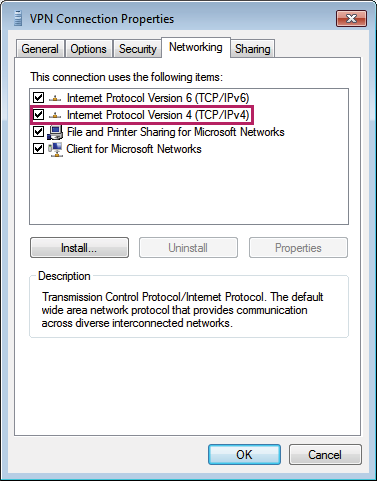

2)For the remote host, choose the menu Network and Internet > Network and Sharing Center in Windows Control Panel. Click Change adapter settings. Right click VPN Connection and click Properties, Choose the menu Networking to load the following page.
Figure 3-52 Configuring the PPTP VPN client connection properties
3)Double click Internet Protocol Version 4 (TCP/IPv4) to load the following page. Select Obtain an IP address automatically and select Obtain DNS server address automatically.
Figure 3-53 Configuring the PPTP VPN client connection properties

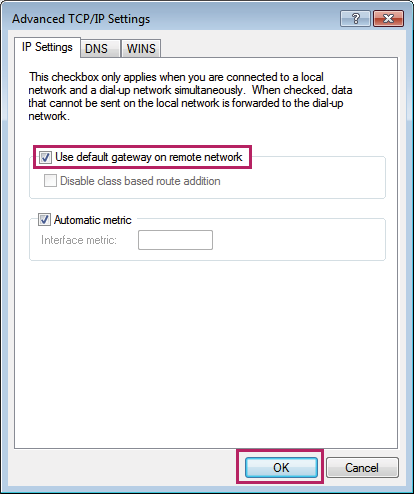

4)Click Advanced to load the following page. Please check Use default gateway on remote network. Click OK.
Figure 3-54 Configuring the PPTP VPN client connection properties
