Configuring Facebook Portal Authentication on EAP Controller


1. Overview

2. Configure Facebook Portal

3. Test the Configuration Result

This guide applies to:

EAP Controller 2.5.x


On EAP Controller 2.5.1x, we newly developed a powerful portal feature: Facebook Portal. To help users easily understand and enjoy the new feature, this configuration guide detailedly introduces what Facebook Portal is and how to configure Facebook Portal.

1.1Facebook Portal Introduction

In Facebook Portal authentication, when customers connect to your Wi-Fi, they will be redirected to your Facebook page. To access the internet, customers need to pass the authentication on the page.

The following introduces the main advantages of Facebook Portal, which may help you determine whether you should choose Facebook Portal on your network.

Advertising Business

Users connected to your Facebook Wi-Fi will be redirected to your Facebook page where displays the desired information, such as pictures, videos, announcements and your phone number for customer feedback. Additionally, users can log in with their Facebook accounts, check in on your Facebook page and leave a record in the Timeline, which may help advertise your business.

Simple Network Access Authentication

Some countries and regions require network service providers to authenticate users. For example, Russia requires all users to be authenticated before accessing the public Wi-Fi. Facebook Portal is a simple and effective access authentication method. With Facebook Portal, your customers only need to connect to your SSID and log in to their Facebook accounts or skip check-in to get authenticated.

Feedback Collection

On your Facebook page, you can collect the customers’ comments, likes and feedback, which are very helpful for your service quality improvement.

1.2Network Topology for Facebook Portal

The following figure shows the network topology for Facebook Portal.

1.3Facebook Authentication Process

The process of accessing the internet via Facebook Portal authentication is as follows:

1)Users connect to the SSID for Facebook Portal and obtain the Facebook authentication page.

2)On the authentication page, there are two available authentication modes:

»Facebook Login Mode: Users need to log in to their Facebook accounts and check in on your Facebook page.

»Skip Mode: Users needn’t log in to their Facebook accounts. To get authenticated, they only need to enter a Wi-Fi code or simply skip the sign link.

3)After authenticated, users will be redirected to the authentication result page. They can continue to visit your Facebook page.

2Configure Facebook Portal

This chapter introduces how to configure Facebook Portal. The configuration overview is as follows:

1)Upgrade EAPs and EAP Controller.

2)Configure Facebook page.

3)Adopt EAPs and create SSID in EAP Controller.

4)Configure Facebook Portal in EAP Controller.

2.1Upgrade EAPs and EAP Controller

To get the newly developed Facebook Portal feature, make sure that both of your EAPs and EAP Controller are upgraded to the latest versions:

EAP: The version which supports V2.5.x.

EAP Controller: V2.5.1/V2.5.4 for Windows and V2.5.3 for Linux.

Go to the download center and search your EAP models and EAP Controller. Then download the latest upgrade files one by one and upgrade the EAPs and EAP Controller using the proper downloaded files.

2.2Configure Facebook Page

If you already have a Facebook page, you can skip this section. If not, follow the steps below to create a Facebook page:

1)Go to the Facebook official website and create a new account with your email or phone number.

2)Log in with your new account.

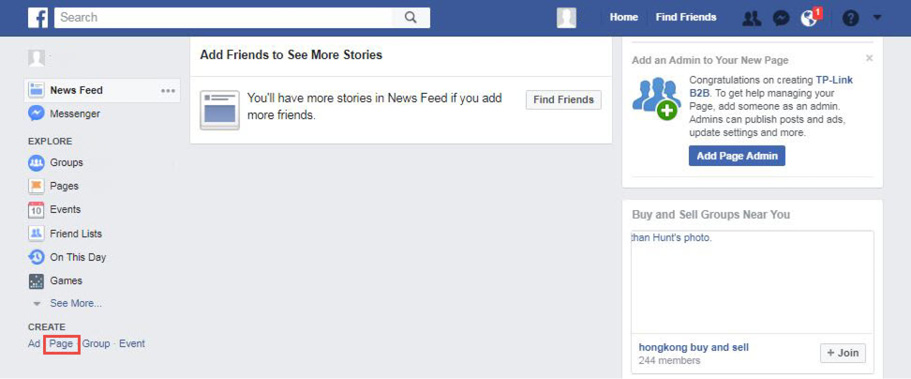

3)In the CREATE section at the bottom left corner, click Page.

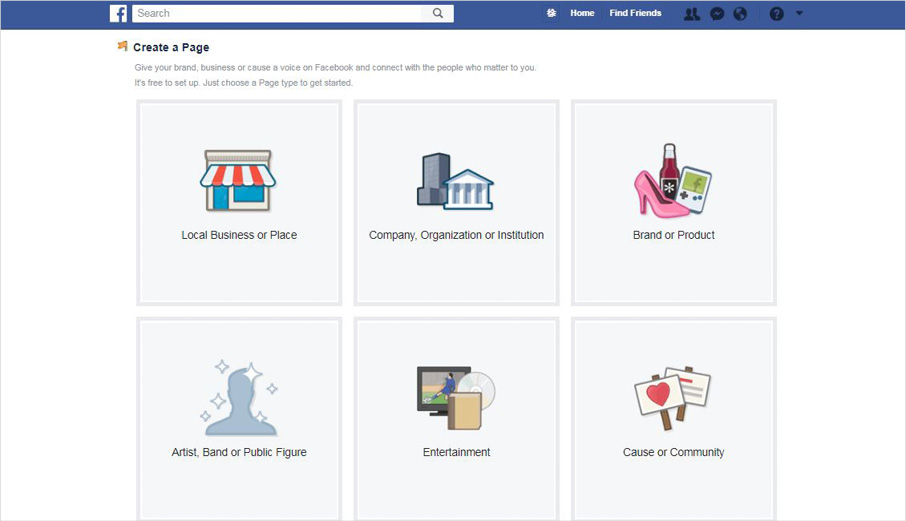

4)The following window will appear. Choose a type of Facebook page to be created.

5)Enter the required information and click Get Started. Then the Facebook page will be created.

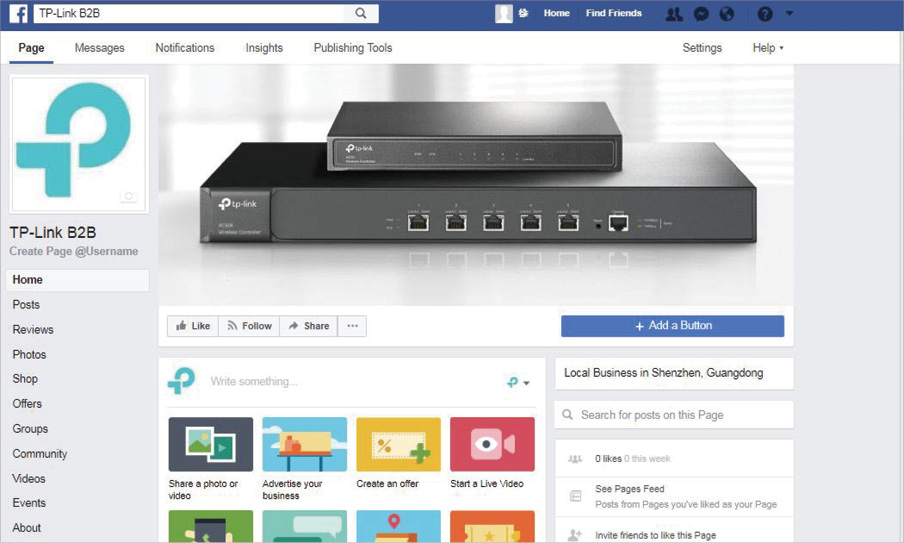

6)Customize your Facebook page according to your actual needs.

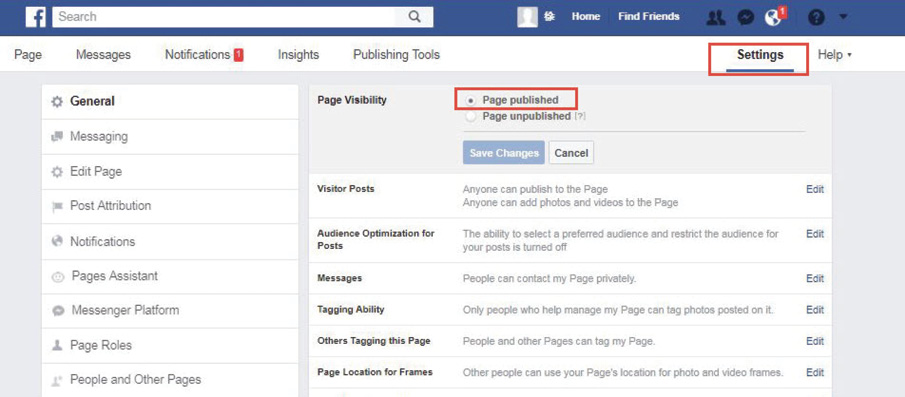

7)Go to the Settings page and make sure that Page Visibility is set as Page published, so that users can access your Facebook page.

2.3Adopt EAPs and Create SSID in EAP Controller

Follow the steps below to adopt EAPs and create an SSID for Facebook Portal. For detailed instructions about how to adopt EAPs and create SSID, refer to the User Guide for EAP Controller, which can be downloaded on the website

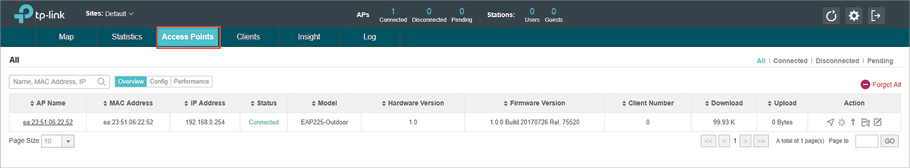

1)Go to the Access Point page and adopt the EAPs on your network.

2)Go to Wireless Settings > Basic Wireless Setting and create SSID for Facebook Portal.


To ensure the EAP Controller can communicate with the Facebook servers, you need to set correct default gateway and DNS for your PC that is installed with the EAP Controller.

2.4Configure Facebook Portal in EAP Controller

Follow the steps below to configure Facebook Portal:

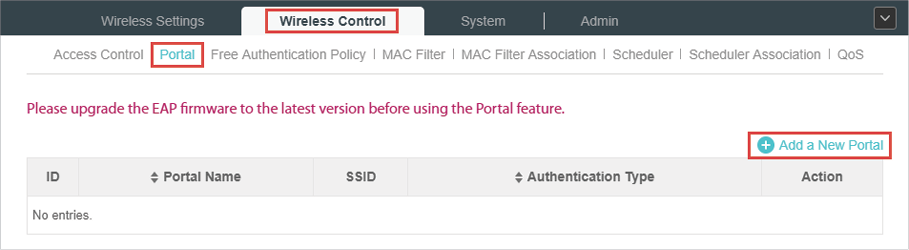

1)Go to Wireless Control > Portal and click Add a New Portal.

2)The following page will pop up. Specify a name for the Portal, select an SSID, and select the Authentication Type as Facebook. Click the Configuration button and the EAP Controller will automatically connect to the Facebook server.

3)If you have been logged in to Facebook, you can skip this step and directly refer to the step 4). If not, the Facebook login page will appear. Enter your account information to log in.

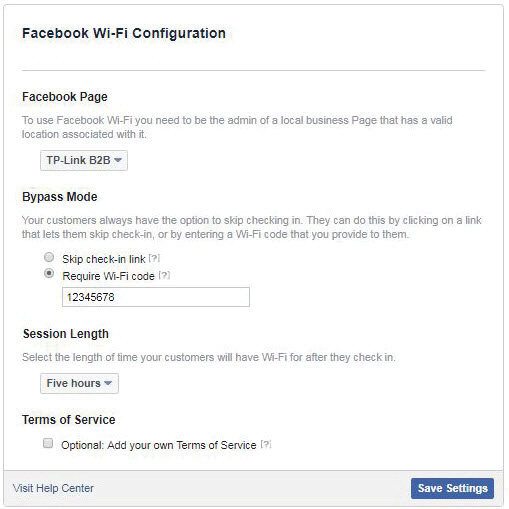

4)The following page will appear. Configure the required parameters according to the help information on the page. For example, select Facebook Page as TP-Link B2B, set Bypass Mode as Require Wi-Fi code, and set Session Length as Five hours. Click Save Settings.

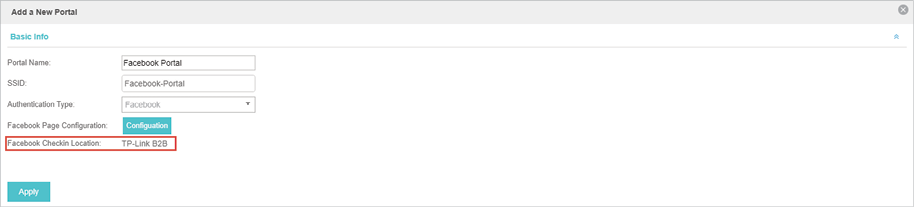

5)After the Facebook page is successfully got by the EAP Controller, the name of the Facebook Page will be displayed on the page. Click Apply.

3Test the Configuration Result

After all configurations are completed, you can follow the steps below to test whether the Facebook Portal works normally.

1)Enable the Wi-Fi feature of your mobile phone.

2)Search and connect to the SSID for Facebook Portal.

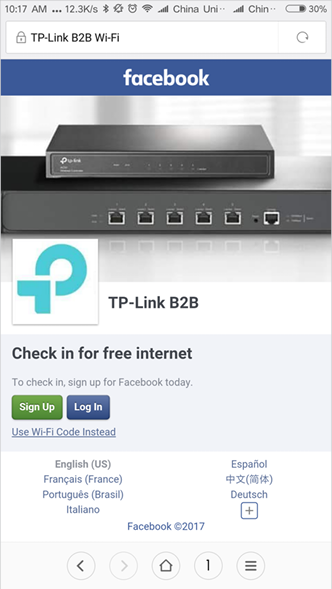

3)The default web browser on the mobile phone will pop up and the Facebook authentication page will appear.


Generally, the web browser pops up automatically. But if the web browser does not pop up, you can manually launch the web browser and visit any http website. Then the authentication page will appear.

In Facebook Portal, all the https websites are available before authentication. So it does not mean that you have passed Facebook Portal authentication if you can access an https website.

4)To pass the authentication, log in with a Facebook account or choose Use Wi-Fi Code Instead. For example, you can choose Use Wi-Fi Code Instead.

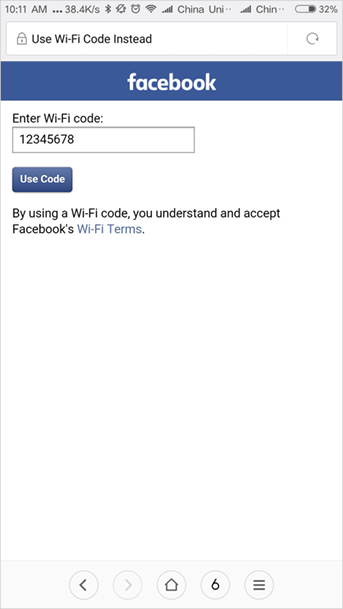

5)The following page will appear. Enter the Wi-Fi code: 12345678. Click Use Code.

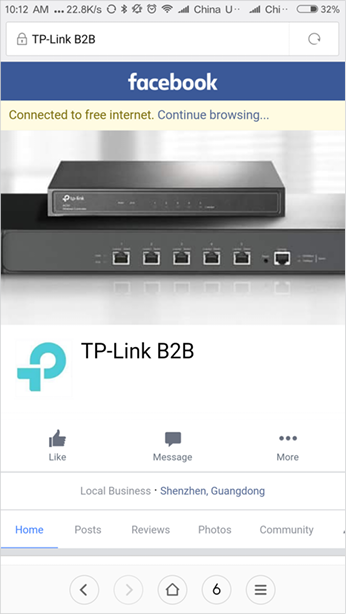

6)After authenticated, you will be redirected to the authentication result page, and you can stay on this page or continue browsing.

If all the steps above are completed, the Facebook Portal feature works normally.
