Passthrough Powerline 600 Starter Kit, 2 Ports TL-PA4020P KIT V1.20
2 Ports, 100Mbps
- HomePlug AV standard compliant, providing data transmission over electrical wires for HD video streaming
- Integrated power socket ensures that no power outlet goes to waste
- Plug and play design and easy encryption at a push of the pair button
- Power-Saving Mode automatically reduces power consumption by up to 85%1
What This Product Does
The TL-PA4020P KIT turns your home’s existing electrical circuitry into a high speed network with no need for new wires or drilling. No configuration is required, simply plug your adapter into a power socket and you can establish networking infrastructure in a flash. In addition, its integrated power socket makes sure that no power outlet is going to waste.
Easy Ethernet Connections
With advanced Home Plug AV technology, TL-PA4020P KIT can provide users with a stable and high-speed data transmission over a household electric circuit for up to 300 meters. The TL-PA4020P KIT is a great choice for an entertainment network - from desk top computers and game consoles to smart TVs to printers and NAS hard drives.

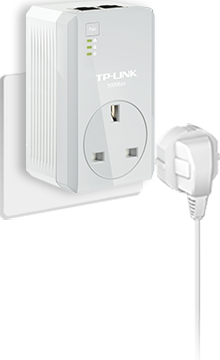

Extra Power Socket for Additional Devices
With its integrated power socket, the TL-PA4020P KIT provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4020P KIT plugged in, no power outlet goes to waste.

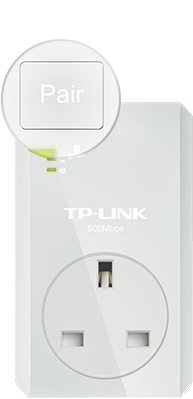

Pair Button for Easy Network Security
You can set up a hassle-free powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
1. Plug one Internet connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi and you're done!
*Recommended: Press the pair buttons for network security and data encryption.
Mains Filter for Better Performance
With its Integrated Mains Filter, the TL-PA4020P KIT can optimize powerline communication performance by suppressing noise interference generated by surrounding electronic equipment that can affect network performance. In other words, users won't experience a sudden drop in data transfer rates when a larger power consuming device is plugged into the power socket.
Reduce Power Consumption by Up to 85%1
The TL-PA4020P KIT, a new-generation of Powerline Adapter, with its practical product design and environment-conscious Power-Saving Mode, will automatically switch from its regular "Working Mode" to "Power-Saving Mode" that will reduce energy consumption by up to 85%1.
Note: Powerline adapters should be deployed on the same circuit and in set of two or more.
- Actual data will vary because of the network conditions and environment factors.
|Plug Type||EU, UK, FR, US|
|Standards and Protocols||HomePlug AV, IEEE802.3, IEEE802.3u|
|Interface||2* 10/100Mbps Ethernet Ports, Power Socket|
Maximum: 5.82W (220V/50Hz)
Typical: 5.20W (220V/50Hz)
Standby: 0.92W (220V/50Hz)
|LED||Power, Powerline, Ethernet|
|Dimensions ( W x D x H )||3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm)|
|Range||300 meters over a single circuit|
|Power Output to Integrated Socket||13 A|
|Encryption||128-bit AES Encryption|
|Certification||CE, FCC, RoHS|
Powerline Ethernet Adapter *2
Ethernet cable (RJ45) *2
Quick Installation Guide
|System Requirements||Windows 8/7/Vista/XP/2000, Mac OS, Linux*|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
