EAP783

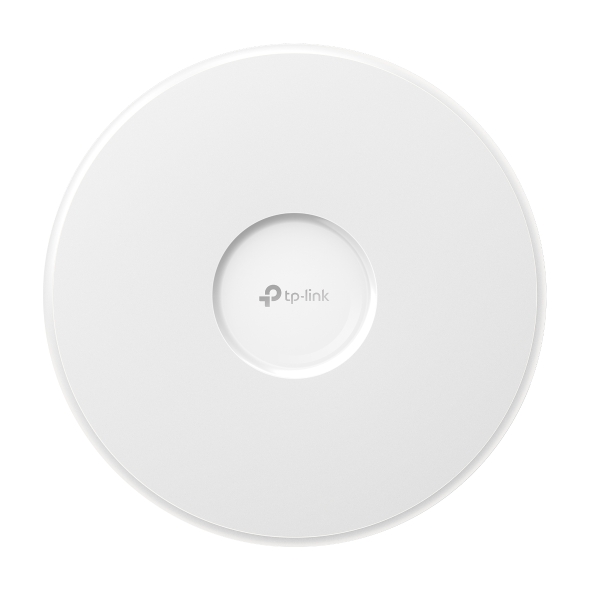

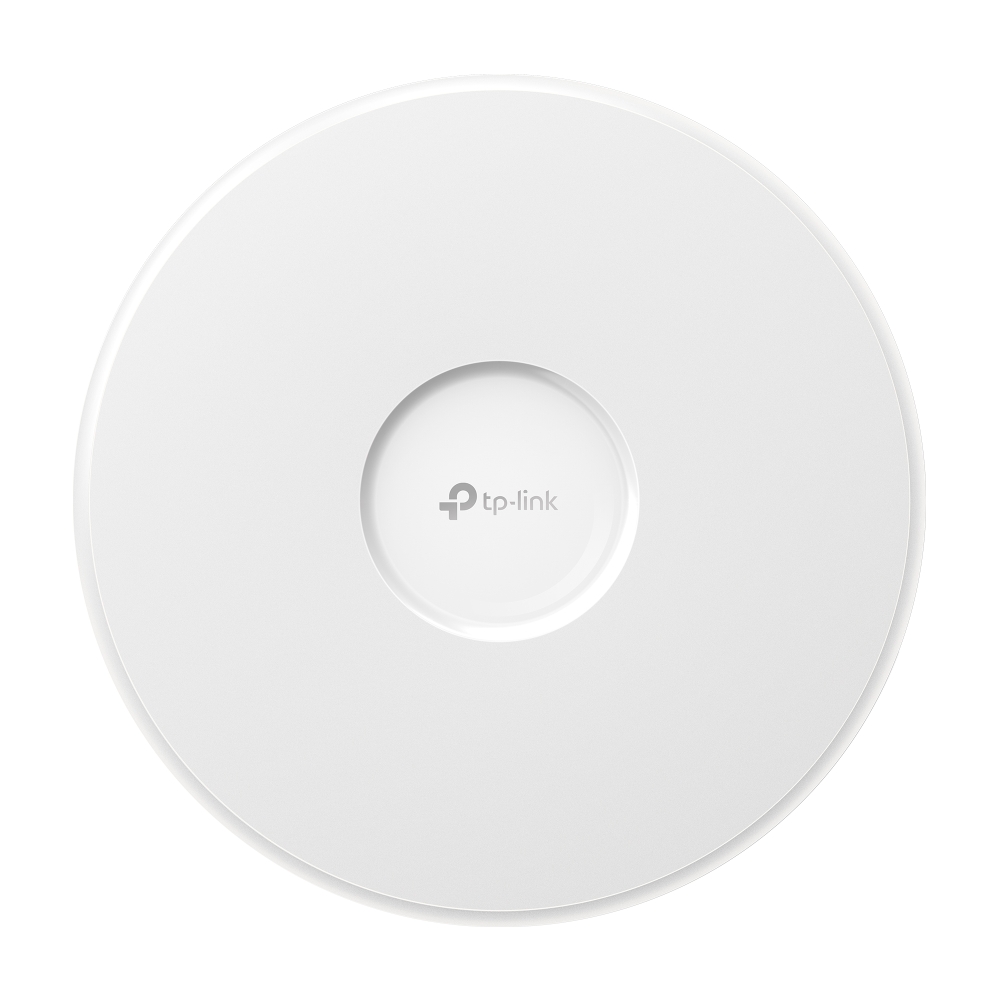

În curândBE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE19000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 2× 10G Port: Unlock the full potential of Wi-Fi 7.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions：Supports centralized management, mesh, and seamless roaming.
Learn more about Omada Cloud SDN>
Break Through
the Boundaries of Your Business
EAP783
-
BE19000 WiFi 7 Speed
Up to 19 Gbps tri-band Wi-Fi enables your devices to run at full speed.
-
Next-Gen WiFi 7
Enjoy a smooth network with higher throughput and lower interference.
-
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
-
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
-
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
-
Intelligent Power Management
Offers more reliable network operation for your business.
-
Centralized Cloud Management
Manage the whole network locally or from the cloud.
-
Omada Mesh Technology
More flexible and convenient wireless deployment.△
-
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
| CARACTERISTICI HARDWARE | |
|---|---|
| Interfață | 2× 10G Ethernet Port |
| Alimentator | 802.3bt PoE++ or 12V DC |
| Montare | Ceiling / Wall Mounting (Kits Included) |
| Caracteristici Wireless | |
|---|---|
| Frecvență | 6 GHz, 5 GHz, and 2.4 GHz |
| Rată de Semnal | • 6 GHz: Up to 11520 Mbps• 5 GHz: Up to 5760 Mbps• 2.4 GHz: Up to 1376 Mbps |
| Funcții Wireless | • MLO• 4K-QAM• MU-MIMO• HE320• Mesh• Automatic Channel Selection and Power Adjustment• BBS Coloring• OFDMA• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS• Wireless Schedule• Reboot Schedule |
| Securitate Wireless | • PPSK• Captive Portal Authentication• WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
*Images and information are for reference only. Actual products may vary.
