Routers Wi-Fi
Archer C9

AC1900 Wireless Dual Band Gigabit Router Archer C9

  • Supports 802.11ac standard-the next generation of Wi-Fi
  • Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth
  • 3 dual band detachable antennas provide maximum omni-directional wireless coverage and reliability
  • Beamforming technology delivers highly efficient wireless connection
  • 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
  • USB 3.0 + USB 2.0 Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server

Visão geral

  • Super Fast Transfer Speeds Providing a Superior WiFi Experience

    Archer C9 comes with the next generation 11ac Wi-Fi standard, offering total data transfer speeds up to 1.9Gbps. With 1.3Gbps over the clearer 5GHz frequency, and 600Mbps using two wireless chips to maximize performance over the 2.4GHz frequency your whole home will get excellent wireless coverage. The outstanding Gigabit Wi-Fi and Gigabit wired connections are ideal for bandwidth sensitive applications like streaming in HD and seamless online gaming. With Archer C9 you get a super-fast, high performance connected home.



Greater Coverage and Reliable Wi-Fi

Three dual band antennas and high-powered amplifiers ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home.

* Beamforming Technology for Laser-Focused Wi-Fi
Beamforming concentrates the Wi-Fi signal towards your Wi-Fi devices, focusing the data transmission to where you need it the most. Superior Wi-Fi bandwidth utilization increases Wi-Fi range, delivering highly targeted and efficient Wi-Fi connections.

Dual USB Ports for Easy Sharing

With a USB 3.0 port and a USB 2.0 port, it’s easy to share local printers, files and media within the network and between devices. Utilize the FTP server to access files stored on the router while away home. Take advantage of USB 3.0 with 10x faster speed than traditional USB 2.0.

  •  Media Server
  •  FTP Server
  •  Storage Sharing
  •  Printer Sharing
USB 3.0 10X
USB 2.0 1X
USB
Speed

  • Elegant Appearance

    The sophisticated design enhances every home. Its gentle curves, excellent crafting and remarkable quality exudes style and elegance without compromising on excellent performance.

  •  Guest Network
    Guest Network Access provides secure access to guests sharing your Wi-Fi network.
  •  Parental Control
    Parental Controls allow parents or administrators to deploy restricted access for children or staff. With URL blocking, you can easily set up a black or white list to limit the level of web access.
  •  IPv6 Supported
    The Archer C9 supports IPv6, the next generation of Internet protocol, future-proofing the network you are setting up today.
  •  Easy Setup
    Quick and hassle free installation via the web configuration utility from any laptop, smartphone or tablet.
  •  Tether APP
    TP-LINK Tether provides the easiest way to access and manage your router with your smart devices.

Features

  •  SIGNAL RATE
    5GHz: Up to 1300Mbps
    2.4GHz: Up to 600Mbps

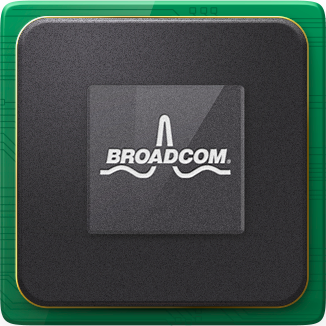

     1GHz Dual-core CPU
    A great ‘heart’ for fast, stable performance with WiFi
     Dual USB ports
    1 USB 3.0 Port + 1 USB 2.0 Port

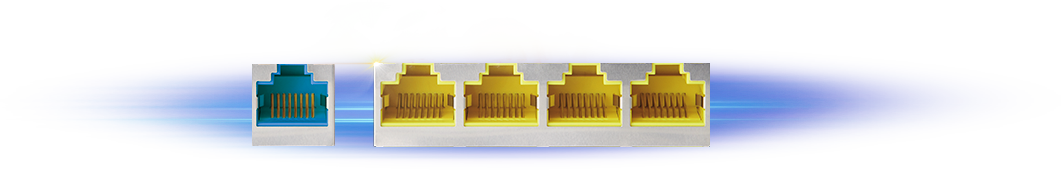

     Gigabit WAN/LAN ports
    4 10/100/1000Mbps LAN Ports
    1 10/100/1000Mbps WAN Port
  •  Antenna
    3 Detachable Dual Band Antennas
     Dimensions (W X D X H)
    8.7 X 3.4 X 6.6 in.
    (221 X 86 X 168.5mm)
     Package Contents
    Archer C9
    3 Detachable Antennas
    Power Supply Unit
    Ethernet Cable
    Quick Installation Guide

Especificações

CARACTERÍSTICAS DE HARDWARE
Interface 4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
1 USB 3.0 Port + 1 USB 2.0 Port
Botão WPS/Reset Button,
Wireless On/Off Button,
Power On/off Button
Antena 3 dual band detachable antennas
Fonte de alimentação Externa 12V/3.3A
Dimensões (L x P x A) 8.7 X 3.4 X 6.6 in. (221 X 86 X 168.5mm)
FUNCIONALIDADES WI-FI
Normas Wireless IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequências 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mbps
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -76dBm
11ac HT20: -68dBm
11ac HT40: -64dBm
11ac HT80: -60dBm
2.4GHz
11g 54M: -77dBm
11n HT20: -73dBm
11n HT40: -71dBm
Potência de transmissão CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Funções Wireless Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Segurança Wireless 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption
FUNCIONALIDADES SOFTWARE
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Gestão Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
DNS Dinâmico (DDNS) DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocolos Supports IPv4 and IPv6
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
OUTROS
Certificações CE, FCC, RoHS
Conteúdo da embalagem AC 1900 Wireless Dual Band Gigabit Router Archer C9
3 detachable antennas
Power supply unit
Ethernet Cable
Quick Installation Guide
Requisitos de Sistema Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Análises e Prémios

Reviews
Awards
  • Editor's Award
    Archer C9 won the award “Editor’s Award” from magazine PC3.
    2014, Hongkong
  • Recommendation
    Archer C9 was recommended with 4/5 stars from Alt om DATA
    2015, Denmark
  • Recommendation
    Archer C9 was recommended with 9/10 stars from Komputer for Alle
    2015, Denmark
  • Performance award
    Archer C9 has received a Performance Award from Hardware Heaven
    2015, UK
  • Good Choice
    Archer C9 received a ‘Good Choice’ award from PC För Alla
    2015, Sweden
  • We Recommend
    Archer C9 was recommended by GAGADGET.COM
    2015, Ukraine
  • Best Buy award
    Archer C9 has received Best Buy award from Computer Shopper.
    2015, UK
