VIGI C540S

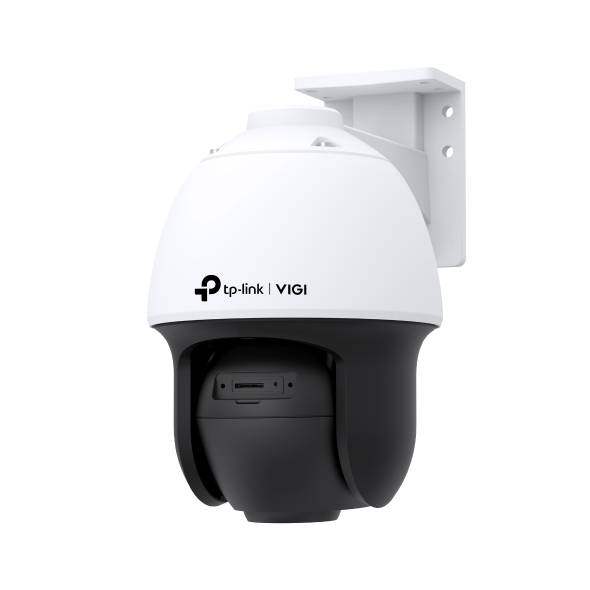

NewVIGI 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera
- Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- True WDR Technology: Enable crystal-clear images in high contrast scenes.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.






See Every Color
in Darkness
4MP Outdoor ColorPro Night Vision
Pan Tilt Network Camera
VIGI C540S
-
Ultra Low-Light
Imaging -
High
Definition -
360°
Monitoring -
People & Vehicle
Analytics* -
Human & Vehicle
Classification -
Two-Way
Audio -
Active
Defense -
IP66
Weatherproof
VIGI ColorPro Night Vision
Better than the Naked Eye
Produces unparalleled colors along with amazingly crisp images in ultra-low light conditions,
which can’t be achieved with natural eyesight.**
Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail.
VIGI’s ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.**
Four Breakthrough Technologies
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures that both bright and dark areas are properly exposed, delivering a well-balanced and natural-looking image, even in environments with high-contrast lighting.†
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265+, respectively.‡
CAMERA | |
---|---|
Image Sensor | 1/1.79” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
Day/Night Mechanism | N/A |
Day/Night Switch | Unified/Scheduled/Auto |
LENS | |
---|---|
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.0±5% |
FOV | 4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° |
Lens Mount | M16*P 0.5 |
DORI Distance | 4 mm: Detect: 63 m (207 ft) Observe: 26 m (86 ft) Recognize: 13m (41 ft) Identify: 6 m (21 ft) |
PTZ | |
---|---|
Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
Pan/tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s |
Manual Control Speed | Configurable from 8° to 35°/s |
Presets | 300 |
Patrol Scan | 8 patrols, up to 8 presets for each patrol |
Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
Park Action | Yes; Preset; Patrol Scan |
3D Positioning | Yes |
Angle Adjustment (Manual) | |
---|---|
Range | Pan: 0° to 348° Tilt: 0° to 105° |
ILLUMINATOR | |
---|---|
IR LED | N/A |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
---|---|
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
Third Stream | • Frame Rate: 15fps • Resolution: 1280x720 |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
Image | |
---|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/HLC |
Wide Dynamic Range | 120dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
---|---|
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
---|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | Yes |
API | Open Network Video Interface (Profile S) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
---|---|
Smart Event | • Intrusion Detection • Line-Crossing Detection • People Detection • Vehicle Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
Deep Learning Function | |
---|---|
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier*. |
INTERFACES | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB† |
Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
---|---|
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Material | Plastic |
Power Supply | 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16.47 W |
Protection | IP66 |
Product Dimensions (L x W x H) | 120 × 172 × 203 mm |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
*This function must be used with VIGI specified software.
†Micro SD card is not included in the package.
**VIGI ColorPro Night Vision image was captured by VIGI C340S.
△This value is compared with the traditional F2.0 aperture, 1/3" target surface sensor.
‡Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
