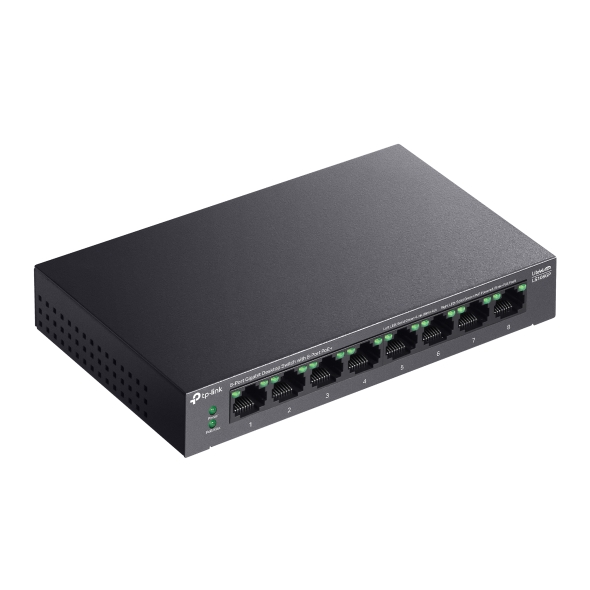

LS108GP
8-Port Gigabit Desktop Switch with 8-Port PoE+
- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX |
| Medios de Red | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Cantidad de Ventiladores | Fanless |

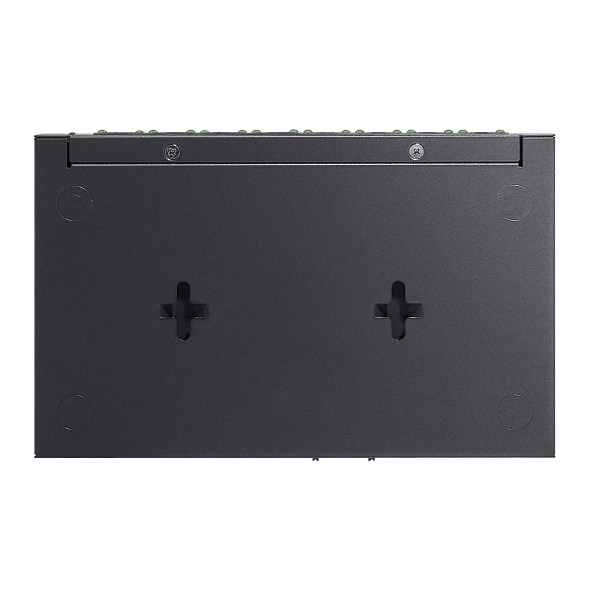

| Instalación | • Desktop• Wall Mounting |
| Fuente de Alimentación | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Puertos PoE (RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• PoE Budget: 62 W |
| Dimensiones (W X D X H) | 6.2×3.9×1.0 in (158×99×25 mm) |
| Consumo Máximo de energía | • 5.53 W (220 V/50 Hz. no PD connected)• 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Disipación Máxima de Calor | • 18.81 BTU/h (220 V/50 Hz. no PD connected)• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| RENDIMIENTO | |
|---|---|
| Capacidad de Switcheo | 16 Gbps |
| Tasa de Reenvío de Paquetes | 11.9 Mpps |
| Tabla de MAC Address | 4K |
| Jumbo Frame | 16 KB |
| CARACTERÍSTICAS DE SOFTWARE | |
|---|---|
| Características Avanzadas | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Green Technology |
| Método de Transmisión | Store-And-Forward |
| Otros | |
|---|---|
| Certificacion | FCC, CE, RoHS |
| Contenidos del Paquete | • LS108GP• Power Adapter• Installation Guide |
| Ambiente | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
△Numbers after different modes represent the effective ports for that mode.
