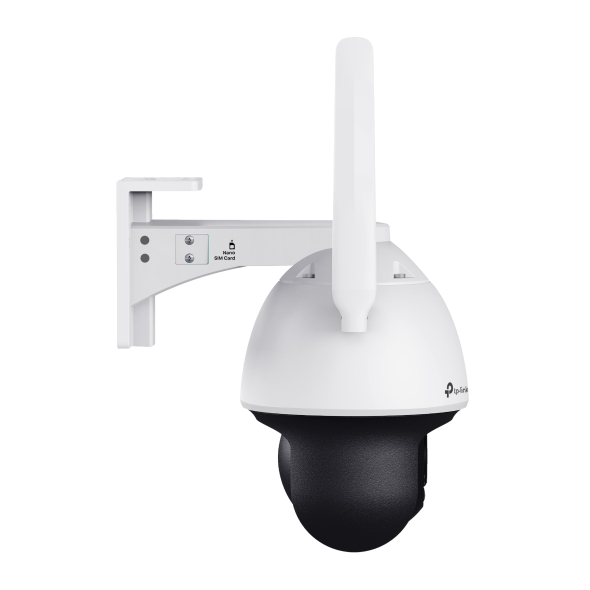

VIGI C540-4G

Secure Everywhere with a 4G Network

4MP Outdoor Full-Color 4G Pan Tilt
Network Camera

VIGI C540-4G

High Definition
Full-Color
4G Mobile
Networking
360° Monitoring
Human & Vehicle
Classification
Automatic Tracking
Two-Way Audio
IP66 Weatherproof^†

Network Anywhere
You Need It

No network cables required. Simply insert a Nano-SIM card^§ and your camera is ready to connect to a 4G LTE network.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Learn more about VIGI AI technology >>

Human & Vehicle Classification
Only Human Classification On
Only Vehicle Classification On

Alarm Triggered

Alarm Filtered

Alarm Triggered

Alarm Filtered

Alarm Triggered

Alarm Filtered

Smart Video Enhancement Technology

DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

CAMERA
Image Sensor	1/3.06” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount	M12*0.5
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)

PTZ
Pan/tilt Range	Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed	• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s • Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PT and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes

Angle Adjustment (Manual)
Range	• Pan: 0° to 348° • Tilt: 0° to 120°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 736×416, 640x480, 640×360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • DNS • RTSP • NTP • UPnP UDP • SSL/TLS • FTP/SFTP • RTP • IPv4 • ARP • SMTP
ONVIF	Yes
API	Open Network Video Interface (Profile S/G)
Simultaneous Live View	2 Main Streams & 2 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G
Standard	LTE-TDD/LTE-FDD/WCDMA
SIM Type	Nano SIM^§
Category	4
Frequency	• LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card^§, Up to 512 GB
Built-in Nano-SIM Card Slot	Yes
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30 to +60°C
Storage Temperature	-40 to +60°C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter
Material	Plastic
Net Weight	0.69 Kg
Gross Weight	1.16 Kg
Power Supply	12V DC/1A, 5.5mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection	IP66 Weatherproof^†
Product Dimensions (L x W x H)	4.72 × 7.17 × 7.91 in (120 × 182 × 201 mm) (excluding antennas)
Certifications	CE, NTRA, NCC, BSMI, KC

For additional version information, please go to the support page.

^†To maintain IP66 protection, install the camera perpendicular to the ground.

^§MicroSD card and Nano-SIM card are not included in the package.

*Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
