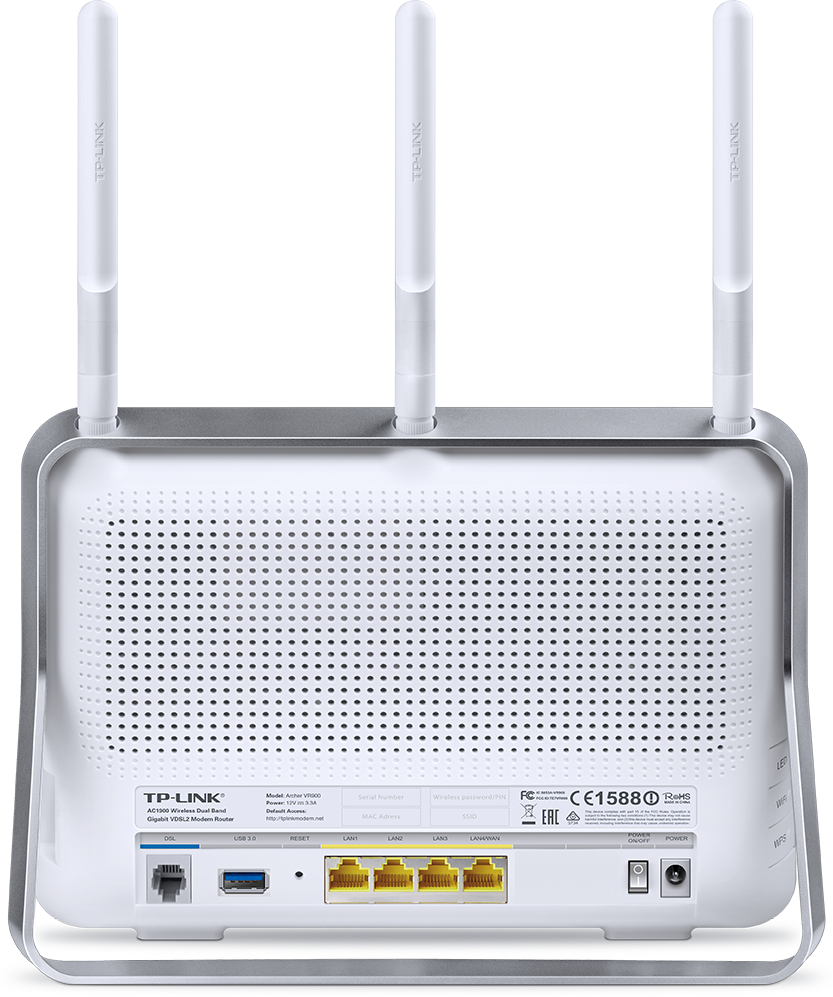

Archer VR900

AC1900 Wireless Gigabit VDSL/ADSL Modem Router

  • Versatile Connectivity – Ethernet WAN and USB ports, the VR900 is fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fiber/cable access and 3G/4G USB dongles
  • Superfast Wi-Fi – 600Mbps on 2.4GHz + 1300Mbps on 5GHz
  • Maximum Range – 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability
  • 1GHz Dual-core Processor – Ensures no interruption while processing multiple wired or wireless tasks simultaneously
  • Beamforming Technology – Improves wireless range and performance on both 2.4GHz and 5GHz band

Broadband and Wi-Fi Unleashed

The Archer VR900 features superfast broadband speeds of up to 100Mbps and supports VDSL2,as well as backward compatibility with ADSL2+/ADSL2/ADSL.

The modem router exploits the full potential of VDSL broadband connections to deliver Wi-Fi speeds of up to 1900Mbps(600Mbps on 2.4 GHz and 1300Mbps on 5GHz). Also, by using two dedicated networks, it reduces wireless signal interference.

1300Mbps

5GHz band

600Mbps

2.4GHz band

The Ultimate
Buffer Breaker

Supporting Any Connection

AC 1900 Wireless Gigabit VDSL/ADSL

Modem Router


  • Versatile Connectivity

    The Archer VR900 is an integrated DSL modem router that works with any kind of Internet connection, including VDSL2, ADSL, ADSL2, and ADSL2+.

  • Versatile Connectivity

    With the Gigabit Ethernet WAN option, the Archer VR900 can also
    be used with any fiber broadband or cable modem with an Ethernet output.

  • Versatile Connectivity

    While the DSL and Ethernet WAN inputs provide universal compatibility with any Internet service, both of the USB ports also support 3G/4G dongle connections. This universal router gives you the flexibility to keep your current ISP or change ISPs in the future, without compromis-ing wireless performance.

Versatile Connectivity

The Archer VR900 is an integrated DSL modem router that works with any kind of Internet connection, including VDSL2, ADSL, ADSL2, and ADSL2+. It can also be used with any fiber broadband, cable modem, or 3G/4G dongles.



Better Coverage and a More Stable Connection

Three external antennas help the Archer VR900 provide stable coverage throughout your entire home and property. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections.

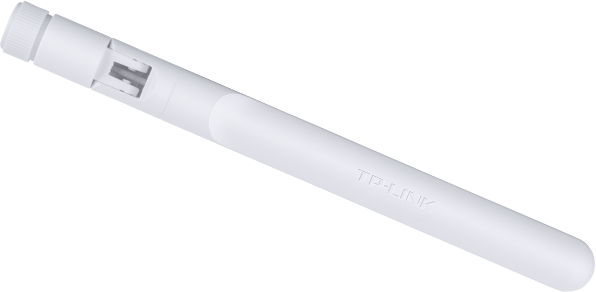

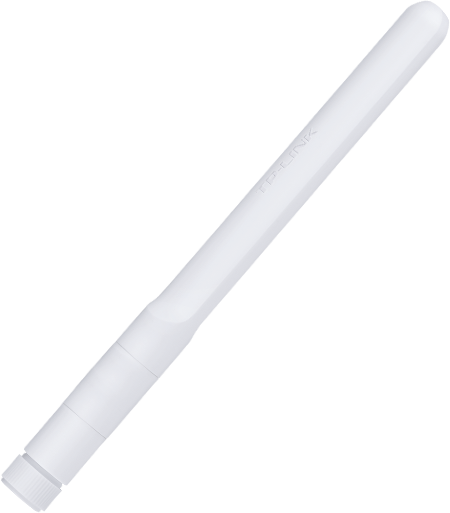

High Performance Antennas

The Archer VR900 features three specially-designed, detachable antennas. The antennas boast gains of 3x2 dBi on the 2.4GHz band and 3x3 dBi on the 5GHz band, ensuring both stability and reach. All three are completely adjustable to ensure optimal orientation and provide you with the best possible Wi-Fi performance.

All three antennas are completely adjustable to ensure optimal orientation and provide you with the best possible Wi-Fi performance.

3x 2dBi

2.4GHz

3x 3dBi

5GHz

Recommended Antenna Orientation

Powerful Processor for Enhanced Performance

The powerful, 1GHz dual-core Broadcom processor boosts speeds and ensures that performance is never compromised even while simultaneously processing multiple wireless and/or wired tasks. Let the processor handle your busy network while you enjoy a hassle-free, connected life.

The powerful, 1GHz dual-core Broadcom processor boosts speeds and ensures that performance is never compromised even while simultaneously processing multiple wireless and/or wired tasks.

Fast USB Sharing

With USB 3.0 and 2.0 ports, you can easily access and share a local printer, a local network drive, or a remote FTP server. Storing, accessing, and sharing files and media has never been easier.

For added connection versatility, both USB ports support 3G/4G dongles, so you can stay connected without missing a beat.

With USB 3.0 and 2.0 ports, storing, accessing, and sharing files and media has never been easier. Both USB ports support 3G/4G dongles.

USB 3.0 10x

USB 2.0 1x

  •

    Printer

  •

    Music

  •

    Photos

  •

    Video

  •

    USB Dongle

USB 2.0
USB 3.0

Gigabit Wired Connection

With four built-in Gigabit Ethernet ports, the Archer VR900 is capable of providing the stable, ultra-fast wired connections that you need to ensure lag-free gaming and uninterrupted HD video streaming.

  •

    IPTV

  •

    Online Gaming

  •

    Laptop

  •

    HD Video

Elegant Appearance

The sophisticated design enhances every home. Its gentle curves, excellent crafting and remarkable quality exudes style and elegance without compromising on performance.

The sophisticated design enhances every home.

Easy Setup and Use

Set up the Archer VR900 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

Learn more about Tether App
Functionaliteit van de Hardware
Interface 1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
2 USB 3.0 Port
Knop WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button
Externe Voeding 12V/2.5A
IEEE-Standaarden IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standaarden ITU-T G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL-Standaarden Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2-Standaarden ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standaarden ITU-T G.992.5
Afmetingen ( B x D x H ) 216 x 164 x 36.8mm
Type Antenne 3 external detachable dual band antennas (RP-SMA)
Antenneversterking 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz
Draadloze Functies
Standaarden voor Draadloze Netwerken IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Wireless Speeds 1300Mbps at 5GHz, 600Mbps at 2.4GHz
Frequentie 2.4GHz and 5GHz
Draadloos Zendvermogen <20dBm(EIRP)
Draadloze Functies Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Support 2.4GHz and 5GHz Wireless Schedule
Draadloze Beveiliging 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering
Functionaliteit van de Software
Kwaliteit van de Dienst (QoS) ATM QoS, Traffic Control(IP QoS)
Veiligheid NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of
Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Werkmodi VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
Management Web Based Configuration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based
Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Poort Doorsturen Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamische DNS DynDns, NO-IP
VPN-Doorvoer PPTP, L2TP, IPSec Passthrough
Protocollen Supports IPv4 and IPv6
ATM/PPP Protocollen ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Geavanceerde Functies Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
USB Deling Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem
Gastnetwerk 2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN Supports up to 10 IPSec VPN tunnels
Overige
Certificatie CE, RCM, RoHS
Pakketinhoud AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Systeemvereisten Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)
Omgeving Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Awards
  • Recommended Award
    The Archer VR900 received the Recommended Award from Hexus in UK.
    2015, UK
