Objective

This article will show you how to configure SMTP server with different encryption protocols.

Requirements

• OC200/OC220, OC300, OC400, Omada Software Controller, Omada Cloud-Based Controller (Controller v6 is used for demonstration in this article)

Introduction

Simple Mail Transfer Protocol (SMTP) is used for e-mail transmission to improve Controller security. The original SMTP used plain text to transmit email, which was insecure, various methods have been developed to encrypt SMTP data, such as TLS, SSL, and STARTTLS.

Configuration

TLS/SSL Encryption

TLS and SSL protocols are widely used for encryption. The SMTP server and client create a TLS or SSL encrypted connection, then transmit SMTP data over the secure connection. Well-known E-mail service providers that use this method include Gmail, Yahoo, Yandex, etc.

The following is the configuration interface for mail server settings. You need to fill in the SMTP server address, SMTP service port. According to the requirement of your mailbox, you may need to enable SSL and authentication, fill in the username and password of your mailbox.

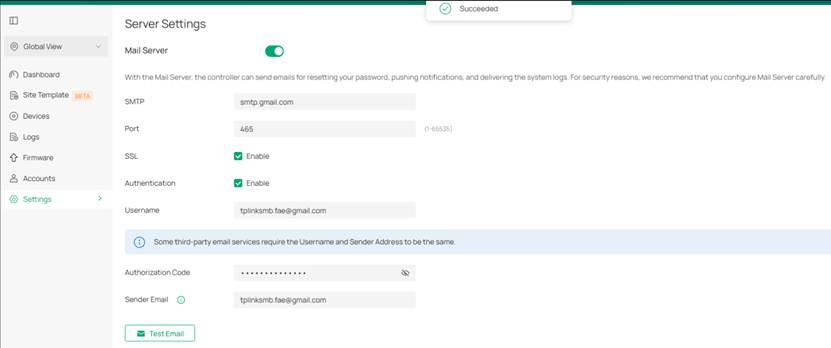

Let’s take Gmail as an example to show the configuration.

SMTP: smtp.gmail.com

Port: 465

SSL: Checked

Authentication: Checked

Username: Your Gmail address (Here we use tplinksmb.fae@gmail.com as an example)

Password: Gmail APP password

Sender Address: Your Gmail address

Note: To set the mail server successfully, we need to make sure the third-party mail server already enables SMTP service and allows us to log in. Take Gmail for example:

1. Gmail enables SMTP service by default but cannot directly log in. We need to set APP password for Gmail then use this password on the Omada controller to log in. About how to set APP password for Gmail, you can refer to https://support.google.com/accounts/answer/185833?hl=en

2. Gmail may restrict the location of the application accessing of the Gmail account. If the Omada Controller locates in another Country or geographical location which is far from your routine location where you live and access Gmail daily, you may need to open the browser on the PC in the Omada Controller site and login into Gmail. It makes Gmail understand that the Omada Controller/OC200/OC300 and its IP Address belongs to you and it will allow you to send emails through your application.

Different mailboxes may have different ways to support third-party access. You need to configure this function based on your mailbox.

You can send a test email to one of your other mailboxes. If you set the mail server successfully, you will receive a “succeeded” message just like the above. Otherwise, you will receive a failed message.

STARTTLS Encryption

With STARTTLS, SMTP servers and clients can choose to upgrade their existing insecure connections into secure connections, using either TLS or SSL protocols. Omada SDN Controller supports STARTTLS starting with version 5.0. The E-mail service providers using this method include Microsoft Outlook, Amazon SES, etc.

To use STARTTLS encrypted SMTP on Omada SDN Controller, enable SMTP and enter the configurations, please note that SSL should not be checked.

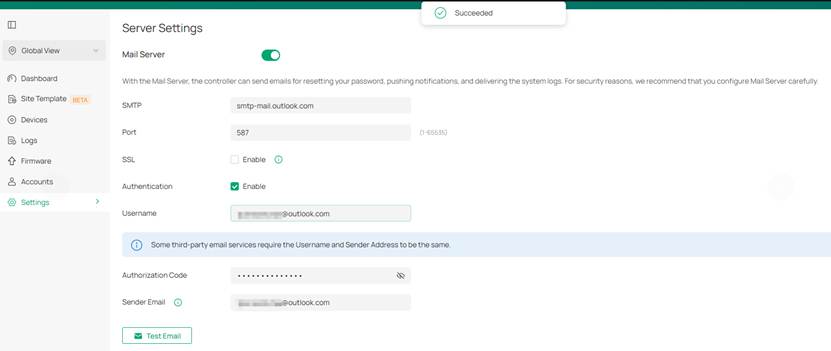

Here we use Outlook as an example.

SMTP: smtp-mail.outlook.com

Port: 587

SSL: Unchecked

Authentication: Checked

Username: Outlook email address

Password: Outlook email password

Sender Address: Specify a sender email

Many well-known Email service providers, including those mentioned above, support multiple encryption methods. For a detailed SMTP configuration guide, please contact your Email service provider for assistance.

Conclusion

With the above steps, you can set up a corresponding mail server using your current mail service.

Get to know more details of each function and configuration please go to Download Center to download the manual of your product.
