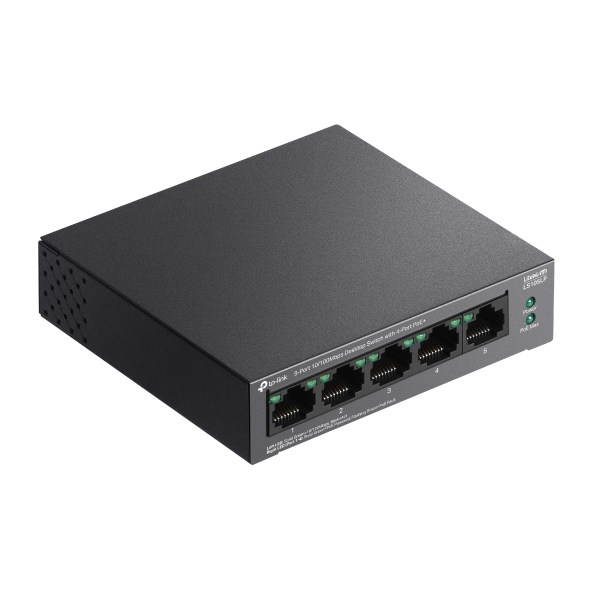

5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 41 W total PoE budget*
- Up to 250m data and power transmitting range under Extend Mode**
- Automatically reboots your dropped or unresponsive PoE-powered devices.
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

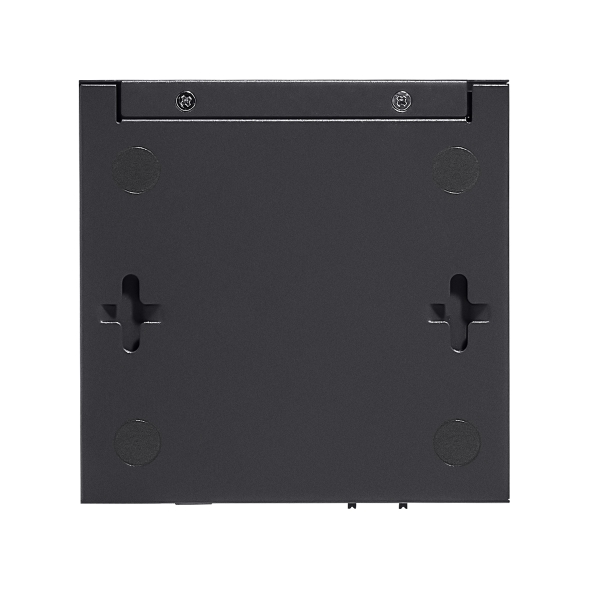

- Desktop / Wall-mounting
5-Port
10/100Mbps Desktop Switch
with 4-Port PoE+
-
41W PoE
Budget* -
Long-Range PoE+
(250 m**) -
PoE Auto
Recovery -
Intelligent Power
Management -
Desktop or
Wall-Mounting -
Plug
and Play -
Fanless Design for
Silent Operation -
Durable Metal
Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 41 W with 30 W max per PoE+ port. When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
-
Access
Point -
IP
Phone -
IP
Camera -
IPTV
-
Network Video
Recorder -
Computer
Instantaneous Multi-mode Toggles△
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
-
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.
-
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
Plug and Play
-
1. Connect to Power
-
2. Connect the Devices
IP Phone
IP Camera
Access Point
Internet
Router
-
3. Enjoy
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
| LED | • Power • Link/Act • PoE Status • PoE MAX |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max. Power Consumption | • 2.40 W (220 V/50 Hz no PD connected) • 46.45 W (220 V/50 Hz with 41 W PD connected) |
| Max Heat Dissipation | • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode: Ports 1–4 • PoE Auto Recovery: Ports 1-4 • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology |
| Transmission Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • LS105LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
