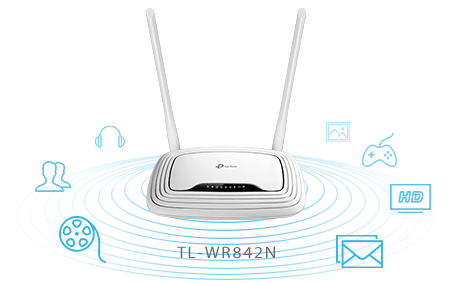

300Mbps Multi-Function Wireless N Router TL-WR842N
- 300Mbps wireless transmission rate with MIMO technology provides a smooth wireless N experience
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Up to 5 VPN tunnels enable remote VPN connections
- Multi-functional USB 2.0 port convenient for wireless printing and FTP server
- Embedded media server allows users to share music, video and photos
What This Product Does
As a 300Mbps multi-function wireless N router, the TL-WR842N provides 300Mbps high transmission rates that guarantee interruption-free HD media streaming, online gaming, Skype calls or speedy file transfer from one device to another. Using its FTP server function, the router provides various applications such as downloading personal data from home or backing up files to a home HDD. It also features wireless printer sharing throughout the network, making your home or office printing work more free and flexible. Furthermore, guest network offer easy wireless network isolation to ensure the safety of your data and VPN tunnels provide site-to-site security connections.
300Mbps Wireless Speed
With Wireless speed up to 300Mbps, TL-WR842N ensures speedy, uninterrupted wireless coverage for home and office networking.
Virtual Private Network (VPN) - Up to 5 IPSec Based VPN Tunnels
Based on the IPSec protocol, TL-WR842N allows users to setup up to 5 VPN tunnels with IKE (Internet Key Exchange) protocol on various encryption algorithms (DES/3DES/AES) and authentication algorithms (MD5/SHA1). It’s convenient for users to connect to their home or office networks wherever the Internet is available.
Versatile USB Sharing
The TL-WR842N’s USB 2.0 configuration allows users to share data stored on USB storage or an FTP server. Users can also share music, video and photos via the router’s built-in Media Server. What’s more, the device’s built-in Print Server makes home or office printing much more flexible.
Provides secure Wi-Fi access for guests to share your home or small office network.
Instantly setup Wi-Fi connections simply by pressing the "WPS" button.
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC.
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
1 USB 2.0 Port
WiFi On/Off Button
|Antenna||2*5dBi Omni Directional Antennas (RP-SMA)|
|External Power Supply||12VDC / 1.0A|
|Wireless Standards||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b|
|Dimensions ( W x D x H )||7.6 x 5.3 x 1.3 in.(192 x 134 x 33 mm)|
|Signal Rate||Up to 300Mbps|
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|Wireless Functions||Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics|
|Wireless Security||64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK|
|Quality of Service||WMM, Bandwidth Control|
Dynamic IP/Static IP/PPPoE/
Server, Client, DHCP Client List,
|Port Forwarding||Virtual Server, Port Triggering, UPnP, DMZ|
|Dynamic DNS||DynDns, Comexe, NO-IP|
|VPN Pass-Through||PPTP, L2TP, IPSec(ESP Head)|
|VPN||5 IPsec VPN Tunnels|
|Access Control||Parental Control, Local Management Control, Host List, Access Schedule, Rule Management|
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
|Protocols||Support IPv4 and IPv6|
|USB Sharing||Support Samba/FTP/Media Server/Printer Connection|
|Guest Network||2.4GHz Guest Network x1|
|Certification||CE, FCC, RoHS|
Power Supply Unit
RJ-45 Ethernet Cable
Quick Installation Guide
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
