VIGI Intelligent Solar Power Supply System
- 90W Photovoltaic Panel and 336.96Wh Lithium Battery
- 3x 12V/2A DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- -30 °C~60 °C Discharging Temperature
- -30 °C~45 °C Charging Temperature
- Remote Management and Simple Installation
Non-Stop Power Where
the Sun Shines

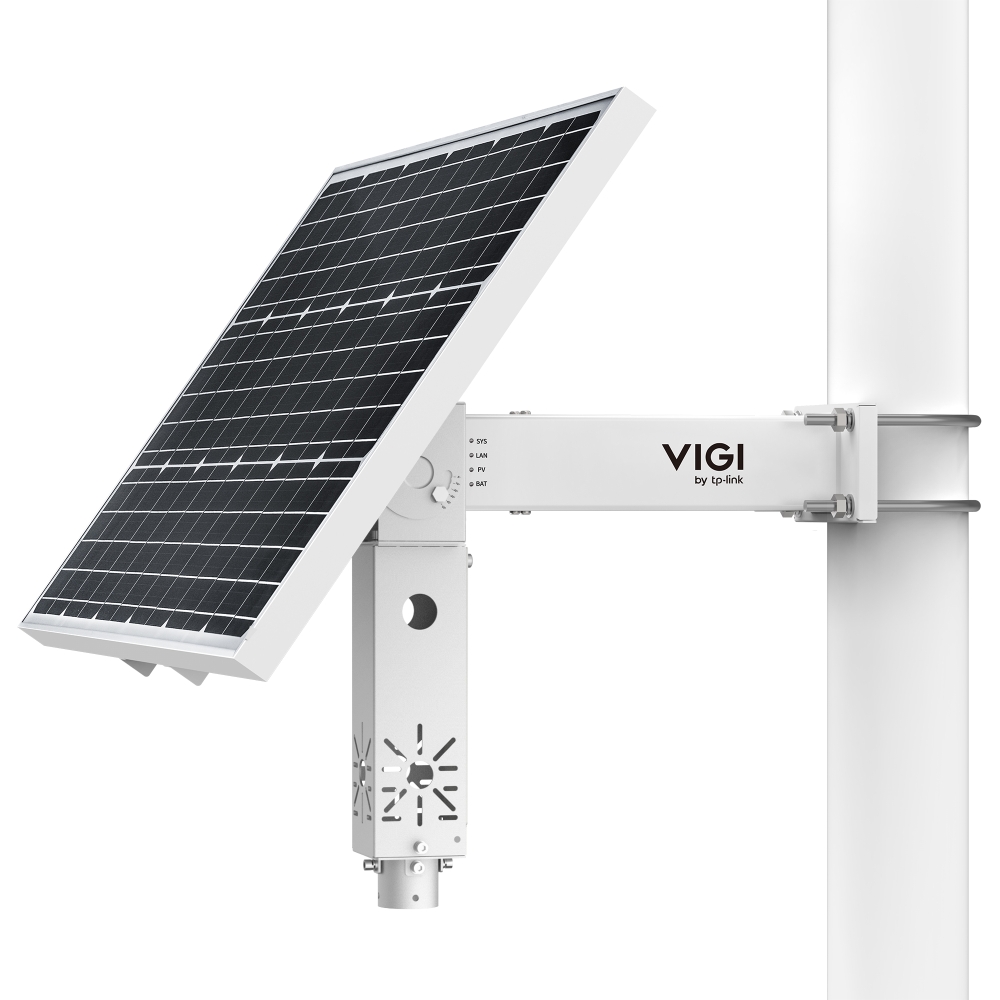

VIGI Intelligent Solar Power Supply System
VIGI SP9030
Customized Product Portfolio
Typical Combinations
-
VIGI SP9030 |
4G Cameras -

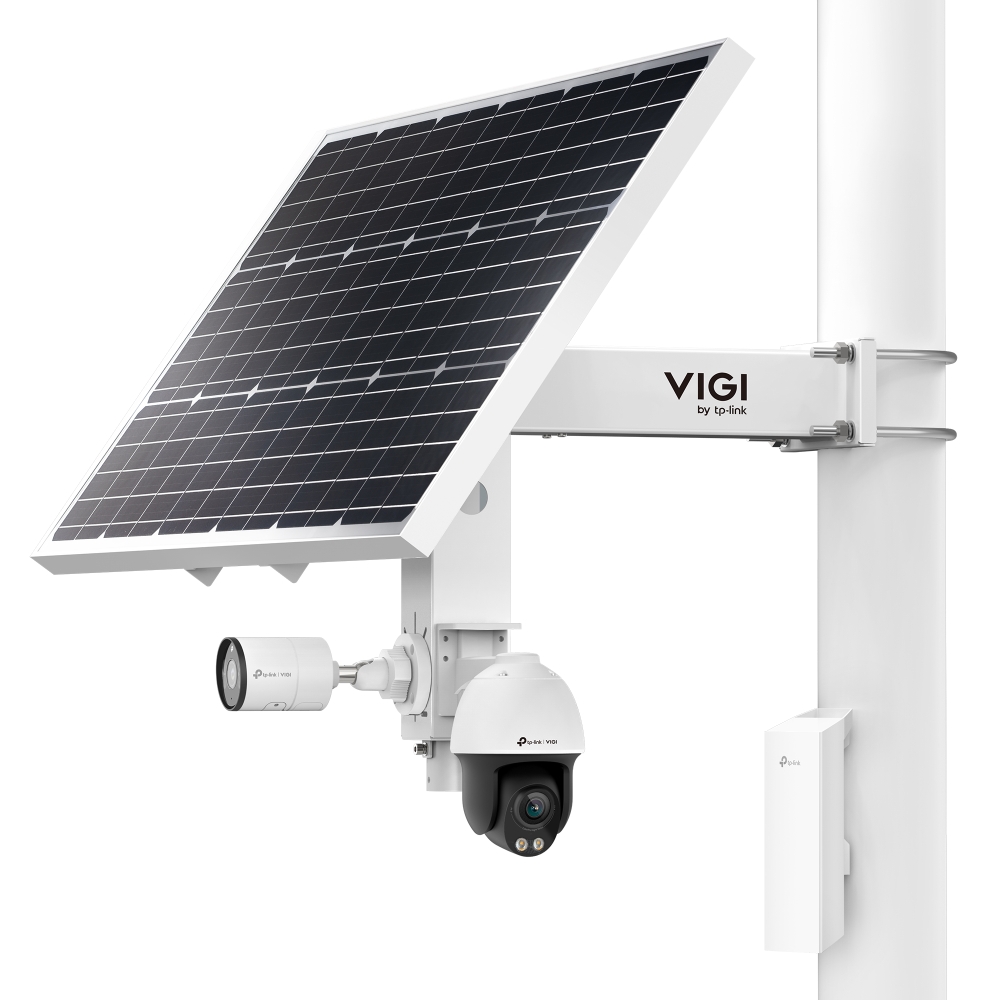

VIGI SP9030 |
Wireless Bridge | Bullet Cameras -

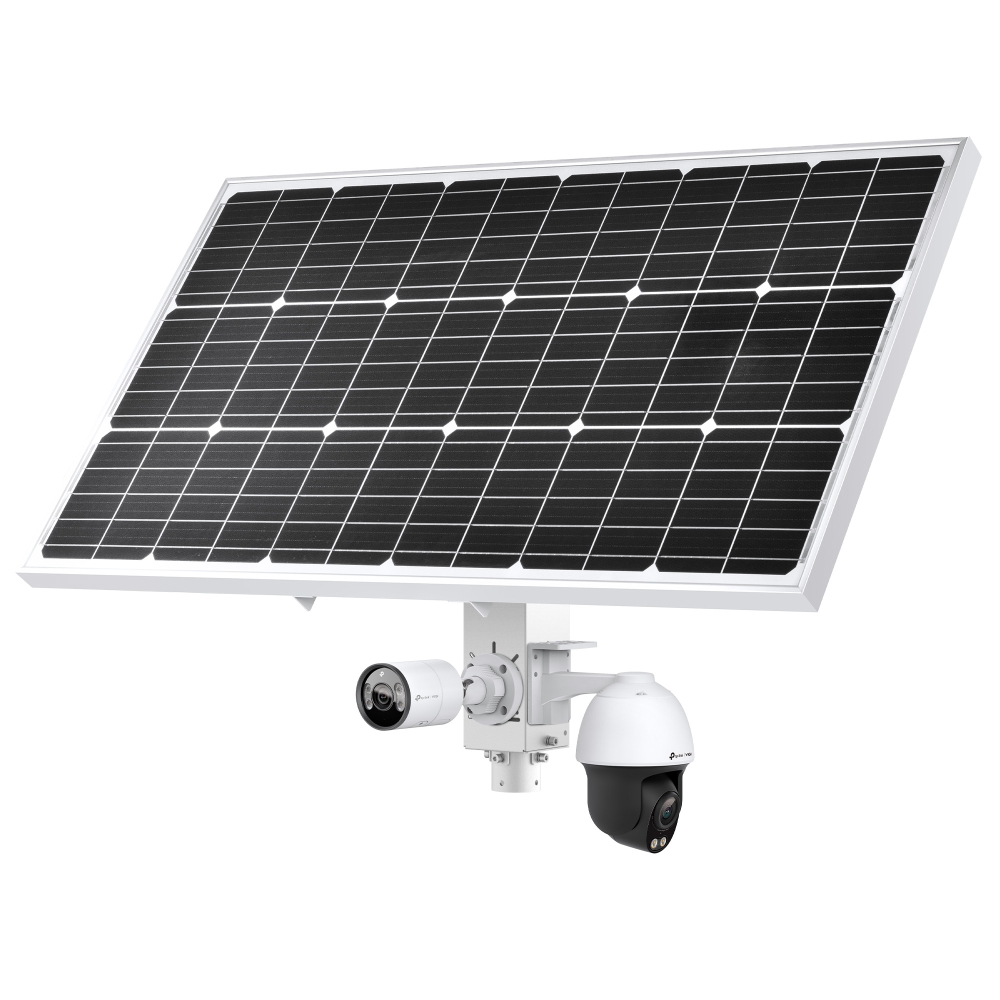

VIGI SP9030 |
Wireless Bridge | Pan Tilt Cameras
Recommended Models
-
VIGI C540-4G × 1
Highlights
-
Working Hours on Consecutive Rainy Days: 10.0 Days
-
On-load Charge on Sunny Days: 1.6 Days
-
†The data is calculated based on New York's estimated daily sunshine hours (3.72 hours) and the average energy consumption of the load equipment. It only serves as a reference for network selection. Actual data may vary due to regional disparities, seasonal climate conditions, equipment power consumption, solar panel installation angles, and other factors. For accurate information, please refer to real-world applications and conditions.
‡On-load charge days is the time it takes for the battery to charge from 0% to 100% under load.
Recommended Models
-
VIGI C345 × 1
-
EAP115-Bridget KIT × 1
Highlights
-
Working Hours on Consecutive Rainy Days: 2.6 Days
-
On-load Charge on Sunny Days: 2.9 Days
-
† The data is calculated based on New York's estimated daily sunshine hours (3.72 hours) and the average energy consumption of the load equipment. It only serves as a reference for network selection. Actual data may vary due to regional disparities, seasonal climate conditions, equipment power consumption, solar panel installation angles, and other factors. For accurate information, please refer to real-world applications and conditions.
‡ On-load charge days is the time it takes for the battery to charge from 0% to 100% under load.
Recommended Models
-
VIGI C345 × 1
-
VIGI C540S × 1
-
EAP115-Bridget KIT × 1
Highlights
-
Working Hours on Consecutive Rainy Days: 1.7 Days
-
On-load Charge on Sunny Days: 6.7 Days
-
† The data is calculated based on New York's estimated daily sunshine hours (3.72 hours) and the average energy consumption of the load equipment. It only serves as a reference for network selection. Actual data may vary due to regional disparities, seasonal climate conditions, equipment power consumption, solar panel installation angles, and other factors. For accurate information, please refer to real-world applications and conditions.
‡On-load charge days is the time it takes for the battery to charge from 0% to 100% under load.
Manage and Maintain Without On-Site Visits
The VIGI solution, managed through TCP/IP, delivers reliable efficiency. Control multiple locations, monitor power, receive low-battery alerts, get instant event notifications, update firmware, and reboot devices remotely via the VIGI app or VIGI Cloud VMS—minimizing on-site visits and reducing manual maintenance costs.
Reduces On-Site Maintenance Costs
Manage via VIGI App or Cloud VMS
Supports Multi-Site Management
Instant Event Alerts
VIGI Cloud VMS
VIGI App
All-Weather Stability, Reduced Maintenance Costs
-
-30 °C~60 °C
Discharging Temperature -
-30 °C~45 °C
Charging Temperature
-
IP66
Weatherproof
-
∅0.98in (25mm) & 75ft/s (23m/s)
Hail Resistance
Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
-
Charge and Discharge Temperature Limit Comparison
Charging Temperature
Discharging Temperature
VIGI Smart Battery with Intelligent Auxiliary Heating
Traditional Battery without Intelligent Auxiliary Heating
-
Actual Discharge Comparison at the Same Temperature
Discharge Capability
VIGI Smart Battery with Intelligent Auxiliary Heating
21.14%
ImprovementTraditional Battery without Intelligent Auxiliary Heating
*The auxiliary heat will only be turned on when the photovoltaic system has a certain input or the battery has a certain amount of power. The test environment consisted of a 20°C aging box and 1A constant current discharge.

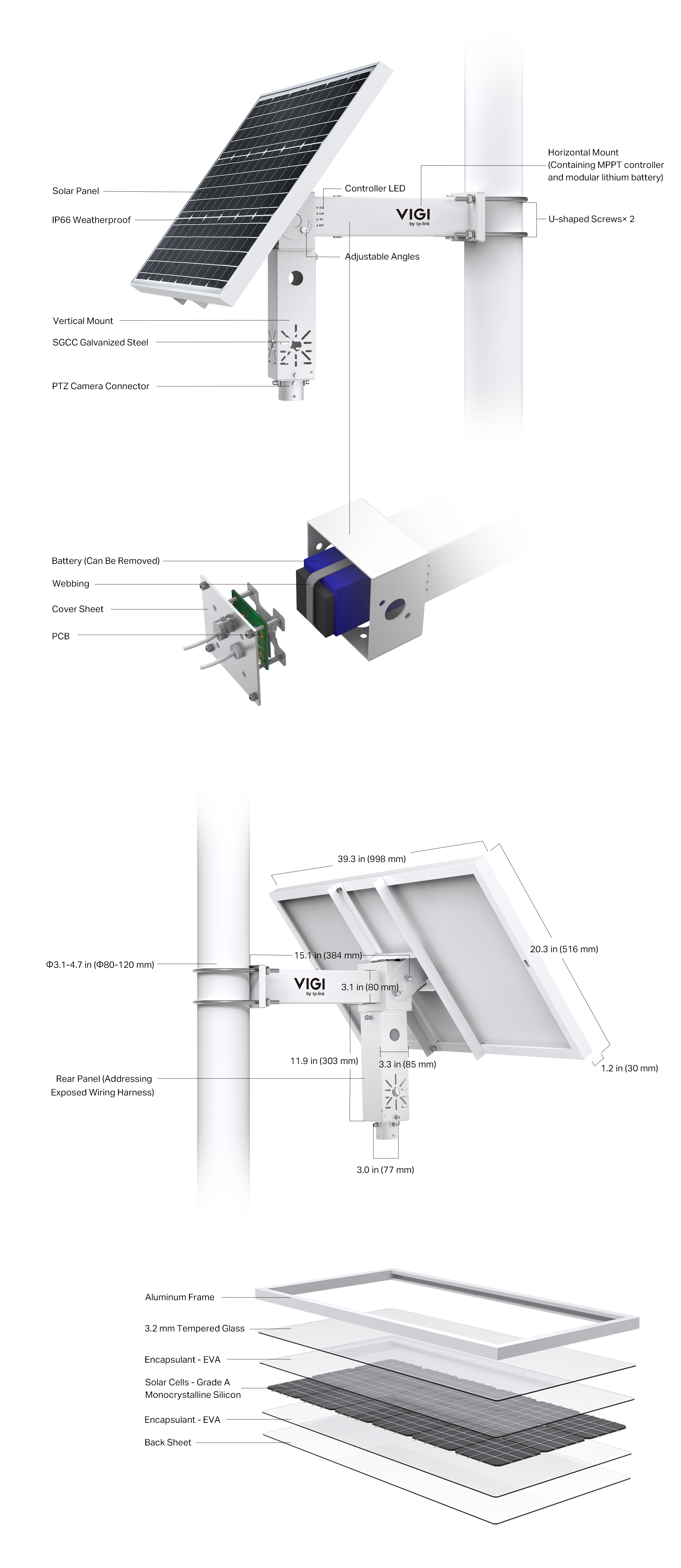

Industrial-Grade 90W Solar Panel
Grade A Solar Panel
25+ Years Lifespan
21.6% Conversion Efficiency
MPPT Controller Boosts Charging Efficiency
An MPPT (Maximum Power Point Tracking) controller optimizes solar panel power, reduce power losses, and increase charging efficiency by 20% compared to PWM (Pulse Width Modulation) controllers.
-
MPPT Controller
Increases Charging Efficiency by
20% -
PWM Controller
Suitable for Remote Areas and Temporary Applications
Farmland
Islands
Forests
Construction Sites
| Solar Panel (Photovoltaic Panel) | |
|---|---|
| Power | 90 W |
| Voltage | 18 V |
| Dimensions (L x W x H) | 39.3×20.3×1.2 in (998×516×30 mm) |
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 31.2 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles* |
| Dimension | 9.5×2.8×2.6 in (242×70×65 mm) |
| Charging Condition | • 0°C to 45°C (32 °F to 113 °F)• -30°C to 45°C (-22 °F to 113 °F) (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C to 60°C (-4 °F to 140 °F)• -30°C to 60°C (-22 °F to 140 °F) (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× 10/100 Mbps RJ45• 1× Photovoltaic Panel Connector• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)• Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | N/A |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C to 5°C (-22 °F to 41 °F) |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery)• CE, FCC, VCCI, IC, IP66 |
| Package Content | • VIGI SP9030• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Box Dimensions (W X D X H) | 43.7×24.2×8.9 in (1110×615×225 mm) |
| Weight | • Product Weight: 17.5 kg• Package Weight: 20 kg |
| Environment | • Operating Temperature: -30°C to 60°C (-22 °F to 140 °F)(With intelligent auxiliary heating)• Operating Humidity: 10%~90%RH, Non-condensing |
*A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan.
**The actual shipped product doesn't include camera and EAP equipment.
