VIGI 8 Channel Network Video Recorder

  • 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • 8-Channel Real-Time Live View: Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
  • Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
  • H.265+ Smart Video Coding: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensure Compatibility**: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • 1 HDD Interface (up to 10 TB): Stores up to 10 TB (524 days* of video) on a SATA hard drive, keeping your data storage secured locally.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

Security Never Shuts Down

VIGI NVR1008H8 Channel Network Video Recorder

  •

    8-Channel Live View

  •

    4K Video Output

  •

    Quick Lookup & Playback

  •

    Smart Video Coding

  •

    ONVIF Ensures Compatibility

  •

    Auto Initialize

  •

    24/7 Recording

  •

    Two-Way Audio

  •

    Massive HDD
    (1 up to 10 TB)

  •

    Remote Monitoring

Every Angle All on One Screen

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP & 4-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.

Reviewing Footage is Faster than Ever

8-channel Simultaneous Playback*

Replay the feed from up to 8 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.

57.5%
Gap**

50%
Gap**

15% Gap**

H.265+

H.265

H.264

Video Coding Technology

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists

ONVIF Ensures Compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

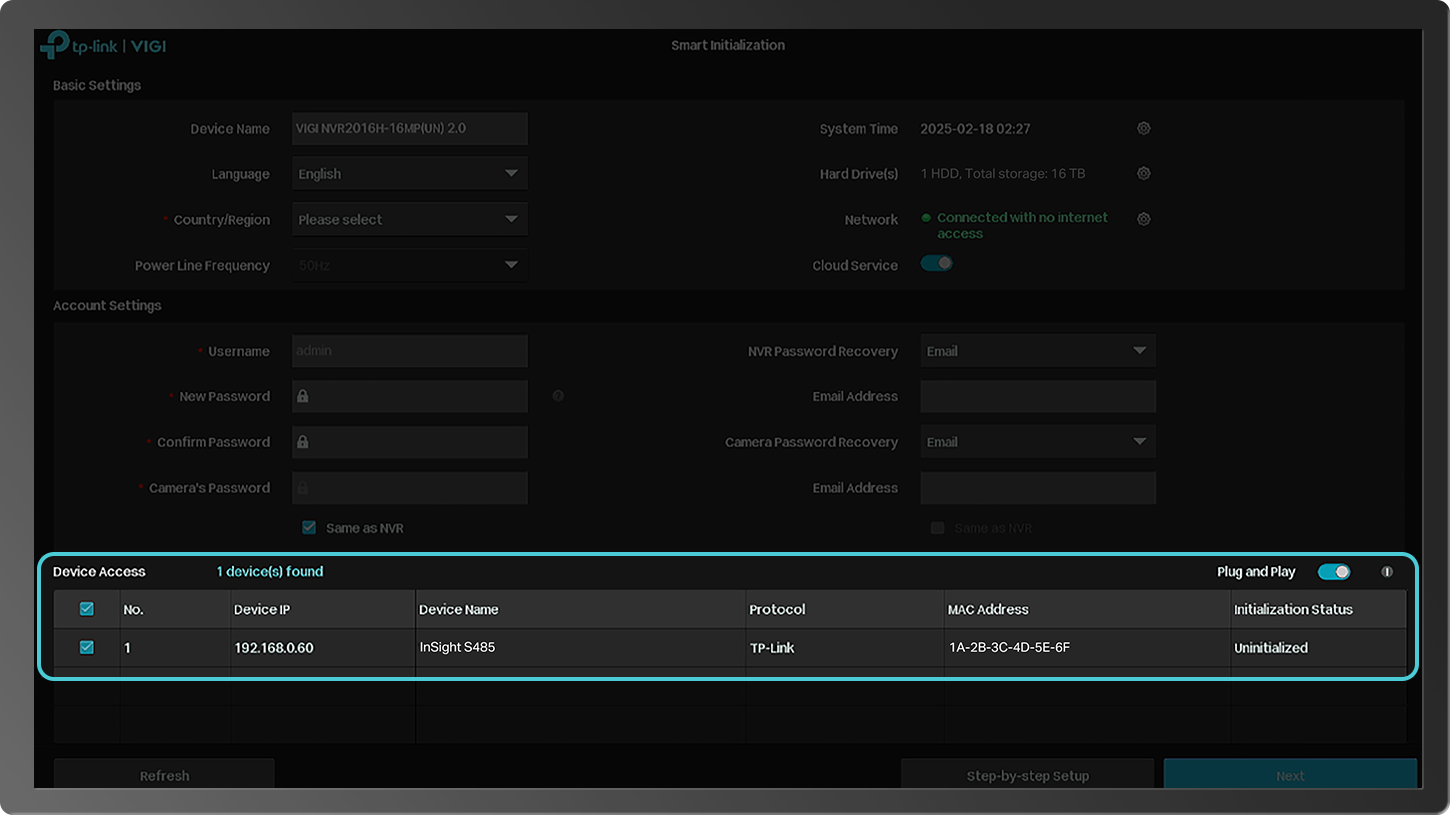

Auto Initialize for Quick Configuration

Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.

Click “Auto Initialize”









Initializing









Done

Security for Every Hour and Every Day

24/7 Continuous Recording

With the storage capacity of up to 10TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.

  •

    1 HDD
    Up to 10TB

  •

    Up to 524
    Storage Days§

  •

    Scheduled Record

  •

    Motion Detection Record
    (Human/Vehicle)

Two-Way Audio

With voice intercom support, scare aff any potential thieves or intruders from wherever you are.

Remote Management

Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts

Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback

Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns

Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management

Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.

One system. Full security.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

More >

Related Cases

  • Little Footprints Preschool

    VIGI Builds High-Performance Video Surveillance for Little Footprints Preschool in Singapore.

    Little Footprints Preschool

    VIGI Builds High-Performance Video Surveillance for Little Footprints Preschool in Singapore.

  • Pruksa

    Pruska wanted to establish a comfortable and reliable surveillance system for its guests that supports existing security personnel

    Pruksa

    Pruska wanted to establish a comfortable and reliable surveillance system for its guests that supports existing security personnel

Video and Audio
IP Video Input 8-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 8-Channel
Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Management
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

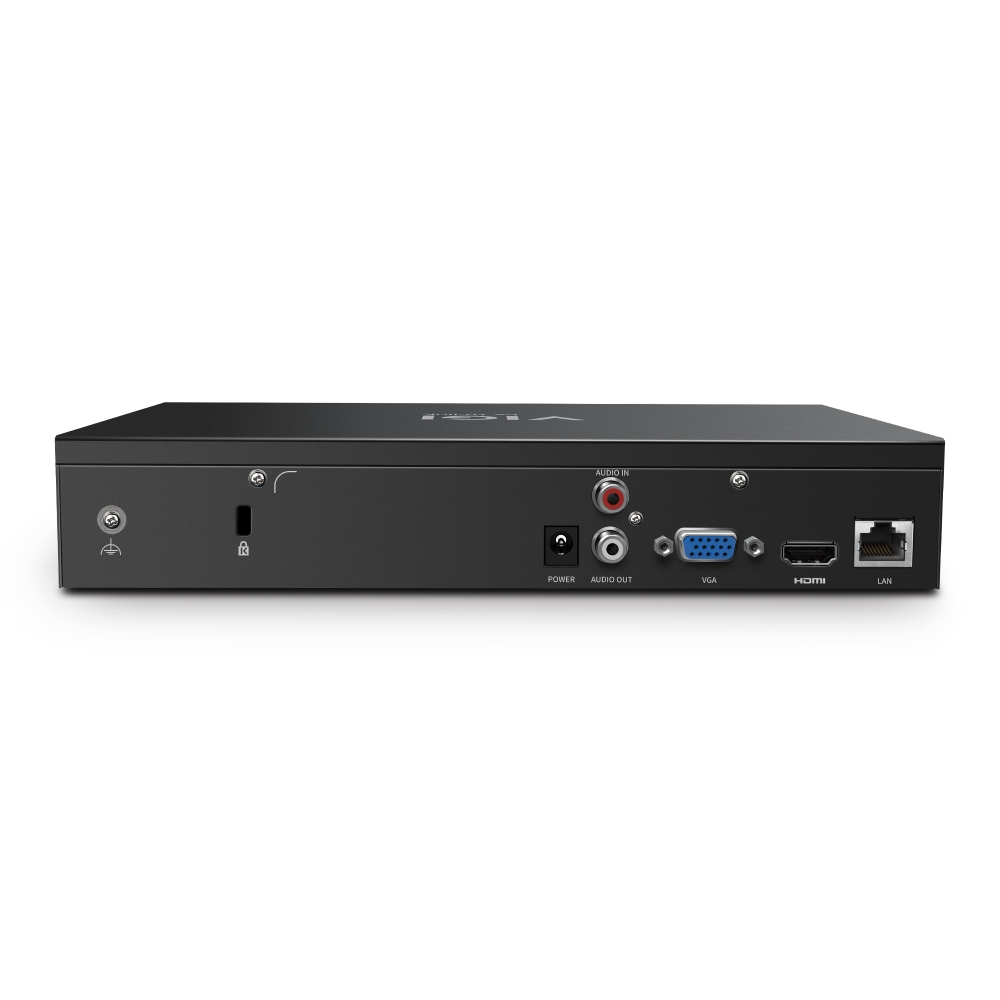

External Interface
Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interface
Capacity Up to 10 TB Capacity for Each HDD
Alarm
General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing

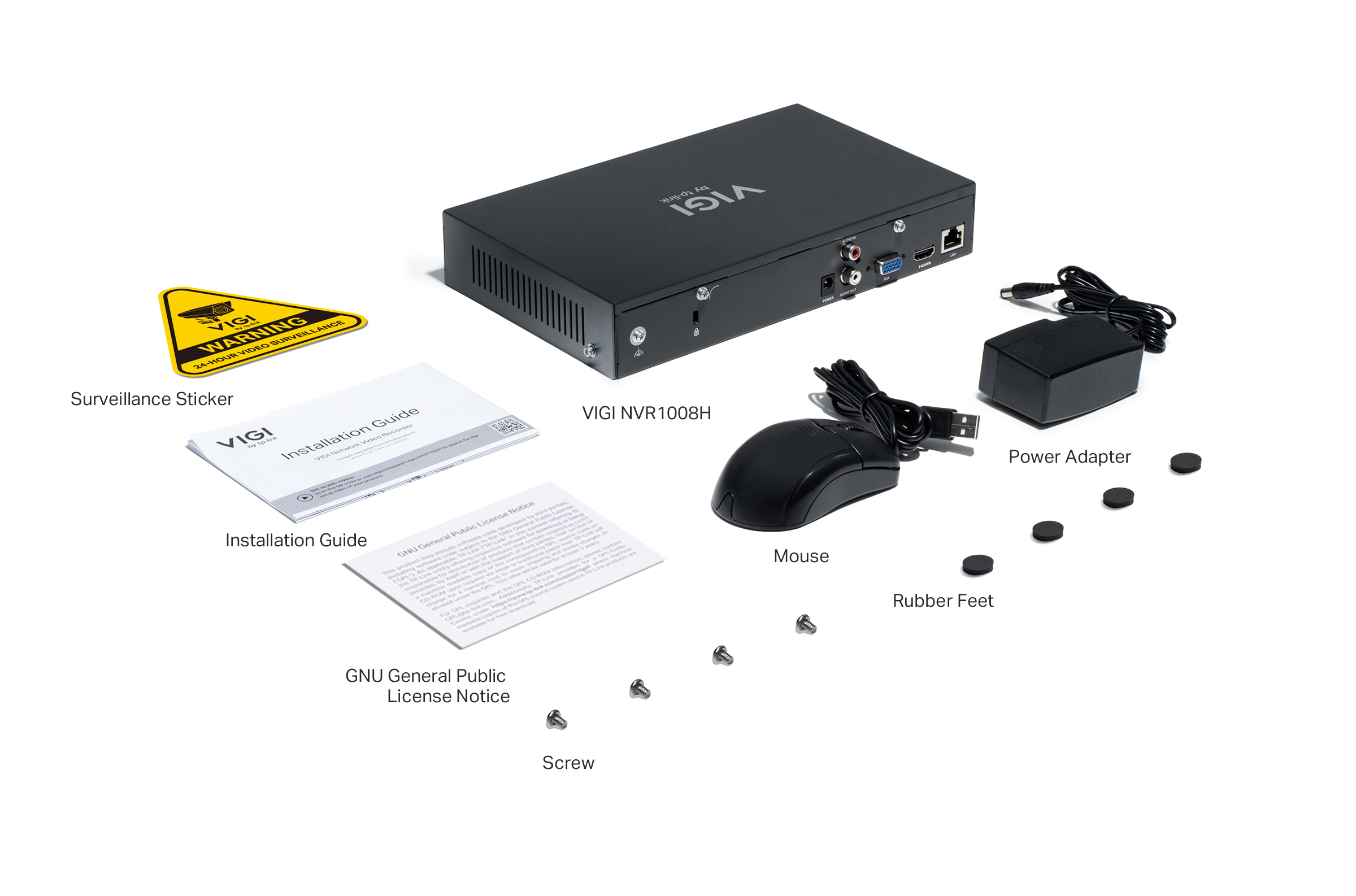

Package Contents • VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing

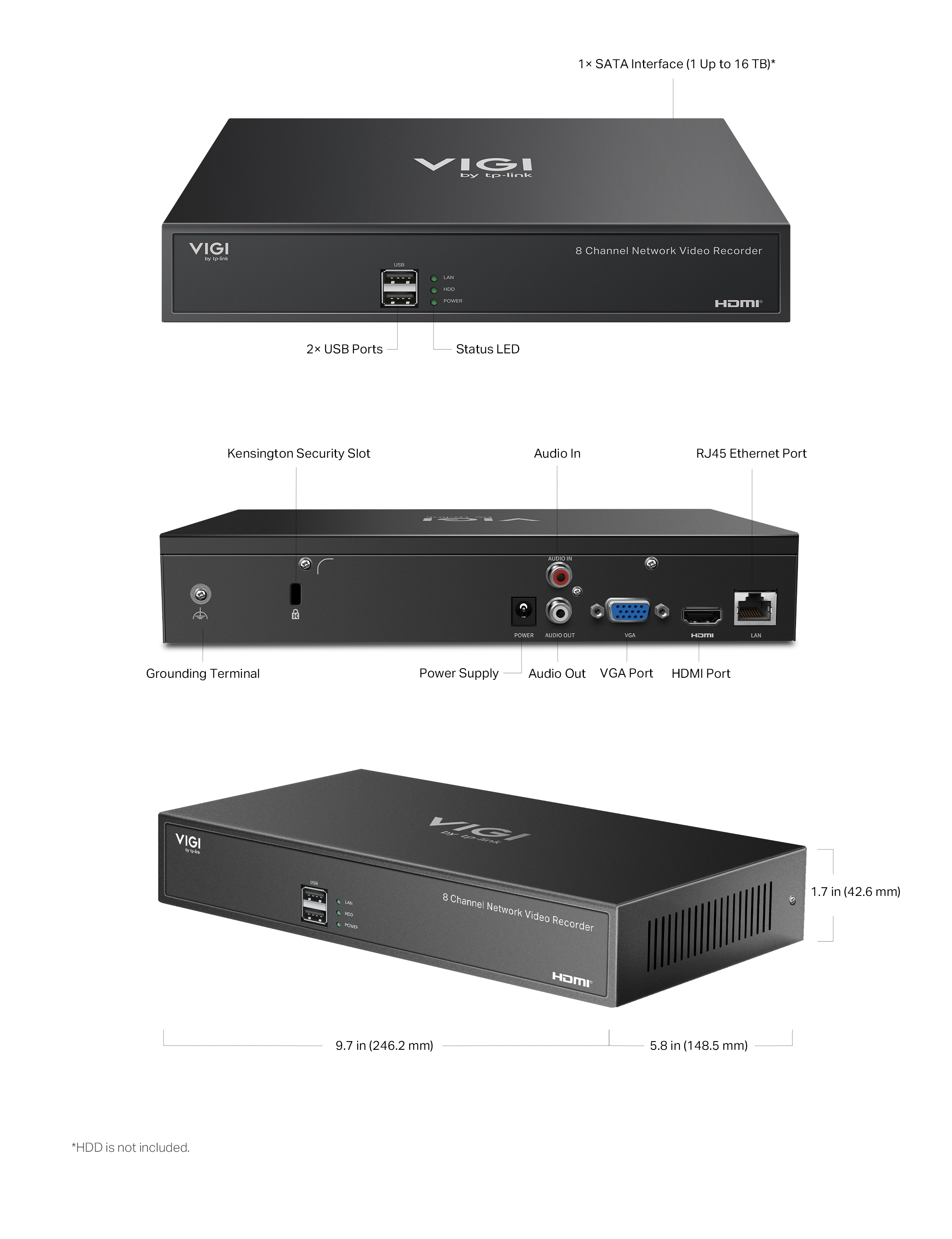

Dimensions( W X D X H ) 246.2 × 148.2 × 45 mm
External Power Supply DC 12V/1.5A
Net Weight 0.59 kg
Gross Weight 0.95 kg
Power Consumption 4.25 W (without disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

+The number of simultaneously playable channels may be fewer than eight, or none, if the total resolution exceeds 16MP.

HDD is not included.

△A hard disk drive (not included) must be installed for operation.

*Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.

**VIGI NVR works best with VIGI cameras but is compatible with other brands.
