InSight S345S
Coming SoonVIGI 4MP Outdoor ColorPro 2.0 Bullet Network Camera
- AI-ISP Powered Ultra Low-Light Color Night Vision
- 4MP Super-High Definition
- People & Vehicle Analytics‡
- Human & Vehicle Classification
- Smart Detection
- Two-Way Audio
- Smart Video Enhancement Technology
- Flexible Alarm In/Out Devices Integration
- IP67 Weatherproof
- H.265+ Compression Technology
Experience
Daylight Clarity and Colors at Night
4MP Outdoor ColorPro 2.0 Bullet Network Camera
-
Ultra Low-Light
lmaging -
AI-ISP
Powered -
Intelligent
IR-White Lights -
High
Definition -
Alarm IN/OUT
Devices Integration -
People & Vehicle
Attributes Analysis -
Human & Vehicle
Classification -
IP67
Weatherproof
See True Colors and Details in the Dark
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.
-
VIGI ColorPro 2.0 Night Vision (Spotlight Off)
-
Naked Eye
Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.
-
VIGI ColorPro 2.0 Night Vision (Spotlight Off)
-
Full-Color Night Vision (Spotlight On)
-
IR Night Vision
Innovative ColorPro 2.0 Technology
-
Lower Image Noise with Enhanced Clarity
-
True-to-Life
Color Accuracy -
Reduced
Motion Blur -
Extended
Visibility Range
1/1.79’’ Highly Sensitive Sensor for
2.1× More Photosensitive
Area than 1/3" Sensors
F1.0 Large Aperture to Capture
4× More Light than F2.0
AI-Driven ISP Module
Multi-AI Noise Reduction for Better Visuals
See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.
Reduces insect-triggered false alarms
Ultra-low energy consumption
Eco-friendly operation
-
VIGI ColorPro 2.0 Night Vision (Spotlight Off)
-
Full-Color Night Vision (Spotlight On)
People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.
-
IR Light OnWhen no vehicle or person are detected, only black-white image is displayed.
-
White Light OnWhen a vehicle or a person is being detected, colorful image is displayed.
-
IR Light OnWhen no vehicle or person are detected, switches back to black-white image.
Accurate Detection with Clear and Extended Vision
Longer Visible Distance
Clearer Details
True Colors
-
VIGI ColorPro 2.0 Night Vision (Spotlight Off)
-
Full-Color Night Vision (Spotlight On)
Ideal for Low-Light Conditions Where Colors and Details Matter
-
Dimly Lit Bar
Keep customers safe without ruining the atmosphere with harsh white light.
-
Warehouses
Protect property with crystal-clear imaging and advanced AI detection.
-
Parking Lots
See every license plate clearly without worrying about glare.
-
Farm & Orchards
Actively detect suspicious events without insect interference.
-
Wildlife Habitat
Reduces light pollution and minimizes disturbance to wildlife’s natural rhythms.
VIGI AI Detection Technology
-
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.‡
-
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.△
| CAMERA | |
|---|---|
| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0 |
| FOV | • Horizontal FOV: 95° • Vertical FOV: 51°• Diagonal FOV: 115° |
| Lens Mount | M16 |
| DORI Distance | 4 mm:• D: 249 ft (76 m)• O: 95 ft (29 m)• R: 46 ft (14 m)• I: 23 ft (7 m) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Integrated Infrared-White LED | • Quantity: 2• IR Range: 98 ft (30 m)†• White LED Range: 98 ft (30 m)†• Wavelength: 850nm |
| VIDEO | |
|---|---|
| Max. Resolution | 2688x1520 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480,704x576, 640x480, 640x360,352x288, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror• Rotation• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defense-Sound Alarm• Active Defense-Light Alarm• Email Alarm |
| Deep Learning Function | |
|---|---|
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡ |

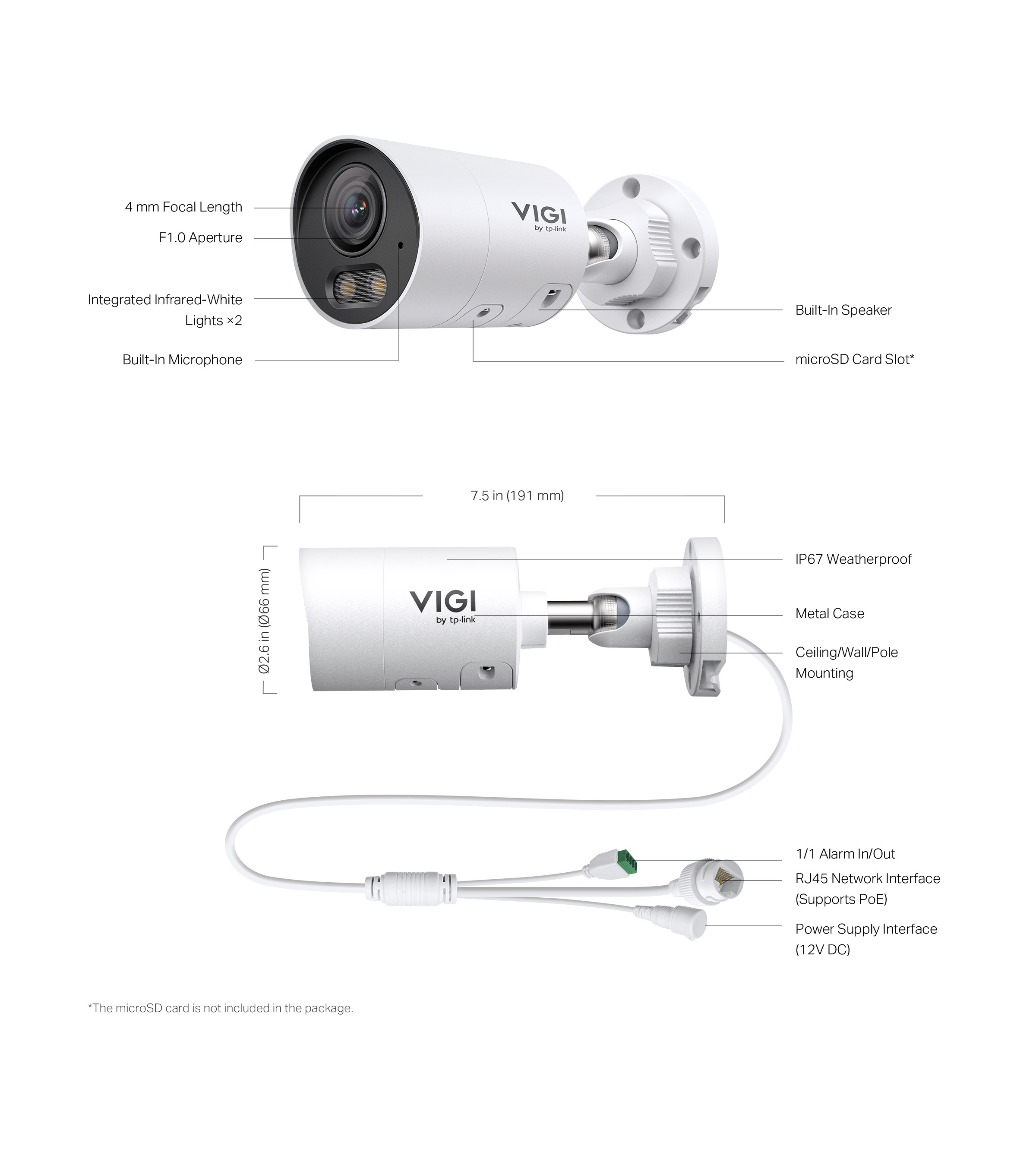

| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In/Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

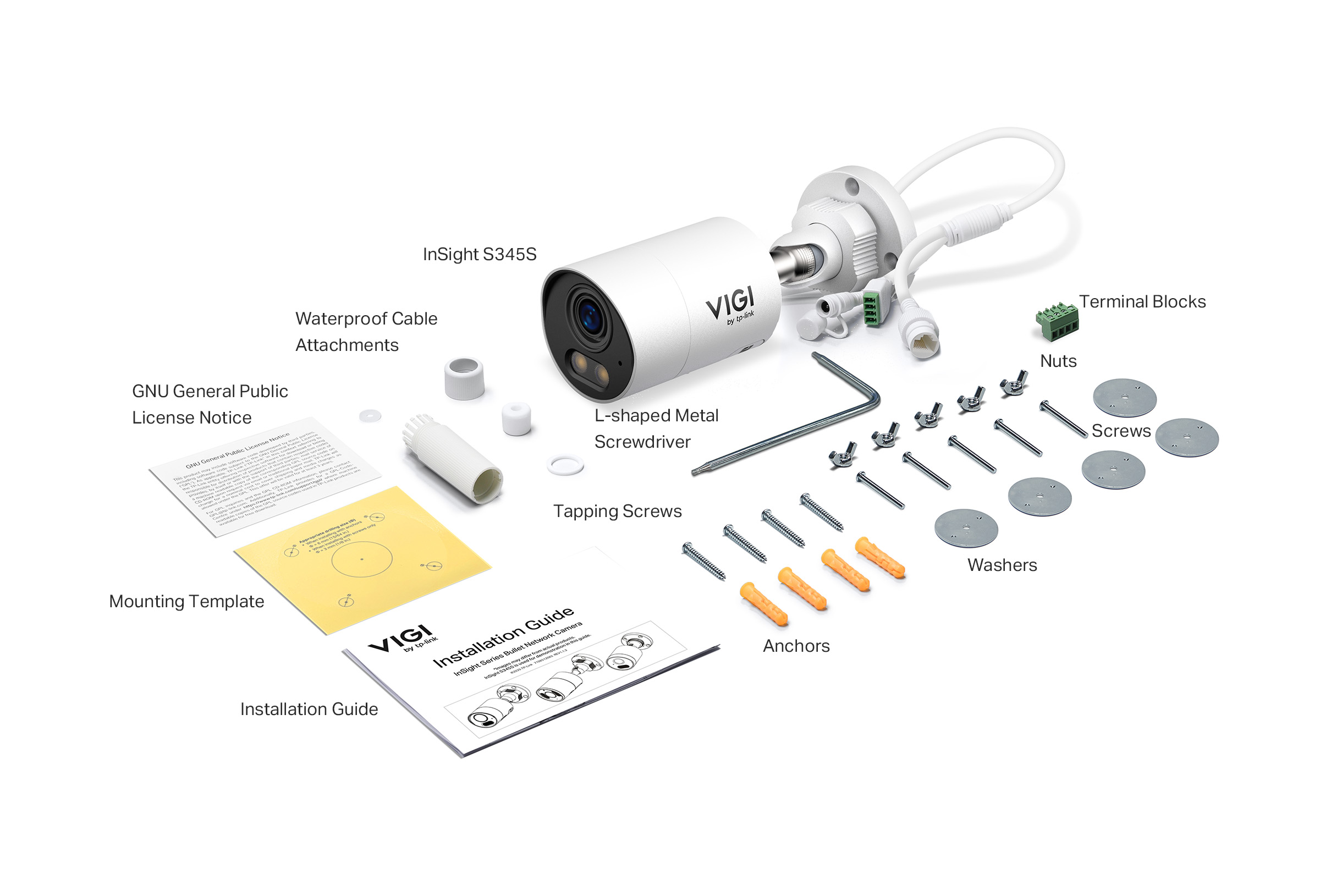

| Package Content | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.6 kg |
| Power Supply | • 12V DC ± 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 17.9 W |
| Protection | IP67 Weatherproof |
| Product Dimensions (L x W x H) | Φ2.6 × 7.5 in (Φ66 × 191 mm) |
| Certifications | CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF |
‡This feature must be used with VIGI specified software.
*The Micro SD card and pole mounting kits are not included in the package.
†Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.
△Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
