InSight PTZ5425
Coming SoonVIGI 5-inch 4MP 25X Full-Color Network Speed Dome
- 360° Wide-Area Coverage
- 25X Optical Zoom & 16X Digital Zoom
- Intelligent Auto Tracking
- Up to 240°/Sec Pan Speed
- Red & Blue Flashing Lights and Sirens
- People & Vehicle Attributes Analytics‡
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP66 Weatherproof / IK08 Vandal-Proof / 6kV Lightning Protecting
- Digital Defog / Bulit-in Lens Heater
- H.265+ Compression Technology
Instant Focus. Sharper Detail. Wider Vision.
5-inch 4MP 25X Full-Color Network Speed Dome
One Camera. Total Coverage. Budget Smart.
Get rapid 360° monitoring and instant sharp close-ups with one single device. Slash deployment costs and complexity.
Clarity Beyond Limits with Powerful Zoom, EIS, & Defog

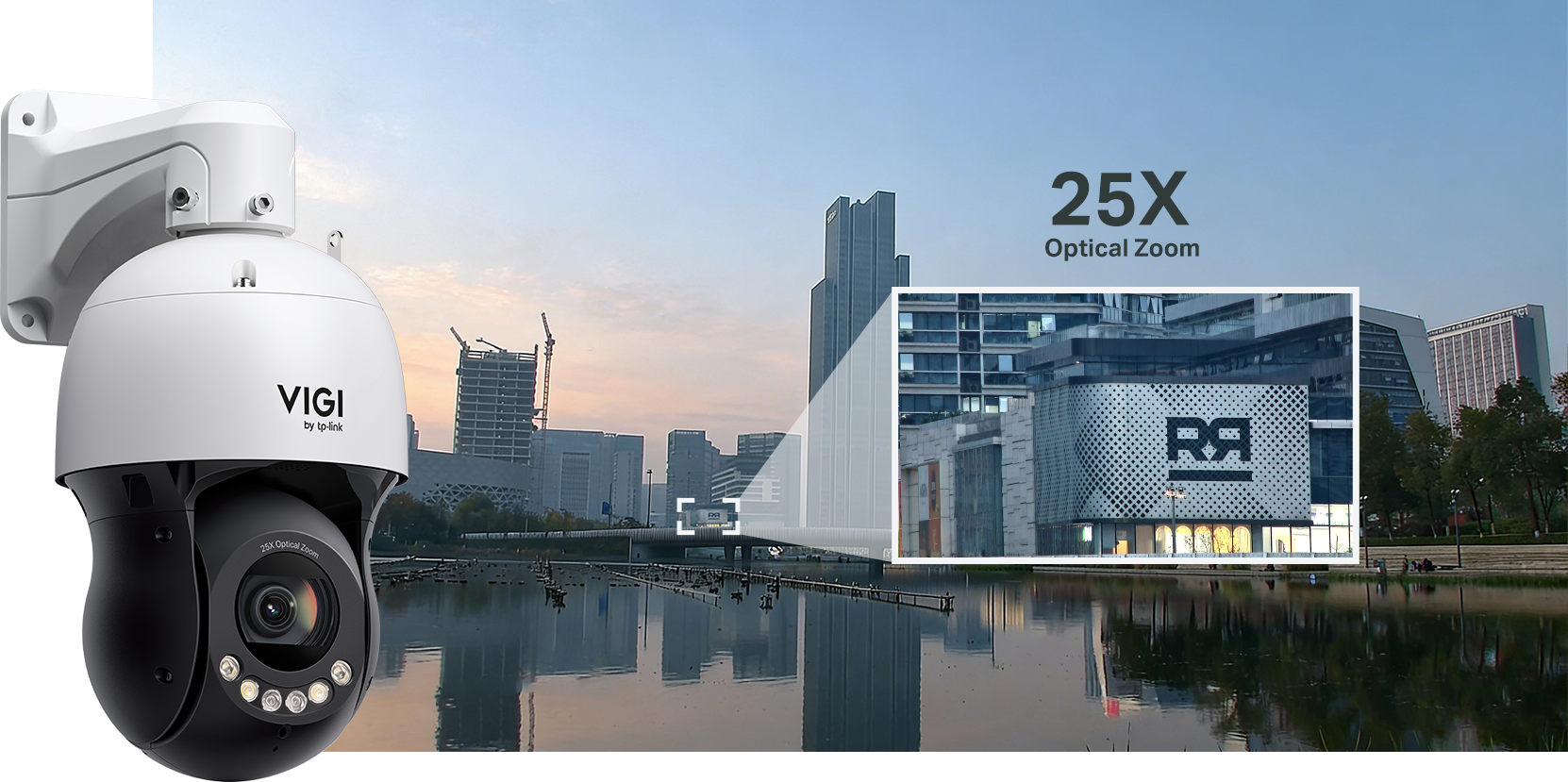

See farther and clearer with 25X optical zoom and 16X digital zoom.
Achieve smooth video with wind-resistant EIS— even in strong winds.

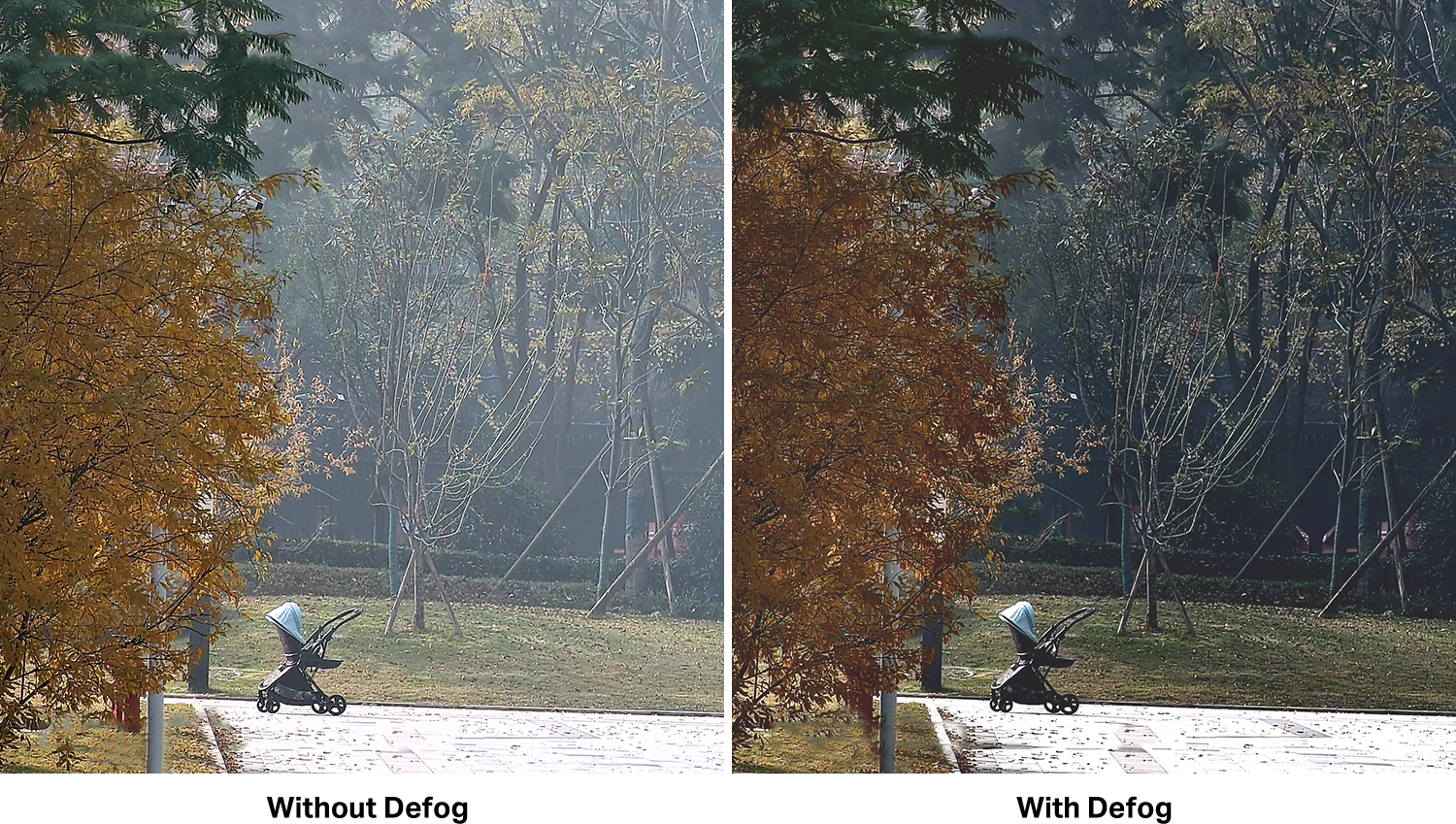

Ensure crystal-clear video in rain or fog with a built-in lens heater and digital defog.
Versatile Security, 24/7 Uninterrupted Protection
Human/vehicle/event-triggered auto tracking and intelligent patrol deliver seamless, 24/7 security—even when unattended.
Prevention is the best defense. Red and blue flashing lights, plus loud sirens, actively warn intruders before they act.
High-speed pan-tilt response combined with joystick/keyboard/mouse support lets you lock onto targets instantly for zero missed threats.
Power up action and smart scheduling withstand interruptions, automatically resuming tasks. Zero hassle, total peace of mind.
Long-Range Night Viewing, Rich Detail Capture
Never miss a detail at night with long-range illumination. With human/vehicle-triggered full-color imaging up to 164 ft, vital activities are clearly captured.

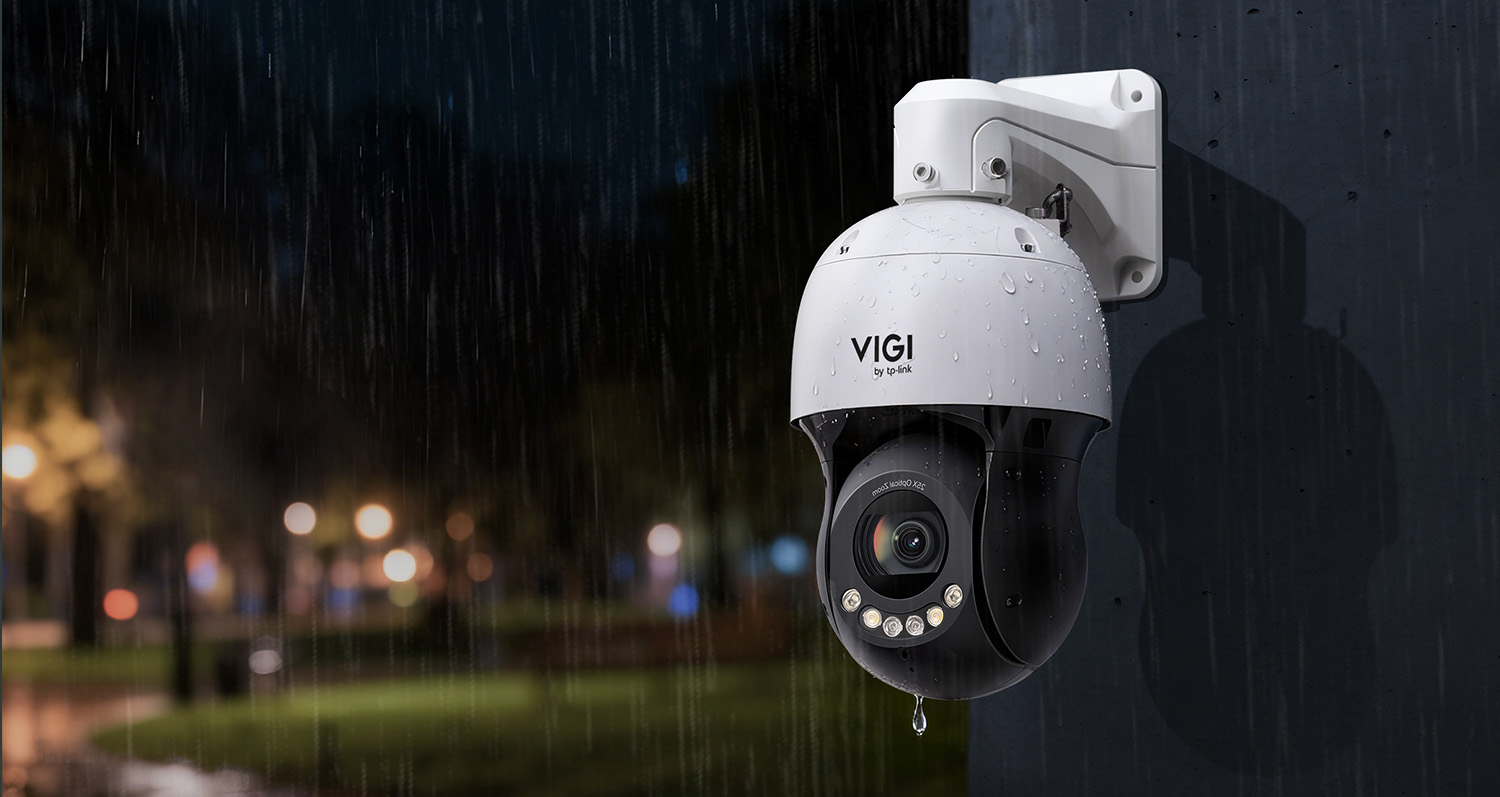

Durable Performance in Harsh Outdoor Conditions
- IP66 Weatherproof
- IK08 Vandal-Proof
- 6 kV Lightning Protection
- Digital Defog
- Built-in Lens Heater
Parking Lots
Communities
Schools
Farms
-
VIGI AI Detection Technology
-
People & Vehicle Attribute Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair, upper body, vehicle type, making post‑event search faster and easier.
-
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as animals, falling leaves, changing lights, and receive more accurate event notifications.
-
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well‑balanced and natural‑looking image even in environments with high‑contrast lighting.
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.
-
Efficient H.265+ Compression Technology
-
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/30000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
|---|---|
| Type | Motorized Varifocal Lens |
| Focal Length | 5.2-130 mm (25X Optical Zoom) |
| Aperture | Max. F1.6 |
| FOV | • Horizontal FOV: 2.30°-57.06°• Vertical FOV: 1.31°-32.74°• Diagonal FOV: 2.63°-65.01 |
| DORI Distance | Wide• D: 351 ft (107 m)• O: 144 ft (44 m)• R: 69 ft (21 m)• I: 36 ft (11 m) Tele• D: 8530 ft (2600 m)• O: 3553 ft (1083 m)• R: 1706 ft (520 m)• I: 853 ft (260 m) |
| PTZ | |
|---|---|
| Pan/tilt Range | Pan: 0° to 360°, Tilt: -20° to 90° (Auto Flip) |
| Pan/tilt Speed | Pan Speed: • Configurable from 0° to 160°/s• Preset Speed: 240°/sTilt Speed:• Configurable from 0° to 120°/s• Preset Speed: 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Pattern Scan | 16 Pattern Scans |
| Park Action | Preset, Patrol Scan, Pattern Scan, Home |
| Power Up Actions | Yes |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, Patrol Scan, Pattern Scan |
| PTZ Protocol | Pelco-D, Pelco-P, Self-adaptive |
| ILLUMINATOR | |
|---|---|
| Illuminator Type | • 2× IR LED• 2× Integrated Infrared-White LED |
| Illuminator Distance | • IR LED: 100 m (328 ft)†• White LED: 50 m (164 ft)† |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688x1520 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution:2688x1520, 2560x1440, 2304x1296, 2048x1280 |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution:840x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Third Stream | H.264/H.265• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720, 848x480, 704x576MJPEG• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps• Resolution: 1280x720, 848x480, 704x576 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264• Third-stream: H.265/H.264/MJPEG |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | High ProfileMain Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 4096 Kbps to 16384 Kbps• Sub-Stream: 128 Kbps to 2048 Kbps• Third Stream: H.264/H.265: 768 Kbps to 16384 KbpsMJPEG: 6144 Kbps to 16384 Kbps (1280x720); 4096 Kbps to 16384 Kbps (848x480) |
| Image | |
|---|---|
| Image Settings | • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• IR Light Intensity• HLC Adjustable• Low Illuminator |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| Defog | Digital Defog |
| Image Stabilization | EIS |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 8 Regions |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in MicrophoneAudio In Interface |
| Audio Output | Built-in SpeakerAudio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams & 3 Third-streams |
| Client | VIGI App, Web UI, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection• Line Crossing Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• Human Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Camera Tampering• Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording• Upload Capture• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm• Smart Tracking |
| Smart Tracking | Intelligent Auto Tracking• Human-Triggered• Vehicle-Triggered• Event-Triggered |
| Deep Learning Function | |
|---|---|
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡ |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 2 Alarm In, 1 Alarm OutRed and Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| RS-485 Port | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera• Installation Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 2.8 kg |
| Power Supply | DC• 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug• Recommended Power Supply: T120100-2C1 (for EU Regions)PoE• PoE: 802.3at, Class 4, Max. 24.7 WErP Information• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 9.2W |
| Protection | • IP66 Weatherproof• IK08 Vandal-Proof• 6 kV Lightning Protection |
| Product Dimensions (L x W x H) | Φ6.3 × 10.6 in (Φ160 × 270 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF |
‡This feature must be used with VIGI specified software.
*The Micro SD card and pole mounting kits are not included in the package.
†Calculations are based on laboratory testing.Actual data is not guaranteed and will vary as a result of client limitations and environmental factors
