5-Port 2.5G Multi-Gigabit Desktop Switch

  • Five 2.5 Gbps Ports: 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
  • Super-Fast Connections: Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6/6E/7 AP, 4K video, and more.
  • Ideal for Various Scenarios: Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
  • Loop Prevention: Ensures a stable and reliable network by automatically detecting and blocking network loops.
  • Hassle-Free Cabling: Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
  • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play: Allows for easy deployment without the need for a technician.
  • Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

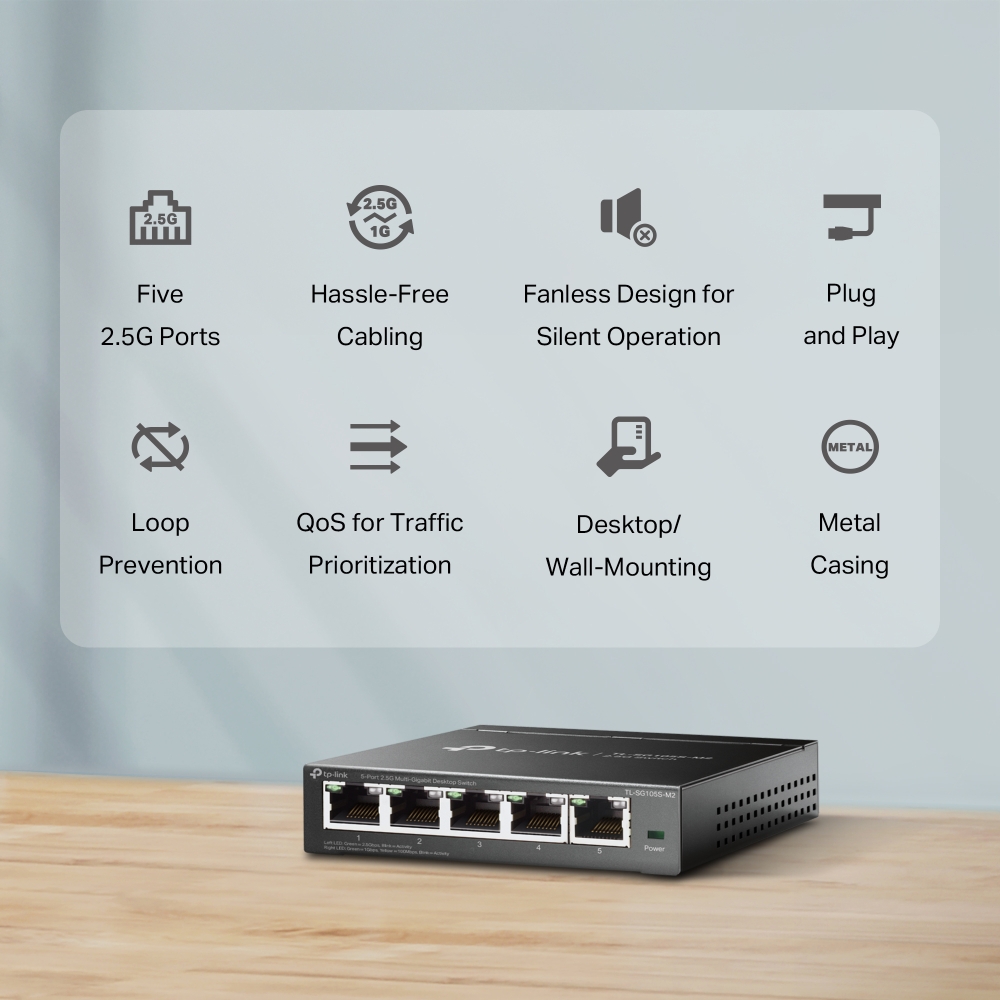

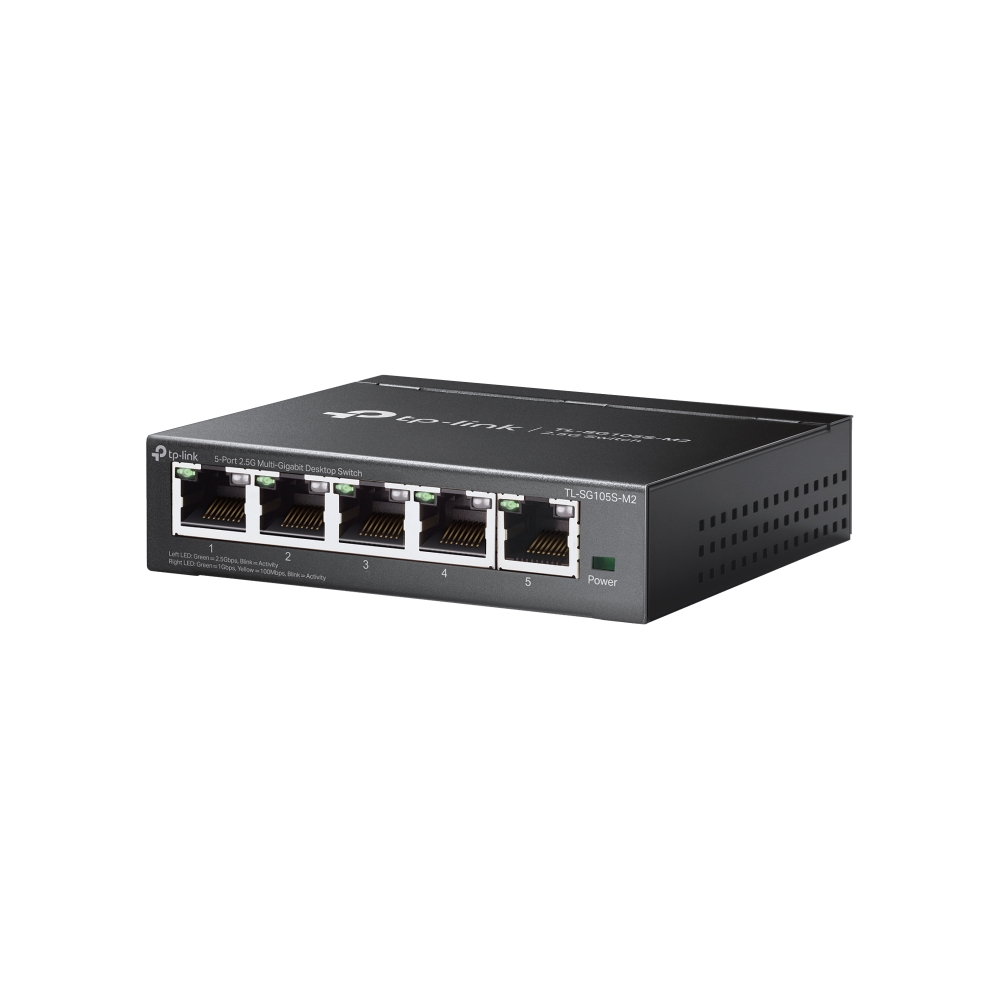

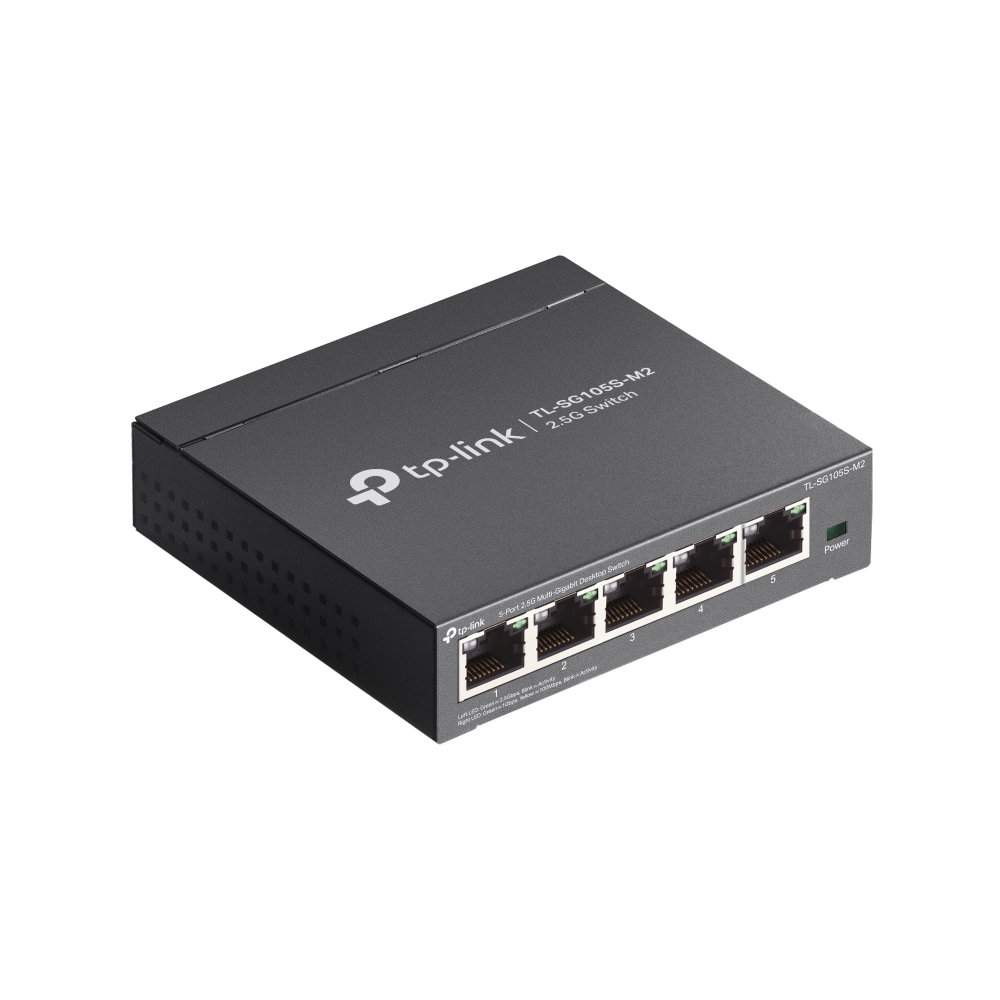

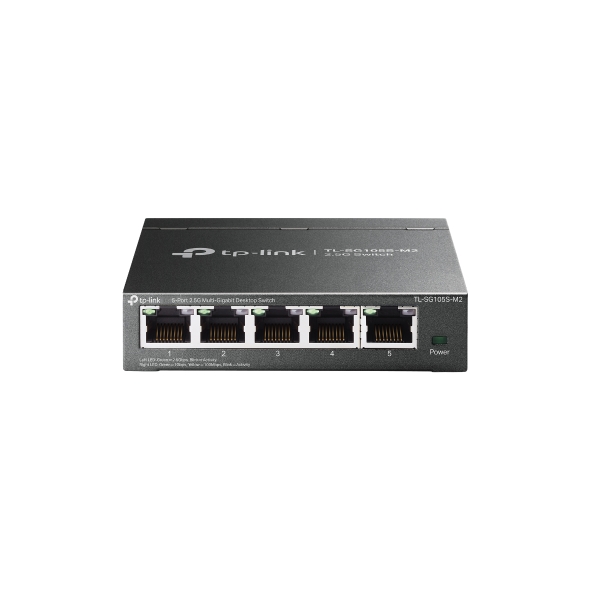

5-Port 2.5G Multi-Gigabit Desktop Switch

TL-SG105S-M2

Five 2.5G Ports

Hassle-Free Cabling

Fanless Design for Silent Operation

Plug and Play

Loop Prevention

Optimized Multicast, Prioritized Traffic

Desktop/ Wall-Mounting

Metal Casing

2.5G Super-Fast Speeds without Changing Cables

This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.

  •   CAT5e Cable
  •   CAT6 Cable
  •   CAT6a Cable
  • 2.5 Gbps 2.5× Faster

  • 1 Gbps

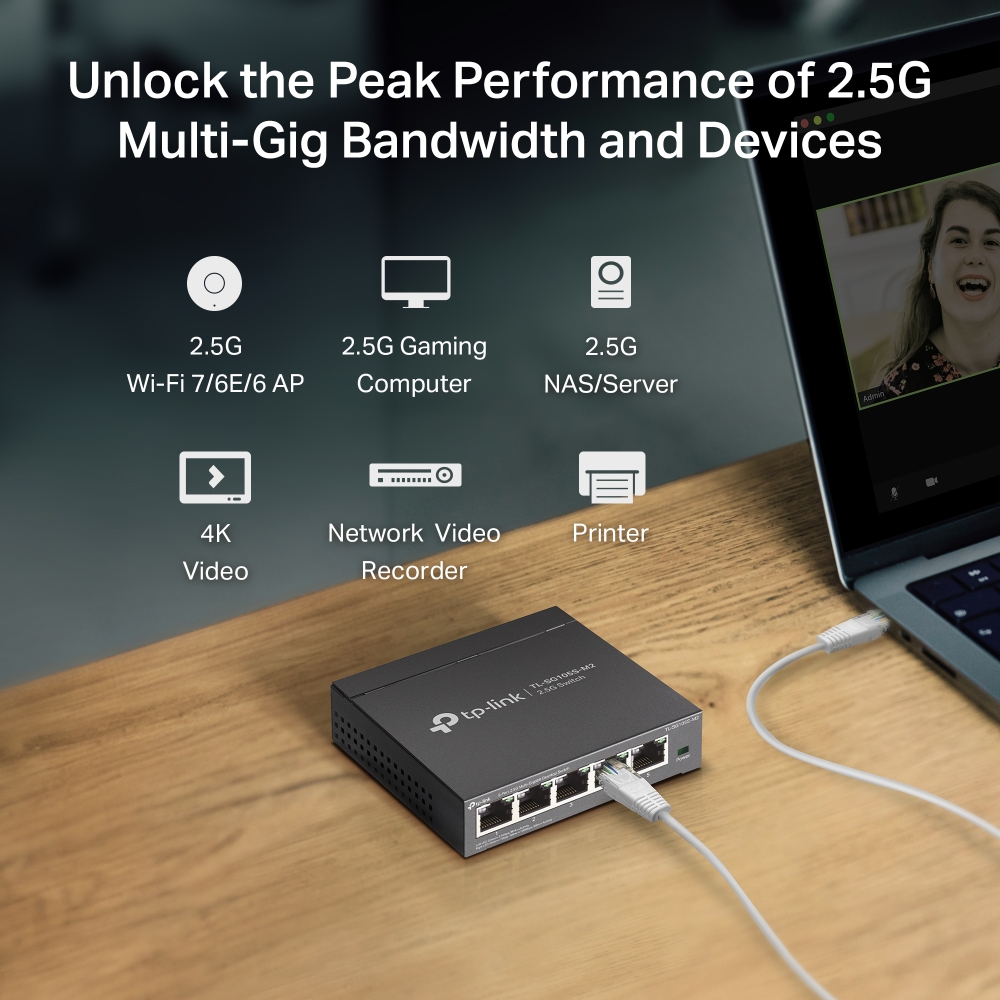

Unlock the Peak Performance of 2.5G Multi-Gig Bandwidth and Devices

2.5G
Wi-Fi 7/
6E/6 AP

2.5G Gaming Computer

2.5G
NAS/Server

4K Video

Network Video Recorder

Printer

Prevent Network Loops with Ease

Automatically detect loops and block the corresponding port while the port indicator flash slowly to alert. Easy to monitor and address loop-related issues within your network.

Loop Prevention

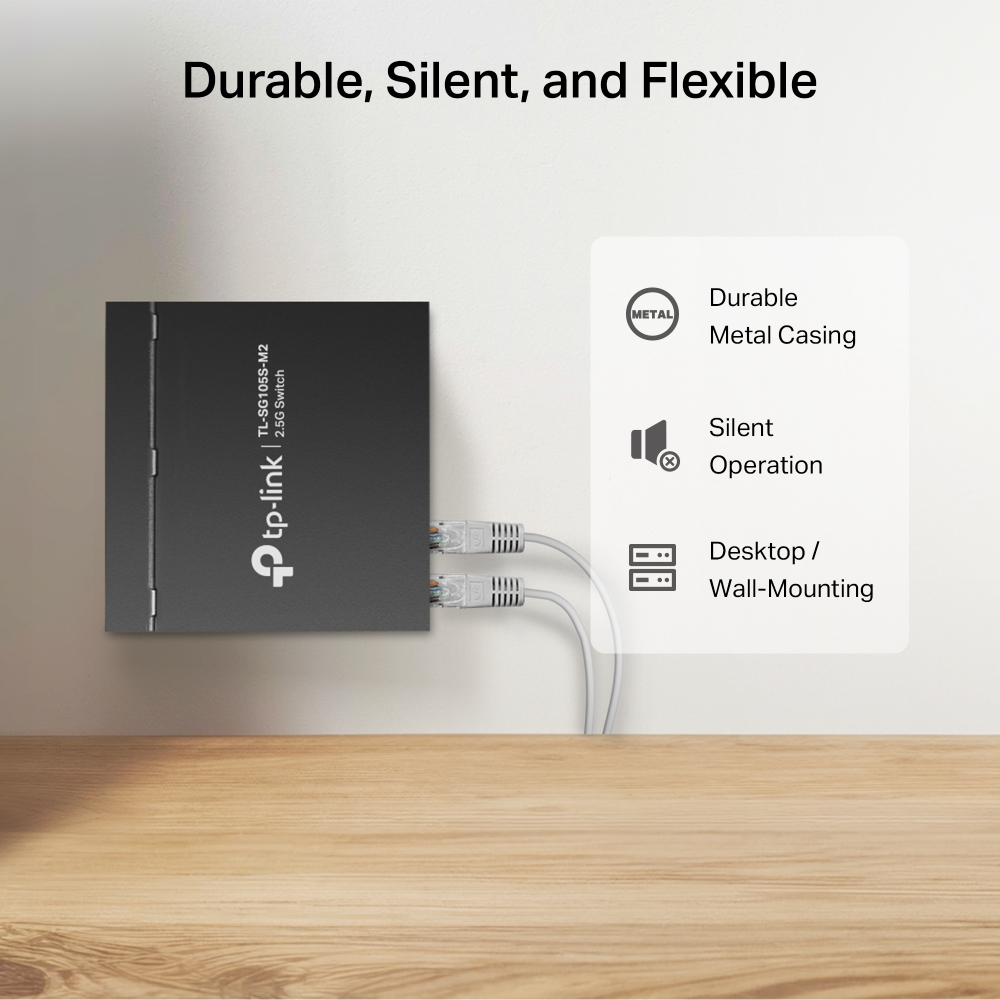

Durable Metal Casing

TL-SG105S-M2’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, and a long service life.

Silent Operation

Its fanless design reduces power consumption and noise generated, making it ideal for noise-sensitive environments.

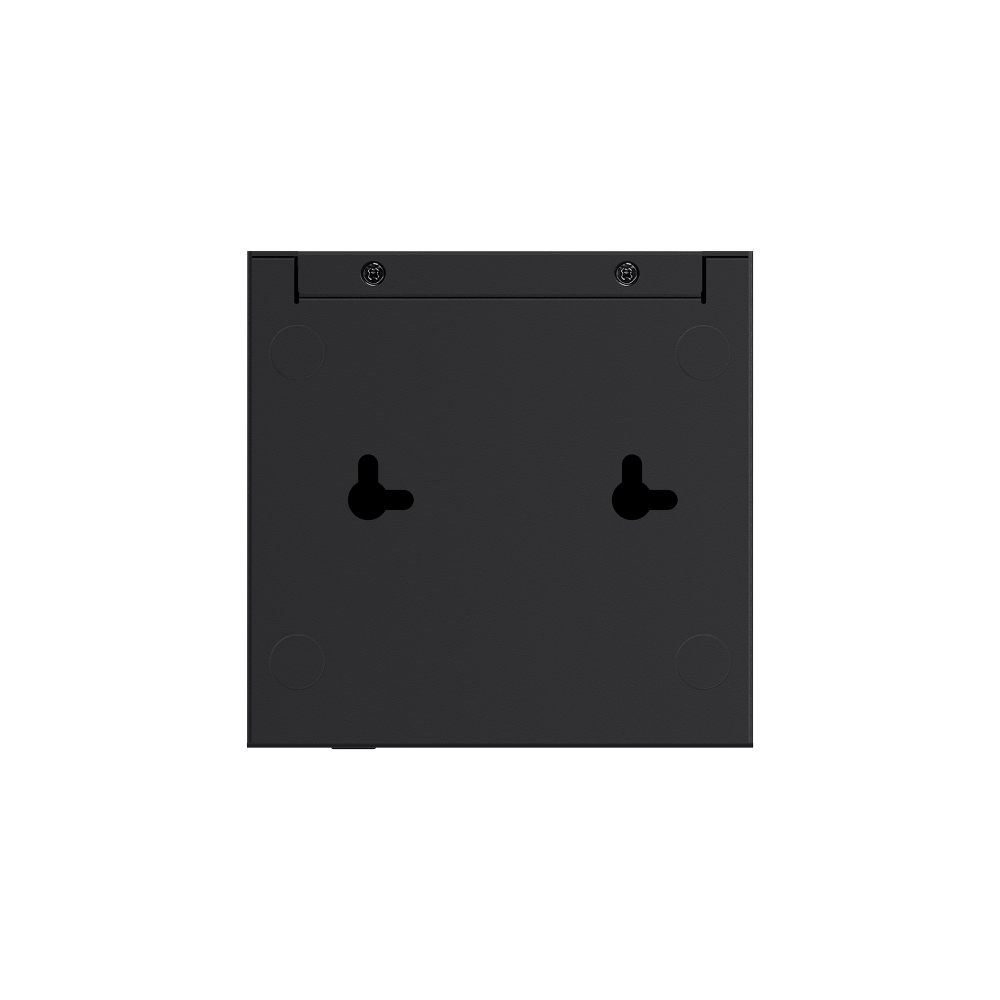

Desktop /
Wall-Mounting

You can put the switch on desk or mount it to the wall according to your demand.

Multiple Application Scenarios

LAN Party
Home Entertainment
Small and Home Offices

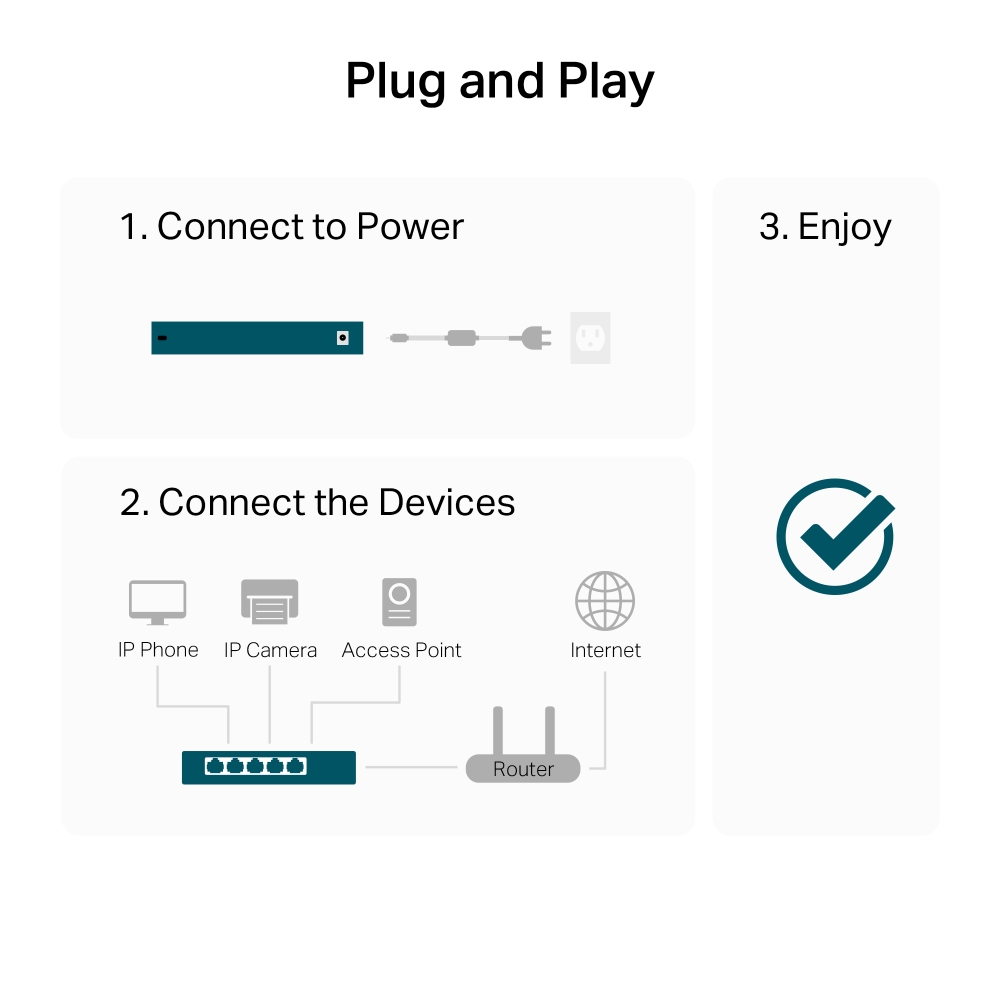

Plug and Play

1. Connect to Power
2. Connect the Devices
3. Enjoy
IP Phone
IP Camera
Access Point
Internet
Router

HARDWARE FEATURES

Standards and Protocols IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface 5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 9 VDC / 0.6 A)
LED • Power
• Link/Act Indicators
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max. Power Consumption 5.67 W
Max Heat Dissipation 19.28 BTU/h

PERFORMANCE

Switching Capacity 25 Gbps
Packet Forwarding Rate 18.6 Mpps
MAC Address Table 4 K
Jumbo Frame 12 KB

SOFTWARE FEATURES

Advanced Features • Loop Prevention
• 802.3X Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transmission Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS
Package Content • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105S-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: -5–40 °C (23–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

*Only Cat5e or better cables do not need to be replaced.
