BE12000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.
-
Tri-Band 8-Stream Wi-Fi 7
-
Wi-Fi Speeds up to 12.2 Gbps†
-
Dedicated Spectral Analyzer Radio
-
1× 10G/2.5G Port
-
802.3bt/at PoE
-
Omada Mesh & Seamless Roaming△
-
Centralized Management
-
Easy, Quick Setup
Wi-Fi 7: Swifter, Smoother, Stronger
WiFi 7 Supersized Throughput
-
6 GHz 5765 Mbps
-
5 GHz 5765 Mbps
-
2.4 GHz 688 Mbps
-
4096-QAM for Higher Capacity
Wi-Fi 7 12 bits/symbol
20% more data transmissionWi-Fi 6 10 bits/symbol -
MLO for Lower Latency
6 GHz5 GHz2.4 GHz
Dedicated RF Scanning for Higher Efficiency in O&M
Dedicated RF Scanning§
Real-Time Tri-Band Spectral Analysis
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Boosted Network Security
-
Secure Guest Network with up to 24 SSIDs
-
Boost Your Business with SMS Login
-
WPA3 for Worry-Free Open Public Networks
-
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 26.3 W (For PoE); • 22.4 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi• 5 GHz: 4× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module*Firmware update may be required. |
| Mounting | Ceiling / Wall/ Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2050 ft² (190 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 320 MHz Bandwidth‡• MLO‡• 4K-QAM‡• Multi-RUs‡• Seamless Roaming(802.11k/v/r)• MU-MIMO‡• Mesh△• BSS Coloring‡• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:24(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication△• Access Control• Mac Filter• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 6-20 dBm (2.4 GHz, EIRP)9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)9-30 dBm (5 GHz, U-NII-2C, EIRP)6-23 dBm (6 GHz, EIRP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |

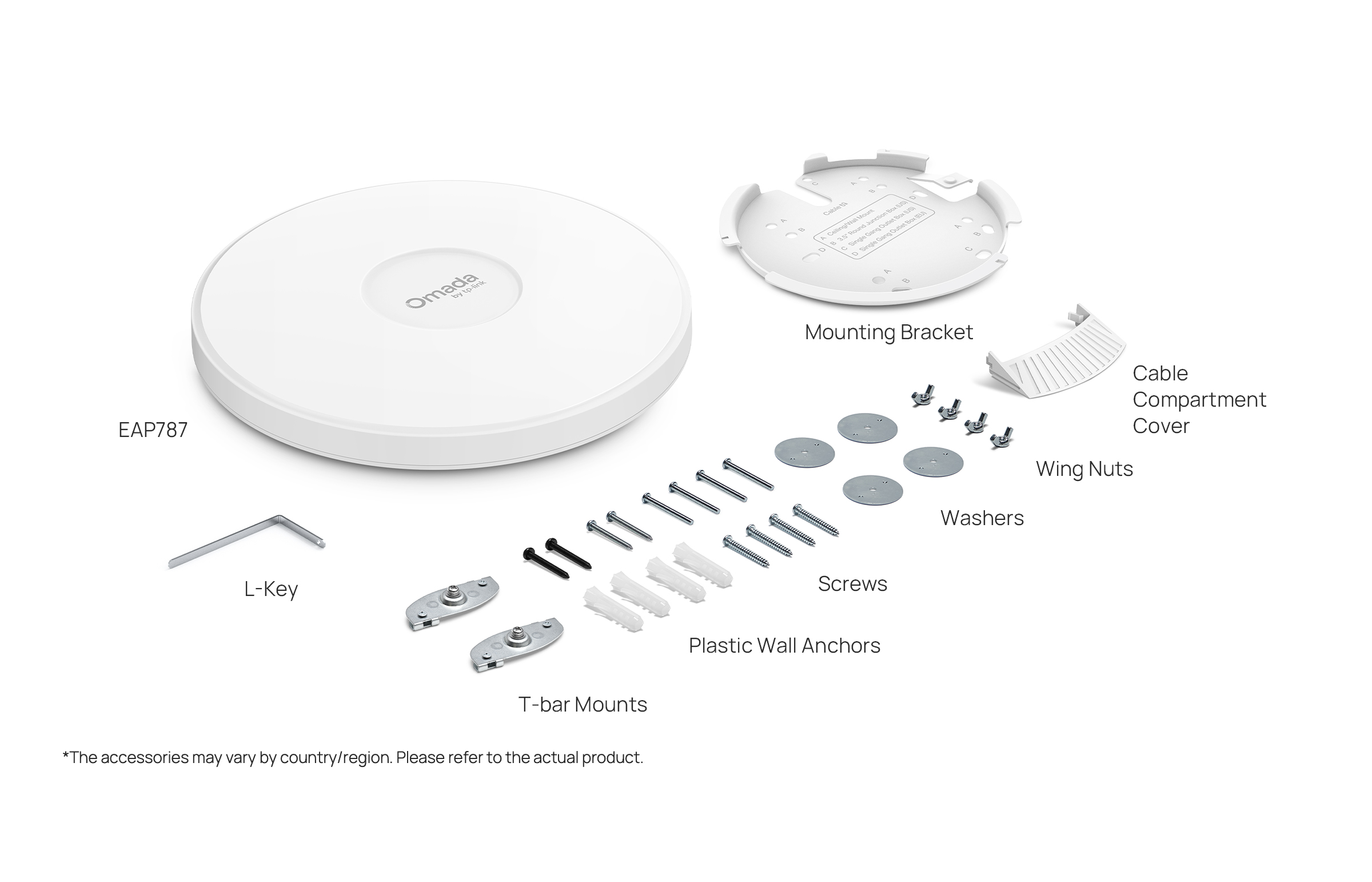

| Package Content | • EAP787• Installation Guide• Ceiling/Wall/Junction Box Mounting KitNote: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
§Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above, coming soon).
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
