EAP720 (EU) V1

New

BE3600 Ceiling Mount Wi-Fi 7 Access Point

Dual-Band 4-Stream Wi-Fi 7: Up to 3.6 Gbps (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).^†
1× 2.5G Port: Ensures fast connectivity throughout the network.
Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.^‡
Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.^△
More Connections and Wider Coverage: Supports 250+ concurrent clients^* and covers up to 1500 ft² (140 ㎡) ^**for reliable and extensive wireless connectivity.

Learn more about Omada Cloud SDN>

4-Stream Wi-Fi 7
Wi-Fi Speeds up to 3.6 Gbps^†
1× 2.5GbE Port
802.3at PoE
Omada Mesh &
Seamless Roaming^△
Centralized
Management
Enhanced
Security
Easy Installation

Wi-Fi 7: Swifter, Smoother, Stronger

Dual-Band WiFi 7 Throughput

5 GHz 2882 Mbps
2.4 GHz 688 Mbps

Higher Efficiency with 4K-QAM

Wi-Fi 7 12 bits/symbol

20% more data transmission

Wi-Fi 6 10 bits/symbol
Higher Reliability and Speeds with MLO

5 GHz

2.4 GHz

Multi-Link Operation

Optimized Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP720 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

2.5G PoE+

Boosted Network Security

Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection

Seamless Integration into the Omada SDN

Omada Ceiling
Mount Wi-Fi 7 AP
EAP 720

Omada
Wall Plate Wi-Fi 7 AP

Omada
Outdoor
Wi-Fi 7 AP

Omada
PoE Switch

Omada
VPN Gateway

Cloud Access

On-premises Controllers

Hardware

Software

Omada Central
(Cloud-Based)

Internet

Web Browser

Omada App

HARDWARE FEATURES
Interface	1× 2.5G Ethernet Port

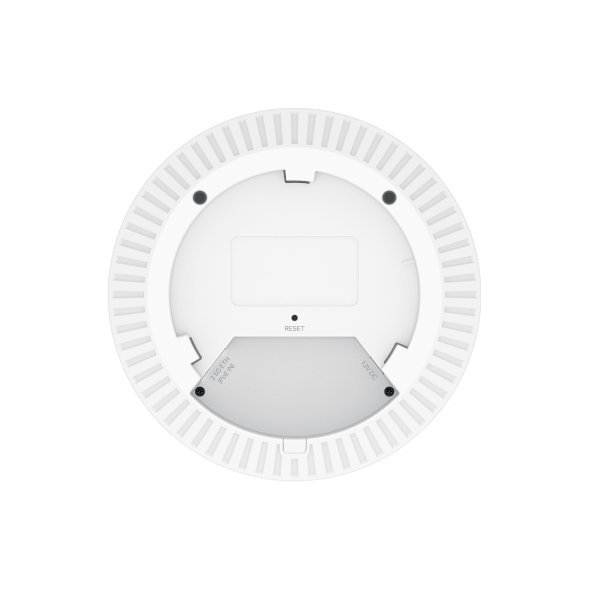

Button	Reset
Power Supply	802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Max. Power Consumption	• 16.8 W (For PoE); • 13.0 W (For DC)
Dimensions ( W x D x H )	6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi

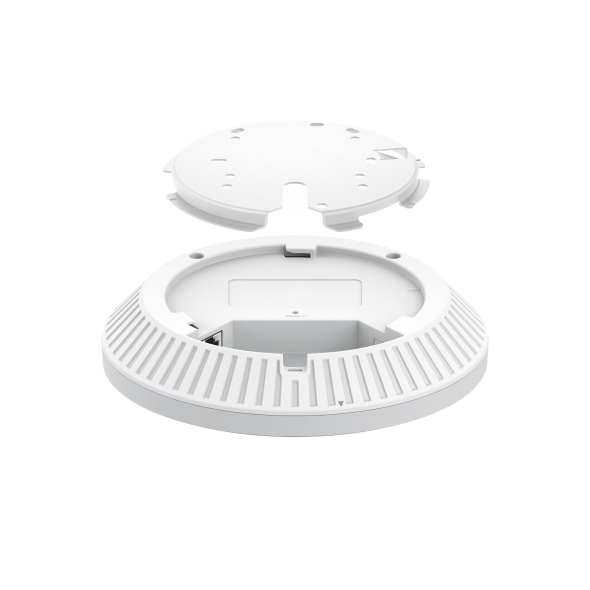

Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES
Coverage	140㎡(1500 ft²)^***
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming • EHT160^‡ • Mesh^△ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP)

Management Features
Omada App	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band and may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

^‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.

^*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

^**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

^△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the User Guides of Omada controllers for configuration methods.
