BE3600 Ceiling Mount Wi-Fi 7 Access Point
- Dual-Band 4-Stream Wi-Fi 7: Up to 3.6 Gbps (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
-
-v1/img/b1.png)
4-Stream Wi-Fi 7
-
-v1/img/b2.png)
Wi-Fi Speeds up to 3.6 Gbps†
-
-v1/img/b3.png)
1× 2.5GbE Port
-
-v1/img/b4.png)
802.3at PoE
-
-v1/img/b5.png)
Omada Mesh &
Seamless Roaming△ -
-v1/img/b6.png)
Centralized
Management -
-v1/img/b7.png)
Enhanced
Security -
-v1/img/b8.png)
Easy Installation
Wi-Fi 7: Swifter, Smoother, Stronger
Dual-Band WiFi 7 Throughput
-
5 GHz 2882 Mbps
-
2.4 GHz 688 Mbps
-
Higher Efficiency with 4K-QAM
Wi-Fi 7 12 bits/symbol-v1/img/c-arrow-up.png)
20% more data transmissionWi-Fi 6 10 bits/symbol -
Higher Reliability and Speeds with MLO
5 GHz2.4 GHzMulti-Link Operation
Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP720 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
-
-v1/img/f1.png)
Secure Guest Network
with up to 16 SSIDs -
-v1/img/f2.png)
Boost Your Business
with SMS Login -
-v1/img/f3.png)
WPA3 for Worry-Free
Open Public Networks -
-v1/img/f4.png)
Rogue AP Detection
Seamless Integration into the Omada SDN
Mount Wi-Fi 7 AP
EAP 720
Wall Plate Wi-Fi 7 AP
Outdoor
Wi-Fi 7 AP
PoE Switch
VPN Gateway
(Cloud-Based)

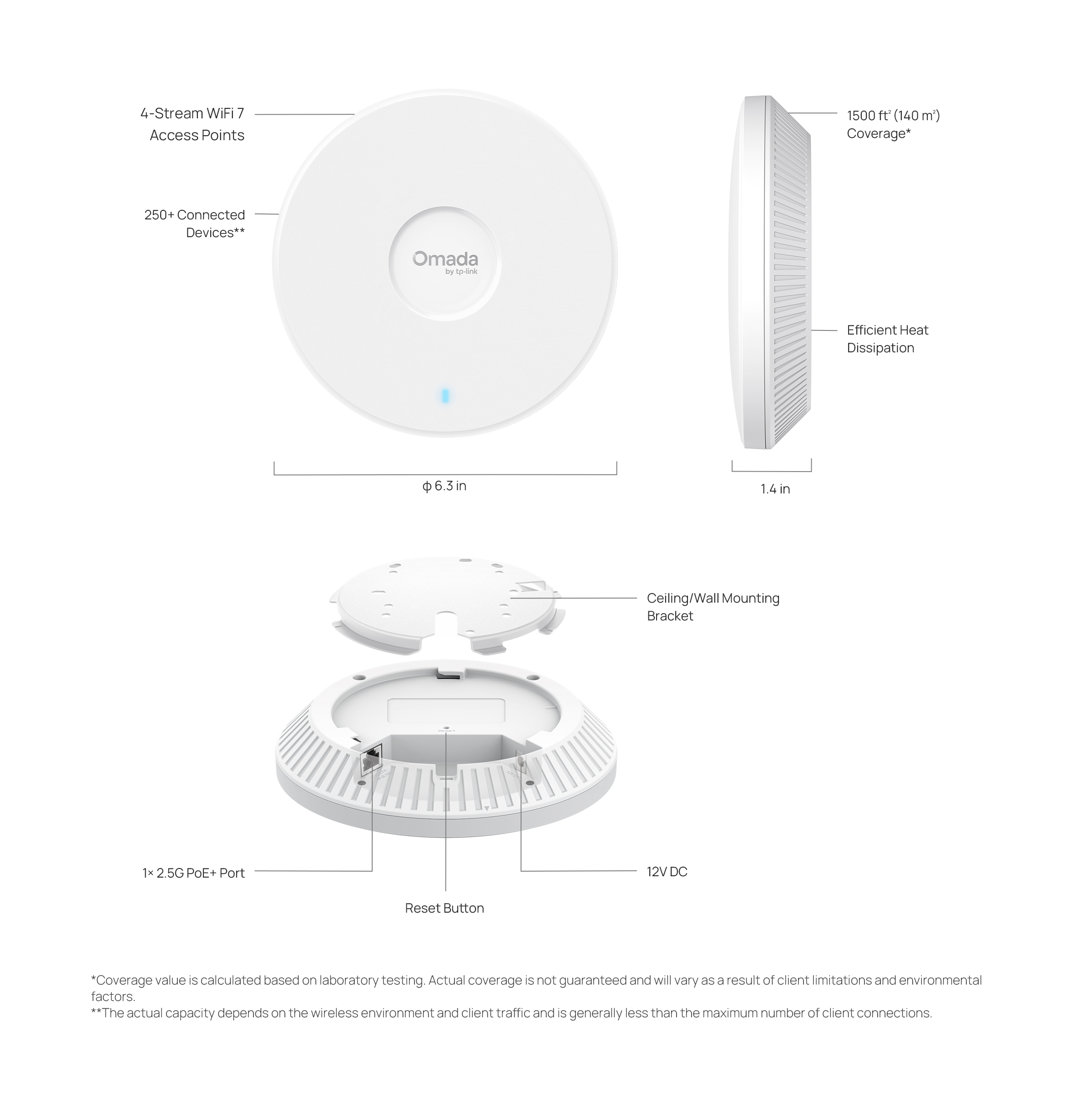

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Max. Power Consumption | • 16.8 W (For PoE); • 13.0 W (For DC) |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi• 5 GHz: 2× 5.0 dBi |

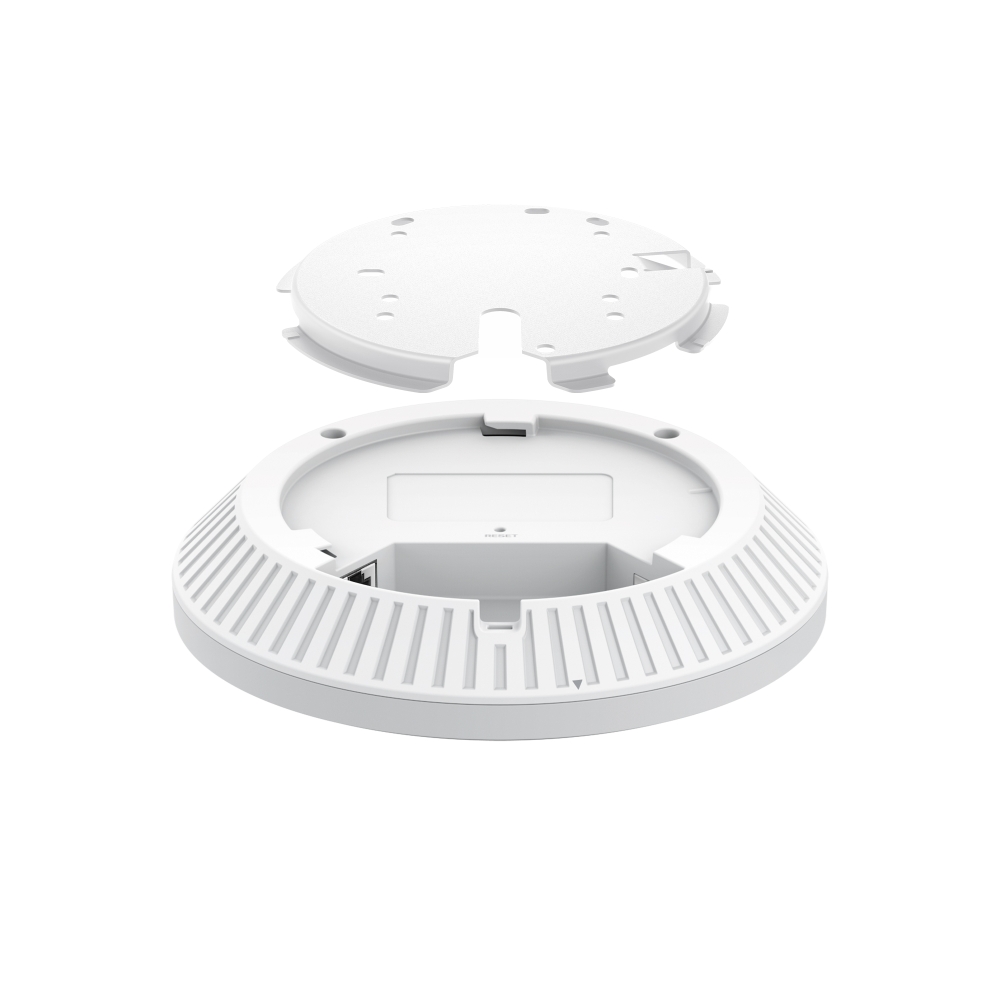

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500 ft²)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | • MLO‡• 4K-QAM‡• Seamless Roaming• EHT160‡• Mesh△• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:16(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication△• Access Control• Maximum number of MAC Filter: 4,000• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP)< 23 dBm (5 GHz, band 1&band 2, EIRP)< 28 dBm (5 GHz, band 3, EIRP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • Omada Wi-Fi 7 Ceiling Mount Access Point EAP720• Installation Guide• Ceiling/Wall/Juntion Box Mounting Kit• Power Adapter |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band and may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the User Guides of Omada controllers for configuration methods.
