Omada T8S4-2T

Coming Soon

Omada 8MP Turret PoE Security Camera System with 2TB HDD, 4 Cameras with 16-Channel NVR

16 Channel NVR with 8 PoE+ Ports**
4× 8MP Full-Color PoE Turret Cameras
Red & Blue Flashing Lights and Sirens
Person/Vehicle/Pet Detection
24/7 Continuous Recording and Local Storage
Effortless Installation with PoE+
NVR with 2TB HDD Built-in (Expandable to 16 TB)
Camera with All-Metal Housing, IP67 Weatherproof and IK08 Vandal-Proof

4K 8MP Ultra HD

Full-Color Day and Night

Person/Vehicle/ Pet Detection

Red & Blue Flashing Lights with Sirens

Effortless Installation with PoE+

24/7 Continuous Recording

Outdoor & Indoor Ready

Secure Remote Control via App

Outstanding Image Quality for Day and Night

Stunning 4K Ultra HD - See Every Detail

Captures critical visual details like faces and license plates with stunning clarity, even from a distance.

When people or vehicles are detected

When no people or vehicles are detected

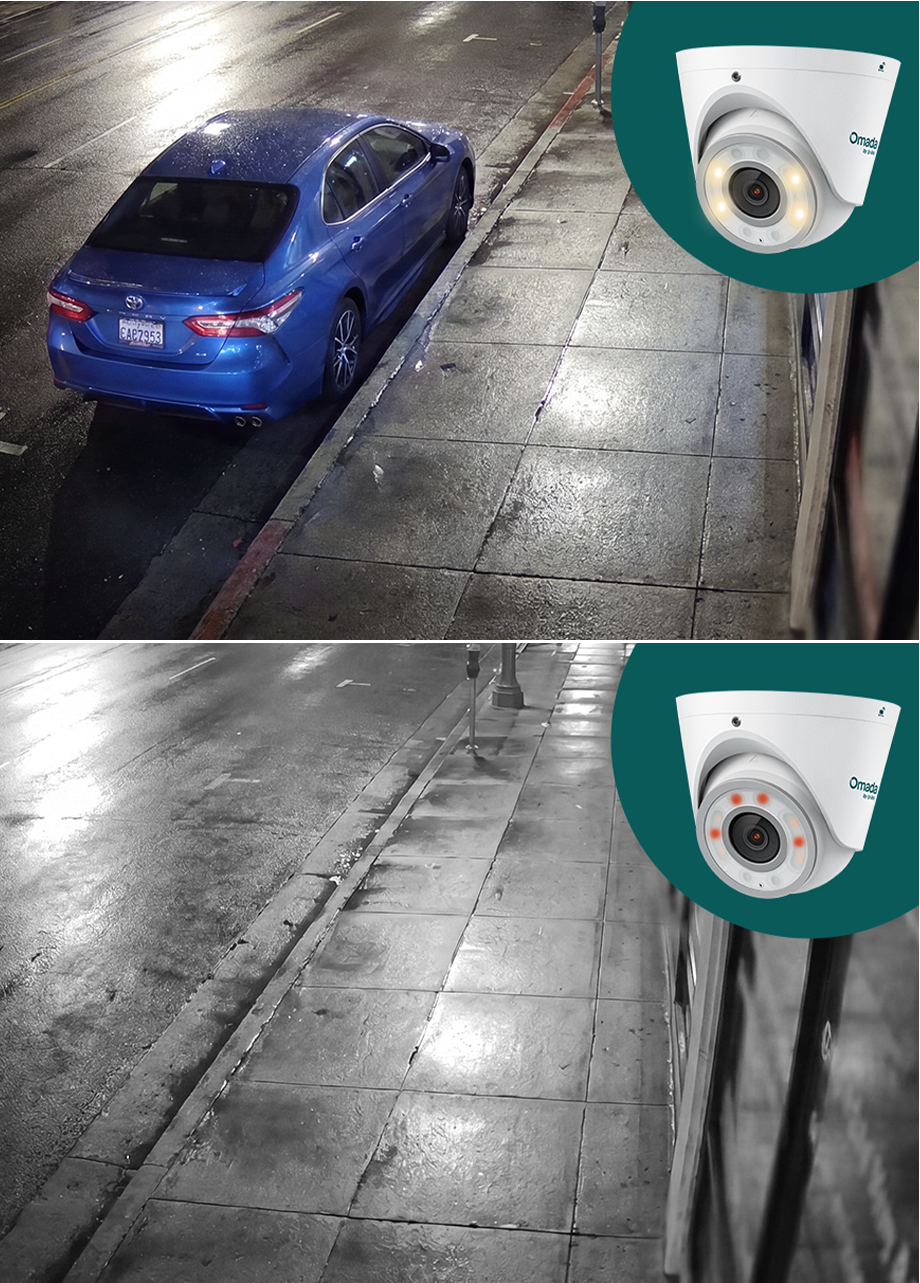

People and Vehicle-Triggered Full-Color Night Vision

When people or vehicles are detected, spotlights turn on for detailed color videos at night. Otherwise, the camera automatically switches to infrared night vision (up to 98 ft/30 m^† ) to avoid light disturbance.

Versatile Warnings, Proactive Security

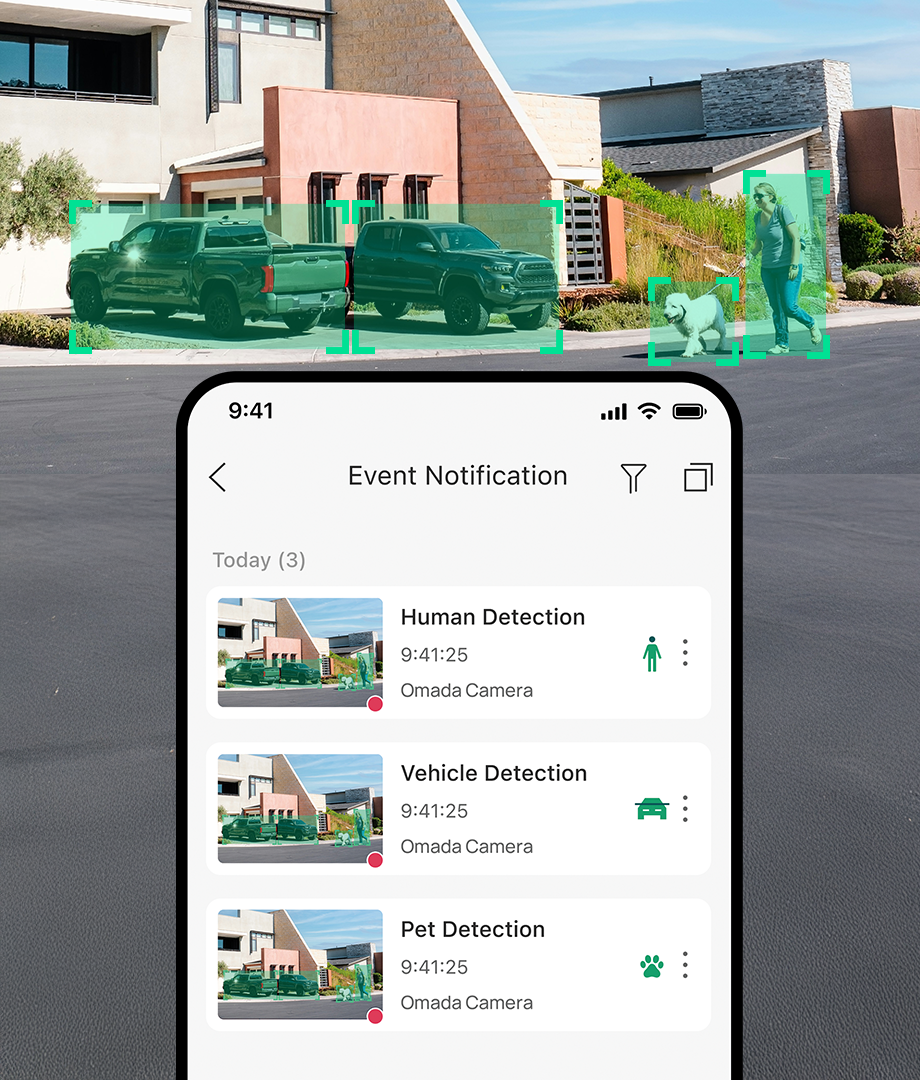

Person/Vehicle/Pet Detection for Reduced False Alarms

Accurately distinguishes people, vehicles, and pets from other irrelevant objects, reducing false alarms and only sending alerts that matter. No subscription fees required.

Please leave!

Deter Intruders with Powerful Red & Blue Lights and Sirens

Prevention is the best defense. Red and blue flashing lights, plus loud sirens, actively warn intruders before they act.

Hello, package delivery.

Please leave it by the door.

Two-Way Talk and Custom Voice Alerts

Talk to visitors or scare off intruders via the app, using the built-in mic and speaker. You can also choose from preset voice messages^☆ or create your own for a personalized response.

Easy Setup and Management

Omada Camera

Omada NVR

Remote PoE Restart

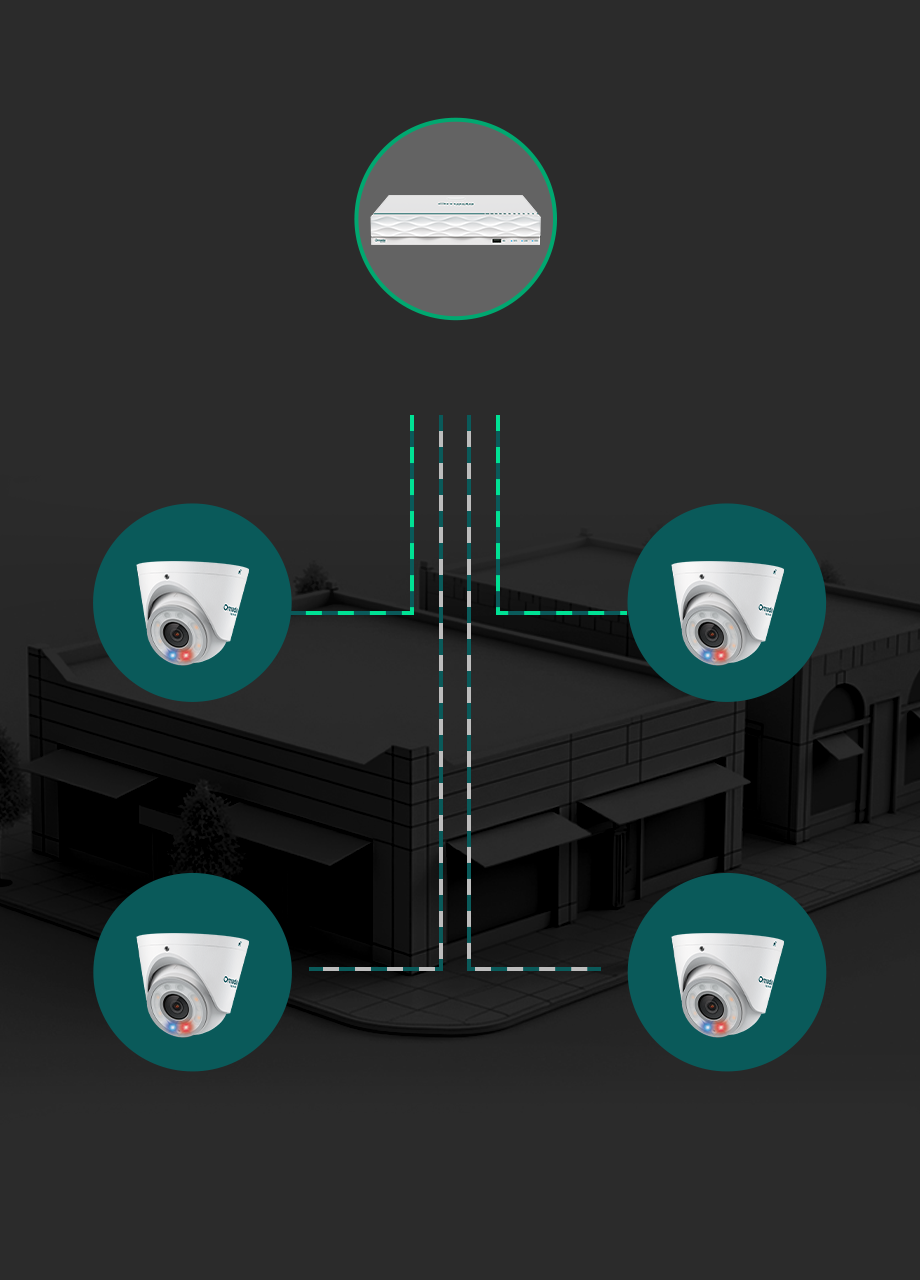

Effortless Installation with PoE+

One network cable delivers both power and data (up to 886 ft/270m^‡) without any complex wiring. Easy for DIY beginners. The PoE connection also supports Long-Distance Mode, allowing for remote rebooting of the camera and reducing operation costs.

Batch Search

Code Scanning

Multiple Ways to Add Devices

The Omada Guard app supports flexible device onboarding via batch search, code scanning, and manual device ID entry.

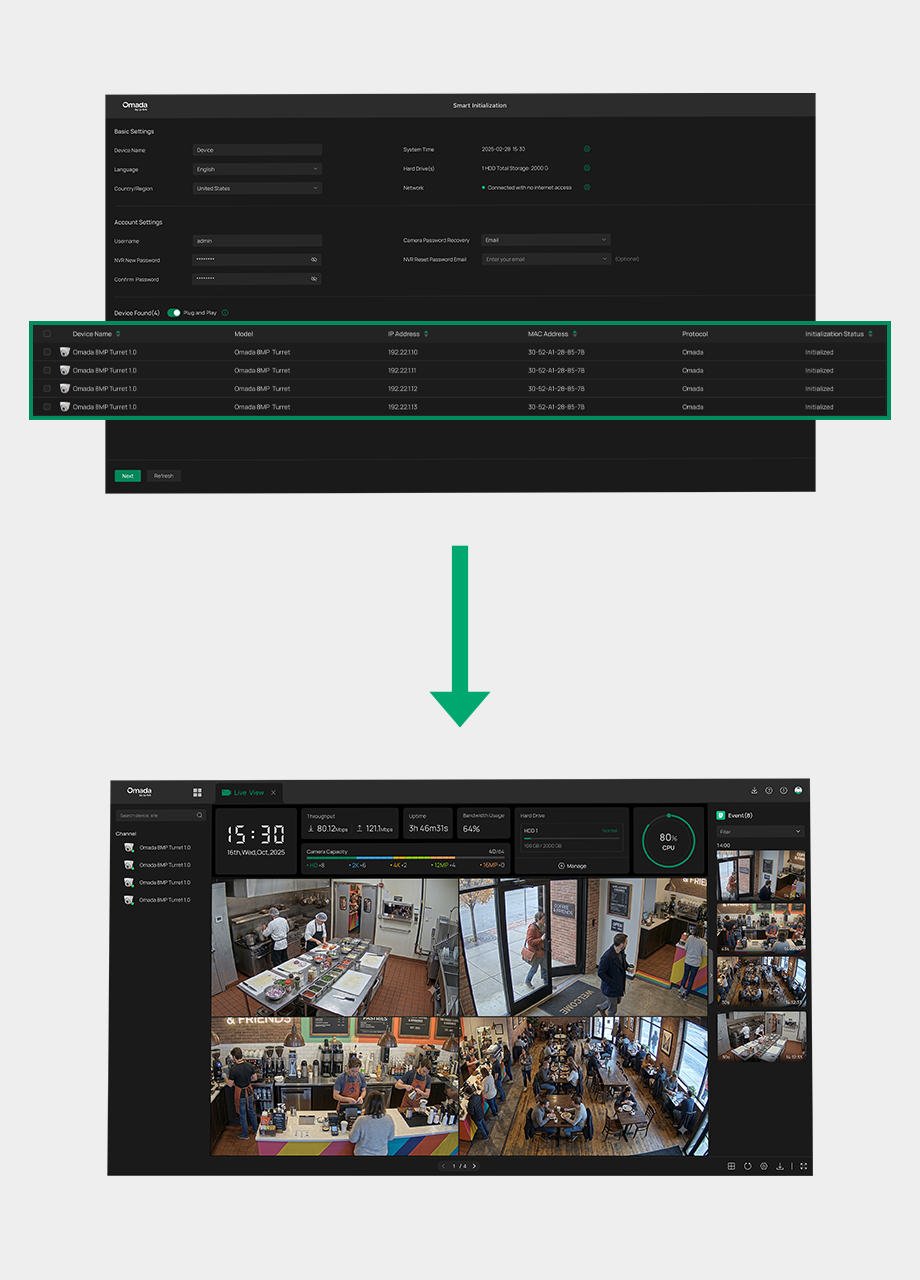

Plug and Play via NVR GUI

Once the camera is connected to the NVR via PoE, the NVR GUI automatically displays the camera's information, enabling instant monitoring with a single click.

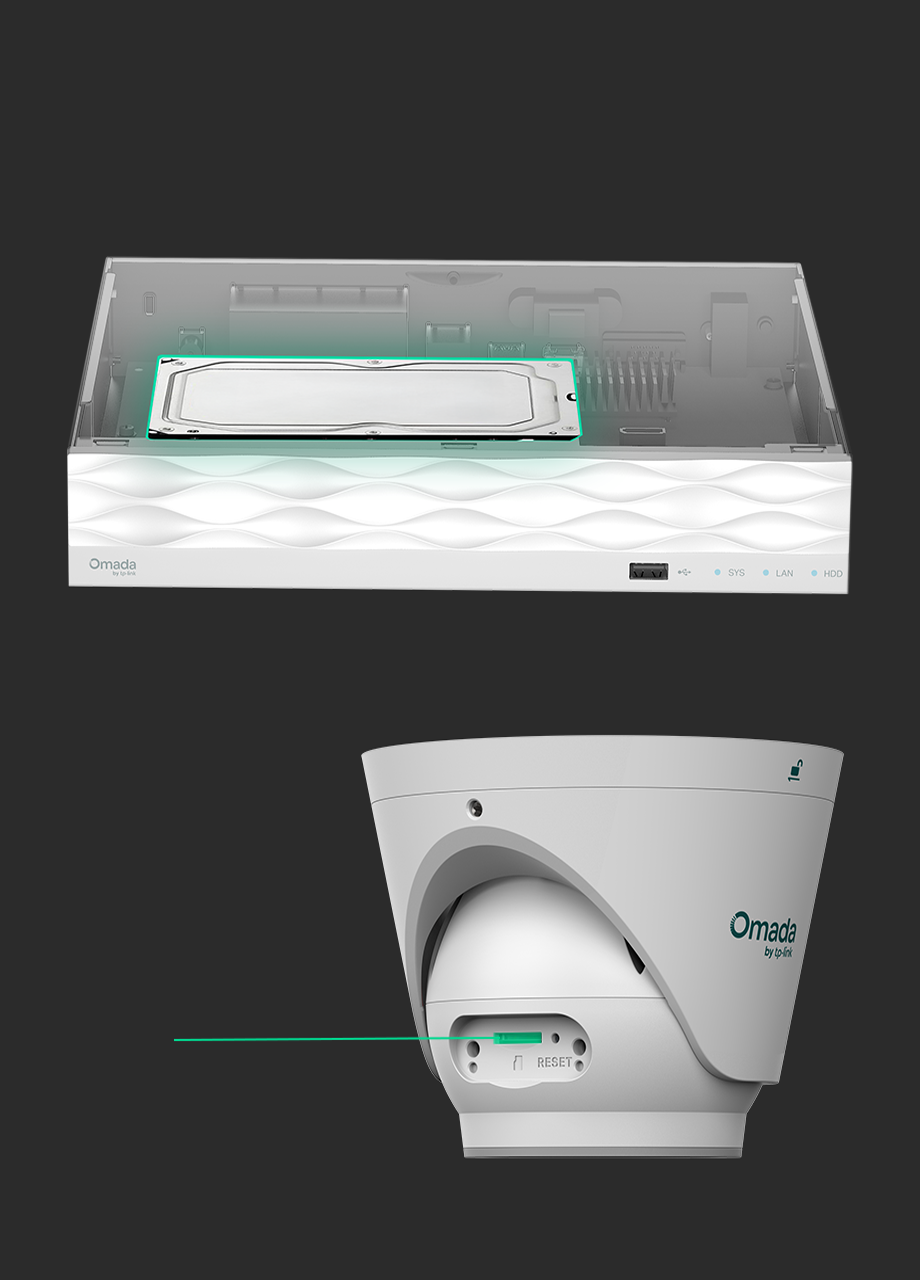

Local Recording with Pre-Installed HDD

Pre-installed

2TB

up to

16TB

up to

512GB

24/7 Continuous Recording

The NVR features a built-in 2TB HDD (expandable up to 16 TB), while the camera supports a microSD card** (up to 512 GB) for onboard storage, enabling 24/7 continuous recording.

No Monthly Fees – Local Storage

Save your recordings locally on NVR’s HDD. No monthly fees, no hidden costs.

Commercial-Grade Quality for Superior Performance

Built to Last - Indoor & Outdoor Ready

IK08 Vandal-Proof

IP67 Weatherproof

All-Metal Housing

-22° F | -30° C to 140° F | 60° C Working Temperature

-40° F | -40° C to 140° F | 60° C Storage Temperature

NDAA Compliant

Our products comply with National Defense Authorization Act (NDAA) standards, meeting essential security protocols for government and military use.

3-Year Warranty & US-Based Call Center Support

Includes a 2-year HDD warranty. Get help anytime from our localized support team or through the Omada support portal. Engage with the community or reach us via call, email, or chat.

Full Compatibility with ONVIF Support

Works seamlessly with Omada cameras and third-party cameras that support ONVIF for simple expansion and integration with existing systems.^△

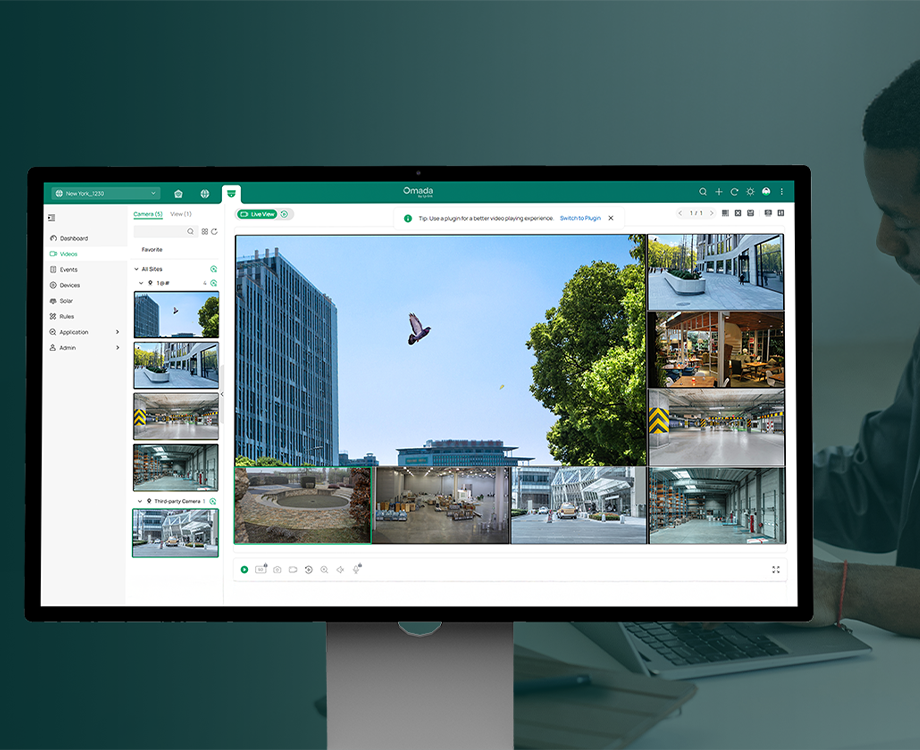

Secure Remote and Centralized Control via Omada Central

Keep an eye on your residential or business anytime, anywhere with centralized management, real-time access, and smart alerts right from your Omada Central.

Learn More About the Omada Central> >

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Aperture	F1.6
Lens	4 mm, Fixed Focal Lens, M12
FOV	Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Auto
White LED	• Quantity: 4 • Range: 98 ft (30m)
IR LED	• Quantity: 4 • Range: 98 ft (30 m) • Wavelength: 850nm
Illuminator On/Off Control	Auto/Always on/Always off
Max. Resolution	3840 x 2160 (8MP)
Main Stream	• Frame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Video Bit Rate	• Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
Event	• Motion Detection (Person/Vehicle/Pet Detection) • Line-Crossing Detection • Intrusion Detection
Recording Modes	Event-Triggered Recording, Scheduled Recording, 24/7 Recording (Default)
Interface & Button	• Buit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera • Buit-in Speaker • 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE • 1× DC Port • Reset Button • Red & Blue Warning Lights • Buit-in Memory Card Slot, Support MicroSD Card, up to 521GB*
Operating Temperature	-30 °C to 60 °C (-22 ℉ to 140 ℉)
Operating Humidity	95% or Less (Non-Condensing)
Power Supply	DC • 12V DC ± 5%, Max. 12 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3af/at, Max. 12.5 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W
Protection	• IP67 Weatherproof • IK08 Vandal Proof
Product Dimensions (L x W x H)	4.4 × 4.4 × 3.5 in (112 × 112 × 88 mm)
Weight	• Gross Weight: 0.84 kg (1.85 lbs) • Net Weight: 0.5 kg (1.10 lbs)

NVR
IP Video Input	16-Channel**
Managed Cameras	• 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP)
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Compression	H.265+/H.265/H.264+/H.264
Record Resolution	16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback	16-Channel
Decoding Capability	• 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled
PoE Budget	115 W Available for All PoE+ Ports, 30 W Max per Port
External Interfaces	• 1× eSATA, Supports External Storage Devices up to 16TB • 1× HDMI Port • 1× VGA Port • 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port • 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ) • 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port • 1× DC Power Supply Port • 8× PoE+ Ports
Network Protocol	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP • LLDP • FTP • IPv6 • SNMP
Web Browser	• Chrome (57+) • Firefox (52+) • Edge (91+)
Max. User Access	40 Users; Support up to 32 Simultaneous Video Streams
Power Supply	53.5V DC/2.43 A
Working Temperature	• NVR: -10 °C to 55 °C (14 °F to 131 °F） • Power Adapter: 0 °C to 40 °C (32 °F to 104 °F)
Interoperability	ONVIF Profile G/S/T
Product Dimensions (L x W x H)	10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Weight	• Net Weight: 1.86 Kg (4.1 lbs) • Gross Weight: 3.25 Kg (7.17 lbs)

For additional version information, please go to the support page.

*The NVR AC power cord's specifications vary by country/region. The microSD card is not included in the package.

**The NVR's eight PoE ports support direct connection to eight wired cameras. To add eight more wired orwireless cameras, ensure all devices (NVR and cameras) are on the same LAN.

^†The calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

^☆Using preset voice messages requires Omada Guard App.

^‡The speed of the ports in long distance mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

^△Some features may operate suboptimally due to compatibility issues. For best performance, we recommend using Omada NvRs with Omada cameras.
