Omada NK16-B842

Coming Soon

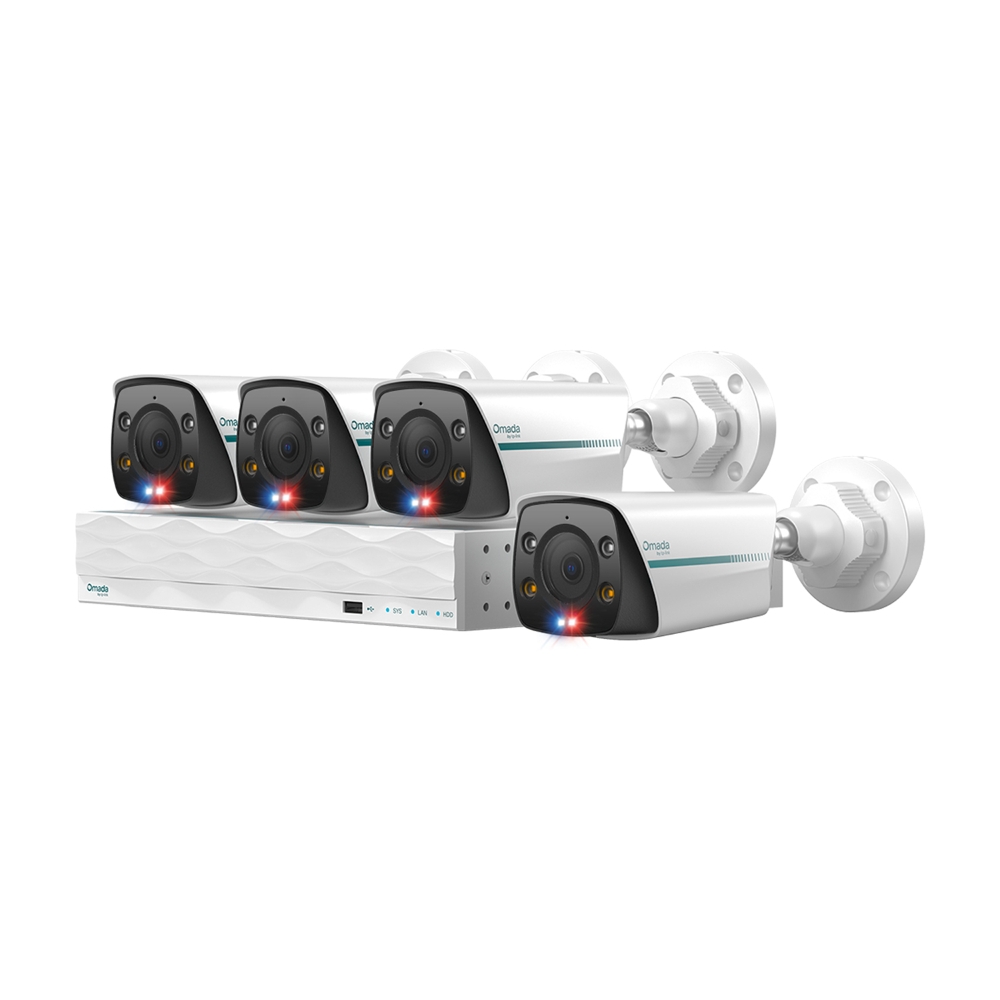

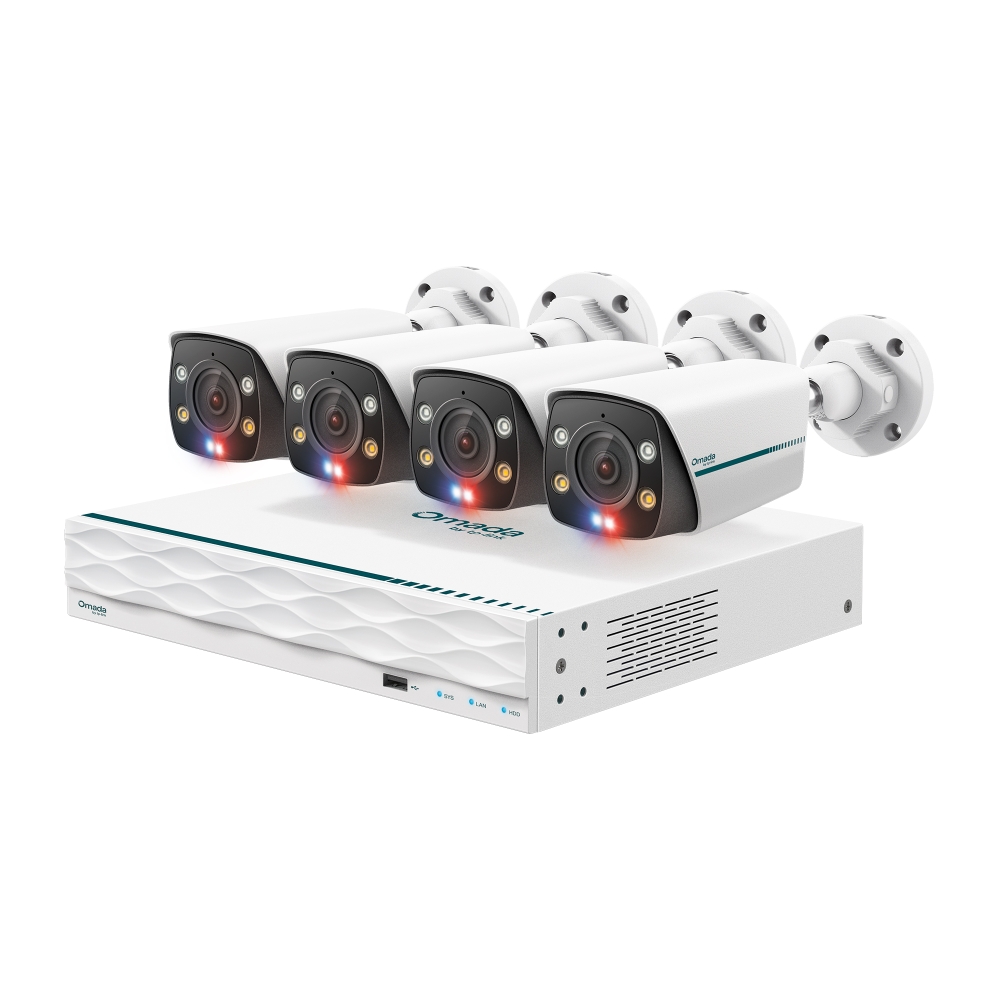

Omada 16 Channel PoE NVR with 8 PoE+ Ports & 4 Bullet Cameras

16 Channel PoE NVR with 8 PoE+ Ports*

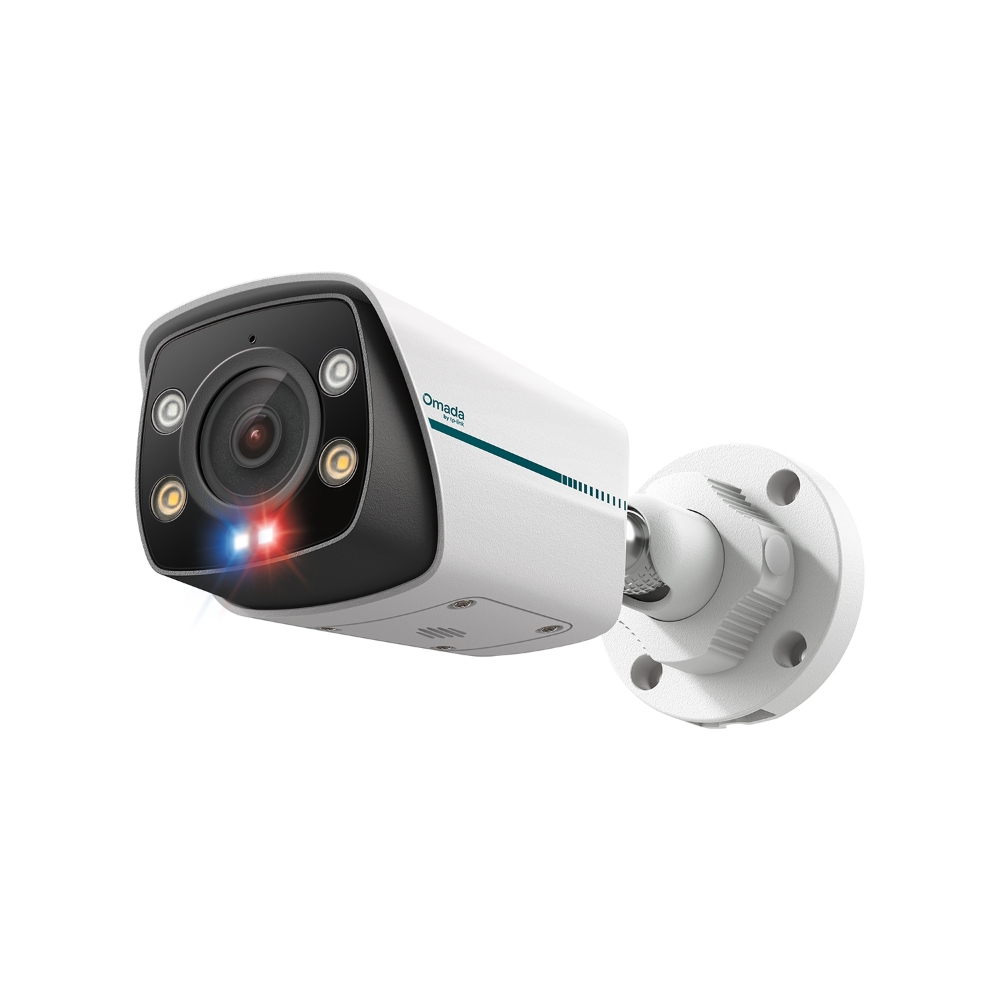

4× 8MP Outdoor Full-Color PoE Bullet Cameras
Red & Blue Flashing Lights and Sirens
Person/Vehicle/Pet Detection
24/7 Continuous Recording and Local Storage
Effortless Installation with PoE+
NVR with 2TB HDD Built-in (Expandable to 16 TB)
Camera with All-Metal Housing, IP67 Weatherproof and IK10 Vandal-Proof

4K 8MP
Ultra HD
Full-Color Day
and Night
Person/Vehicle/
Pet Detection
Red & Blue Flashing
Lights with Sirens
Effortless Installation
with PoE+
24/7 Continuous
Recording
Outdoor & Indoor
Ready
Secure Remote
Control via App

Stunning 4K Ultra HD – See Every Detail Clearly

Captures critical visual details like faces and license plates with stunning clarity, even from a distance.

People and Vehicle-Triggered Full-Color Night Vision

When people or vehicles are detected, spotlights turn on for detailed color videos at night. Otherwise, the camera automatically switches to infrared night vision (up to 98 ft/30 m**) to avoid light disturbance.

When People or Vehicles Are Detected
When No People or Vehicle Are Detected

Versatile Warnings, Proactive Security

Deter Intruders with Powerful Red & Blue Lights and Sirens

Prevention is the best defense. Red and blue flashing lights, plus loud sirens, actively warn intruders before they act.

Person/Vehicle/Pet Detection for Reduced False Alarms

Accurately distinguishes people, vehicles, and pets from other irrelevant objects, reducing false alarms and only sending alerts that matter. No subscription fees required.

Two-Way Talk and Custom Voice Alerts

Talk to visitors or scare off intruders via the app, using the built-in mic and speaker. You can also choose from preset voice messages or create your own for a personalized response.

Quick Target Search with People & Vehicle Attribute Analysis^†

Easily filter and locate targets by searching for attributes of people or vehicles. Perfect for busy retail stores, cafés, and other small high-traffic locations. Speed up your investigation, save time, and minimize losses.

Effortless Installation
with PoE+

One network cable delivers both power and
data (up to 886 ft/270 m^‡) without any
complex wiring. Easy for DIY beginners.

Omada Camera

Omada NVR

Built to Last - Indoor & Outdoor Ready

IK10 Vandal-Proof
IP67 Weatherproof
All-Metal Housing
-22° F | -30° C to 140° F | 60° C
Working Temperature
-40° F | -40° C to 140° F | 60° C
Storage Temperature

Ideal for Your Home and Small Business

Add 12 more cameras to create a complete 16-channel security system.

Residential
Retail
Cafés
Warehouses

24/7 Continuous Recording

The NVR includes a built-in 2TB HDD (expandable to 16 TB), and the camera supports onboard microSD card^△ (up to 512 GB), enabling 24/7 continuous recording.

Pre-installed

2TB

up-to

16TB

Total Recording Channels

Days of Continuous Storage with 2TB HDD

Four

Eight

Twelve

Sixteen

1.5

6 Days 512GB
3 Days 256GB
1 Days 128GB
0.75 Days 64GB

up to

512GB

Note: Calculations are based on the camera's maximum bit rate of 8 Mbps. Actual data usage may vary depending on settings and conditions.

Smart Storage Optimizes Space Without Compromising Details

Omada Smart Storage Mode

Continuously stores low-res video with extra HD footage saved when events are detected.

No Monthly Fees –
Local Storage

Save your recordings locally either on the camera’s
microSD card or NVR’s hard drive. No monthly fees, no
hidden costs.

Full Compatibility with ONVIF Support

Works seamlessly with Omada cameras and third-party cameras that support ONVIF for simple expansion and integration with existing systems.^△

Enterprise-Grade Data Security

Network Security

Encrypted data transmission and advanced identity verification.
Privacy Protection

Sensitive data such as accounts and passwords is double-encrypted.
Secure Firmware Updates

Firmware updates are verified and delivered through secure channels to block tampering.

Secure Remote Control via App and Client

Keep an eye on your home or business anytime, anywhere with real-time access and smart alerts right from your app or desktop client.

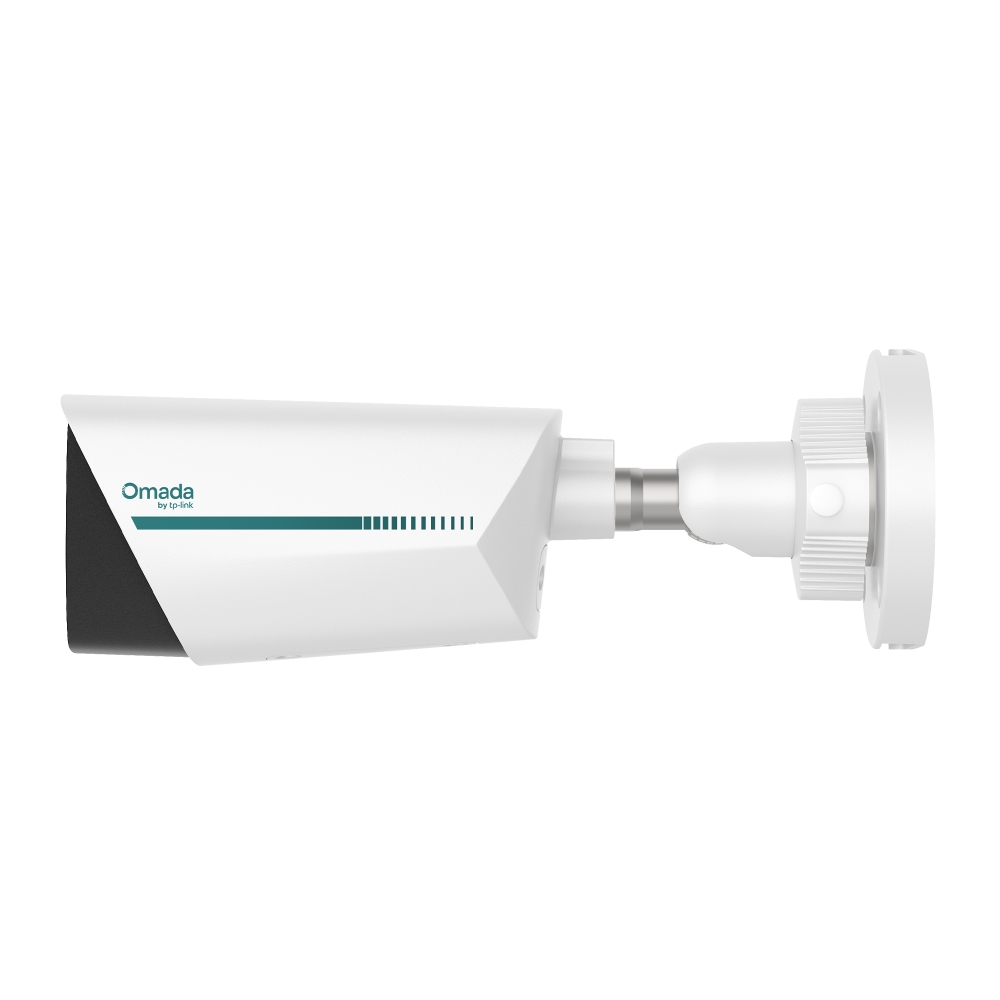

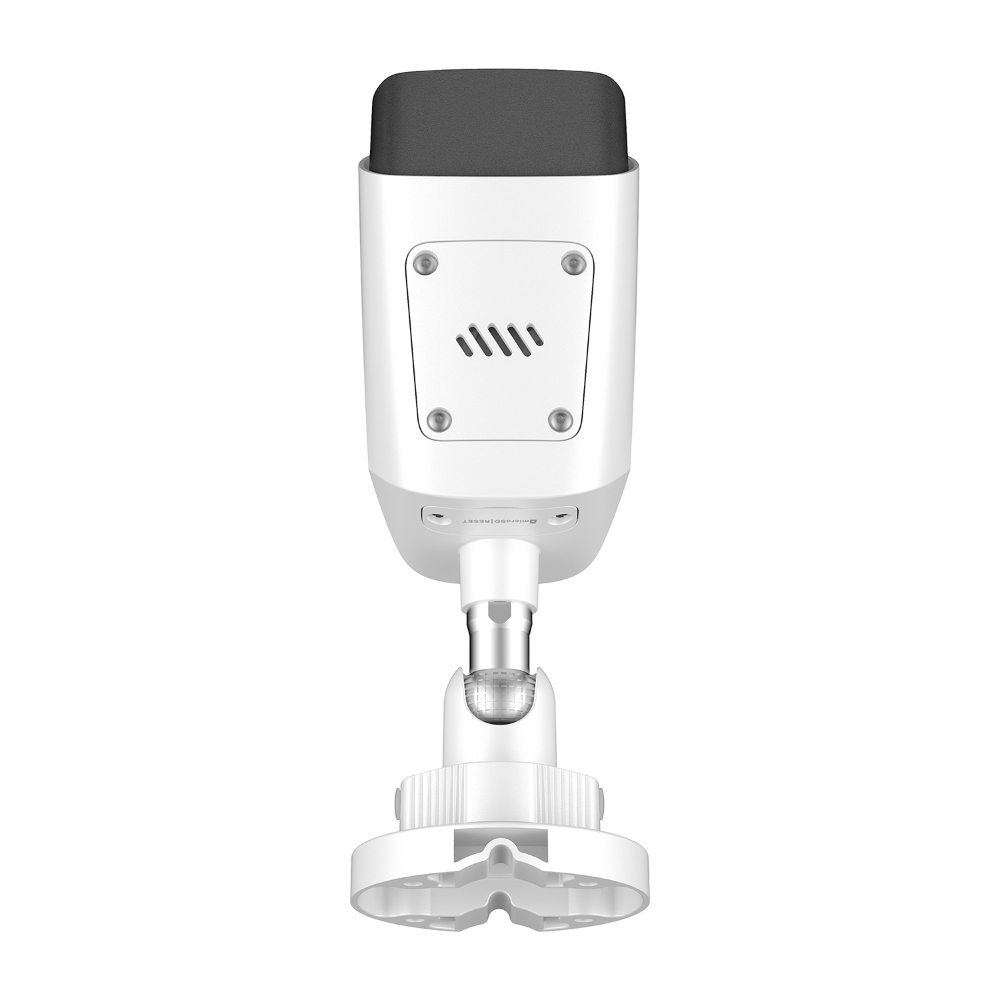

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Aperture	F1.6
Lens	4 mm, Fixed Focal Lens
FOV	Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
White LED	• Quantity: 2 • Range: 98 ft (30m)
IR LED	• Quantity: 2 • Range: 98 ft (30 m) • Wavelength: 850nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	3840 x 2160 (8MP)
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 840x480,704x576,640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Video Bit Rate	• Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
Smart Alarms	• Person/Vehicle/Pet Detection • Motion Detection • Line-Crossing Detection • Intrusion Detection
Recording Modes	Human or Vehicle-Triggered Recording, Scheduled Recording, 24/7 Recording (Default)
People & Vehicle Attribute Analysis	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^†

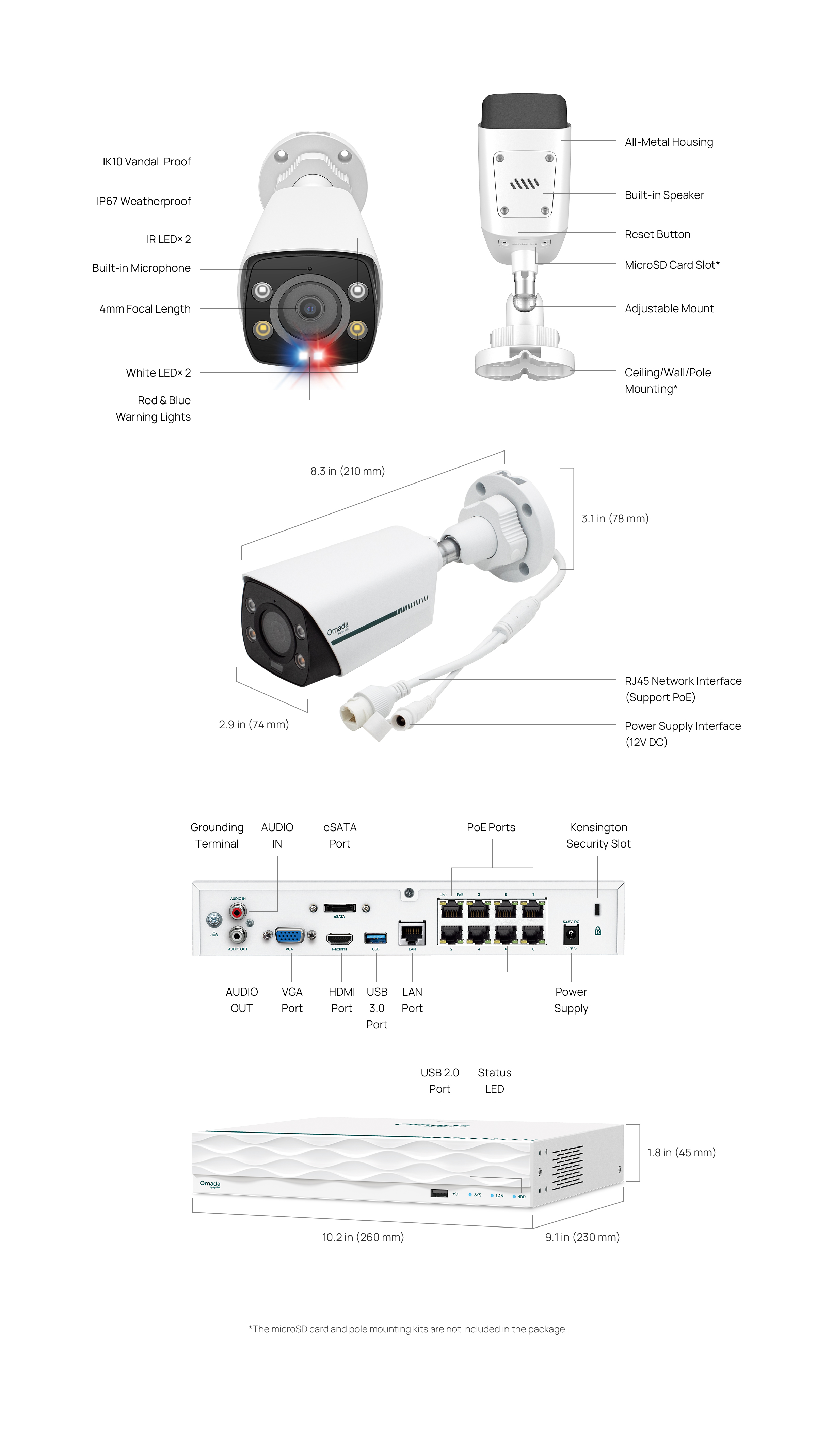

Interface & Button	• Buit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera • Buit-in Speaker • 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE • 1× DC Port • Reset Button • Red & Blue Warning Lights • Buit-in Memory Card Slot, Support MicroSD Card, up to 521GB^△
Operating Temperature	-30 ℃ to 60 °C (-22 ℉ to 140 ℉)
Operating Humidity	95% or Less (Non-Condensing)
Power Supply	• 12V DC/1A, Max. 10.5 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af, 36-57 V/0.36A, Class 3
Protection	• IP67 Weatherproof • IK10 Vandal Proof
Product Dimensions (L x W x H)	8.3 × 2.9 × 3.1 in (210 × 74 × 78 mm)
Weight	• Gross Weght: 0.94 Kg (2.07 lbs) • Net Weght: 0.6 Kg (1.32 lbs)

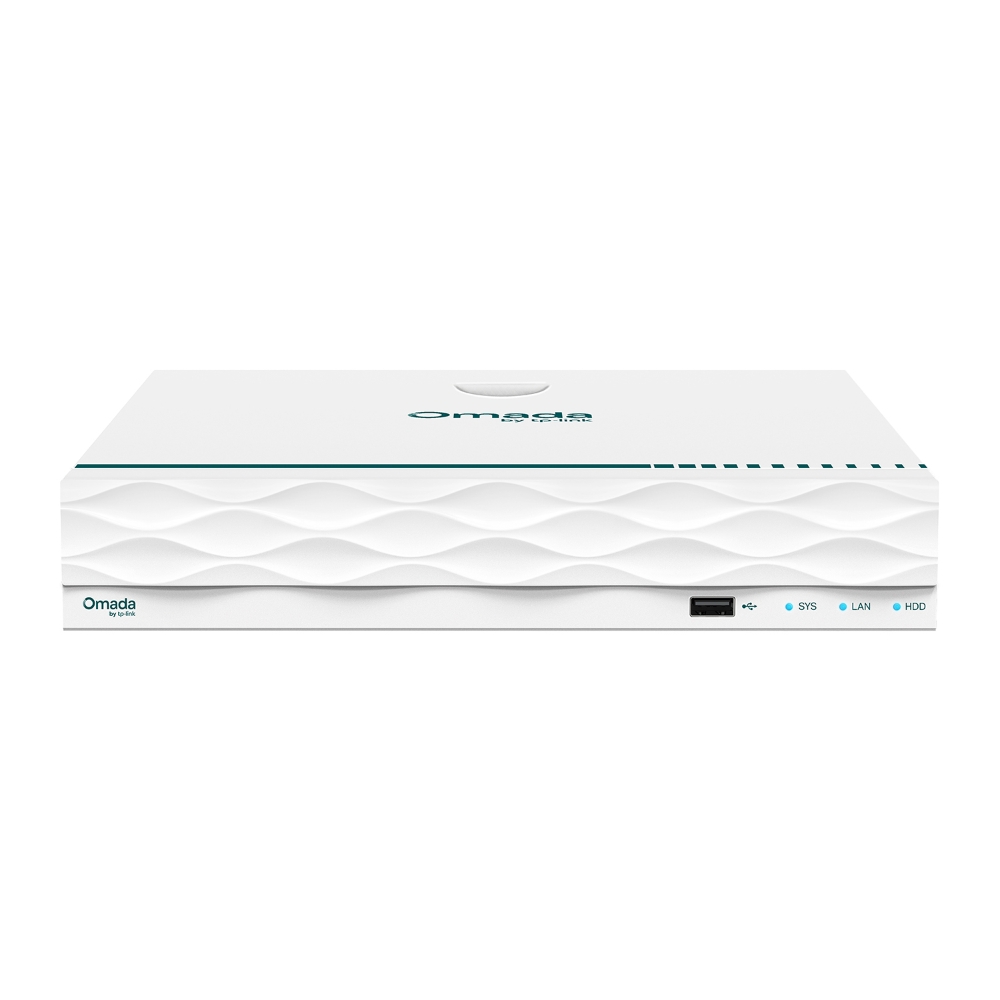

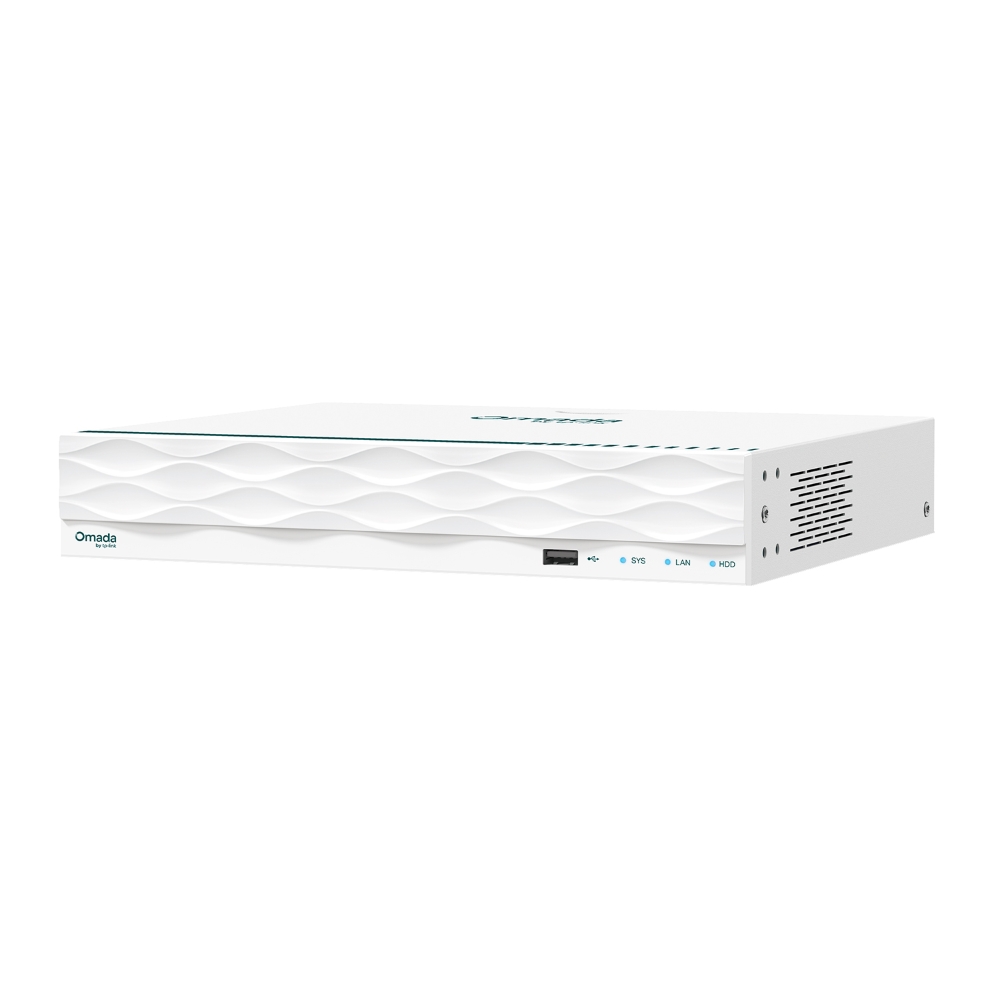

NVR
IP Video Input	16-Channel*
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Compression	H.265+/H.265/H.264+/H.264
Record Resolution	16MP/8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF
Synchronous Playback	16-Channel
Decoding Capability	• 25fps: 10-ch @ 1080P • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled
PoE Budget	60 W Available for All PoE+ Ports, 30 W Max per Port

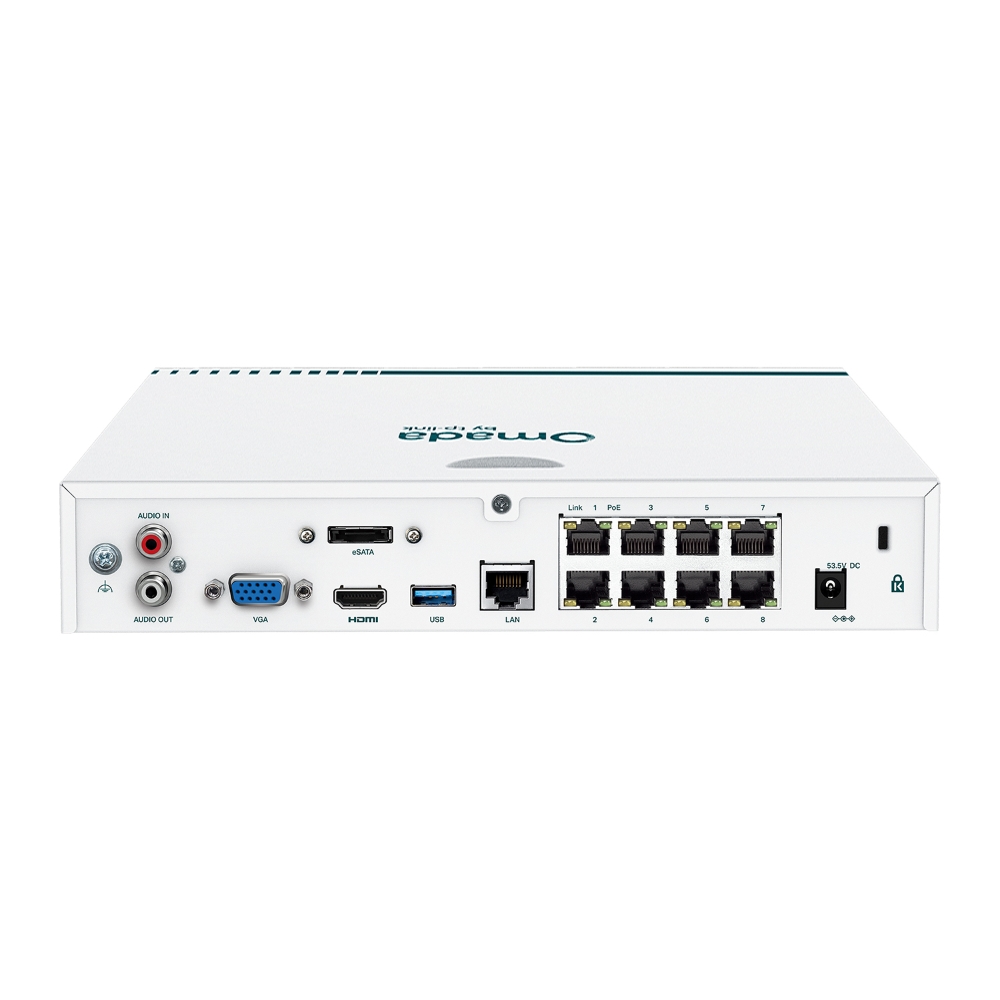

External Interfaces	• 1× eSATA, Supports External Storage Devices up to 16TB • 1× HDMI Port • 1× VGA Port • 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port • 1× RCA Audio In Port, 1× RCA Audio Out Port • 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port • 1× DC Power Supply Port • 8× PoE+ Ports
Network Protocol	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP
Web Browser	• Chrome (57+) • Firefox (52+) • Edge (91+)
Max. User Access	40 Users; Support up to 32 Simultaneous Video Streams
Power Supply	53.5V DC/1.31 A
Working Temperature	• NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉)
Interoperability	ONVIF Profile S/T/G
Product Dimensions (L x W x H)	10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Weight	• Net Weight: 1.86 Kg (4.1 lbs) • Gross Weght: 3.25 Kg (7.17 lbs)

For additional version information, please go to the support page.

*The NVR's eight PoE ports support direct connection to eight wired cameras. To add eight more wired orwireless cameras, ensure all devices (NVR and cameras) are on the same LAN.

**The calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

^†This feature is in development and requires Omada cameras supporting People & Vehicle Attributes Analytics and Omada NVRs.

^‡The speed of the ports in long distance mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

^△The Micro SD card is not included in the package.
