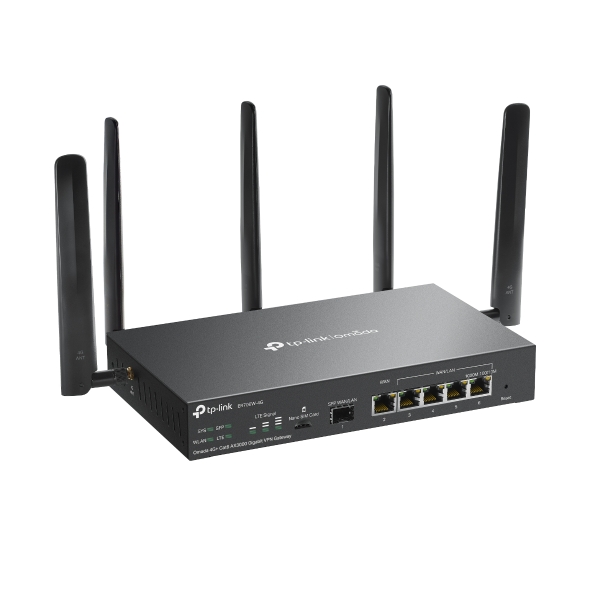

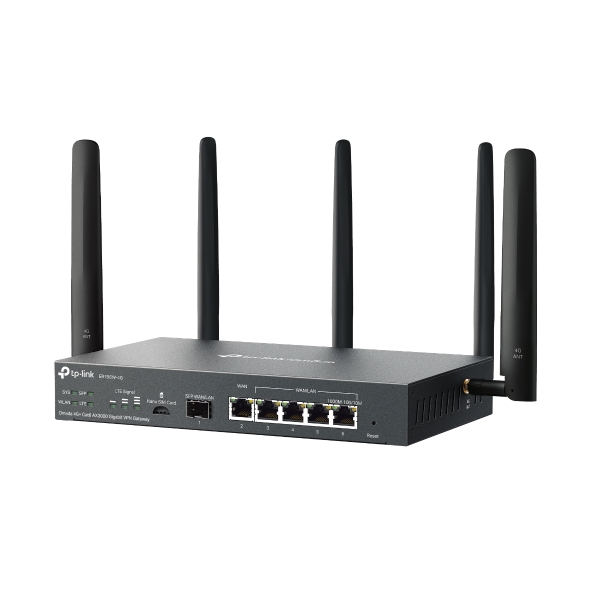

Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway
- Support 4G+ Cat6 up to 300 Mbps* ( Not compatible with AT&T's Text & Data plans** in the US ).
- AX3000 Dual-Band WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***
- 1× Gigabit WAN Port, 5× Gigabit WAN/LAN Ports
- 5 × High-Gain Detachable Antennas
- Centralized Management
- Omada Mesh Technology.*△
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.△
Learn more about Omada Cloud SDN>








Centralized Management
Access 4G+ Speed
Anywhere, Anytime
Omada 4G+ Cat6 AX3000 Wi-Fi 6
Gigabit VPN Gateway
ER706W-4G
-
4G+ Cat6 up to
300 Mbps -
2402 Mbps +
574 Mbps* -
5× Gigabit
Ethernet Ports -
1× Nano SIM
Card Slot -
IPSec/L2TP/PPTP/
OpenVPN/GRE/
WireGuard/SSL VPN -
Centralized
Management -
Load
Balancing -
Omada
App
Get Instant 4G+ LTE Internet up to 300 Mbps
4G LTE Gateway
4G+ Cat6 Gateway
Always-Online with
AX3000 WiFi 6
5 GHz
2402 Mbps
2.4 GHz
574 Mbps
Dual Band
HE160
OFDMA
1024 QAM
Seamless Integration into Omada SDN
-
Cloud Access
WiFi6 Ceiling
Mount APWall Plate AP
Outdoor AP
Omada PoE
SwitchOmada VPN
Gateway
ER706W-4GWeb Browser
Omada App
Omada Hardware Controller
Or
Or
Omada Software Controller
On-premises Controllers
Omada Cloud-Based Controller #
(Essentials Services and Standard Services are optional)Internet
4G | |
---|---|
Network Type | LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz) Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71 |
SIM Type | 1× Nano SIM Card |
Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
SECURITY | |
---|---|
DPI | Application control via DPI / Updated app library |
IDS/IPS | Signature-based IPS/IDS threat detection |
Access Control | Source/Destination IP Based Access Control/FQDN |
Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding • ARP Detection |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES | |
---|---|
Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
Button | Reset Button |
Power Supply | 12VDC / 2A Power Adapter |
Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
Flash | 128 MB NAND |
DRAM | 512 MB DDR4 |
LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas |
Mounting | Desktop/Wall-Mounting |
Max. Power Consumption | EU: 15.4W US: 17.3W |
PERFORMANCE | |
---|---|
IPS Throughput | • TCP: 229 Mbps • UDP: 188 Mbps |
DPI Throughput | • TCP: 933 Mbps • UDP: 927 Mbps |
GRE | • Unencrypted: 545.3Mbps • Encrypted: 282.6Mbps |
WireGuard VPN | 387.7Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 5,100 |
NAT (Static IP) | 947.1Mbps / 940.1Mbps |
NAT(DHCP) | 949.2Mbps / 941.1Mbps |
NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
NAT (L2TP) | 875.4Mbps / 892.0Mbps |
NAT (PPTP) | 881.2Mbps / 895.8Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps |
OpenVPN | 115.5Mbps |
L2TP VPN Throughput | • Unencrypted: 990.0Mbps • Encrypted: 475.0Mbps |
PPTP VPN Throughput | • Unencrypted: 1177.9Mbps • Encrypted: 177.4Mbps |
SSL VPN Throughput | 122.5Mbps |
66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
WIRELESS FEATURES | |
---|---|
Advanced Features | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) |
Guest Network | Support |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
MAC Clone | Modify WAN Address |
DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
SMS | Receive / Send SMS |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
Advanced Features | |
---|---|
Access Control | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
Bandwidth Control | IP-Based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
Session Limit | IP-Based Session Limit |
VPN | |
---|---|
GRE | Only in Standalone Mode |
SD-WAN | √ (Only in Controller Mode) |
SSL VPN | 50 Tunnels |
IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)△ • 50 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)△ • 50 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (5)△ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
WireGuard VPN | • 20 Tunnels |
AUTHENTICATION | |
---|---|
Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP |
Management Features | |
---|---|
Omada App | Yes. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHER | |
---|---|
Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Content | • ER706W-4G • Power Adapter • Quick Installation Guide |
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
*Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
** "Text & Data plans" refer to plans supporting both SMS text messaging and data services. Such plans from AT&T may not be compatible with our products.
***Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
*△Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W-4G also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions or countries due to regulatory restrictions.
△For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.
†These functions are supported only in Standalone Mode.
§These functions are supported only in Controller Mode.
#The Omada cloud-based controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
