Omada B80

Coming Soon

4K 8MP
Ultra HD
Full-Color Day
and Night
Person/Vehicle/
Pet Detection
Red & Blue Flashing Lights with Sirens
Flexible Local
Storage
People & Vehicle Attributes Analytics
Smart IR & Color
Night Vision Switch
All-Metal Housing &
IP67 Weatherproof

Stunning 4K Ultra HD – See Every Detail Clearly

Captures critical visual details like faces and license plates with stunning clarity, even from a distance.

People and
Vehicle-Triggered
Full-Color Night Vision

When people or vehicles are detected, spotlights turn on for detailed color videos at night. Otherwise, the camera automatically switches to infrared night vision (up to 98 ft/30 m**) to avoid light disturbance.

When People or Vehicles are Detected
When No People or Vehicle are Detected

Versatile Warnings, Proactive Security

Please leave!

Deter Intruders with Powerful Red & Blue Lights and Sirens

Prevention is the best defense. Red and blue flashing lights, plus loud sirens, actively warn intruders before they act.

Person/Vehicle/Pet Detection for Reduced False Alarms

Accurately distinguishes people, vehicles, and pets from other irrelevant objects, reducing false alarms and only sending alerts that matter. No subscription fees required.

Please leave it by the door.

Hello, package delivery.

Two-Way Talk and Custom Voice Alerts

Talk to visitors or scare off intruders via the app, using the built-in mic and speaker. You can also choose from preset voice messages or create your own for a personalized response.

Search by
People Attributes

Search by
Vehicle Attributes

Quick Target Search with People & Vehicle Attributes Analytics^†

Easily filter and locate targets by searching for attributes of people or vehicles. Perfect for busy retail stores, cafés, and other small high-traffic locations. Speed up your investigation, save time, and minimize losses.

Effortless Installation
with PoE+

One network cable delivers both power and data (up to 886 ft/270 m^‡) without any complex wiring. Easy for DIY beginners.

Omada NVR

Omada Camera

Built to Last - Indoor & Outdoor Ready

IK10 Vandal-Proof
IP67 Weatherproof
All-Metal Housing
-22° F | -30° C to 140° F | 60° C
Working Temperature
-40° F | -40° C to 140° F | 60° C
Storage Temperature

Ideal for Your Home and Small Business

Connect with the Omada NVR for a complete business-grade security system. Monitor remotely, deter intruders, and protect your property.

Residential
Retail
cafés
Warehouses

24/7 Continuous
Recording

Supports microSD cards (up to 512GB) for 24/7 continuous local recording—keeping you in full control.

6 Days 512GB
3 Days 256GB
1 Days 128GB
0.75 Days 64GB

up to

512GB

Note: Calculations are based on the camera's maximum bit rate of 8 Mbps. Actual data usage may vary depending on settings and conditions.

No Monthly Fees –
Local Storage

Save your recordings locally either on the camera’s
microSD card or NVR’s hard drive. No monthly fees, no
hidden costs.

Full Compatibility with
ONVIF Support

Omada cameras integrate easily with Omada NVRs and third-party NVRs that support ONVIF, fitting seamlessly into existing security systems.^△

Other Camera

Other NVR

Omada Camera

Enterprise-Grade Data Security

Network Security

Encrypted data transmission and advanced identity verification.
Privacy Protection

Sensitive data such as accounts and passwords is double-encrypted.
Secure Firmware Updates

Firmware updates are verified and delivered through secure channels to block tampering.

Secure Remote Control via App and Client

Keep an eye on your home or business anytime, anywhere with real-time access and smart alerts right from your app or desktop client.

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	• Horizontal FOV: 88° • Vertical FOV: 46° • Diagonal FOV: 105.4°
Lens Mount	M12
DORI Distance	4 mm: • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 98 ft (30 m)** • IR Wavelength: 850 nm
White LED	• Quantity: 2 • Range: 98 ft (30 m)**
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840x2160
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If the 120dB mode is enabled, the frame rate can only reach up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If the 120dB mode is enabled, the frame rate can only reach up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Rotation • Contrast • Saturation • Sharpness • Exposure • White Balance • Prevent Overexposure to Infrared Light
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes (Built-in Microphone)
Audio Output	Yes (Built-in Speaker)
Audio Compression	Yes
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, ARP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 10 Sub-Streams
Client	Web UI, Omada Guard App, Omada Guard PC Client, Omada Central Web Portal
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Human Detection • Vehicle Detection • Pet Detection • Line Crossing Detection • Intrusion Detection
Basic Event	• Motion Detection • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm

Deep Learning Function
People & Vehicle Attributes Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^†

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	Red & Blue Flashing Lights and Siren
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes

GENERAL
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

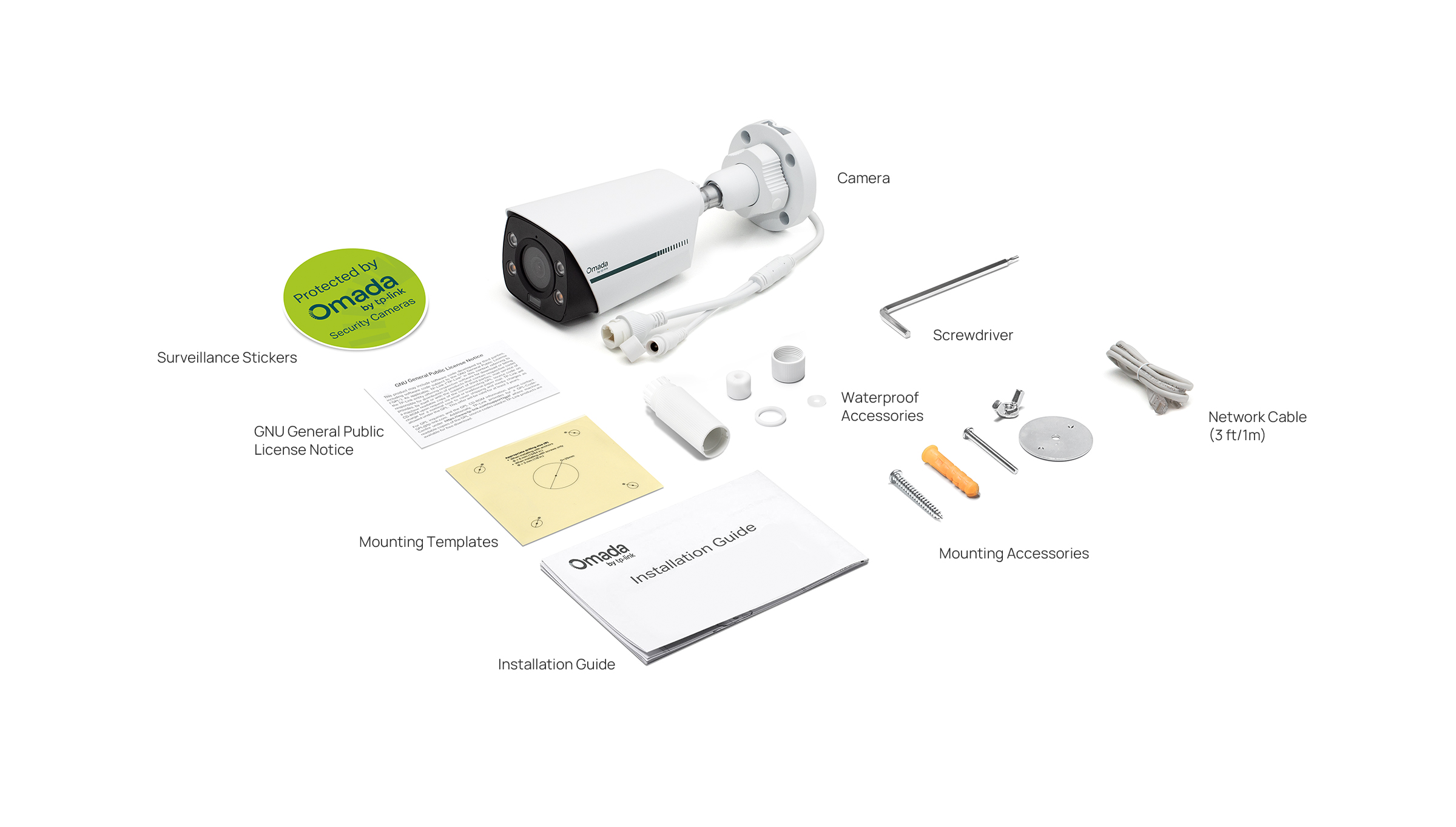

Package Content	• Omada Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	• Housing: Metal • Front Cover: Plastic
Net Weight	0.6 Kg
Power Supply	• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af, 36-57V/0.36A, Class 3, Max. 12 W
Protection	• IP67 Weatherproof • IK10 Vandal Proof

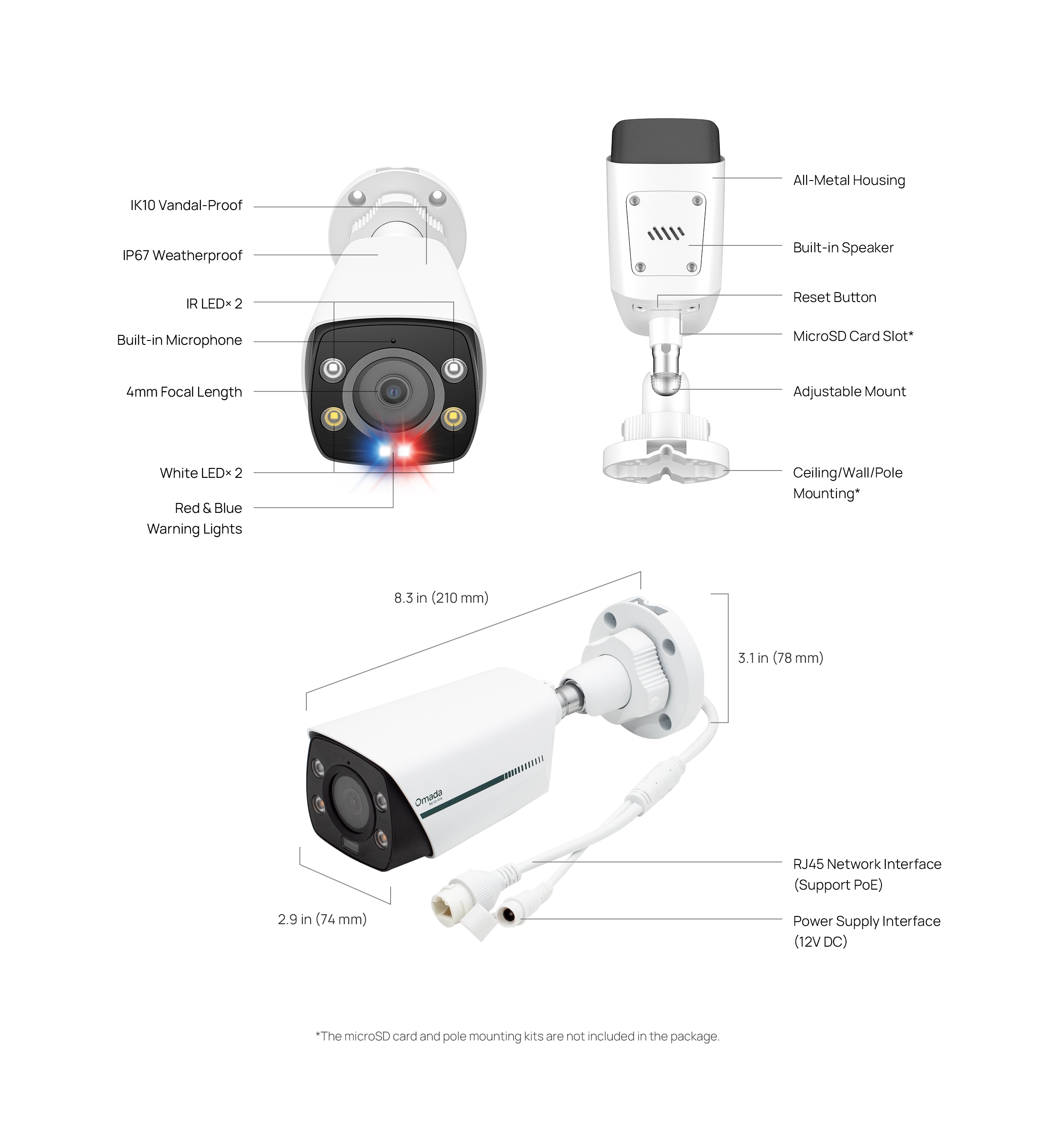

Product Dimensions (L x W x H)	8.3 × 2.9 × 3.1 in (210 × 74 × 78 mm)
Certifications	CE, NTRA, FCC, IP67, IK10, VCCI, BSMI, ONVIF

For additional version information, please go to the support page.

**The calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

^†This feature is in development and requires using an Omada NVR.

^‡The speed of the Omada NVR's PoE ports in long distance mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

^△Some features may operate suboptimally due to compatibility issues. For best performance, we recommend using Omada NvRs with Omada cameras.

*The microSD card is not included in the package.
