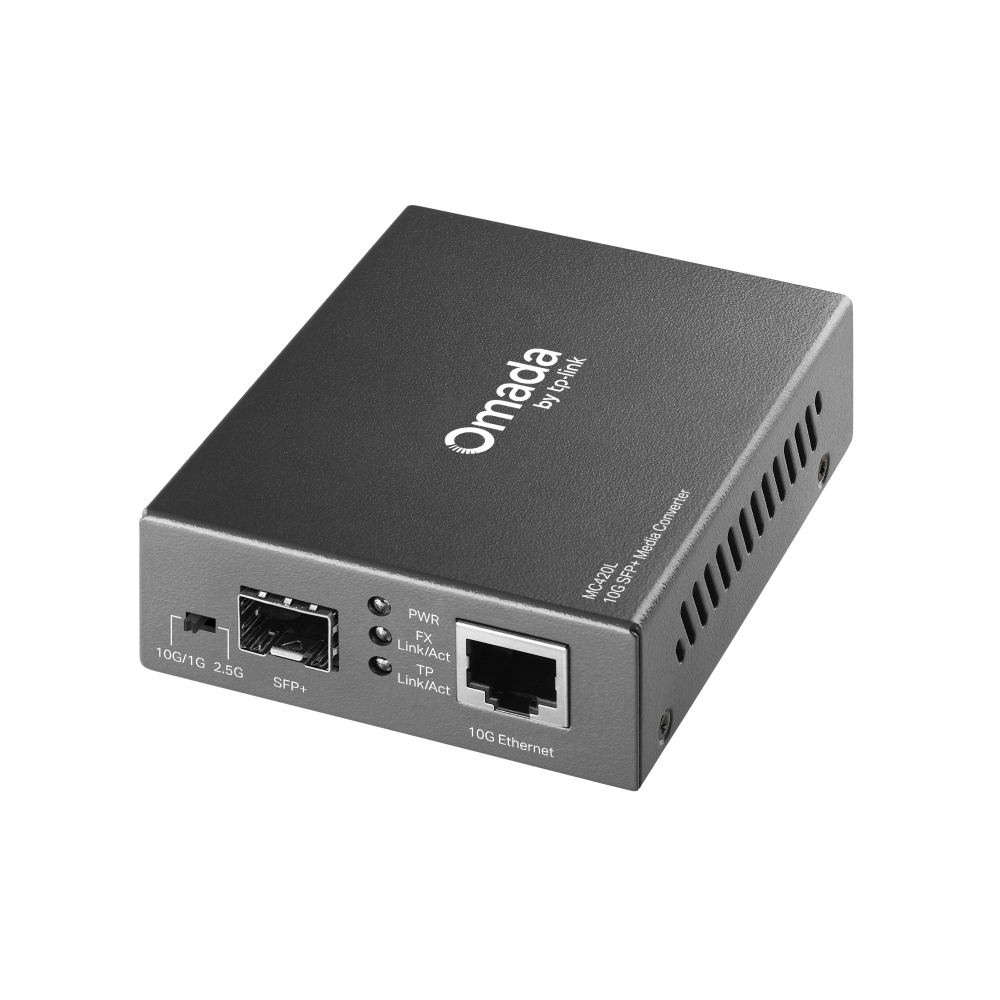

Omada 10G Multi-Gigabit SFP+ Media Converter
- 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
- Easy switching between 1G/10G and 2.5G optical port modes
- Optical port supports hot-swappable
- Maximum transmission distance depends on the inserted SFP+/SFP Module
What This Product Does
The MC420L is a versatile, high-performance media converter designed to bridge 10G/2.5G fiber and 10GBASE-T copper networks. Its standout feature is a user-selectable DIP switch that enables flexible selection of the optical port speed—1G/10G or 2.5G. This makes it a perfect solution for both seamlessly upgrading legacy gigabit infrastructure and deploying new multi-gigabit backbones.
With this multi-gigabit fiber converter, building long-range, point-to-point connections is effortless, making it ideal for network extensions across multiple buildings, remote surveillance, and automated factory equipment.
The MC420L offers flexible installation options, either as a standalone desktop unit or mounted in a compatible multi-slot chassis(Omada MC1400). Easy-to-view front panel LEDs provide real-time network status, and the maximum transmission distance is determined by the specific SFP/SFP+ module used.
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE 802.3aq, 2.5G base-X |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module |
| Interface | • 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port |
| Wave Length | Depends on the used SFP/SFP+ module |
| Network Media 10GBASE-R | Multi-mode/Single-mode SFP+ module |
| Network Media 10GBASE-T | •1000BASE-T/2.5GBASE-T/5GBASE-T:4-pair UTP/STP of Cat. 5e or above (max. 100 m)•10GBase-T:4-pair UTP of Cat. 6 (max. 55m), 4-pair UTP of Cat. 6a (max. 100m), or 4-pair STP of Cat. 6 or above (max. 100m) |
| Dimensions ( W x D x H ) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter: 9V/0.6A |
| Max. Power Consumption | 5.26 W |
| LED | PWR, FX Link/Act, TP Link/Act |
| Safety & Emission | CE, FCC |
| Package Content | • MC420L• Power Adapter• Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%RH~90%RH Non-condensing• Storage Humidity: 5%RH~90%RH Non-condensing |
