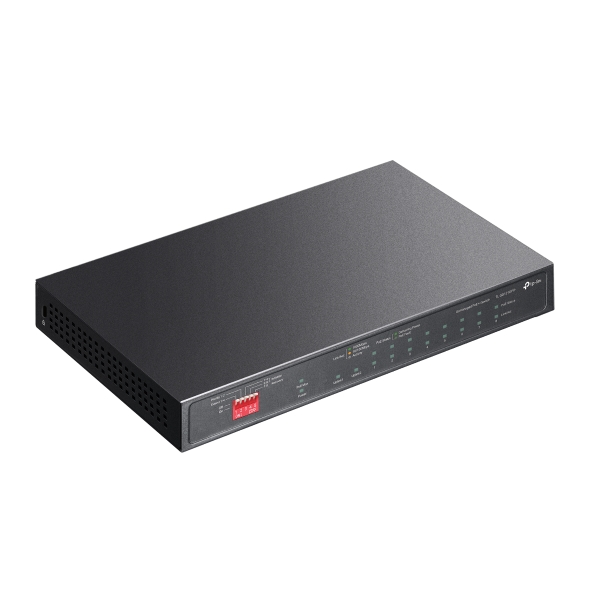

TL-SG1210PP
10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
- 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
- With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- Plug and Play, no configuration and installation required
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at• Power Supply: 123 W |
| Mac Address Table | 4K |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Max. Power Consumption | • 8.7 W (220/50 Hz. no PD connected)• 144.1 W (220/50 Hz. with 123 W PD connected) |
| Max. Heat Dissipation | • 29.67 BTU/h (220/50 Hz. no PD connected)• 491.38 BTU/h (220/50 Hz. with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-8)• Isolation Mode (Ports 1-4/5-8)• Priority Mode (Ports 1-2) |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • TL-SG1210PP• Power Adapter• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
