TL-SG1005P-PD
5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

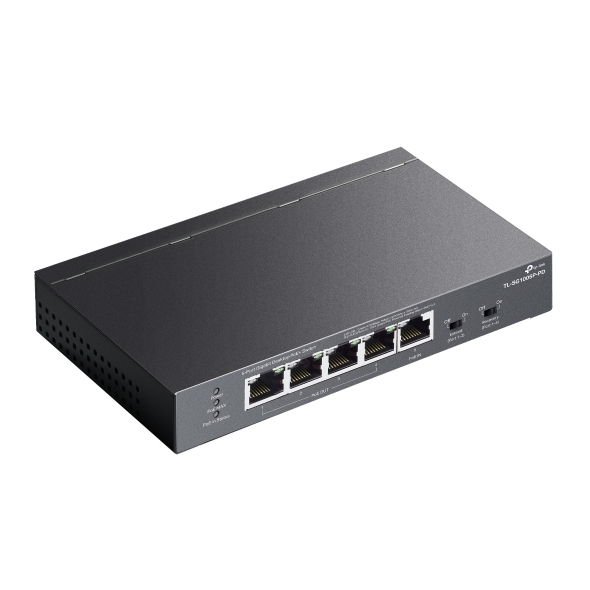

- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.

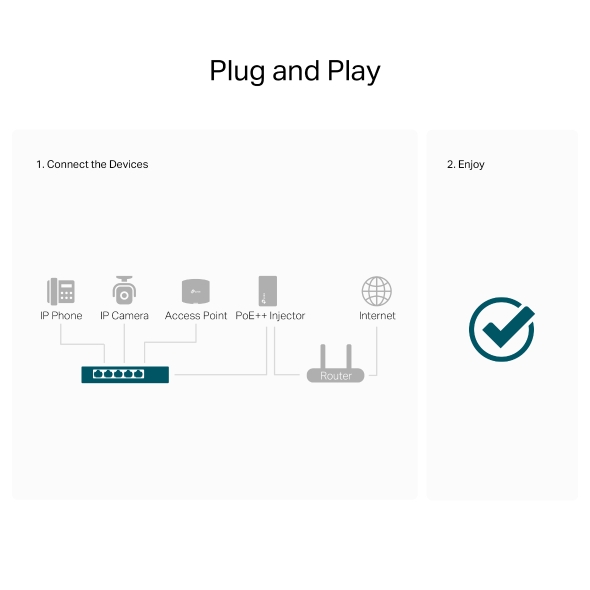

- Plug and Play: No configuration and installation required.

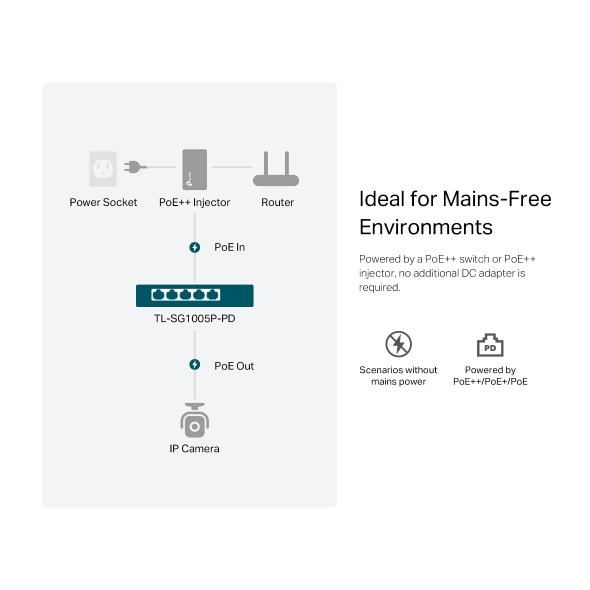

- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Стандарти и протоколи | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
| Интерфейс | • 5× 10/100/1000Mbps RJ45 Ports• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)• AUTO Negotiation• AUTO MDI/MDIX |
| Мрежова медия | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Брой вентилатори | Fanless |
| Захранване | Only Powered by PoE Device |

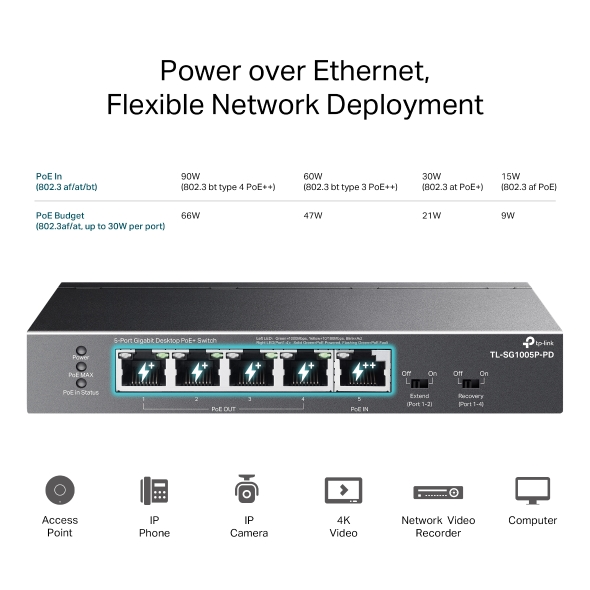

| PoE портове (RJ45) | • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4• PoE Out Ports: Ports 1-4, compliance with 802.3af/at• PoE Power Budget:-66 W when powered by 802.3bt Type 4 (90 W)-47 W when powered by 802.3bt Type 3 (60 W)-21 W when powered by 802.3at (30 W)-9 W when powered by 802.3af (15.4 W) |
| Размери (Ш x Д x В ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Макс. консумация на енергия | • 2.68 W (90W PoE In, with no PD connected)• 68.59 W (90W PoE In, with 66 W PD connected) |
| Max. Heat Dissipation | • 9.112 BTU/h (90W PoE In, with no PD connected)• 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| ПРОИЗВОДИТЕЛНОСТ | |
|---|---|
| Комутационен капацитет | 10 Gbps |
| Скорост на предаване на пакети данни | 7.44 Mpps |
| Таблица на МАС адресите | 2k |
| СОФТУЕРНИ ХАРАКТЕРИСТИКИ | |
|---|---|

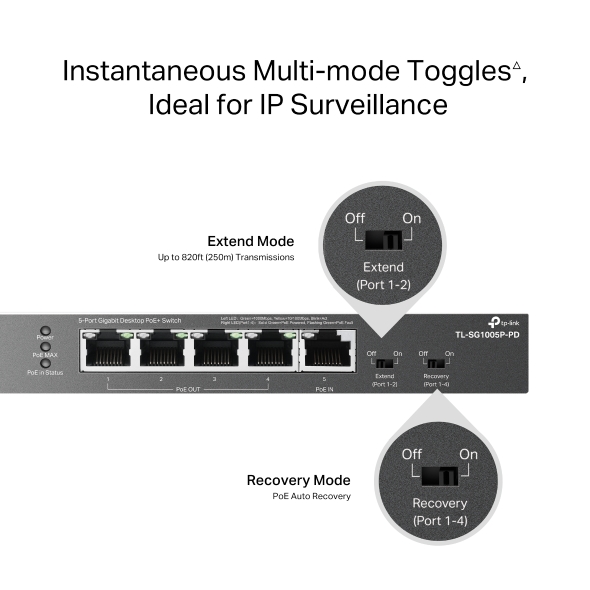

| Разширени характеристики | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping |
| Transmission Method | Store-And-Forward |
| ДРУГИ | |
|---|---|
| Сертификати | CE, FCC, RoHS |
| Съдържание на пакета | • TL-SG1005P-PD• Installation Guide |
| Околна среда | • Operating Temperature: -30–70 ℃ (-22–158 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
