EAP115-Bridge KIT

Omada 5 GHz 300 Mbps Long-Range Indoor/Outdoor Wireless Bridge

  • Multi-Kilometer Transmission Distance: Ideal for long-range wireless transmission up to 5 km.*
  • Plug-and-Play Setup: Supports auto-pairing and agile LEDs for efficient deployment.
  • Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE, and 12V DC for versatile deployment.
  • Efficient Management: Supports Omada SDN for remote and centralized management via Web or App.§
  • 3× Fast Ethernet Ports: Provides high-speed connections to more lP cameras.
  • Ideal for Outdoor Scenarios:  IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability, with a reliable operating range of -40 °C to +70 °C.**

Omada 5 GHz 300 Mbps
Long-Range PtMP & PtP
Indoor/Outdoor
Wireless Bridge

EAP115-Bridge KIT

  • Up to 3.1 mi (5 km)
    Wi-Fi Transmission

  • Auto-Pairing with Preconfigured Kit

  • Effortless App-Guided Alignment

  • Instant Multi-Bridge Auto-Pairing

  • 802.3af PoE/12 V
    DC/24 V Passive PoE

  • 3× Gigabit
    Ethernet Ports

  • IP65 Weatherproof &
    6 kV Lightning
    Protection

  • Centralized
    Management via
    Web or App**

Long-Range Wi-Fi Extension
Expand Networks &
Monitor Remotely

PoE (Power over Ethernet)
Data
Omada App
OR
Web Portal
Versatile Power
(PoE Switch, Passive PoE, 12 V DC supported)
Main Site
Up to 5 km/3.1 mi
Versatile Power
(PoE Switch, Passive PoE, 12 V DC supported)
Internet
IP Camera
IP Camera
Remote Site

Perfect for Surveillance
and More

  • Farms / Orchards / Ranches

    Farms / Orchards / Ranches

  • Additional Offices

    Additional Offices

  • Construction Sites

    Construction Sites

  • Parking Lots

    Parking Lots

Omada SmartBridging:
The Most Effortless Bridge Setup Ever

LED Signal Indicators

Auto-Pairing

Main AP

Auto-Pairing

Auto-Pairing

Client AP

Additional Client AP

Multiple Bridges Auto-Pairing:

Step 1:
Switch to Client AP Mode

Step 2:
Press the pair button to initiate auto pairing with the main AP

After Alignment

Versatile Power & Connectivity for Expanded Surveillance

3× Fast Ethernet Ports

PoE

PoE Switch

or

PoE Injector

PoE In

DC Power

or

Solar Power System

DC Power (Compatible with Solar Power System)

Robust Outdoor Design for Long-Lasting Reliability

  • IP65 Weatherproof

    IP65
    Weatherproof

  • 6 kV Lightning Protection

    6 kV Lightning
    Protection

  • -40 °C-70 °C Working Range

    -40 °C-70 °C
    (-40 °F-158 °F)
    Working Range

  • Wind Resistance

    Wind
    Resistance

Seamless Integration into Omada SDN

On-Premises Controllers

Or

Or

Omada Central (Cloud-Based)

Hardware

Software

Network Video
Recorder

Omada Switch

Omada Gateway

Internet

Cloud Access

Omada App

Web Browser

EAP115-Bridge
Long-Range
Wireless Bridge
EAP115-Bridge
Long-Range
Wireless Bridge
IP Cameras

WiFi bridge

WiFi bridge

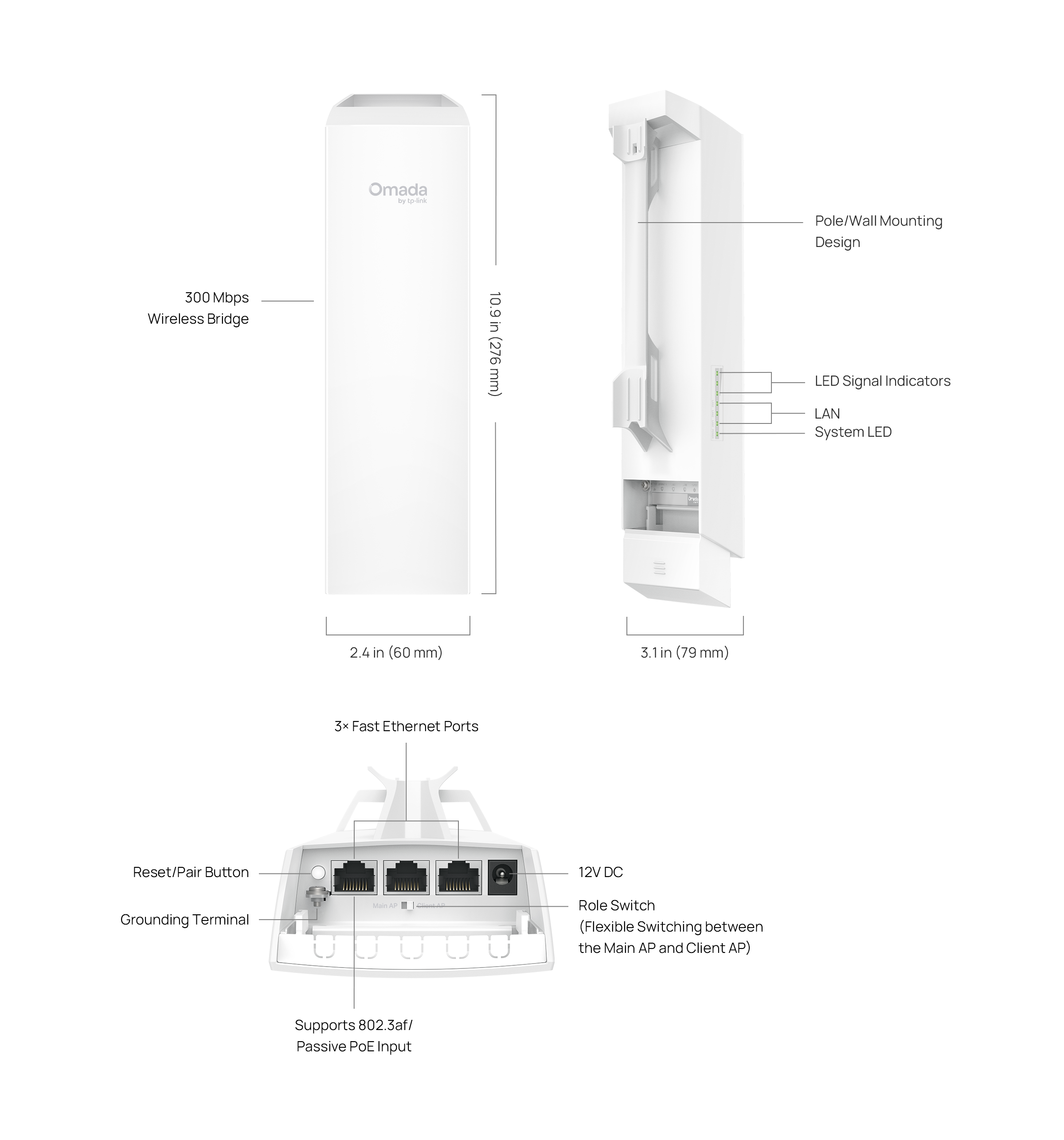

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Интерфейс 3x 10/100 Mbps Ethernet Ports*6
Бутон Reset
DIP Switch Role Switch
Захранване 12V DC / 802.3af PoE / 24V Passive PoE
Консумирана енергия 6.0W
Размери (Ш x Д x В ) 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Антена Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 14.0 dBi
Horizontal Beamwidth: 35°
Weatherproof Enclosure IP65
Монтаж Pole and wall mounting ( Pole accessories included)
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
Coverage 5 km (3.1 mi)
Безжични стандарти IEEE 802.11 a/n
Честотa 5 GHz
Скорост на сигнала 5 GHz: Up to 300 Mbps
Безжични функции • MU-MIMO: 5G 2 × 2 MU-MIMO DL
• Multiple SSIDs: 6
• Enable/Disable Wireless Radio
• Guest Network
• Enable/Disable SSID Broadcast
• Transmit Power Control
• RADIUS Accounting
• Mesh
• Beamforming
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Reboot Schedule
Безжична сигурност • VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
Предавателна мощност • FCC:
<22dBm (5 GHz, band 1/4)
Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada Controller.
Сигнали по електронна поща Yes
Управление Вкл/Изкл на LED Yes
SNMP v1, v2c, v3
SSH Yes
Уеб-базирано управление Yes
Zero-Touch Provisioning Yes
ДРУГИ
Сертификати CE, FCC, RoHS

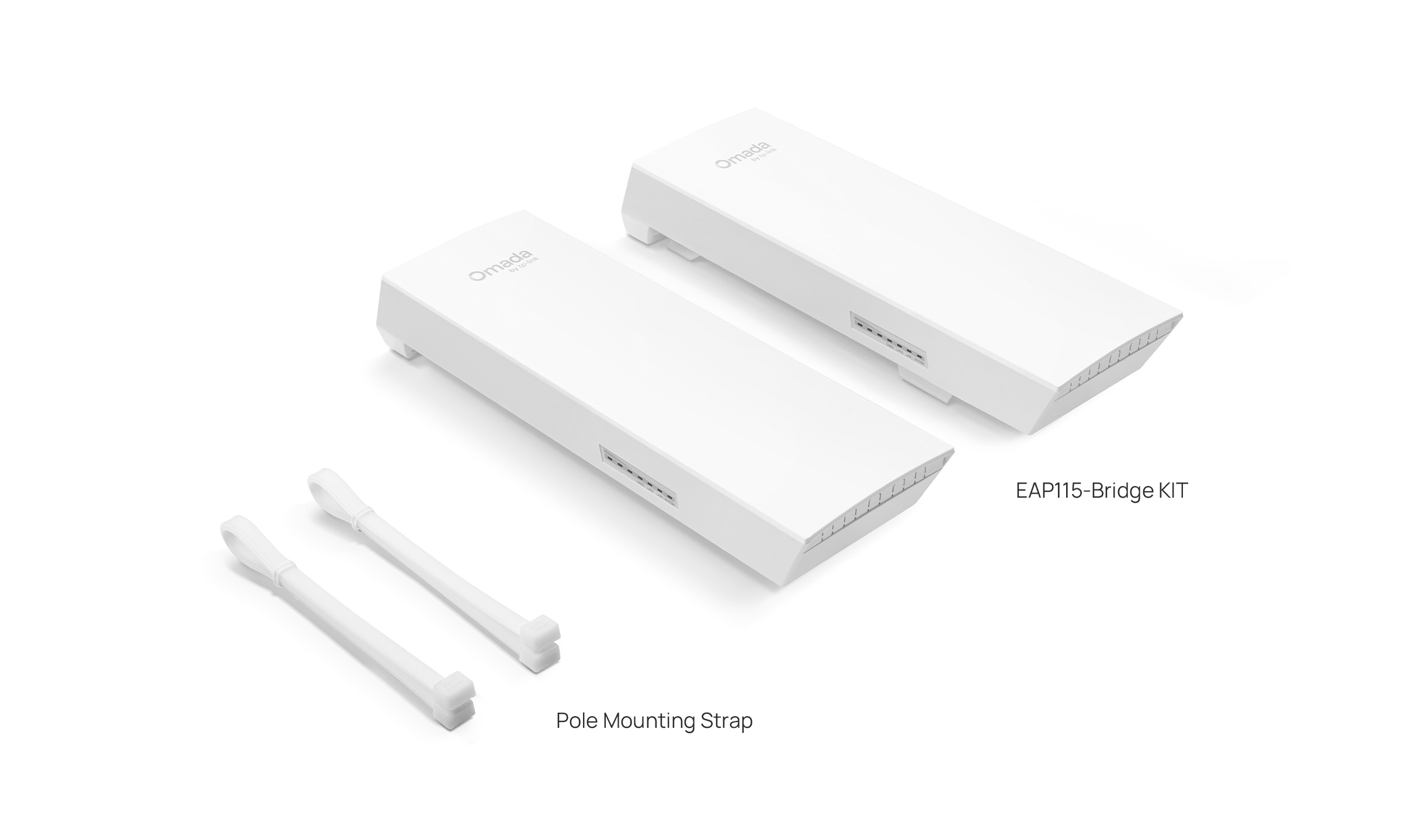

Съдържание на пакета • EAP115-Bridge KIT
• Installation Guide
• Mounting Kit
Lightning Protection • Air discharge: ±8kV
• Contact discharge: ±4kV
• Common mode 10/700: ±6kV
Околна среда • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing

 †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.

**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge's wired LAN ports.

§These functions require the use of an Omada controller.
