54Mbps Wireless G Router and USB Adapter Kit (Discontinued Product)
TL-WR54KIT

Highlights:

  • Wireless G speed up to 54Mbps, great for surfing the Internet, sending email or chatting online
  • Wireless router with matching USB adapter delivers superior performance, range
  • WDS provides seamless bridging to expand the wireless network
  • Easy Setup Assistant provides a quick & hassle free installation for novice users

Overview

What This Product Does

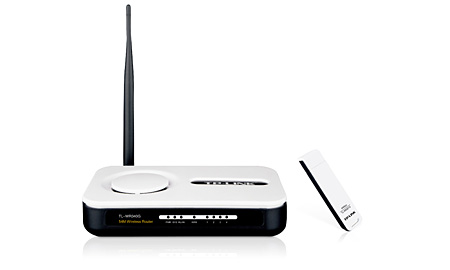

TL-WR54KIT is a 54Mbps wireless G network starter kit, including a Wireless Router (TL-WR340G) and a matching Wireless USB Adapter (TL-WN321G), which providing a reliable solution to share your Internet with multiple computers in your home or office. With TL-WR54KIT, you can also create a local area network for sharing documents, music and photos.

Standard G Speed

Complying with the IEEE 802.11g standard, TL-WR54KIT can establish a reliable wireless network with standard G speed up to 54Mbps. As the provided router and adapter can fully match each other, which provided superior performance, range to freely enjoy surfing the web, checking e-mail, and chatting with family and friends online.

Easy Installation

TL-WR54KIT comes with a CD with an Easy Setup Assistant for the installation, which leads you to install the router and adapter step-by-step, and even helps with wireless network settings and security configurations. The whole process is friendly to users and is convenient especially for the novice users.

Advanced Security (WPA/WPA2 Encryption)

As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside threats. Both the provided router and adapter support WPA/WPA2 encryptions that could effectively and efficiently protect your computer from outside threats.

Bandwidth Control with IP QoS

Among the wireless network, bandwidth-guzzling downloads by internal users often leave local network with insufficient bandwidth. TL-WR54KIT includes router TL-WR340G supporting IP QoS function, allowing optimum utilization of bandwidth for different applications’ smoothly running.

Features

  • Wireless G speed up to 54Mbps, good for surfing the Internet, sending email or chatting online
  • Easy Setup Assistant provides a quick & hassle free installation for novice users
  • WDS provides seamless bridging to expand the wireless network
  • Easily setup powerful and robust security to protect your network
  • Backward compatible with 802.11b/g products
  • Supports Windows 7/Vista/XP/2000 (TL-WN321G)
  • PSP X-Link connection for a joyful online gaming experience for Windows XP (TL-WN321G)

Specifications

HARDWARE FEATURES
Interface1 10/100Mbps WAN port, 4 10/100Mbps LAN ports (for TL-WR340G)
USB 2.0 Interface (for TL-WN321G)
External Power Supply9VDC / 0.6A
Dimensions ( W x D x H )160 x 102 x 28mm (for TL-WR340G)
86.5x 24 x11 mm (for TL-WN321G)
Antenna Type1 * 5dBi Fixed Antenna (for TL-WR340G)
Internal Antenna(for TL-WN321G)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11g, IEEE 802.11b
Frequency2.4-2.4835GHz
Signal Rate11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP<20dBm(EIRP)
Reception Sensitivity54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-WR340G, TL-WN321G
Power supply unit, Resource CD
Quick Installation Guide
System RequirementsWindows 2000, XP, Vista™ or Windows 7(For TL-WN321G)
Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS,
NetWare®, UNIX® or Linux. (For TL-WR340G)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Download

Some official firmware of TP-LINK products can be replaced by the third party firmware such as DD-WRT. TP-LINK does not provide technical support and does not guarantee the performance and stability of third party firmware. Damage to the product as a result of using third party firmware will void the product's warranty.
