Home » Products » Wireless » TL-WA500G

54Mbps eXtended Range™ Wireless Access Point (Discontinued Products)

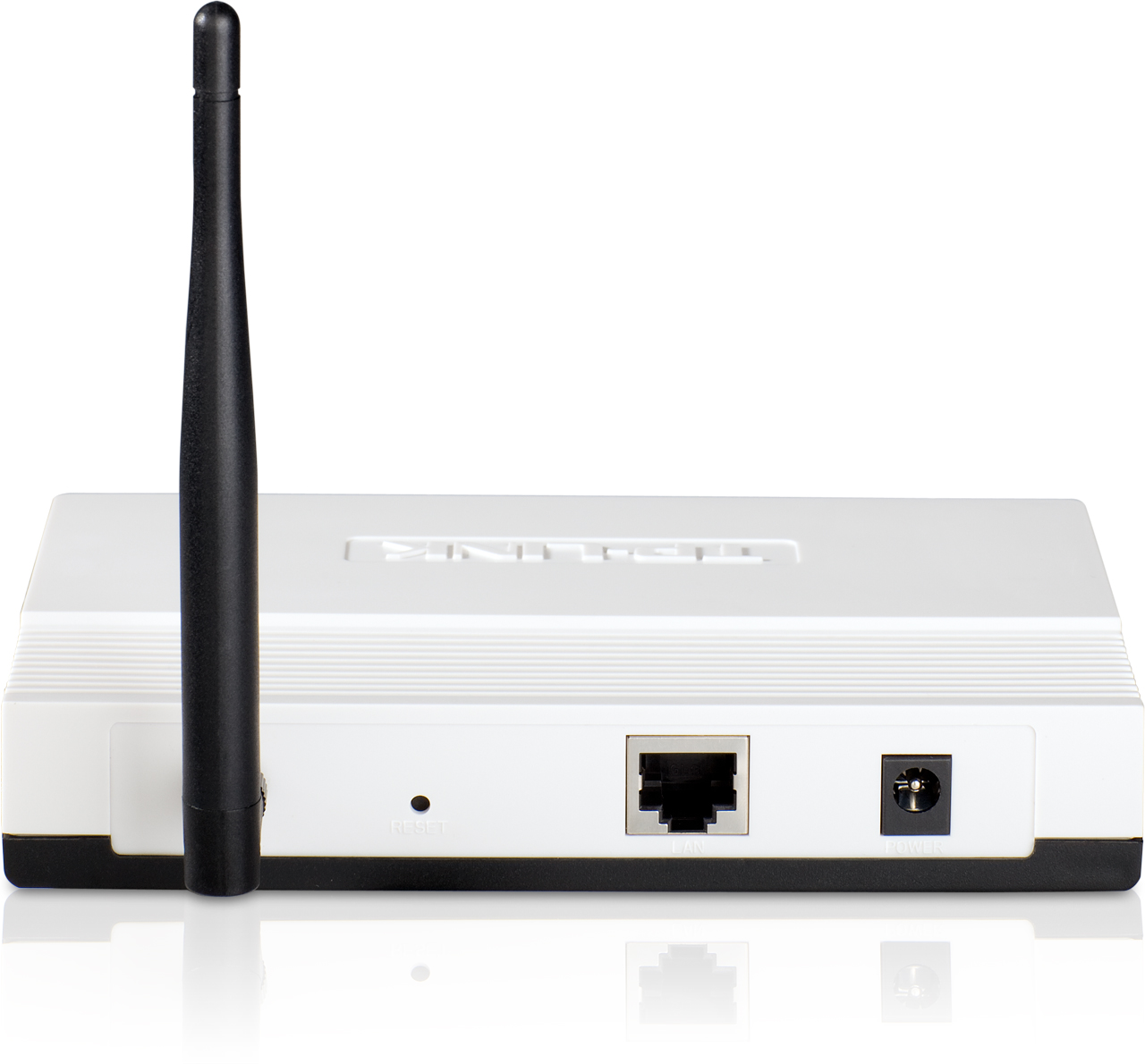

TL-WA500G

Highlights:

  • 54Mbps Wireless speed for basic Internet applications
  • Supports WDS, supports AP/AP Client/Repeater/Bridge/Multi-Bridge mode
  • Adopts 2x to 3x eXtended Range™ technology
  • Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector

Overview

What This Product Does

The TL-WA500G 54M eXtended RangeTM Wireless G Access Point is dedicated to Small Office/Home Office (SOHO) wireless network solutions. It is designed to establish a scalable wireless G network or to connect Ethernet enabled devices to an existing wireless network. It allows for greater range and mobility within your wireless network while also allowing you to connect the wireless devices to a wired environment. Increased mobility and the absence of cabling will be beneficial for your network.

eXtended Range™ - Boost to Further

The TL-WA500G 54Mbps Wireless Access Point complies with the IEEE 802.11g/b standards and adopts eXtended Range™ technology so that transmission range is 4 times that of traditional 11g/b solutions.

Multiple Operating Modes - Easy to Build WLAN

Supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone. In a word, the TL-WA500G is the all-in-one choice for your wireless networking!

Passive PoE Supported - More Flexible Deployment

The TL-WA500G is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

WPA / WPA2 Encryptions - Advanced Security

As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside threats. TL-WA500G provides WPA/WPA2 encryptions (Both Personal and Enterprises) that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN.

Detachable Antenna - Upgradeable to Your Desire

TL-WA500G offers 4dBi high gain external antenna that can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, such as long distance transmission, the antenna can be replaced with higher gain antennas to show even greater flexibility and wider wireless range.

Features

  • Wireless G speed up to 54Mbps, good for surfing the internet, email and online chat
  • eXtended Range™ delivers 4 times the range of the traditional 11g products
  • Supports AP Client Router, AP Router and AP operation mode
  • Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
  • AP Client mode makes your game console WiFi enabled for freely wireless gaming experience
  • Repeater mode (WDS/Universal) boost your signal to reach the previously unreachable area
  • Wireless bridge easily joins distant hard-to-wire places wirelessly
  • Provides WLAN ACL (Access Control List)
  • Supports configuration backup/restore and firmware upgrade
  • Supports remote management
  • Supports Wireless Roaming
  • Provides 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security and TKIP/AES encryption WLAN ACL (Access Control List)
  • Fully compatible with 802.11b/g products
  • Detachable antenna allows for higher gain antenna upgrades

Specifications

HARDWARE FEATURES
Interface1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)
ButtonReset Button
QSS Button for Quick Secure Setup
External Power Supply9VDC / 0.6A
Wireless StandardsIEEE 802.11b, IEEE 802.11g
Dimensions ( W x D x H )5.9x3.9x1.1in. (150x100x28mm)
Antenna Type4 dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency2.4-2.4835GHz
Signal Rate11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power<20dBm(EIRP)
Wireless ModesAP/AP Client/Repeater/
Universal Repeater/Bridge+AP
Wireless FunctionsWDS Bridge, Wireless Statistics
Wireless SecuritySSID Enable/Disable MAC Address Filter
64/128/152-bit WEP Encryption
WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
Advanced FunctionsUp to 30 meters PoE is supported
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-WA500G
1 detachable Omni directional antenna
PoE Power Injector
Power supply unit
Resource CD
Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Download

Some official firmware of TP-LINK products can be replaced by the third party firmware such as DD-WRT. TP-LINK does not provide technical support and does not guarantee the performance and stability of third party firmware. Damage to the product as a result of using third party firmware will void the product's warranty.
