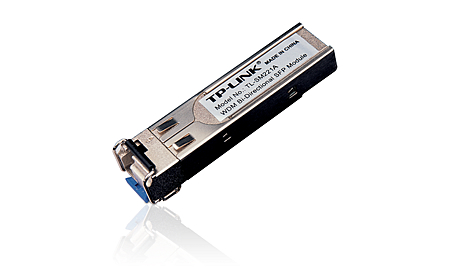

100Base-BX WDM Bi-Directional SFP Module (Discontinued Product)
TL-SM221A

Highlights:

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

Overview

What This Product Does

TP-LINK´s TL-SM221A adopts the latest standard 100Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 15Km with TP-LINK´s Switches or other equivalent devices to provide high speed and stability.

Features

  • Supports WDM Bi-Directional technology, using a single strand of fiber
  • TX: 1550nm / RX: 1310nm
  • Internal +3.3V Power Supply
  • In pairs with TL-SM221B
  • Plug-and-Play
  • Suitable: TL-SG2216WEB / TL-SG2224WEB and the other equivalent devices

Specifications

HARDWARE FEATURES
Fan QuantityFanless
MEDIA CONVERTER & MODULE
AC Power Supply
Standards and ProtocolsIEEE 802.3ah 100Base-BX, CSMA/CD, TCP/IP
Wave LengthTX: 1550nm / RX: 1310nm
Power Supply3.3V
CabelSingle-mode Fiber
Fiber Type9/125 um Single-mode
Max. Cable Length15km
Data Rate155Mbps
Port TypeLC
Safety & EmissionFCC, CE
EnvironmentOperating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
