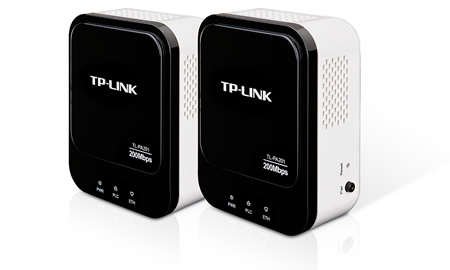

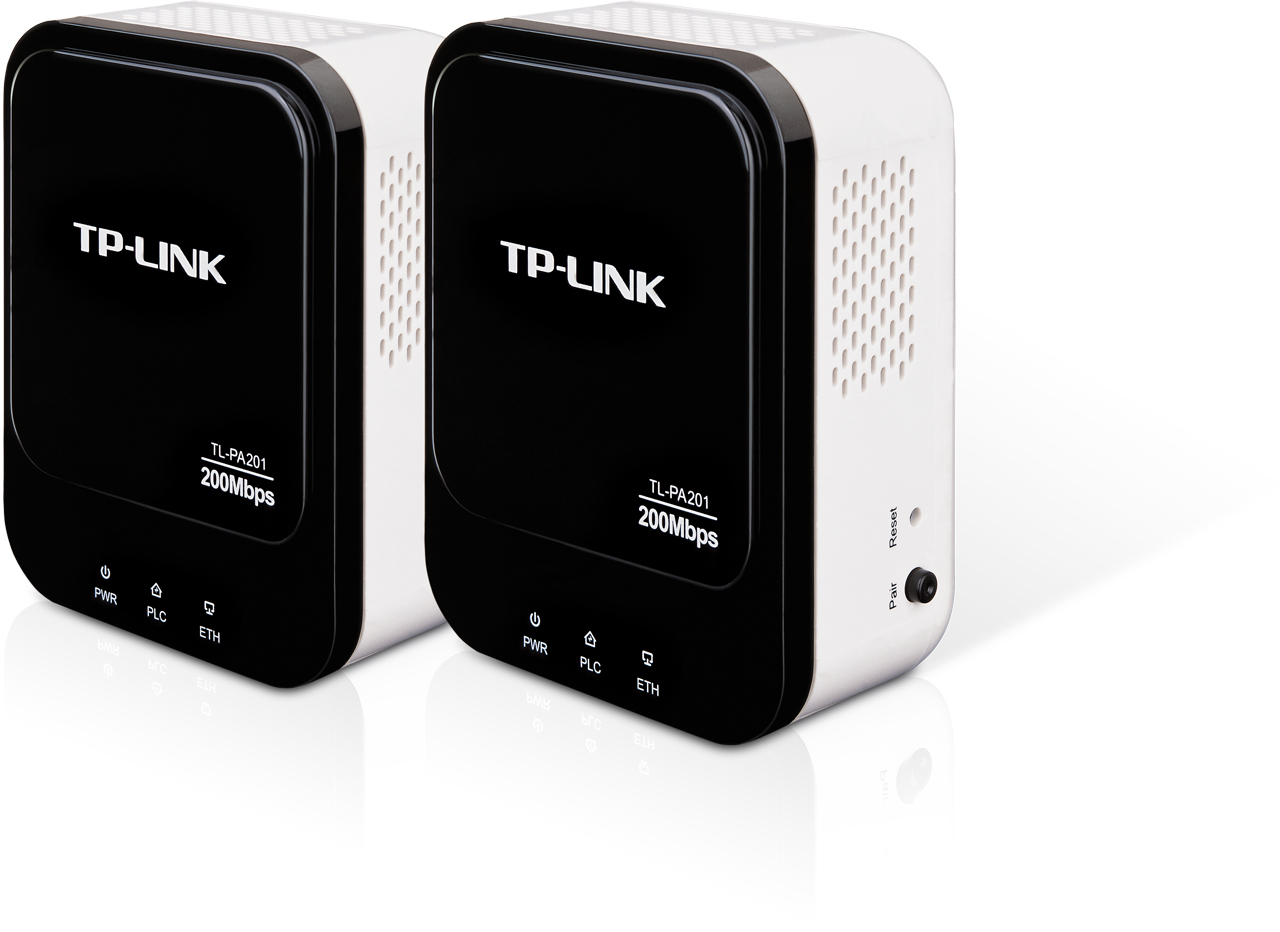

200Mbps Powerline Ethernet Adapter Starter Kit (Discontinued Product)
TL-PA201KIT

Highlights:

  • Quickly and easily establishes a network connection over the household electrical wiring
  • HomePlug AV standard compliant, high-speed data transfer rate of up to 200Mbps
  • Twin Pack design helps establish a powerline network initially
  • Easy Plug-N-Play operation, No configuration required
  • Patented power save mode automatically reduces power consumption by 65%*

Awards Close

  • COMPRA RECOMENDADA

    COMPRA RECOMENDADA
    TL-PA201KIT receives "COMPRA RECOMENDADA" (Recommended buy) award from PC Actual Magazine
    2010, Spain

  • Expert Reviews

    Expert Reviews
    TL-PA201KIT receives "Budget Buy" awards from Expert Reviews in UK
    2010, UK

  • Computer Shopper

    Computer Shopper
    TL-PA201KIT receives "Budget Buy" awards from Computer Shopper in UK
    2010, UK

Overview

Pair Button for Easy Network Security

Simply push the Pair button on the adapters and then you can set up a hassle-free Powerline network within minutes, which features 128-bit AES encryption for network security and data protection.




Green Product with Lower Power Consumption

The TL-PA201, a new-generation Powerline Adapter, consumes less power when compared with existing Powerline Ethernet Adapters. Moreover, when there is no Ethernet link, it will automatically switch from its regular "working" power mode to standby mode that reduces energy waste by over 65%* when compared to adapters without this feature.

No New Wires, Just Plug And Play

No configuration required, just connect your PC to a powerline adapter and plug it into a power outlet and instantly transform your household power grid into a fully functional network, with no need to drill through the walls and climb through the attic or cellar to install network cables. Messy cabling and wireless dead spots are now things of the past.



Twin Pack Design

The PLC connection is transmitting the data through the electric wire between two outlets, so it at least requires two PLC adapters pluged into the outlet to transform the data streaming. With twin pack design, the starter kit ensures to establish a powerline network for the first time.

Up to 200Mbps, Ideal for High Definition Video Streaming

With advanced HomePlug AV technology, TL-PA201 provides users with stable and high-speed data transfer rates of up to 200Mbps. TL-PA201 features an easy-to-use interface for configuring Quality of Service options, supports multiple streams of HD video as well as popular Voice over IP (VoIP) throughout the home or office.

What This Product Does

Establishing a powerline network requires at least two PLC adapters for the first time, the TP-LINK Powerline Ethernet Adapter Starter Kit is good for initially setup which including two same adapters -TL-PA201. It takes advantage of your home´s existing electrical wiring to create or extend a network. With no additional wiring required, users can simply plug the TL-PA201 into existing power sockets and establish networking infrastructure in a flash. With data transfer rates of up to 200Mbps, you can expand your current home power lines network and experience blinding transfer speeds. Now, enjoy HD video streaming, online gaming, VoIP or any other high bandwidth intensive tasks such as multiple downloads available in minutes instead of hours.

Features

  • No new wires, use existing electrical wiring to build high speed network connection
  • Easy Plug-N-Play operation, No configuration required
  • Patented power save mode automatically reduces power consumption by 65%*
  • Establish a 128-bit AES encryption to secure power-line communications simply by pressing the Pair button on the adapter
  • Built-in QoS, prioritizes data, enabling smooth video streaming and lag-free gaming
  • Up to 300 meters range over the household power circuit for better performance through walls or across floors
  • Supports IGMP managed multicast IP transmission, optimizes IPTV streaming
  • Intelligent channel adaptation maximizes throughput under harsh channel conditions
  • A wide range of plug type including EU, UK, AU and US ensures that it can be used nearly all over the world

Specifications

HARDWARE FEATURES
Standards and ProtocolsHomePlug AV 200Mbps,IEEE 802.3,TCP/IP
Interface10/100Mbps Ethernet Port
Plug TypeEU, UK, AU, US
ButtonPair Button
Reset Button
Weight125 Grams
LED IndicatorPWR, PLC, ETH
Dimensions ( W x D x H )3.6×2.8×1.7 in.(92×70×44 mm)
Power Consumption< 4 W
Range300M in house
SOFTWARE FEATURES
Modulation TechnologyOFDM
Advanced FunctionsBuild-In Qos Feature,
Intelligent Channel Adaptation
Encryption128bit AES
OTHERS
CertificationCE, FCC, RoHS
Package Contents200Mbps Powerline Ethernet Adapter x 2,
Ethernet cable (RJ45),
Resource CD
Quick Installation Guide
System RequirementsWindows 2000/XP/2003/Vista, Windows 7, Mac, Linux
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
