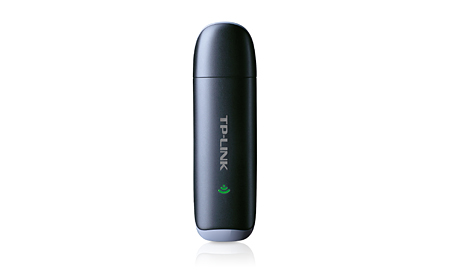

3.75G HSUPA USB Adapter
MA180

Highlights:

  • Up to 7.2Mbps download and 5.76Mbps upload (Network Type: WCDMA)
  • Micro SD card slot for up to 32GB of optional storage
  • Bundled utility provides quick & hassle-free installation
  • Internal antenna, no batteries or cables required
  • Fast USB 2.0 connection to notebook/desktop computers

Overview

What This Product Does

TP-LINK’s 3.75G HSUPA USB Adapter, MA180 allows users to acquire 3G mobile broadband access simply by inserting a standard SIM card into the adapter and plugging it into their laptop or desktop computers. It supports the latest 3.75G HSUPA technology, which provides improved data transfer rates. Equipped with its internal antenna, micro SD card slot and SIM card slot, the MA180 is a great choice for users to connect to the Internet in locations that are unable to receive conventional broadband. You can enjoy quick and easy access to email, the Internet or business applications on your laptop while on the go.

High Speed Data Transfer - Up to 7.2Mbps download and 5.76Mbps upload

With Up to 7.2Mbps download and 5.76Mbps upload speeds, the MA180 gives users a fluid Internet surfing experience. The device’s high upload speed allows users to quickly send large files, such as e-mail with attachments, photos or business documents.

Micro SD Card Slot - Up to 32GB of Optional Storage

MA180 is equipped with a micro SD card slot that’s compatible with SD Cards with capacity up to 32GB allowing users to use MA180 as a 3G USB modem and a USB memory stick at the same time.

Bundled Utility - Quick & Hassle-Free Installation

Using the MA180’s bundled utility, users can get connected and enjoy the Internet in as little as two steps.
1. Insert the MA180 3G USB Adapter

2. Run Utility – And you‘re connected!

Features

  • Up to 7.2Mbps download and 5.76Mbps upload (Network Type: WCDMA)
  • Micro SD card slot for up to 32GB of optional storage
  • Bundled utility provides quick & hassle-free installation
  • Internal antenna, no batteries or cables required
  • Fast USB 2.0 connection to notebook/desktop computers
  • Take your Broadband connection with you wherever you go
  • Supports Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit
  • Provides HSUPA/HSDPA/UMTS/GPRS/GSM/EDGE network support

Specifications

HARDWARE FEATURES
Standards and ProtocolsWCDMA Network
InterfaceUSB 2.0
Data RatesDL: 7.2 Mbps, UL: 5.76 Mbps
LED IndicatorTwo-color LED provides status information
Dimensions ( W x D x H )3.89 x 1.09 x 0.55 in. (99 x 28 x 14 mm)
Antenna TypeInternal antenna
GSM Band850/900/1800/1900 MHz
HSUPA Band2100 MHz
Micro SD Card ReaderSupports standard Micro SD cards up to 32 GB
SIM SlotStandard 6-Pin SIM card interface
OTHERS
CertificationCE, FCC, RoHS
Package ContentsMA180 3.75G HSUPA USB ADAPTER
Quick Installation Guide
System RequirementsWindows 7 (32/64bits), Windows Vista (32/64bits), Windows XP (32/64bits)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
