54Mbps Wireless AP/Client Router (Discontinued Product)
TL-WR543G

Highlights:

  • Establish a 54Mbps wireless connection, sharing Internet access, downloading file or playing games
  • Supports WISP client router mode
  • WDS wireless bridge provides seamless bridge to expand wireless network
  • External detachable antennas allow for better alignment and stronger antenna upgrades

Awards Close

  • Best design

    Best design
    TL-WR543G won Best design of the Techlabs laboratory
    2008, Russia

  • Computer World Magazine

    Computer World Magazine
    TP-LINK´s TL-WR543G won 2007 IT Product of the Year in Czech Computer World Magazine
    2007, Czech

Overview

What This Product Does

54Mbps Wireless AP/Client Router TL-WR543G is dedicated to Small Office / Home Office (SOHO) allowing you to create a better wireless connection than ever, sharing Internet Access, online-gaming or video streaming. Also, TL-WR543G supports WDS wireless bridge offering seamless bridging to expand your network coverage, making it convenient for you to pick up the signal during different rooms or offices. Specially, it features AP Client Router Mode, which supports WISP connection by PPPOE, Dynamic or Static IP, making the wired computer sharing the local network.

4X Range–eXtended Range Technology

TL-WR543G complies with the IEEE 802.11g/b standards and adopts 2x to 3x eXtended Range WLAN transmission technology so that transmission distance is 2 -3 times that of traditional 11g/b solutions, up to 855.36m tested in China. That is to say, transmission range is extended to 4-9 times, which could effectively improve wireless performance.

Multiple Working Modes

As well as conventional router, TL-WR543G offers AP Router Mode, providing PPPOE, Dynamic or Static IP connection, etc, with built-in NAT and DHCP server. Besides AP Router Mode, TL-WR543G features AP Client Mode so that the local computer can access internet with WISP connection. Therefore, various working mode can satisfy different areas for wireless performance.

WPA / WPA2 Encryptions

As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside threats. TL-WR543G provides WPA/WPA2 encryptions (Both Personal and Enterprises) that are created by the WI-FI Alliance industry group, preventing your network from outside intrusions efficiently.

Detachable Antenna

TL-WR543G offers 5dBi external antenna that can be rotated and adjusted in different directions to fit various operation environments, and can bring better performance than the internal antenna. For even more demanding applications, the detachable antenna can be replaced with diverse antennas to show even greater flexibility and wider wireless coverage.

Features

  • 54Mbps transmission rates, better for wireless network surfing or downloading
  • Adopts 2x to 3x eXtended range technology for wider wireless coverage
  • WDS wireless bridge provides seamless bridging to expand your wireless network
  • Working at the AP Client Mode that supports WISP connection
  • QoS assures the optimum utilization of bandwidth for fear of bandwidth abuse
  • Supports PPPOE, Dynamic IP, Static IP, L2TP, PPTP and BigPond Cable internet access
  • Built-in firewall supporting IP/MAC address and domain filtering to control certain network access
  • Easy Setup Assistant provides quick & hassle free installation
  • Compatible with all the 802.11b/g products
  • External detachable antennas allow for better alignment and stronger antenna upgrades

Specifications

HARDWARE FEATURES

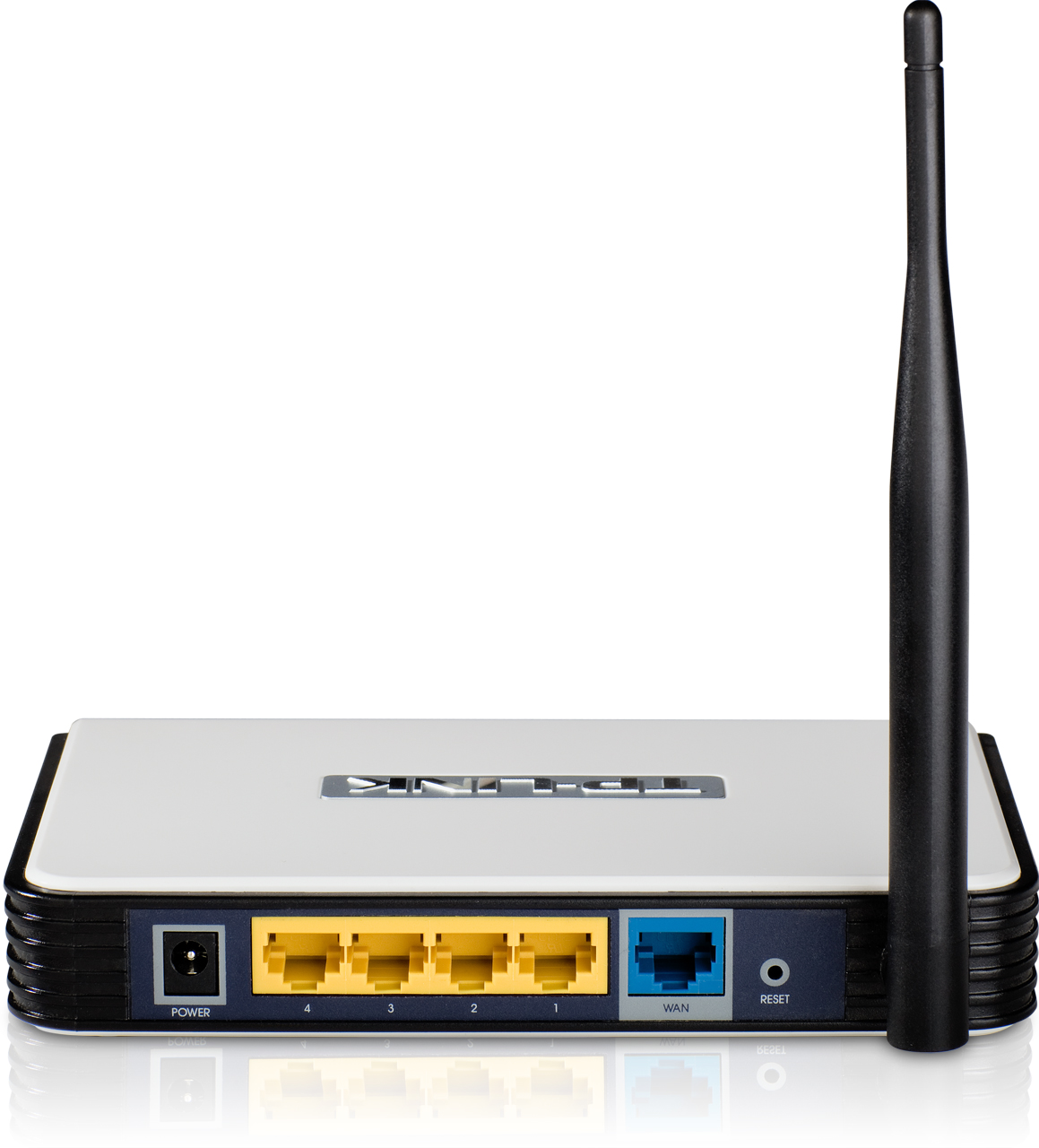

Interface4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
ButtonReset Button
External Power Supply9VDC/0.6A
Wireless StandardsIEEE 802.11g, IEEE 802.11b
Antenna5dBi Detachable Omni-Directional (RP-SMA)
Dimensions ( W x D x H )6.9 x 4.4 x 1.2 in. (174 x 111 x 30mm)
WIRELESS FEATURES
Frequency2.4-2.4835GHz
Signal Rate11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP<20dBm(EIRP)
Reception Sensitivity54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless ModesAP Router Mode(with WDS)
AP Client Router Mode (WISP Client)
Wireless FunctionsEnable/Disable Wireless Radio, WDS Bridge
Wireless Security64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN TypeDynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
DHCPServer, Client, DHCP Client List,
Address Reservation
Quality of ServiceBandwidth Control
Port ForwardingVirtual Server,Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, Comexe, PeanutHull
VPN Pass-ThroughPPTP, L2TP, IPSec (ESP Head)
Access ControlParental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall SecurityDoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
ManagementAccess Control
Local Management
Remote Management
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-WR543G
1 detachable omni directional antenna
Power supply unit
Resource CD
Quick Installation Guide
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Download

Some official firmware of TP-LINK products can be replaced by the third party firmware such as DD-WRT. TP-LINK does not provide technical support and does not guarantee the performance and stability of third party firmware. Damage to the product as a result of using third party firmware will void the product's warranty.
