TD-VG3631

End of Life

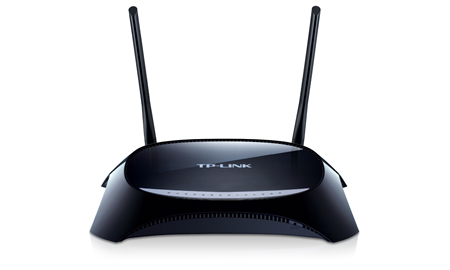

300Mbps Wireless N VoIP ADSL2+ Modem Router

  • All-in-One Device: ADSL Modem, NAT Router, Wireless N Access Point and VoIP Gateway
  • 4 10/100Mbps auto-negotiation LAN Ports, 1 DSL Port, 1 FXO Port, 2 FXS Ports
  • Various call features such as caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail
  • 2 USB 2.0 Ports for storage sharing, printer sharing, FTP Server, Media Server and Voice Mailbox

What This Product Does

TP-LINK's TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router is the ultimate in home or office connectivity devices offering a plethora of functionality in one robust product. The device provides users with the ability to access and share an internet connection, using a wired or 300Mbps wireless connection. With its VoIP functions, users can save on phone costs using traditional land lines or VoIP telephony services with caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voice mail functionality. Additionally, using the device's 2 USB sharing ports, users can share printers, files and media across the network or around the world with ftp functions as well as add USB storage to enable voicemail functions.

Office in a Box – All in one device

With ADSL2+ modem, 300Mbps wireless AP and VoIP telephony, the TD-VG3631 is everything your office needs to be fully connected. Users can share a high-speed wireless internet connection while holding conference calls and saving costs on long distance calls.

VoIP or Land Lines? You Choose

With 1 FXO Port and 2 FXS Ports, users can make the transition to VoIP with little to worry about in terms of backward compatibility with traditional land line phones. With the ability to access both VoIP networks and traditional land lines, users have the convenience of both worlds.

Complete Telephone Functionality

The TD-VG3631 is a fully functional telephony device supporting caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail functions, ensuring that users have access to all the features that they would enjoy with traditional telephone services while providing them with better management capabilities for those features.

Versatile USB Sharing Ports

Using the TD-VG3631's multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device's ftp server functions so that you never have to part with your files. Users have the added benefit of adding voicemail functionality to their device with attached USB storage that they can access over the internet.

Interchangeable LAN/WAN Port - Versatile Connectivity

The TD-VG3631 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

HARDWARE FEATURES
Interface 4 10/100Mbps RJ45 Ports
4 RJ11 Ports
2 USB 2.0 Ports
Button 1 Power On/Off Button
1 WPS Button
1 Wi-Fi On/Off Button
1 RESET Button
External Power Supply 12VDC/1.5A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 256× 177× 51 mm (10.1× 7.0× 2.0 in.)
Antenna Type Omni directional, Detachable, Reverse SMA
Antenna Gain 2 x 5dBi
VOIP Standards SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service Bandwidth Control
Advanced Features Ethernet WAN (EWAN)
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt
VBR-nrt
Dynamic Host Conguration Protocol (DHCP), DHCP relay
Network Address Translation (NAT)
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional)
DNS Relay, DDNS
IGMP snooping V1/2
IGMP Multicast
UPnP
Security NAT Firewall
SPI Firewall
MAC / IP / Packet / URL Filtering
Management Web Based Configuration(HTTP)
Remote management
Telnet management
Command Line Interface
SSL for TR-069
SNMP v1/2c
SNMP over EOC
Web Based Firmware Upgrade
CWMP(TR-069)
Diagnostic Tools
Port Forwarding Virtual server, DMZ, ACL(Access Control List)
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM Features ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
VOIP Features Two RJ-11 FXS ports for connecting to regular telephones
One RJ-11 FXO port for PSTN Fixed-line
Call forwarding, Call waiting, Voice activity detection (VAD), 3-way conference call, etc.
USB Voicemail
USB Sharing Storage Sharing
FTP Server
Media Server
Print Server
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N VoIP ADSL2+ Modem Router
TD-VG3631
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Telephony Feature Guide
Quick Installation Guide
Resource CD
Power Adapter
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
