M5350

End of Life

3G Mobile Wi-Fi

  • Equipped with a built-in 3G modem - No other bulky devices required
  • HSPA+ supported with up to 21.6Mbps download and 5.76Mbps upload speeds
  • Powerful 2000mAh battery is ideal for extended hours of outdoor use
  • Supports up to 10 users simultaneously

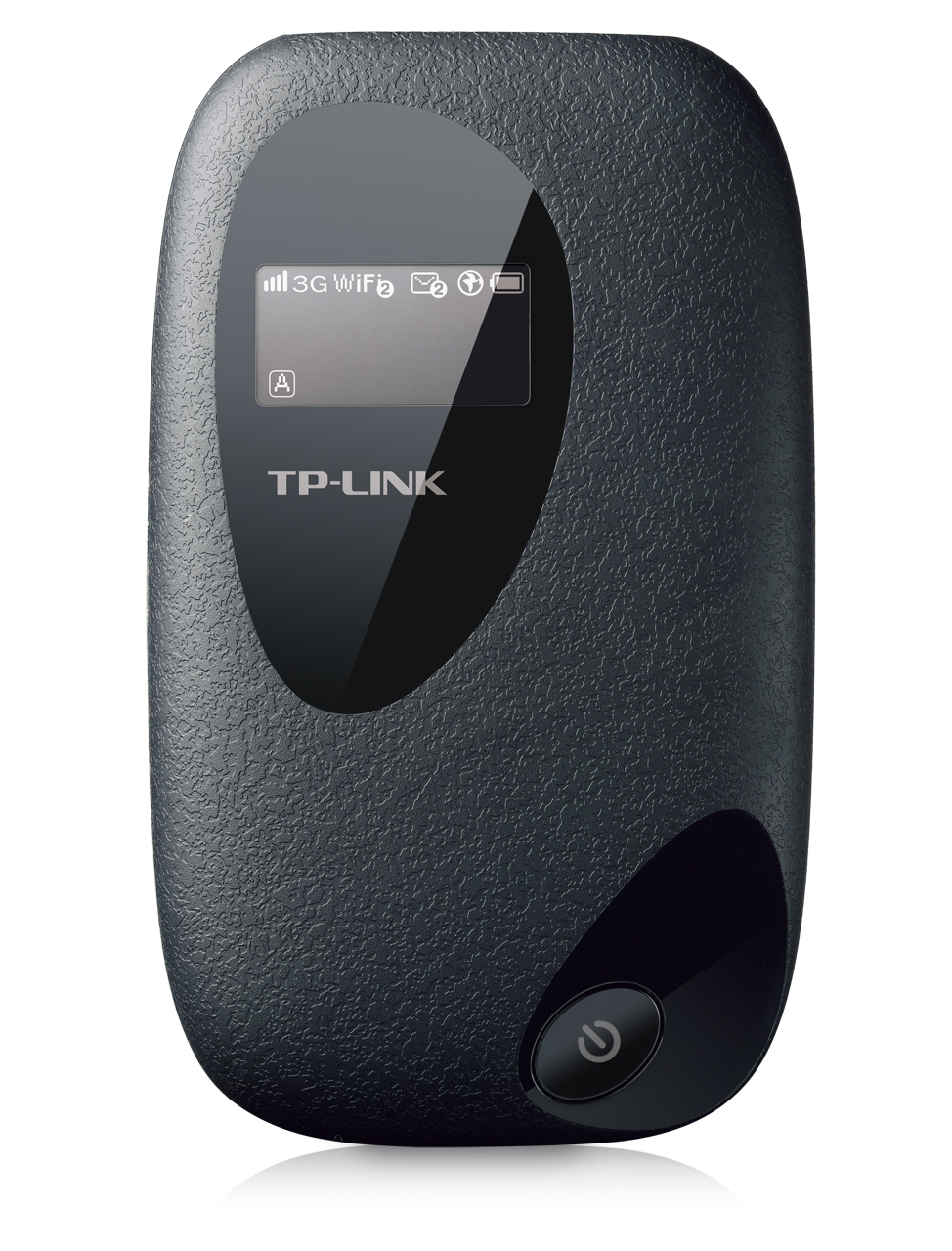

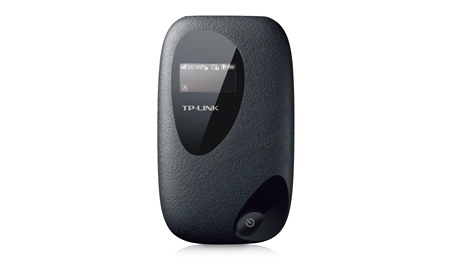

  • 3G Mobile Wi-Fi - M5350



Easy 3G sharing

TP-LINK’s M5350 is at the forefront of wireless 3G sharing. Equipped with an internal WCDMA supported 3G modem, simply insert a SIM card and a Wi-Fi hotspot is instantly created – No other bulky devices required.

Micro Card Slot – providing optional storage of up to 32G

High Download Speed of up to 21.6Mbps

Supporting HSPA+ 3G broadband connections, the M5350 can reach up to 21.6Mbps download speed and 5.76Mbps upload speed, providing users with a fast, fluid and enjoyable Internet surfing experience.

Download Speeds/Mbps

*Actual wireless speeds may vary due to different user environments.

2000mAh Internal Battery
Made to Move

With its powerful 2000mAh battery, the M5350 is able to operate for 6-7 hours at full capacity and be flexibly recharged via a micro USB cable to a laptop, portable charger or included adapter for endless hours of 3G sharing.

*Under tests with one user connected to the M5350 downloading large files or watching videos. Results may vary for normal internet surfing applications or multiple users as well as the quality of the 3G connection.

Wireless Sharing with Multiple Users Simultaneously

The M5350 can provide wireless connections to up to 10 users simultaneously, thus you can share 3G broadband connection with your family and friends.

*Actual wireless speeds may vary due to different user environments.

10users

OLED Display Provides at-a-glance Information

With a compact case and innovative cobblestone design, featuring an embedded OLED display, the M5350 provides a much more intuitive view of the device’s working status, such as signal strength, net-work type (2G/3G), Wi-Fi status and numbers of active users, message, Internet connection status, battery meter, auto mode and traffic statistics.

  • Signal Strength
  • Network Type (2G/3G)
  • Numbers of Active Users
  • Received Messages
  • Internet Connection Status
  • Battery Meter
  • Auto Mode
  • Traffic Statistics

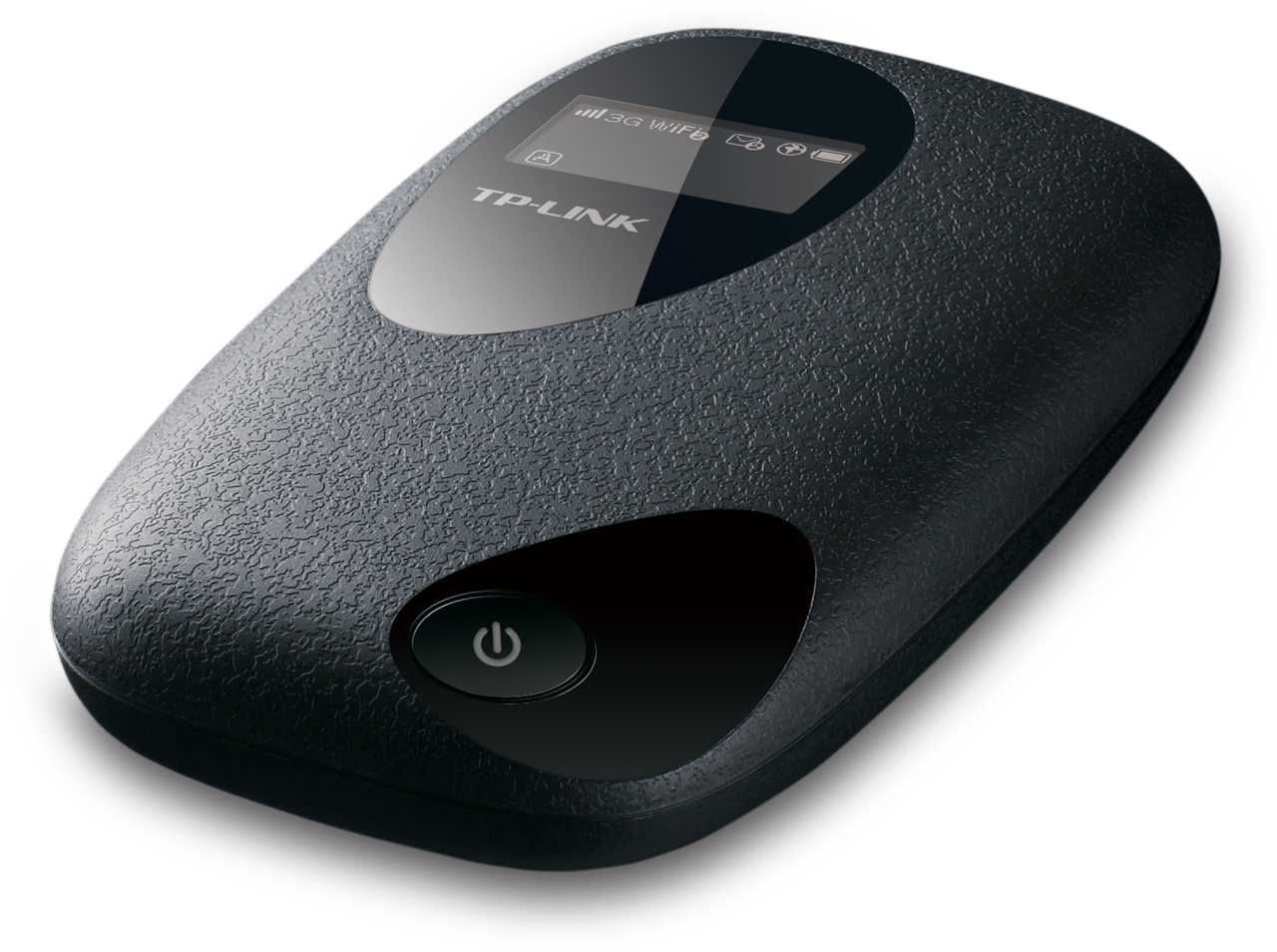

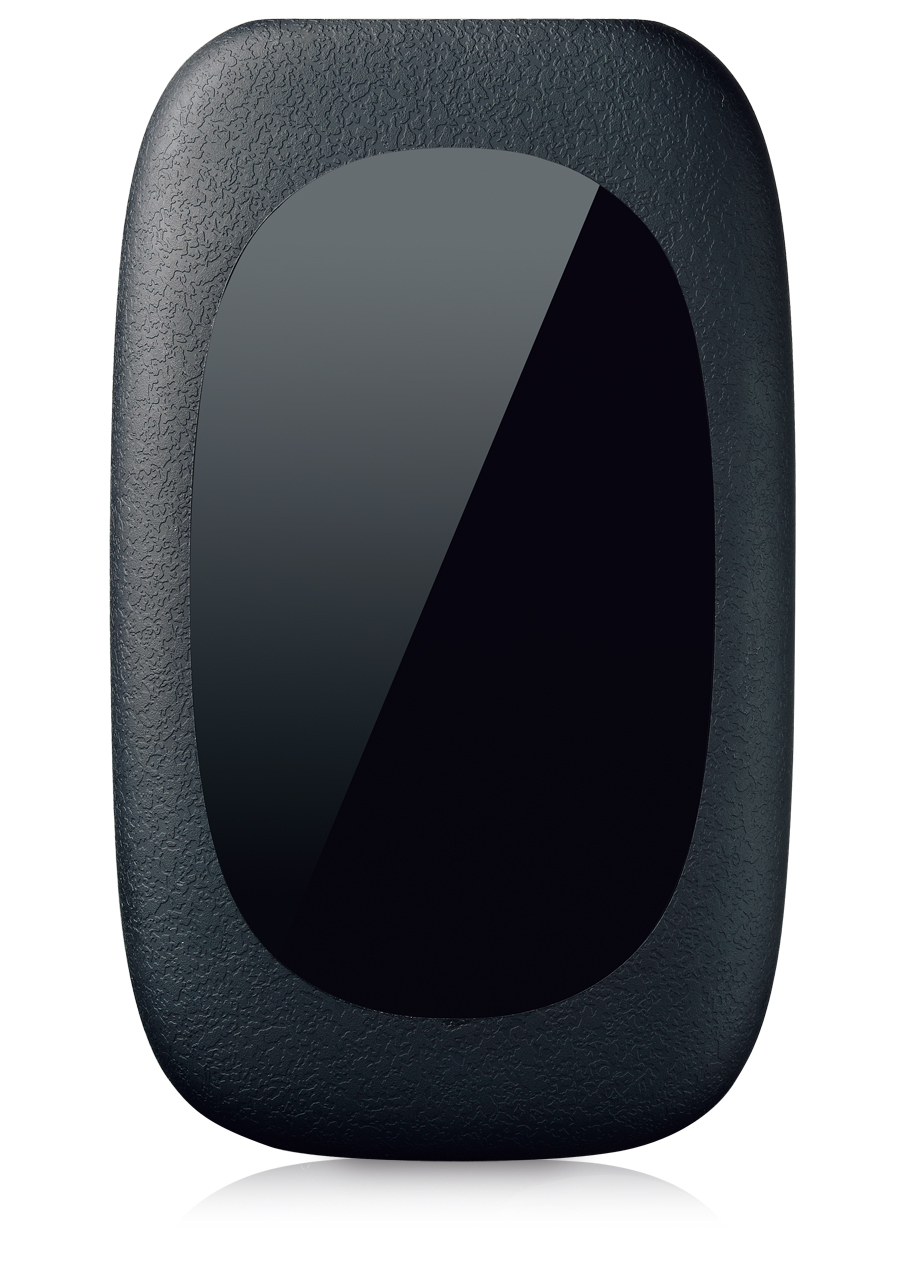

Innovative Cobblestone Design

The M5350, informally named “Pebble” is modeled after a sea-eroded stone. Beyond its aesthetic appeal, the slightly rugged nature of the device’s exterior, combined with its curved shape make it mold perfectly into the average palm. This sleek and exquisite device has until now received two awards for its innovative design, namely the iF Design Award and International CES Innovations 2013 Design and Engineering Awards.

HARDWARE FEATURES
Interface 1 micro USB port for power supply
SIM Card Slot
Micro SD card Slot
Button Power On/Off Button
Reset Button
Power Supply Internal 2000mAh Rechargeable Battery
Network Type 3G: DC-HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)
Data Rates DL: 21.6Mbps, UL:5.76Mbps
Dimensions ( W x D x H ) 3.7×2.2×0.8in.(94×56.7×19.8mm)
Antenna Internal Antenna
Micro SD Card Reader up to 32G
Band WCDMA:2100/900MHz
GSM: 850/900/1800/1900MHz
OLED Display Singal strength, Network type, Wi-Fi status, Message, Internet connection status, Battery meter, connection mode and Traffic Statistics
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.4-2.4835GHz
Transmit Power <20dBm
Wireless Security Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP DHCP server, DHCP Client List
OTHERS
Certification CE, FCC, RoHS
Package Contents 3G Mobile Wi-Fi M5350
Battery
Micro USB Cable
Micro to Standard SIM Card Adapter
Nano to Standard SIM Card Adapter
Quick Installation Guide
System Requirements Windows 10/8/7/vista/XP,Mac OS, Android, iOS, Windows phone
Weight 92.5g (battery included)
Awards
  • iF Design Awards
    M5350 won iF design awards from IF in Germany
    2012, Germany
  • Reddot Award
    M5350 received "red dot" design awards in Germany.
    2013, Germany
  • GOOD
    M5350 won award (good) from PC Magazin in Germany.
    2013, Germany
  • Editor Choice
    M5350 received the ‘Editor Choice’ award from Micro Mart in UK
    2013, UK
  • HWM Magazine
    M5350 won the Gold Award from HWM magazine in Malaysia
    2013, Malaysia
  • Editor's Choice
    M5350 won "Editor's Choice" from WASD in Romania
    2013, Romania
  • RECOMMENDATION
    M5350 was recommended by Computer Shopper UK
    2015, UK

† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
